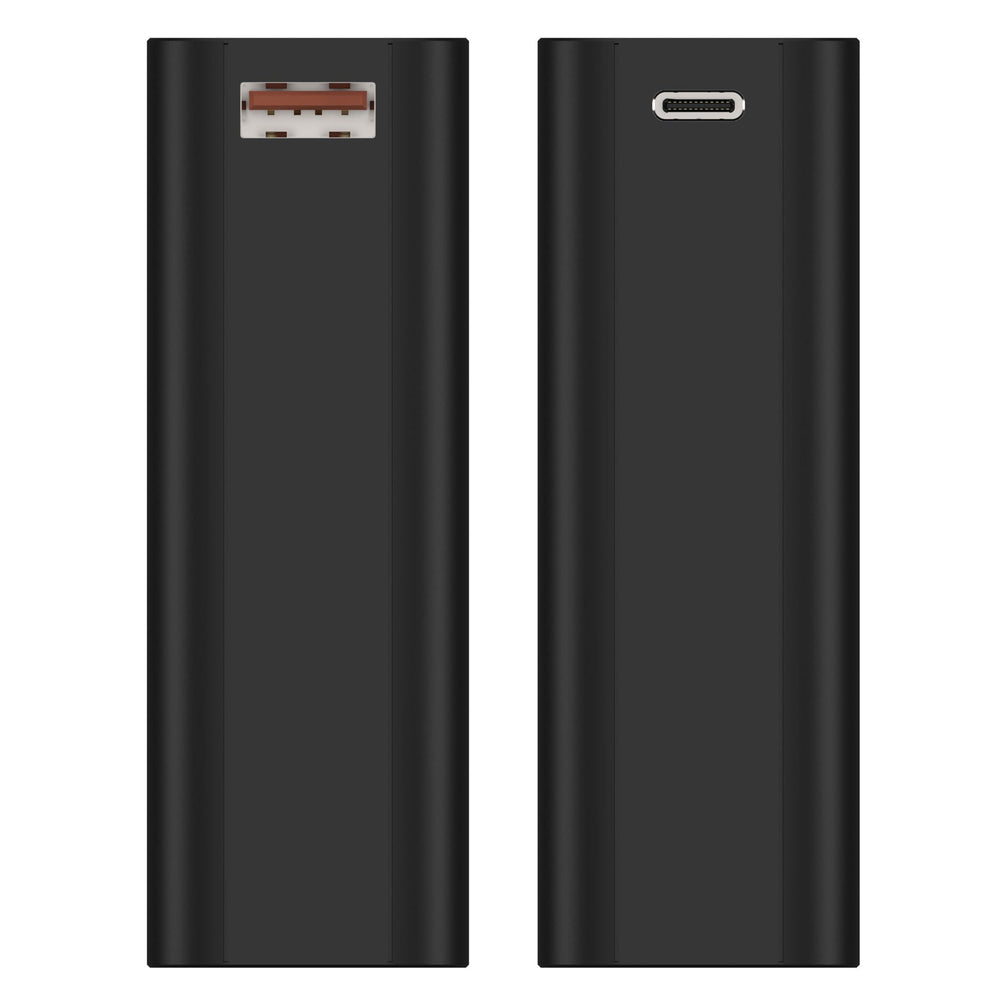

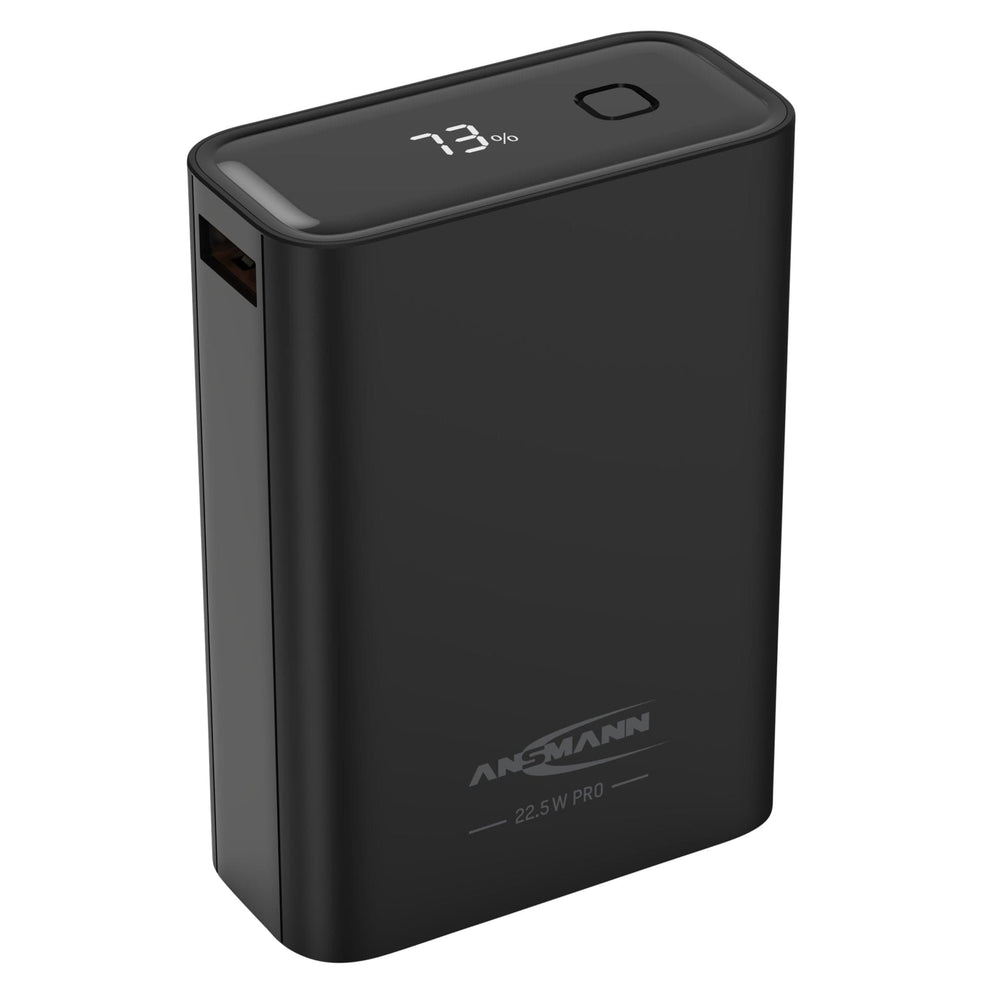

This isANSMANN'sPB222PD 20,000 22.5W PD (power Delivery) power bank, providing 1x USB-A and 1x USB-C output ports, and a USB-C input port for recharging. It's capable of powering USB devices up to22.5W, supporting Power Delivery (PD), PPS, Quick Charge 3.0 and Huawei Supercharge.

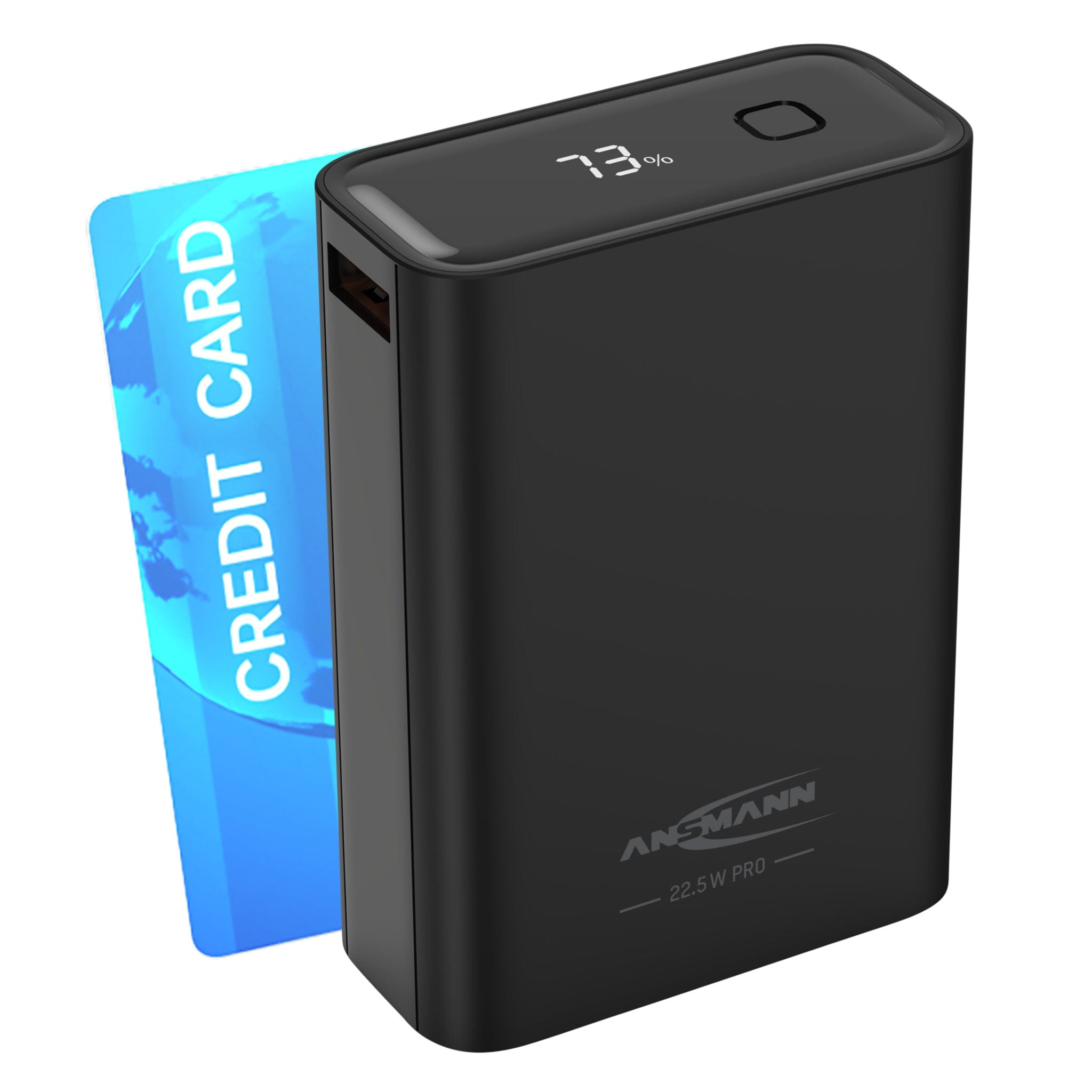

It's the big brother of the10,000mAh version, but still one of the most compact in its class, including a neat display on the front.
It features a large 20,000 capacity and maximum output current of 4.5A (at 5V), and is able to power/charge 5V, 9V and 12V devices (consider aPower Bank Keepaliveif your project runs on a very low current draw, to stop your power bank turning off automatically).

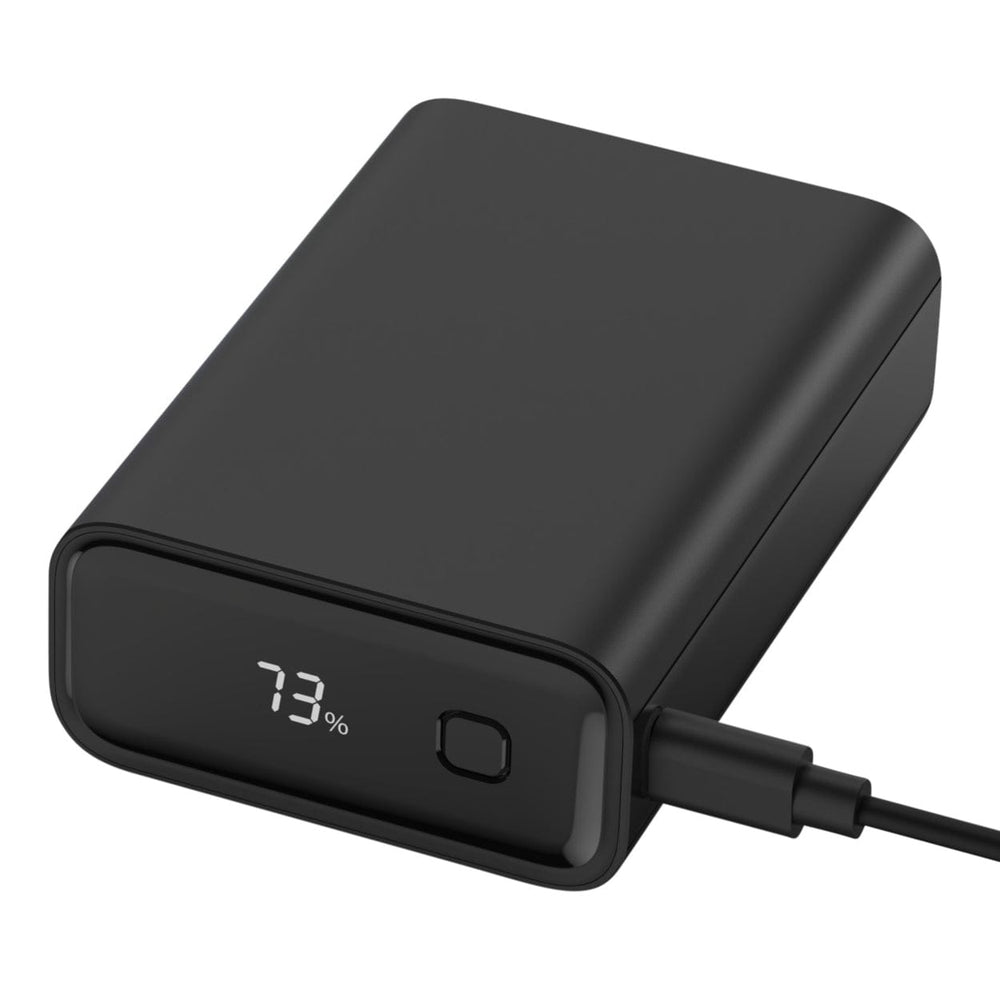

The power bankcomes with a short USB-C cablefor recharging, with fast chargers (QC or PD) allowing for particularly quick charging of the power bank.
Charging Currents
Mode
Voltage range
Max. charging current
Maximum power
USB-A
5.0 V DC
4.5 A
22.5 W
USB-A
9.0 V DC
2.0 A
18.0 W
USB-A
12.0 V DC
1.5 A
18.0 W
USB-C
5.0 V DC
3.0 A
15.0 W
USB-C
9.0 V DC
2.2 A
20.0 W
USB-C
12.0 V DC
1.7 A
20.0 W
USB-C PPS
3.3 - 11.0 V DC
2.0 A
22.0 W
USB-A + USB-C
5.0 V DC
3.0 A
15.0 W
Multi Safe Technology
With ANSMANN you play it safe. The integrated over-charging protection ensures that the Power bank stops the charge process automatically once charging has been successfully completed.
The deep discharge protection switches the Power bank off as soon as the voltage of the Power bank drops below a defined value when charging the connected device, thus preventing damage to both the rechargeable battery and the product. The short-circuit protection completes the safety functions and ensures maximum safety along with the automatic shut-off.

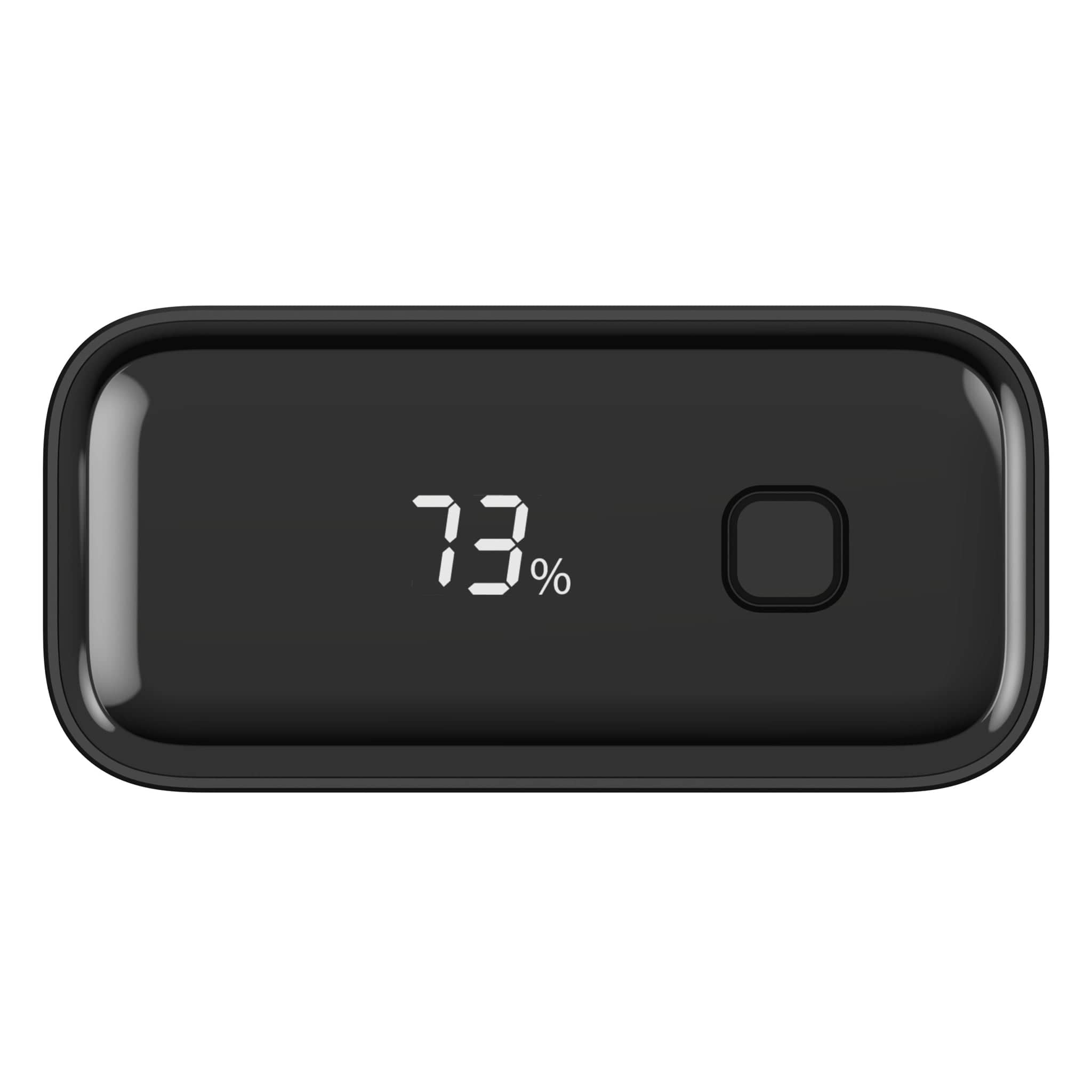

LED capacity indicator
The charge level indicator can be activated at the touch of a button, providing information about the current capacity in percent via the discreet digital LED display.
Lithium Battery Shipping:Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited to DHL.Why?
Features
20,000mAh lithium-polymer power bank
Up to 22.5W max output
USB-C input and output
USB-A output, supports Quick Charge 3.0 and Huawei SuperCharge
USB-C supports Power Delivery up to 20W and PPS support up to 22W
Maximum output current: 4.5A
Digital LED display with percentage charge indicator
Automatic voltage detection and charge current regulation
Overcharge, overcurrent, overvoltage and short-circuit protection
Compact size: 8.8 x 6.3 x 3cm
Weight: 0.32kg
Specifications
Ports entrance
USB Type-C
Ports output
USB Type-C, USB-A
Energy
77 Wh
Output voltage
5 - 12V DC
Functions
Automatic voltage detection, charging current regulation, overcharge protection, overcurrent protection, overvoltage protection, short circuit protection
