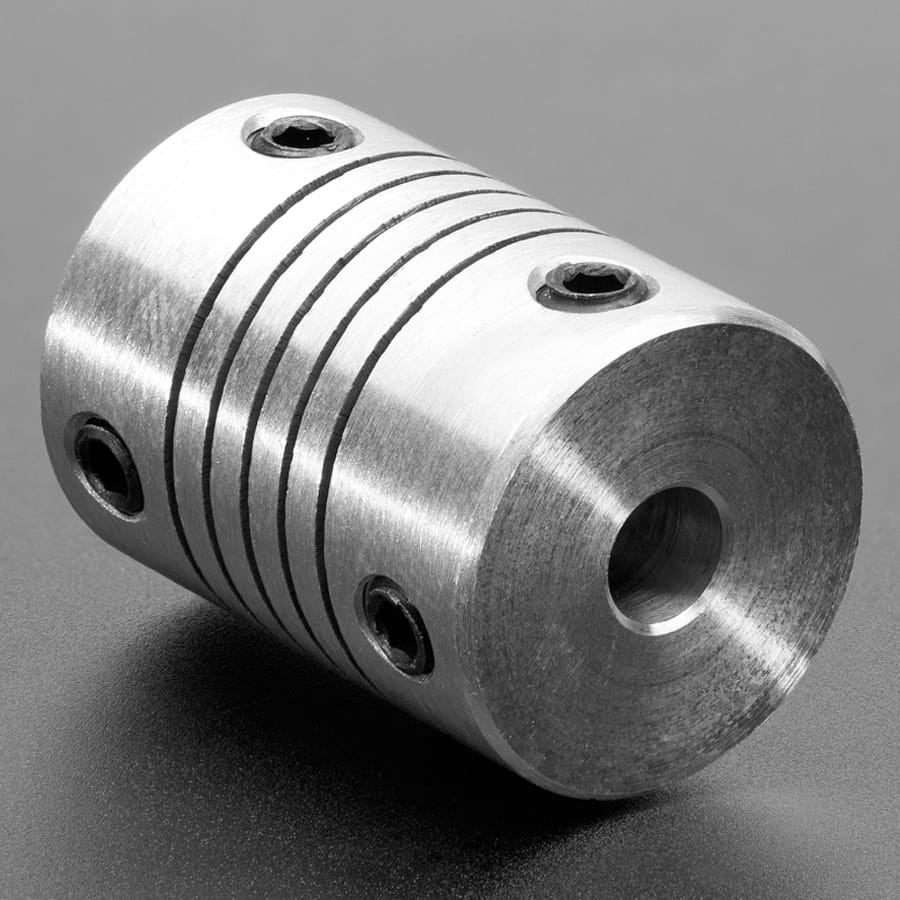

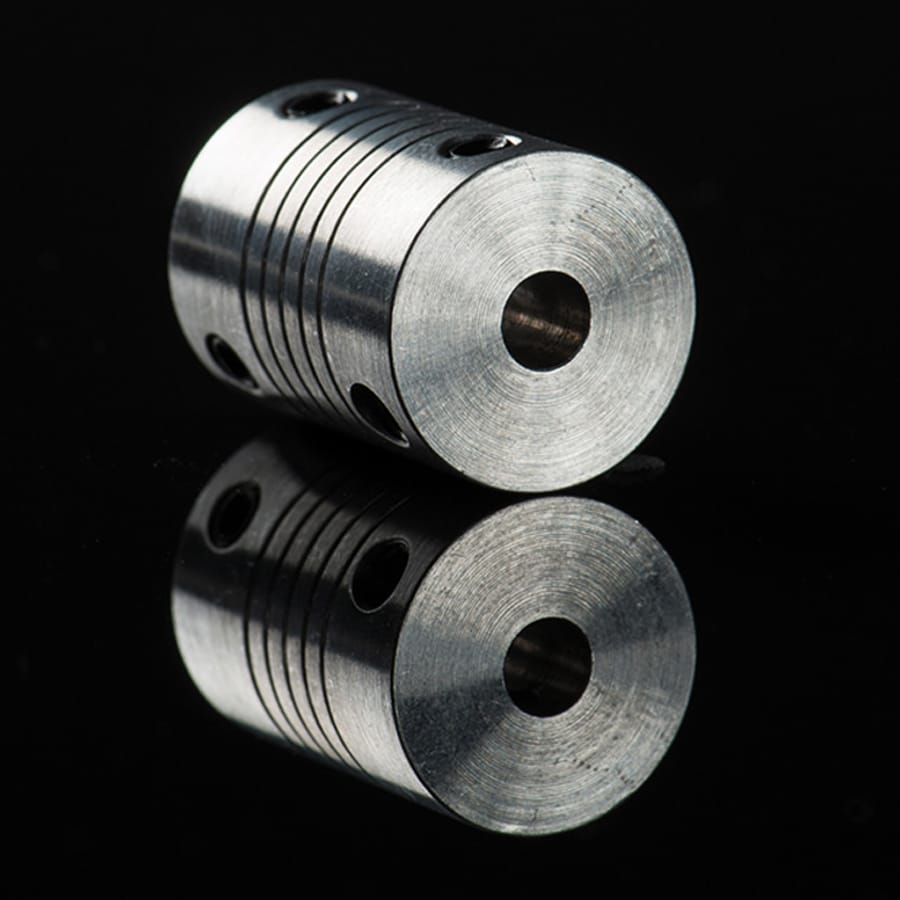

The 5mm to 5mm Flexible Shaft Coupler securely joins two 5mm shafts while accommodating minor misalignment, making it ideal for stepper motors, CNC machines, 3D printers, and other precision motion-control applications.
Connect this to that with a set-screw coupler. These couplers are made of machined aluminium and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. The way they're cut, they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means that you won't get increased backlash - so they're suitable for precision CNC work.

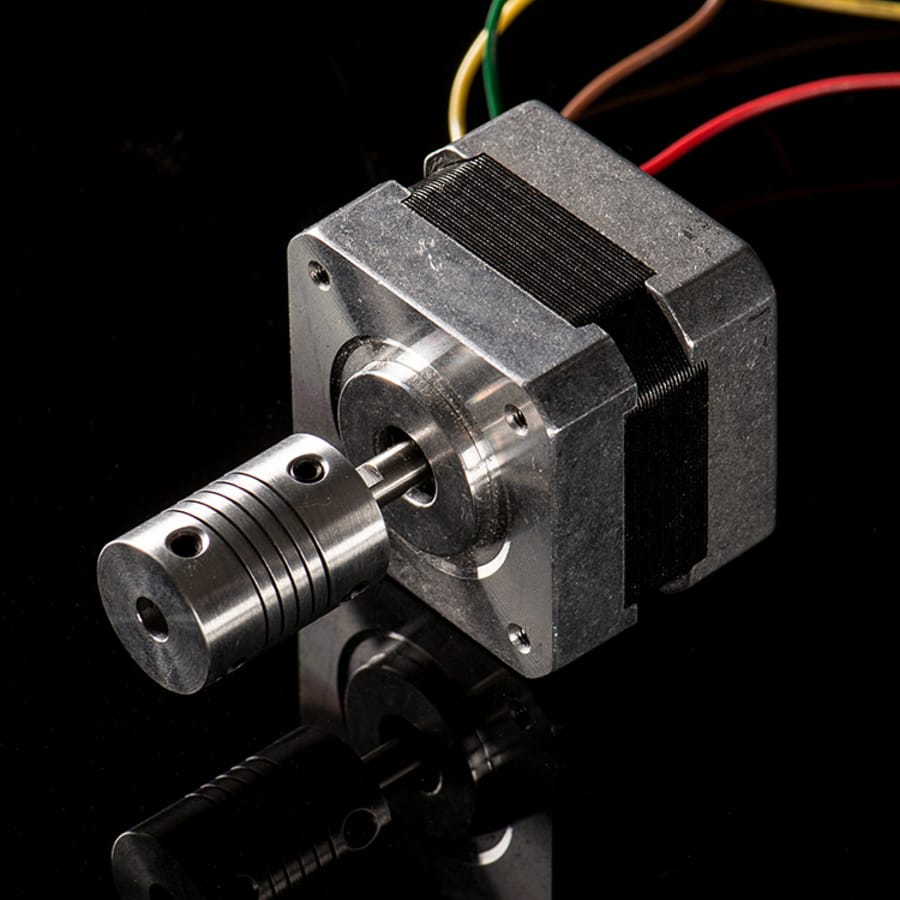

This coupler will connect two shafts of 5mm diameter. A perfect add on for our stepper motors. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.
Features
Machined aluminium construction
Spiral cut design provides slight flexibility in X, Y & Z axes
Accommodates non-perfectly aligned shafts without binding
Zero rotational backlash for precision CNC applications
Connects two 5mm diameter shafts
Compatible with stepper motors
Double set-screws on each side for secure attachment
Requires 2mm allen wrench for installation
Specifications

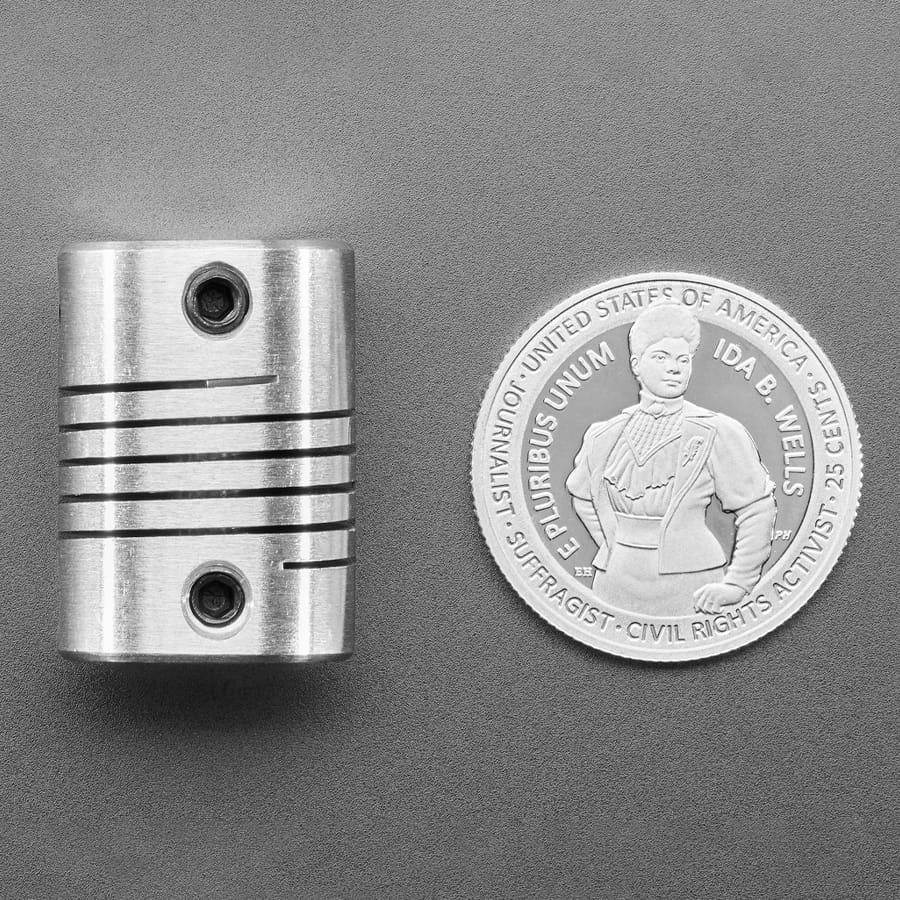

Measures:25mm x 18mm diameter
5mm inner diameter on both ends
Weight: 15 grams
Package Contents
1x Aluminium Flex Shaft Coupler - 5mm to 5mm
