VS1053 Codec + MicroSD Breakout - MP3/WAV/MIDI/OGG Play + Record (v4)

AdafruitSKU: ADA1381
Price:
Sale price £24.60
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

SanDiskSanDisk MicroSD Card (Class 10 A1)
Sale priceFrom £6 incl. VAT excl. VAT

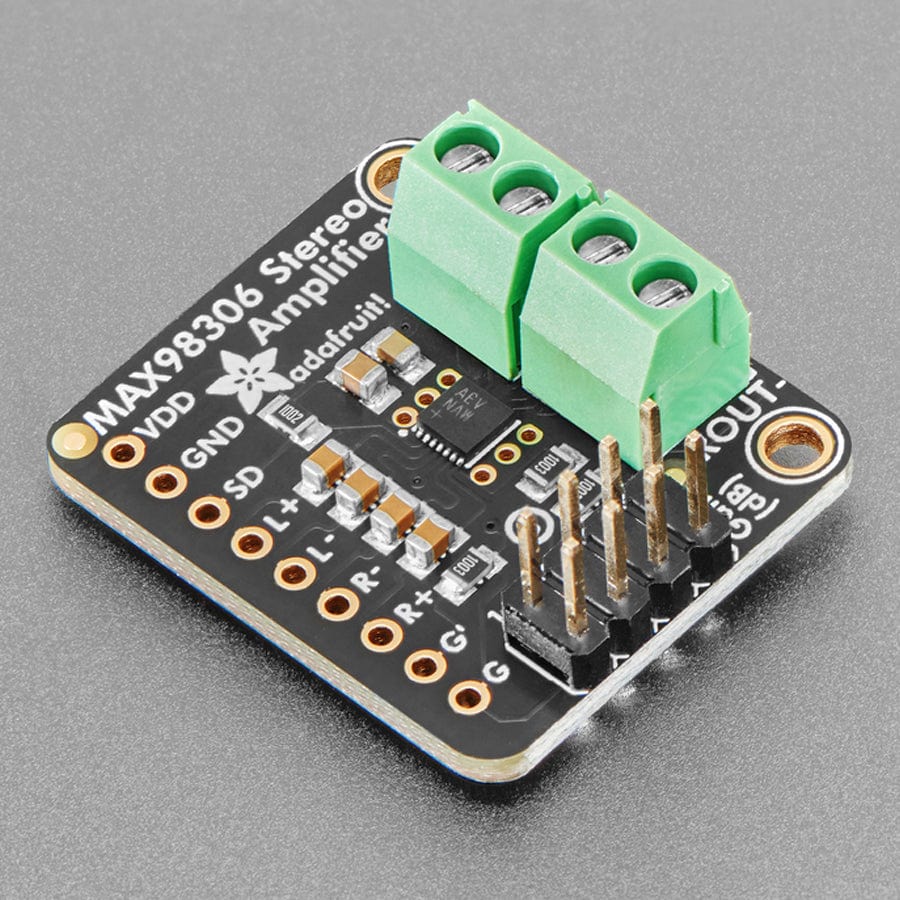

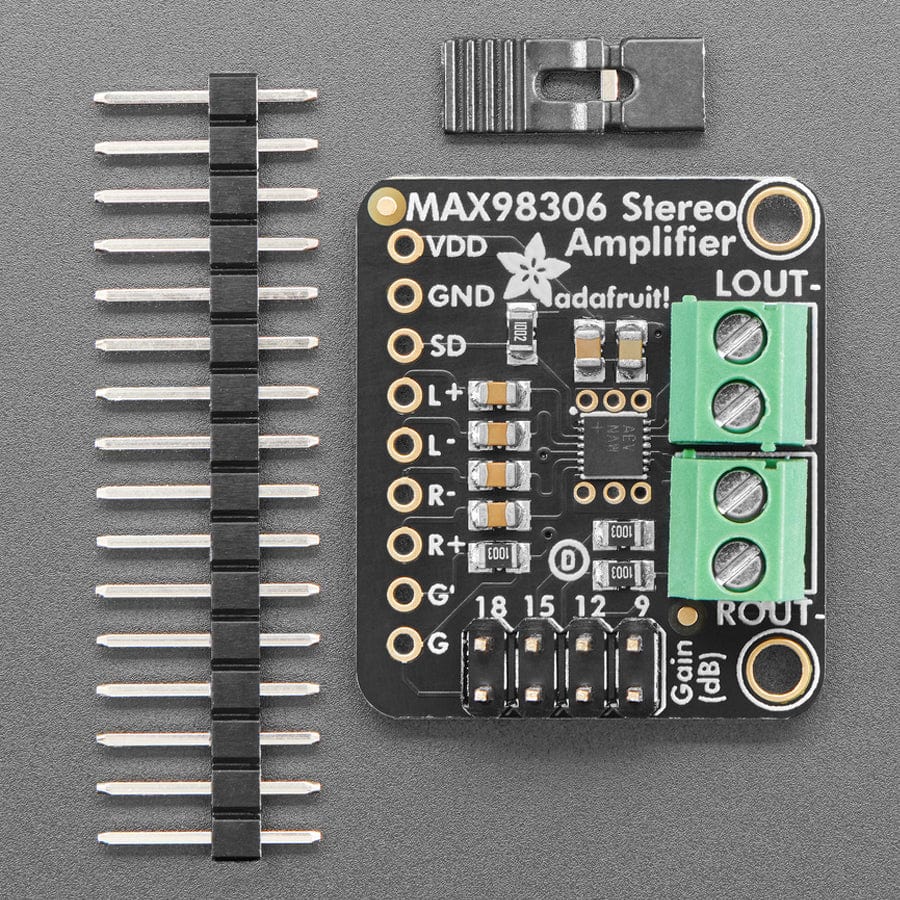

AdafruitStereo 3.7W Class D Audio Amplifier - MAX98306
Sale price £8.90 incl. VAT excl. VAT
The Pi Hut3" Speaker - 4 Ohm 3 Watt
Sale price £2.90 incl. VAT excl. VAT
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT

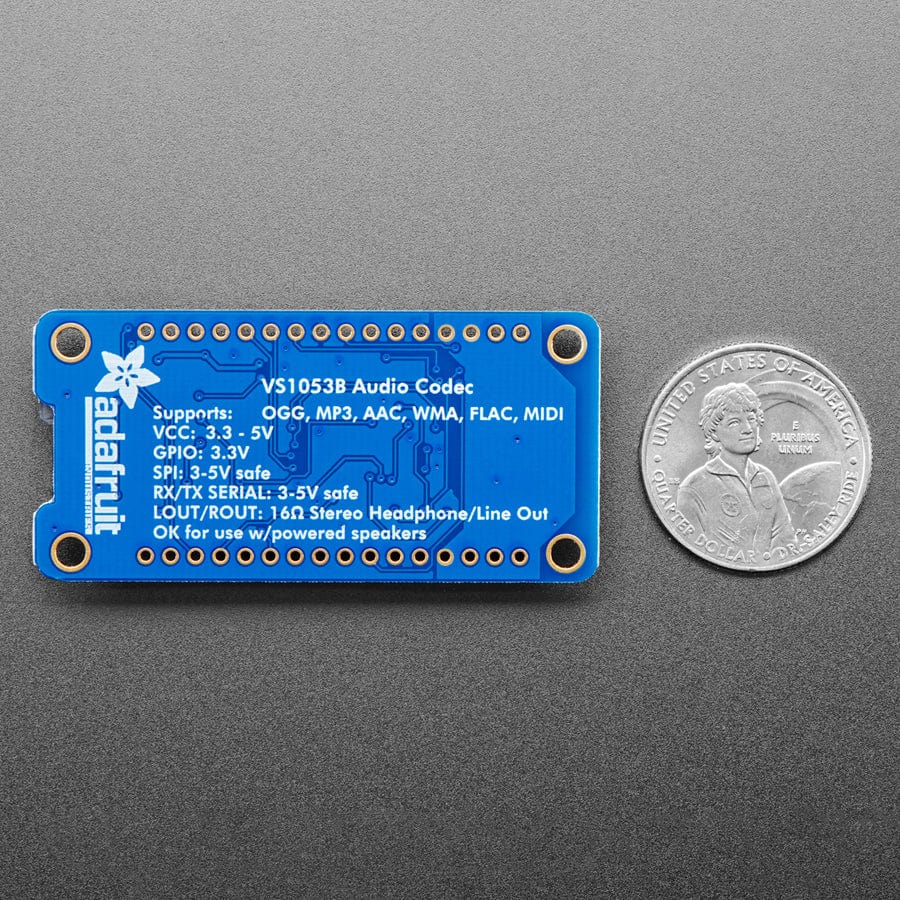

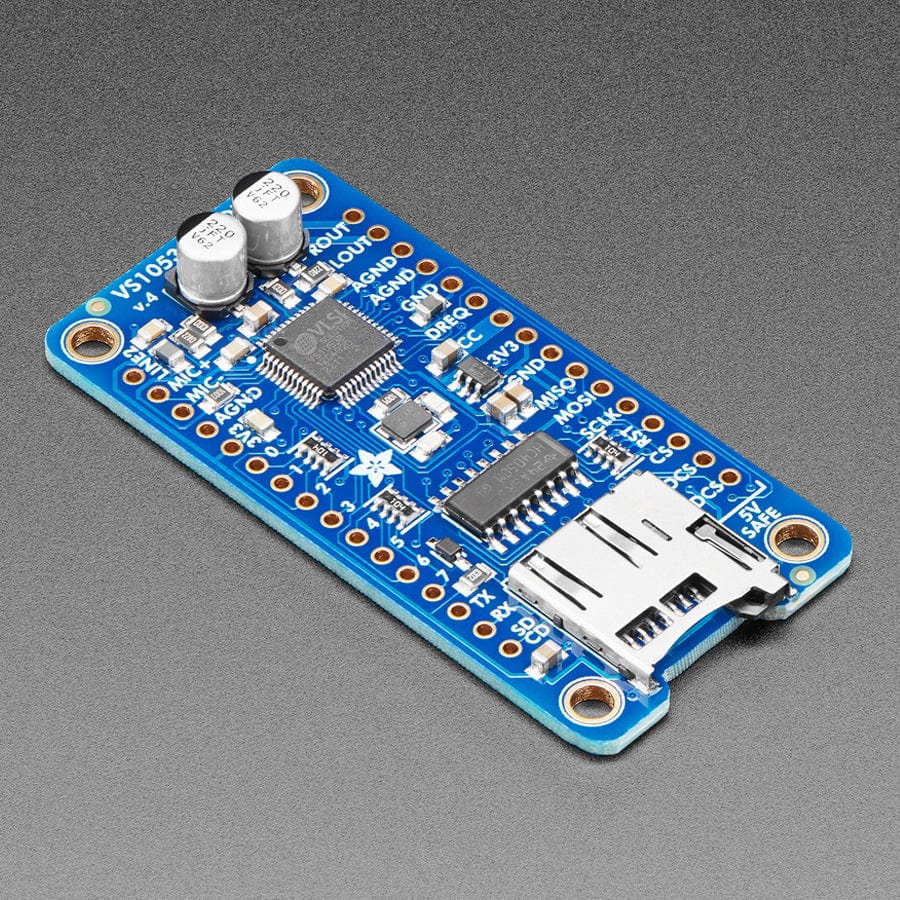

This breakout board is the ultimate companion for the VLSI VS1053B DSP codec chip. The VS1053 can decode a wide variety of audio formats such as MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV (PCM and ADPCM). It can also be used to record audio in both PCM (WAV) and compressed Ogg Vorbis. You can do all sorts of stuff with the audio as well such as adjusting bass, treble, and volume digitally. There is also 8 GPIO pins that can be used for stuff like lighting up small LEDs or reading buttons.

All this functionality is implemented in a lightweight SPI interface so nearly any microcontroller can play audio from an SD card. There's also a special MIDI mode that you can boot the chip into that will read 'classic' 31250Kbaud MIDI data on a UART pin and act like a synth/drum machine - there are dozens of built-in drum and sample effects! But the chip is a pain to solder and needs a lot of extras. That's why we spun up the best breakout, perfect for use with an Arduino but also good for other microcontrollers that just don't have the computational power to decode MP3s.

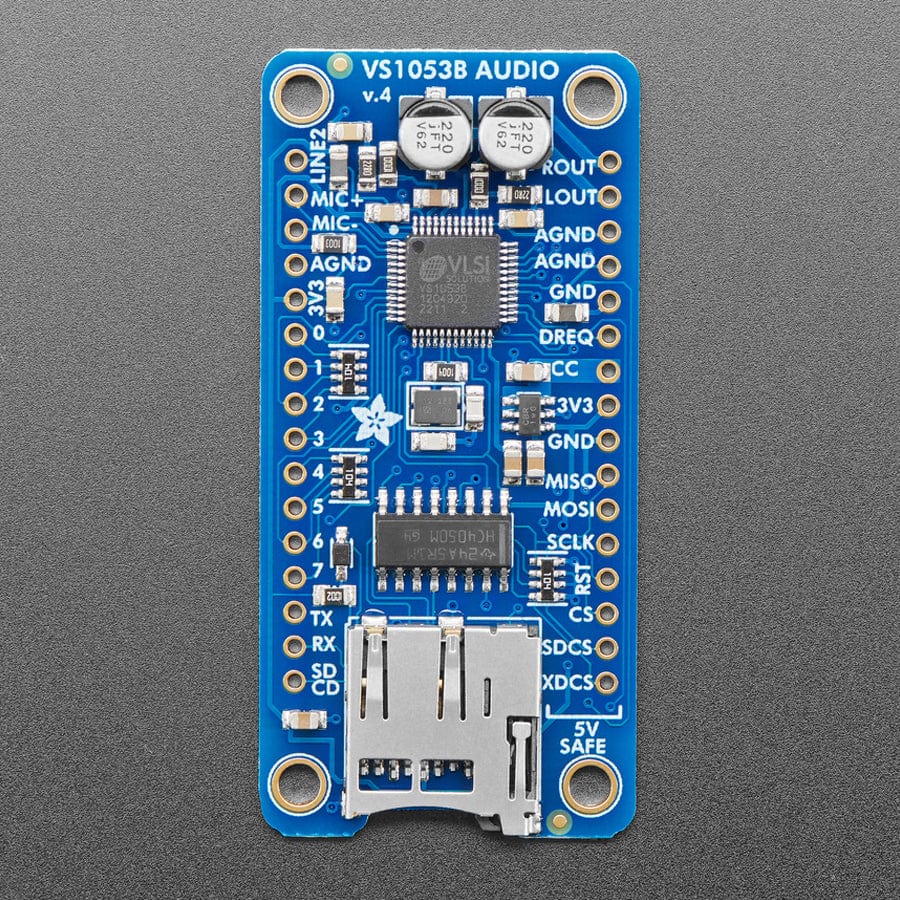

The breakout is slim enough to fit on a breadboard with 1 row of holes left over for wiring. There are 3.3v and 1.8v regulators onboard with ferrite beads and analogue filtering for quality analogue output. There's a microphone input port that you can wire up a line-in or mic to and record compressed audio. All 8 GPIO are broken out and they all have built-in 100K pulldowns, simply connect your button from the GPIO pin to 3.3V for an active-high connection. You'll likely want to play music from a microSD card so we added a holder on-board. And since we know so many of our customers use 5V microcontrollers like the Arduino, we made the interface pins all 5V compliant with level shifters so you can use the chip at 3V or 5V power/logic!

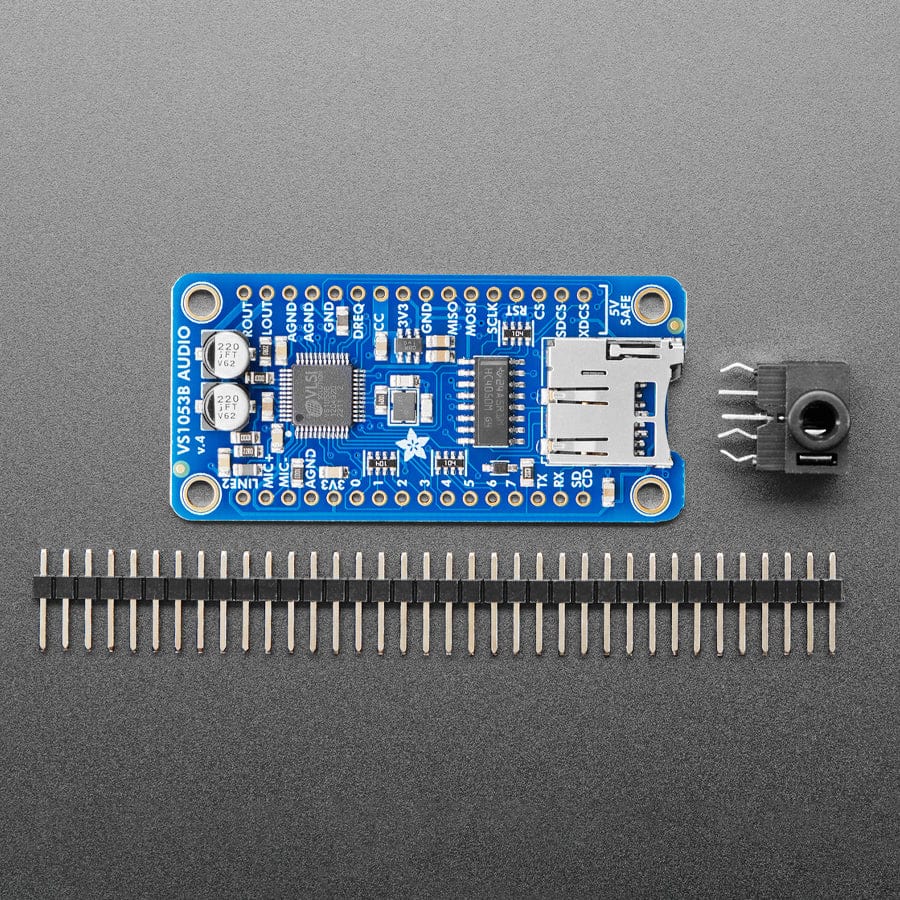

Each order comes with a fully assembled and tested breakout board, some 0.1" male header you can solder to the breakout so it plugs into a breadboard and a bonus stereo headphone jack that will be handy when you want to plug headphones in!

If you have an older v1.0 which does not have the two big round silver capacitors on board, you can drive a pair of 30ohm headphones directly from the LOUT/ROUT pins if the 'ground' connection is tied to GBUF however this is not a line-out connection. If you want to connect to a stereo system or powered speakers with a v1.0 board, fit the two included 100uF electrolytic caps in series on the LOUT/ROUT pins between the breakout and the input of the stereo, then connect the common ground to AGND

If you just need loudspeakers, our 3.7W stereo amp board plus two 3W 4ohm speakers will give you lots of boom and you don't need any extra blocking caps because the amplifier has differential inputs.

Check out our detailed tutorial & excellent Arduino library that demonstrates everything cool about this library: playing music off an SD card, using the GPIO pins as input/outputs, playing music using an interrupt (so it's in the background), using the VS1053 as a MIDI synthesizer (no SD required), and recording Ogg Vorbis audio from a microphone/line-in to SD.

Revision History:

  • As of July 29th, 2024 - we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen.
