USB Mini-B Breakout Board

AdafruitSKU: ADA1764
(1 Reviews)
£1.90
incl. VAT
excl. VAT
Sold out
Notify me

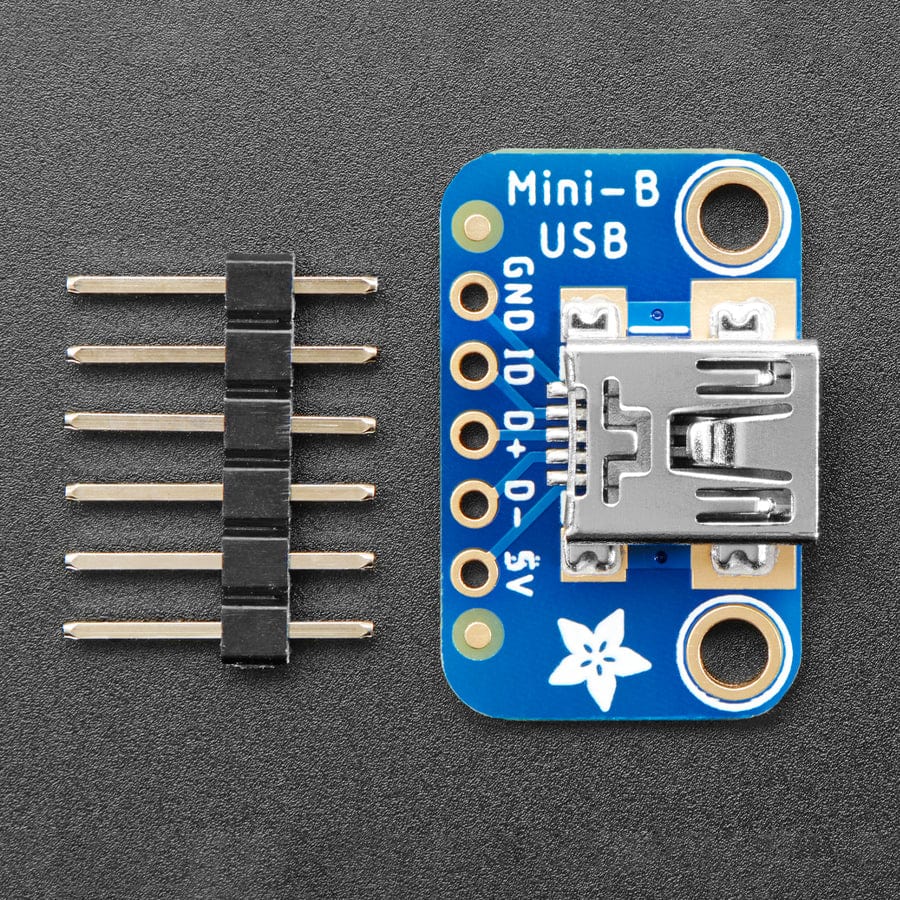

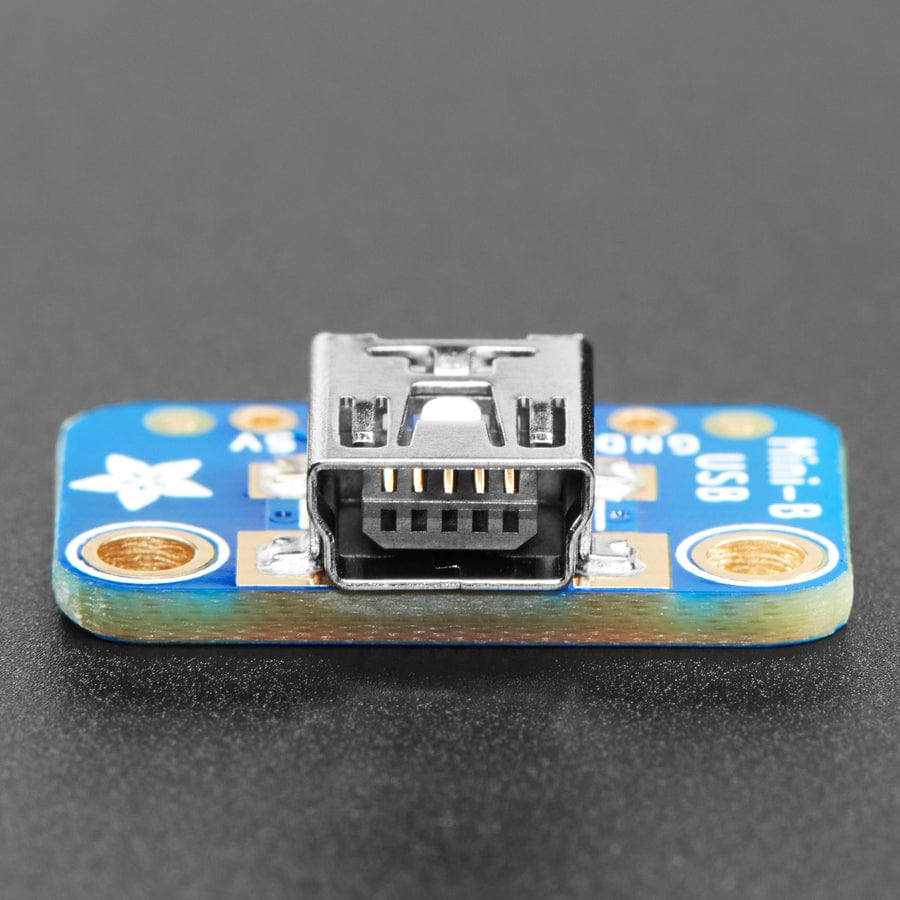

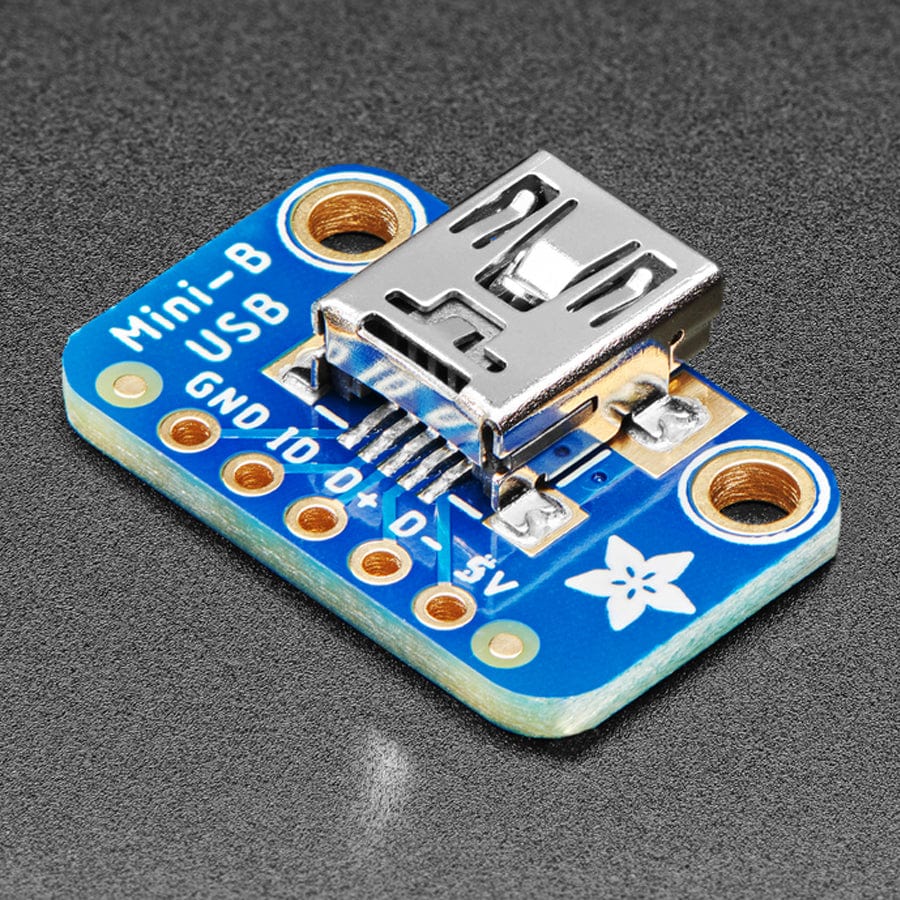

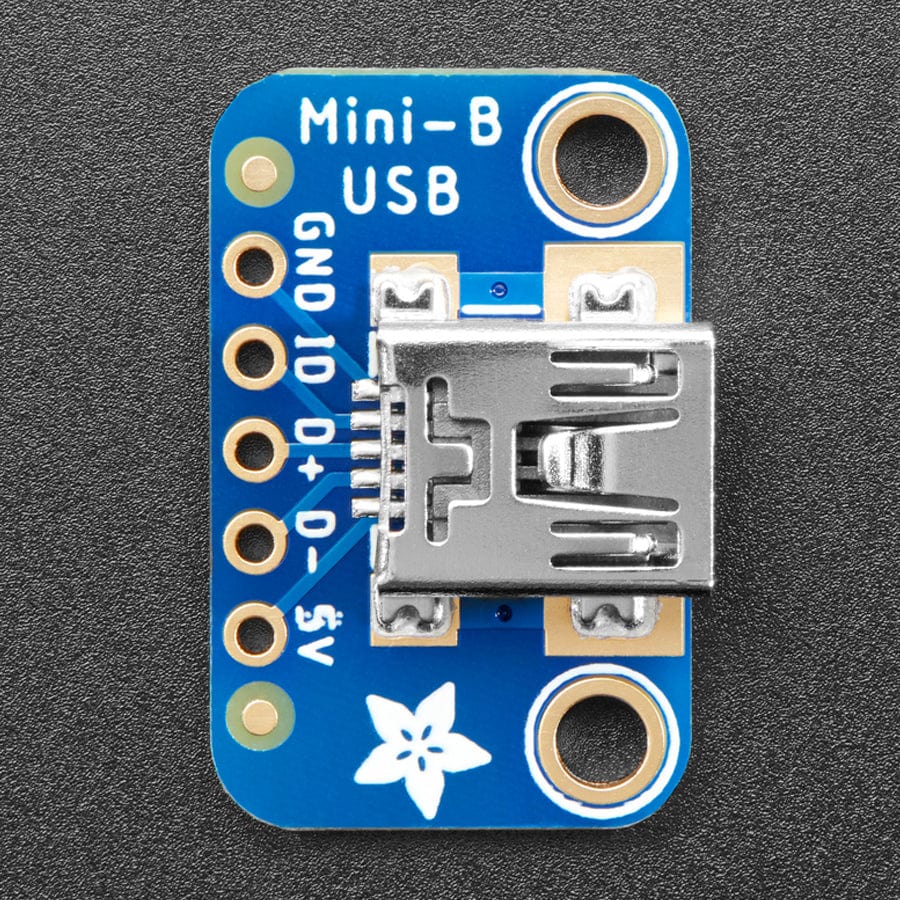

Simple but effective - this breakout board has a USB Mini-B connector, with all 5 pins broken out. Great for pairing with a microcontroller with USB support, or adding USB 5V power to a project.

Comes with one fully assembled and tested mini B breakout PCB and a small stick of 0.1" header so you can solder it on and plug into a breadboard.

Technical Details

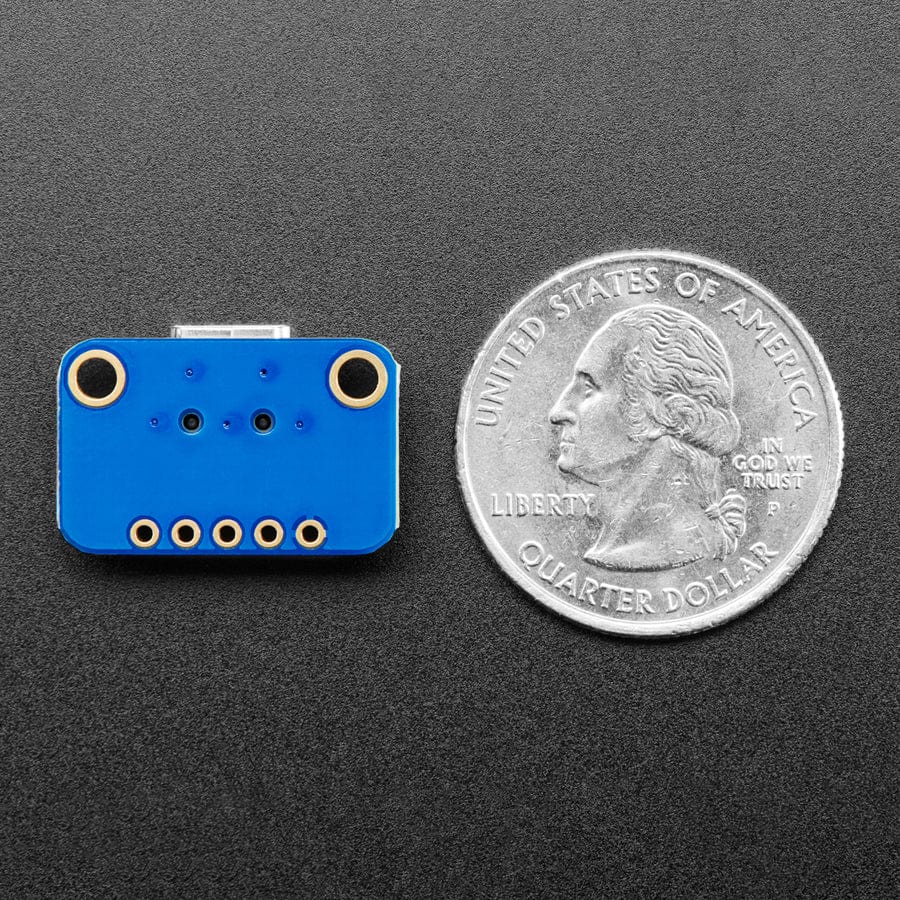

Dimensions (without 0.1" header or terminal blocks):

  • Length: 21mm/0.8"
  • Width: 13mm/0.5"
  • Height: 2mm/0.1"
  • Weight: 1.6g

Mini B connector Datasheet

Fritzing object in the Adafruit Fritzing library

EagleCAD PCB files in GitHub
