Adafruit TFT FeatherWing - 3.5" 480x320 Capacitive Touchscreen - STEMMA QT / Qwiic

AdafruitSKU: ADA5872
Price:
Sale price £40.30
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Awesome Extras

STEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi HutSTEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi Hut
SanDisk MicroSD Card (Class 10 A1) - The Pi HutSanDisk MicroSD Card (Class 10 A1) - The Pi Hut
SanDiskSanDisk MicroSD Card (Class 10 A1)
Sale priceFrom £6 incl. VAT excl. VAT
Half-Size Breadboard - WhiteHalf-Size Breadboard - White
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT

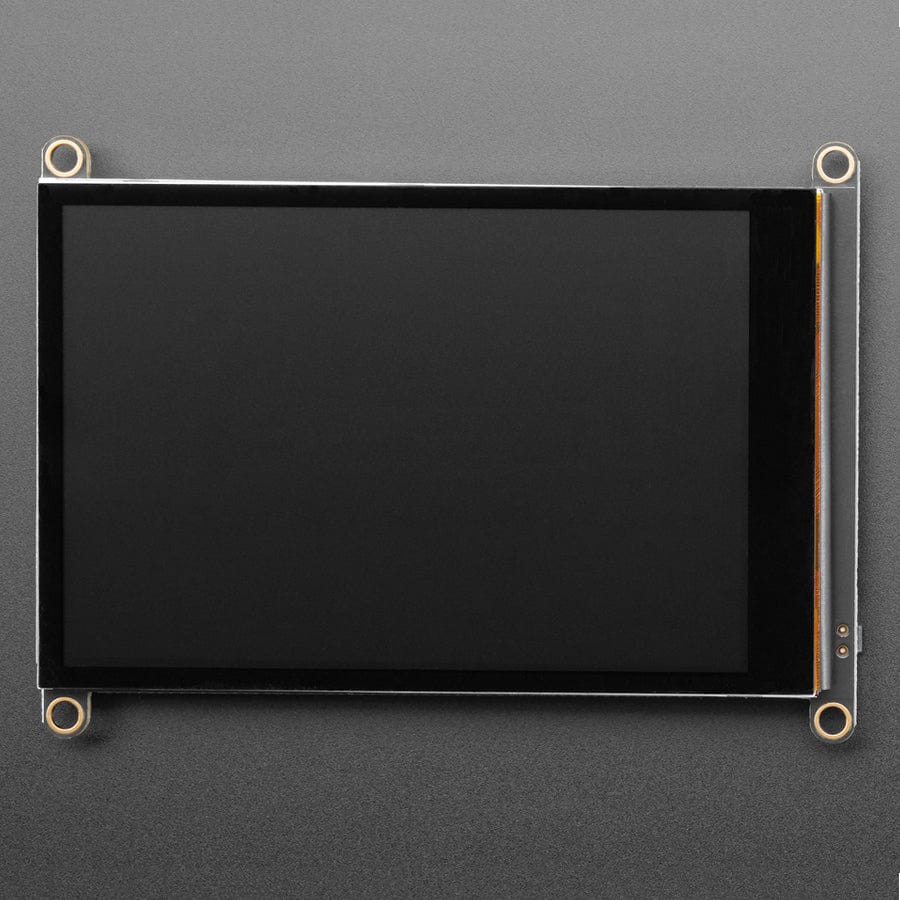

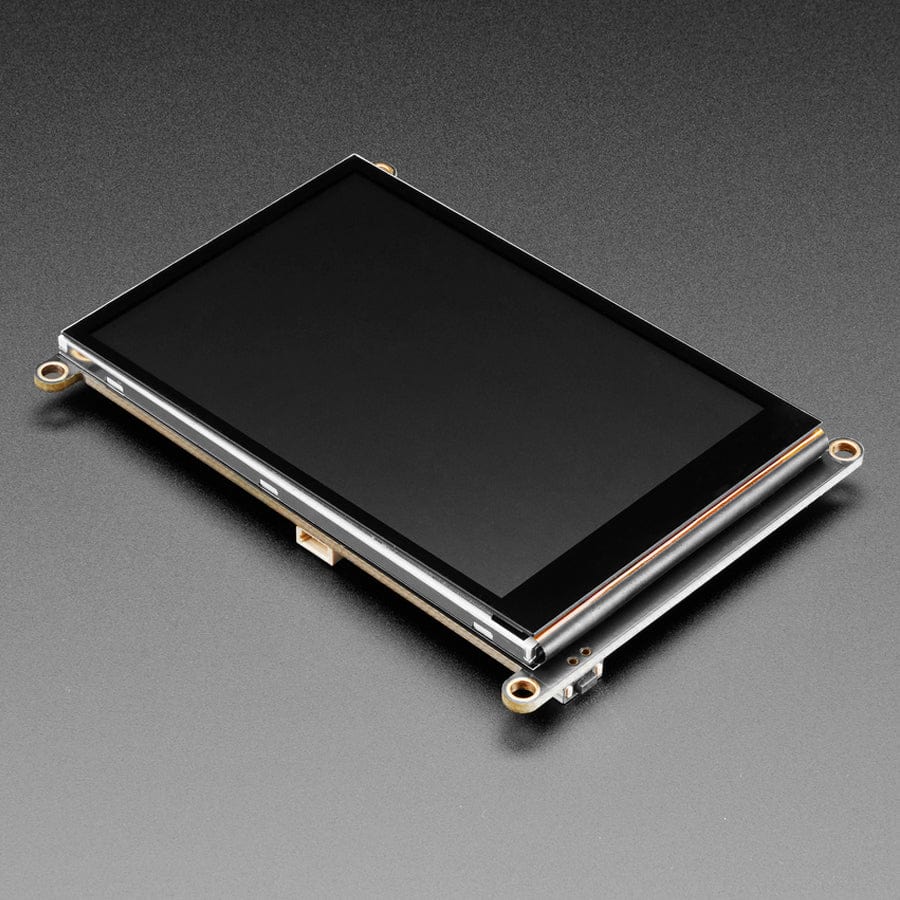

Bedeck your Feather project with a beautiful Adafruit TFT FeatherWing, 3.5" 480 x 320 Capacitive Touchscreen. This TFT display is 3.5" diagonal with a bright white-LED backlight and a built-in microSD card socket. You get a massive 480 x 320 pixels with individual 16-bit colour pixel control. It has way more resolution than a black and white 128 x 64 display, and twice as much as our 2.4" TFT FeatherWing. As a bonus, this display comes with a multi-touch capacitive touchscreen attached to it already, so you can detect up to 5 finger presses anywhere on the screen

This FeatherWing uses an SPI display and SD card socket, with an I2C touchscreen. It works with any and all Feather boards but given the large display it works best with our faster boards like the nRF52, RP2040, ESP32, M0 and M4 (basically anything that is > 32 MHz). It includes a capacitive touchscreen controller controlled over I2C so you only need one additional interrupt pin to add a high-quality touchscreen controller. One more pin is used for an optional SD card that can be used for storing images for display.

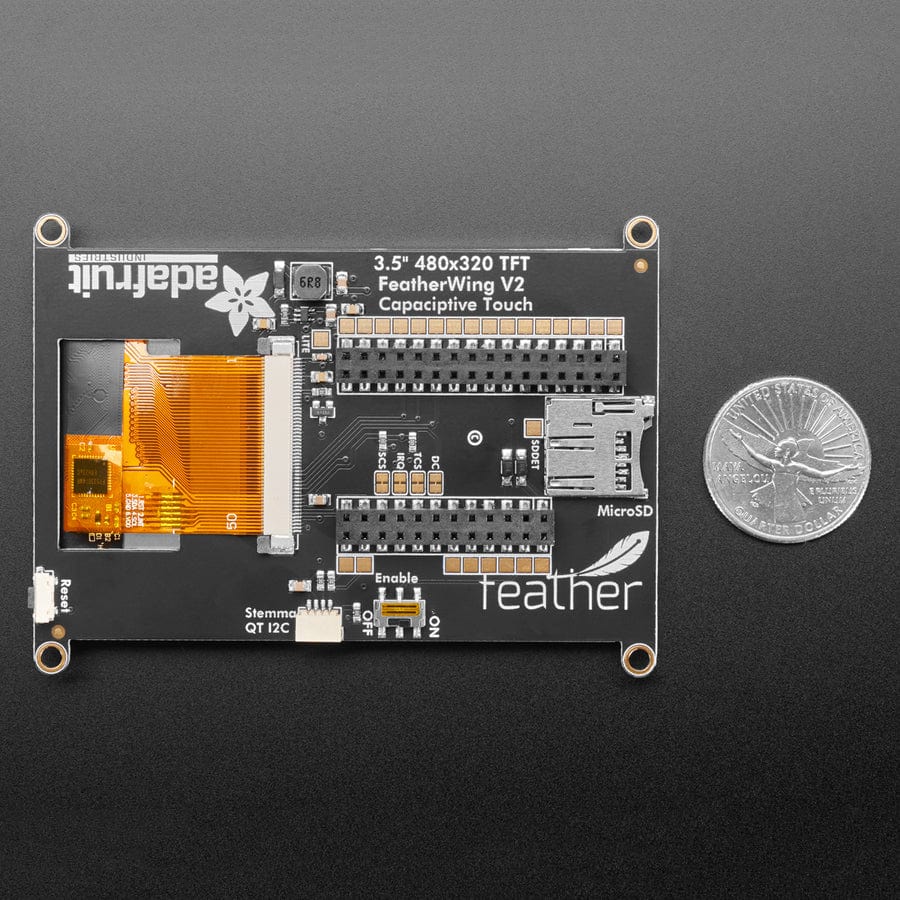

This Wing comes fully assembled with dual sockets for your Feather to plug into. You get two sockets per pin, so you can plug in wires if you want to connect to Feather pins. Alternatively, each pin has a large square pad on the PCB for direct soldering.

The TFT display is an HX8357D-chipset compatible, we have both Arduino and CircuitPython libraries for it. And the capacitive touch driver is FT5336, with 5-point multi-touch, with both Arduino and CircuitPython libraries as well.

Get started in a jiffy with our handy tutorial guide which has code, schematics, libraries, and examples for anything you'd like to do!

Specifications

  • Product Dimensions: 89.3mm x 66.0mm x 10.5mm
  • Product Weight: 55.5g
