SMT Breakout PCB for SOIC-28 or TSSOP-28 - 3 Pack!

Name: SMT Breakout PCB for SOIC-28 or TSSOP-28 - 3 Pack!
Brand: Adafruit
SKU: ADA1208
Price: 4.80 GBP
Availability: InStock

AdafruitSKU: ADA1208

£4.80

incl. VAT

excl. VAT

Only 9 units left

Awesome Extras

Break-away 0.1" 36-pin male headers (10-pack) by The Pi Hut - The Pi Hut

The Pi Hut Break-away 0.1" 36-pin male headers (10-pack)

£3.50 incl. VAT excl. VAT

Half-Size Breadboard - White by The Pi Hut - The Pi Hut

The Pi Hut Half-Size Breadboard - White

£3 incl. VAT excl. VAT

Antex Lead Free Solder - 4m Tube by Antex - The Pi Hut

Antex Antex Lead Free Solder - 4m Tube

£4.40 incl. VAT excl. VAT

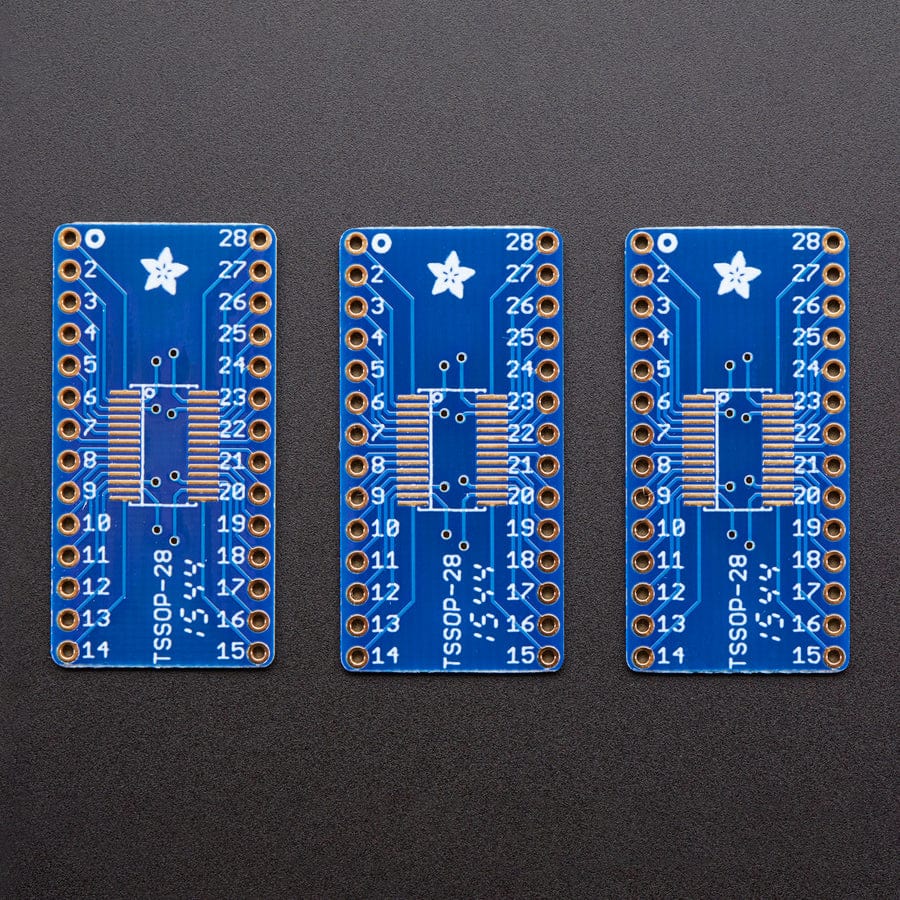

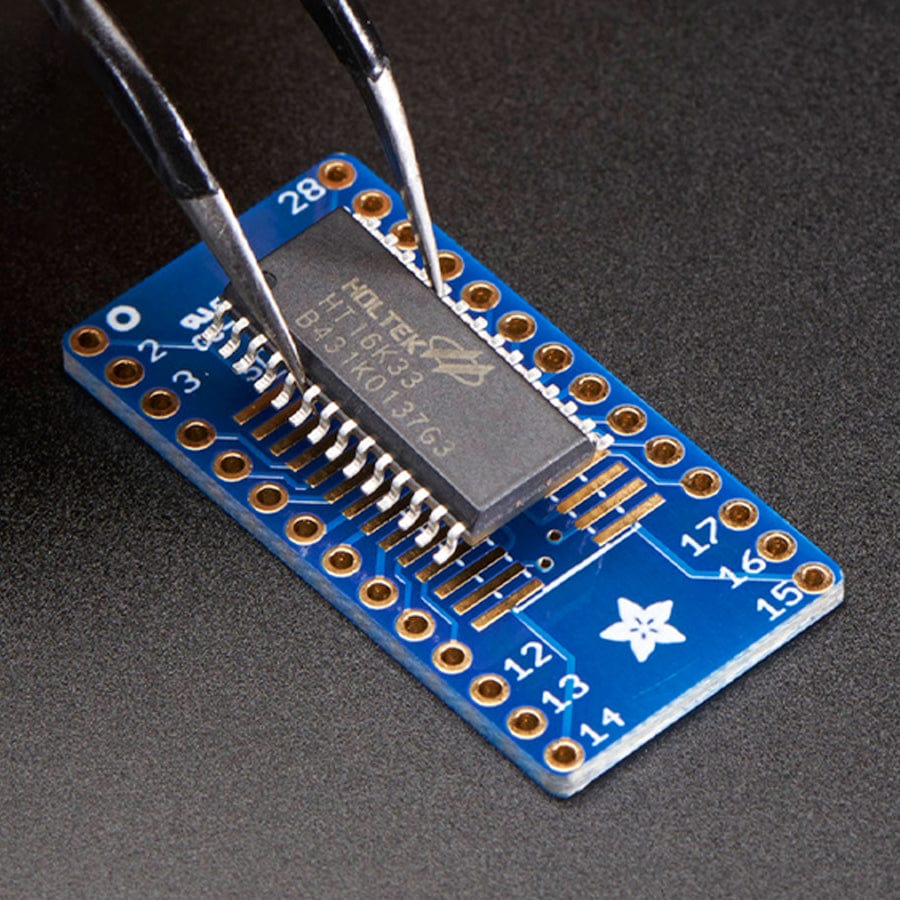

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 28-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 28-SOIC. Solder your chip to either side, and you're ready to rock on any solderless breadboard.

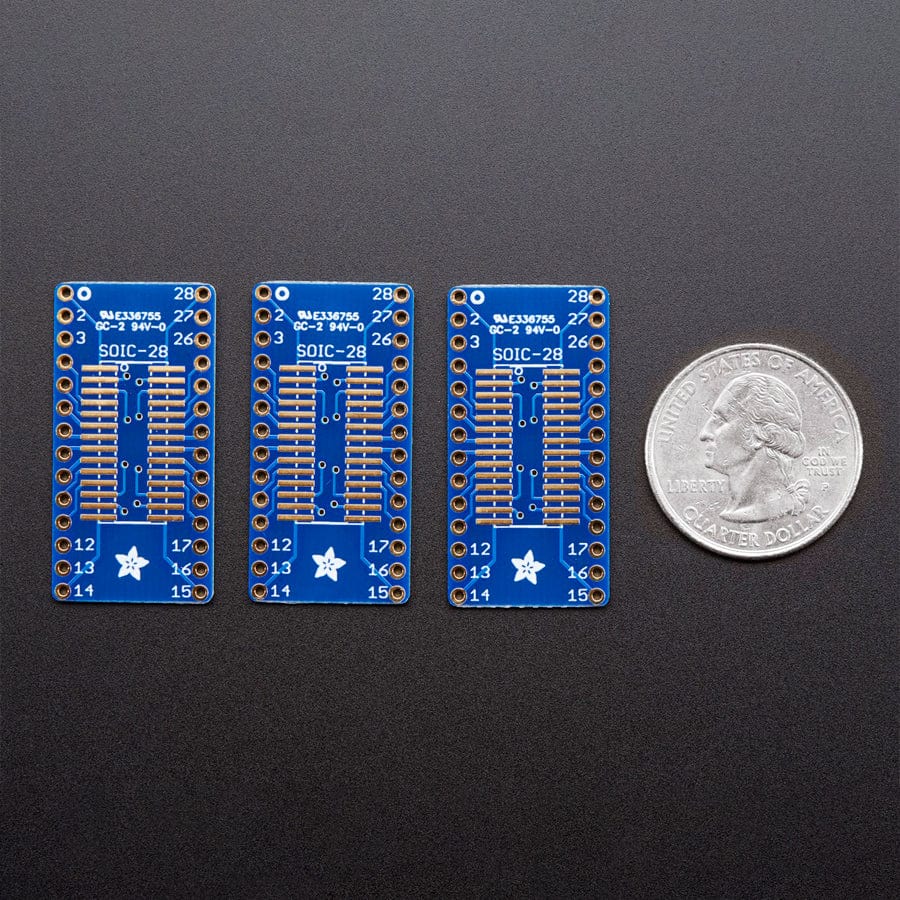

Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium, or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can, of course, use a smaller chip, but the pin numbering won't be right, so use care.

Chip is NOT included

Note: It does not include headers, so why don't you pick some up?
