Adafruit Right Angle VEML7700 Lux Sensor - I2C Light Sensor - STEMMA QT / Qwiic

AdafruitSKU: ADA5378
Price:
Sale price £4.80
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

AdafruitAdafruit Feather RP2040
Sale price £11.90 incl. VAT excl. VAT

Vishay has a lot of light sensors out there, and this is a nice simple lux sensor that's easy to add to any microcontroller. Most light sensors just give you a number for brighter/darker ambient lighting. The VEML7700 makes your life easier by calculating the lux, which is an SI unit for light. You'll get more consistent readings between multiple sensors because you aren't dealing with some unit-less values.

It's also one of the very few light/lux sensors we've ever seen that is right angle - that means that it senses light that is coming parallel to the PCB surface not perpendicular.

The sensor has 16-bit dynamic range for ambient light detection from 0 lux to about 120 klux with resolution down to 0.0036 lx/ct, with software-adjustable gain and integration times.

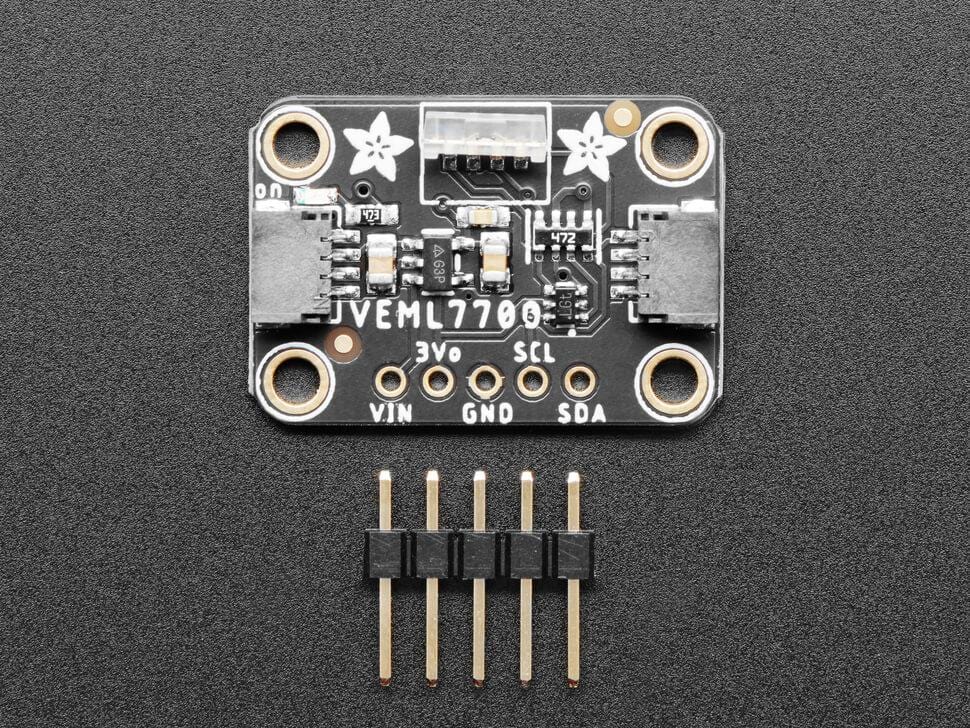

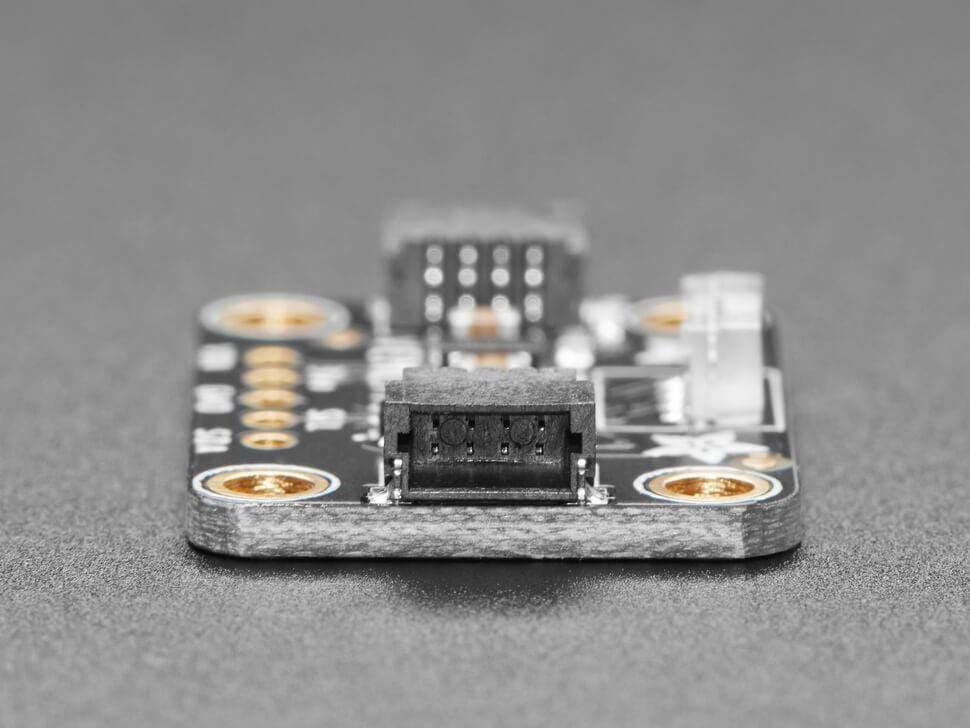

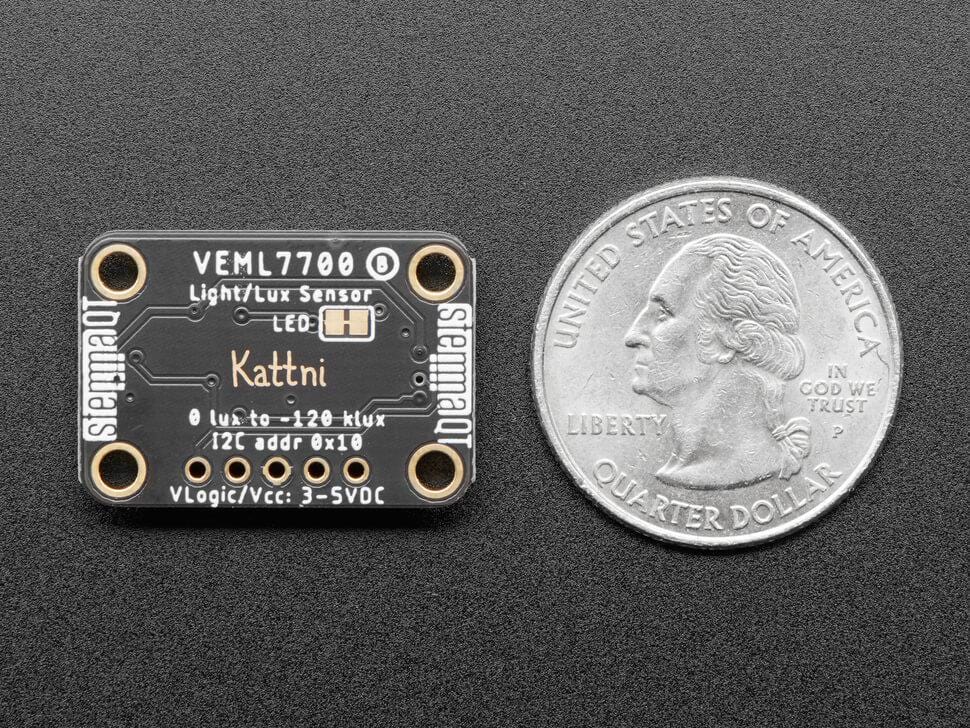

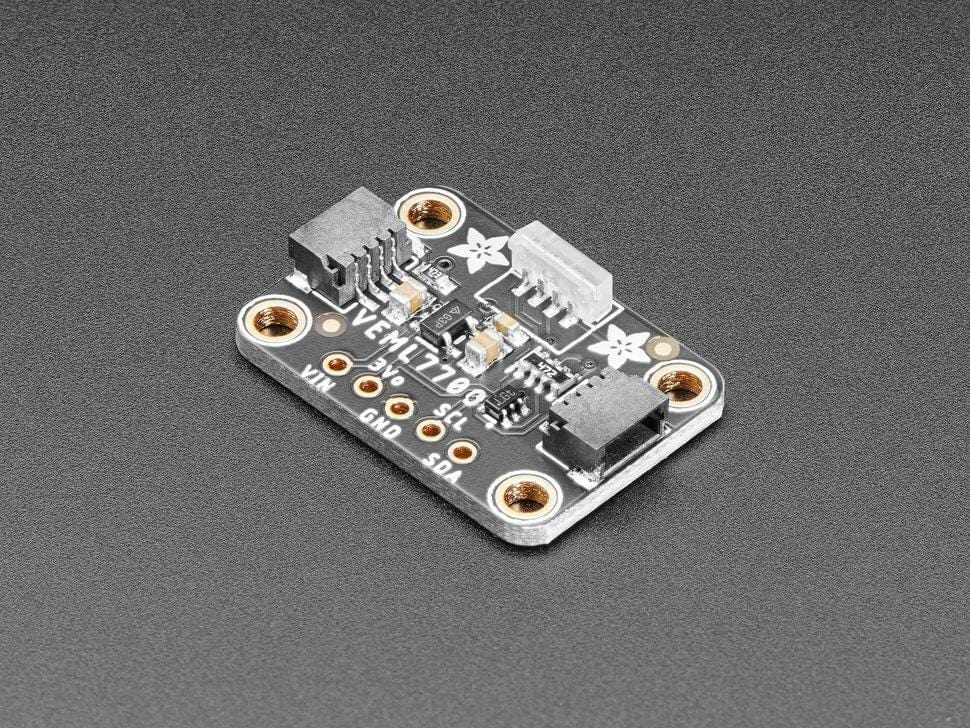

As with all Adafruit breakouts, we've done the work to make this handy light sensor super easy to use. We've put it on a breakout board with the required support circuitry and connectors to make it easy to work with. Since I2C is supported, we've added SparkFun Qwiic compatible STEMMA QT JST SH connectors that allow you to get going without needing to solder. Just use a STEMMA QT adapter cable, plug it into your favourite microcontroller or Blinka supported SBC and you're ready to rock! QT Cable is not included, but we have a variety in the shop.

We have written libraries for Arduino (C/C++) as well as CircuitPython (Python 3) so you can use this sensor with just about any kind of device, even a Raspberry Pi!

Technical Details

  • Product Dimensions: 25.5mm x 17.7mm x 4.6mm
  • Product Weight: 1.9g
