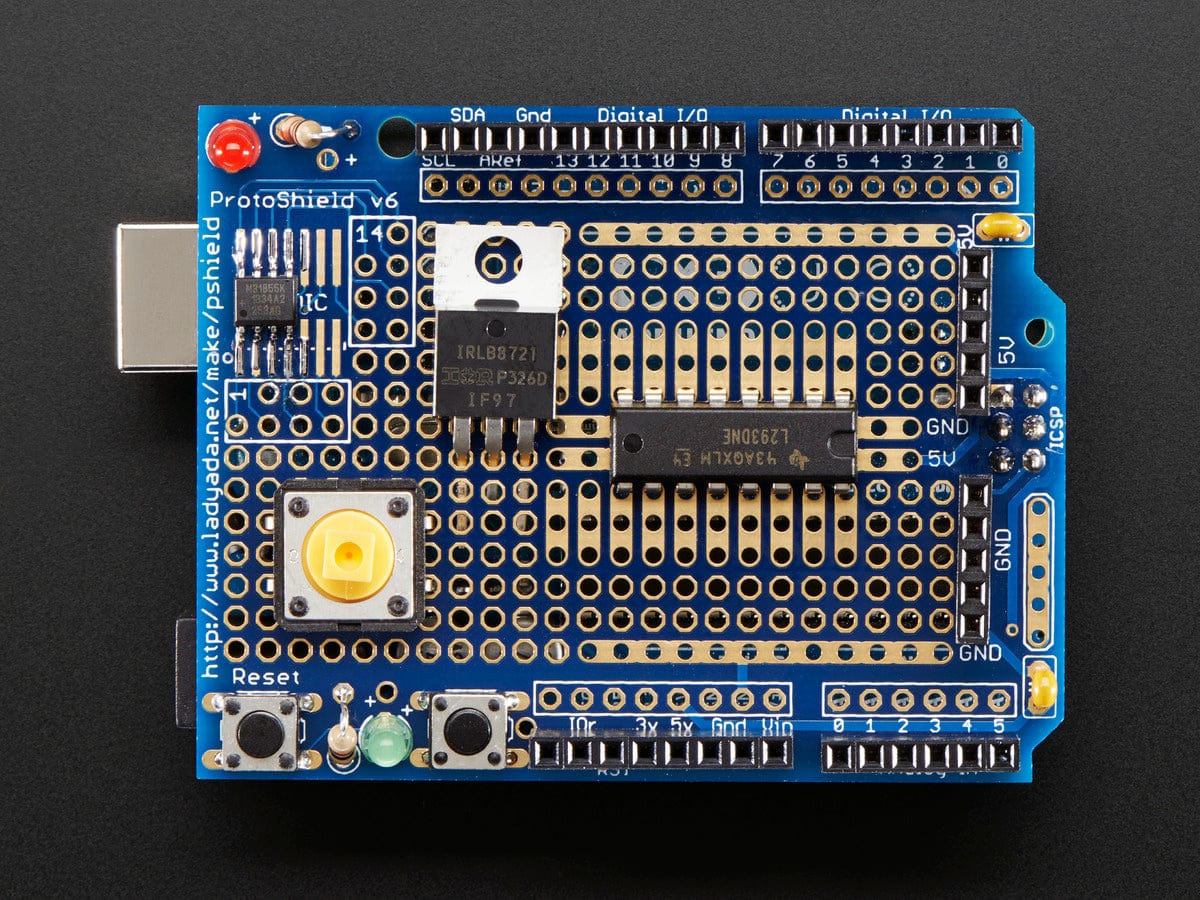

This prototyping shield is the best out there (well, we think so, at least), and now is even better with Version R3 - updated for the most compatibility with just about all the Arduinos!

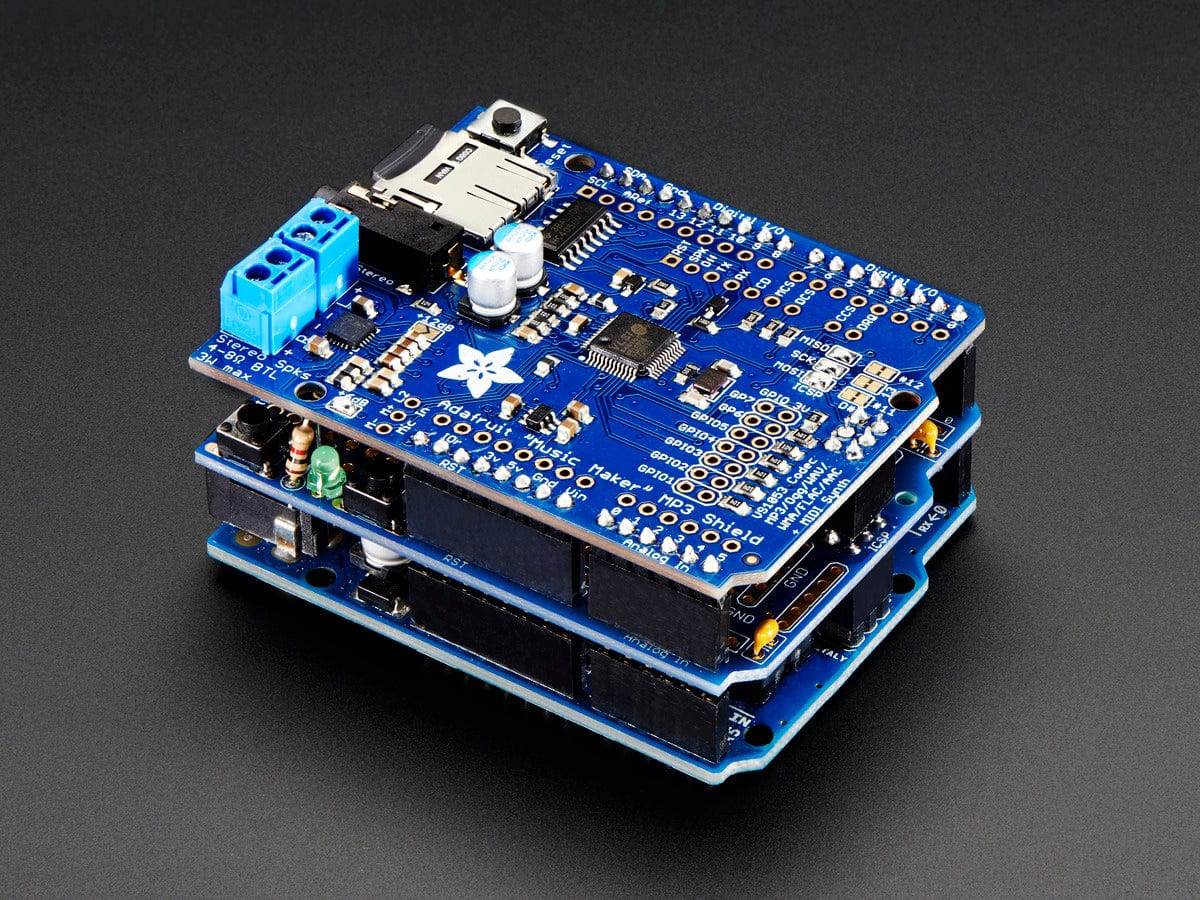

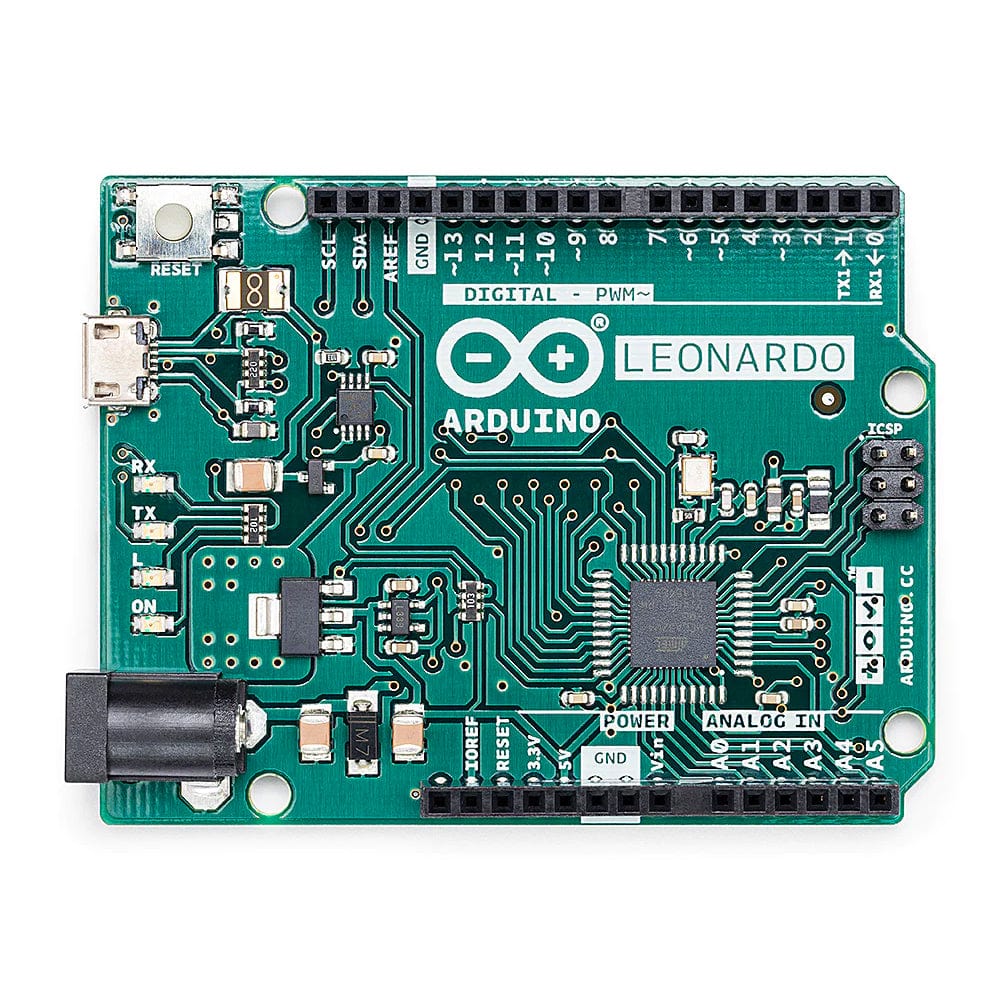

It works with UNO, Mega, Leonardo, NG, Diecimila, Duemilanove, and compatible Arduinos. Yun's and Arduino Ethernets have a chunky Ethernet jack that gets in the way of stacking, you can use the stacking headers included and it will work, just doesn't sit nice and flat.

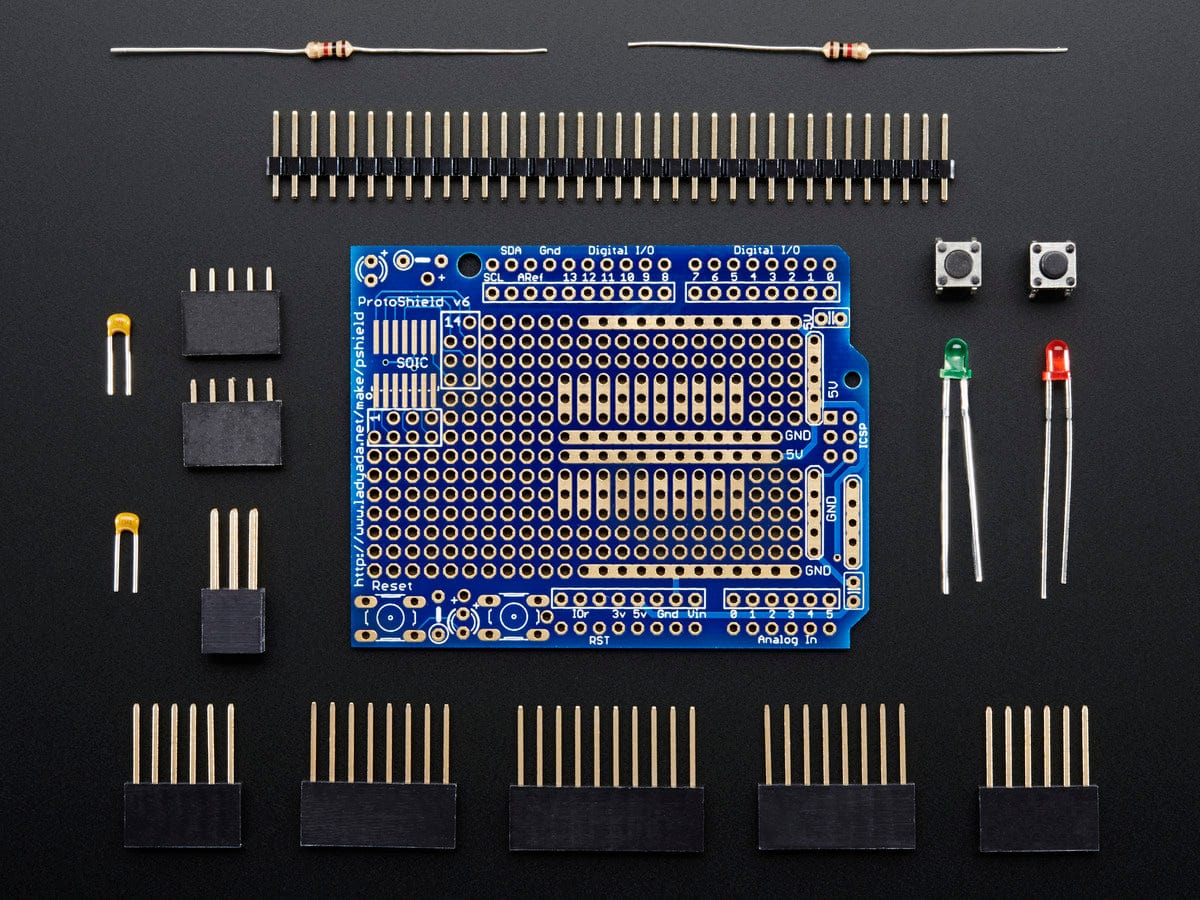

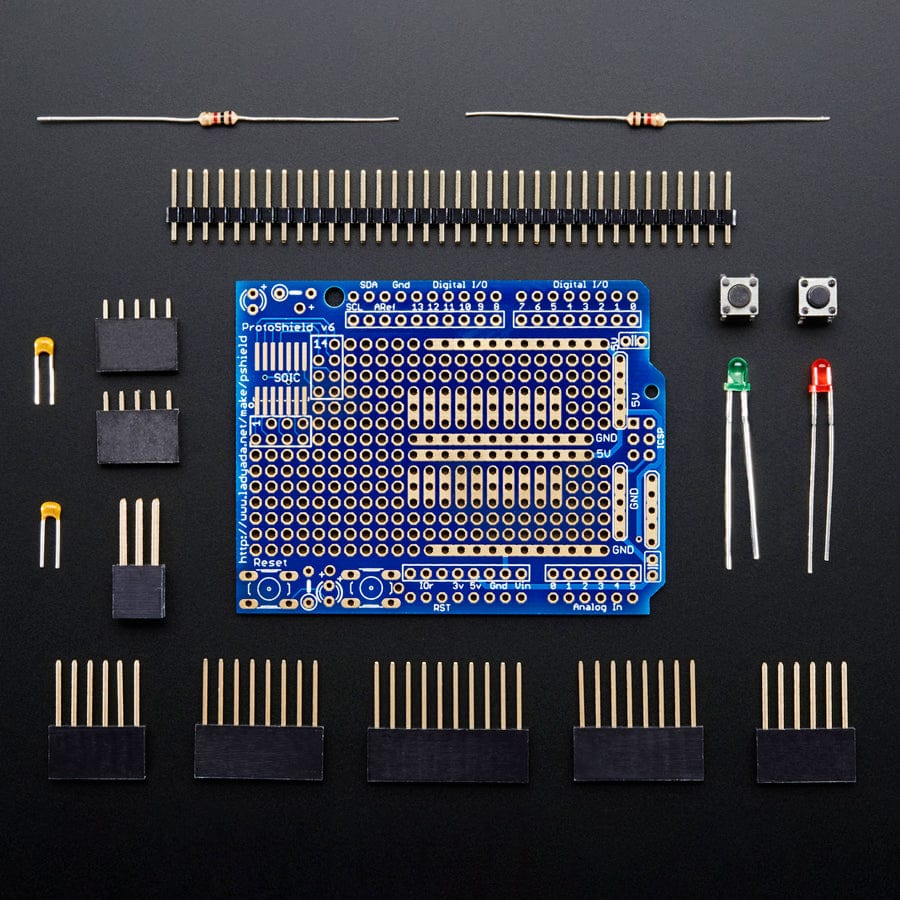

Comes as a kit of parts so you can choose how you want to configure your shield. However its very easy to assemble even for beginning solderers. More information & instructions are available here.
Arduino and breadboards are not included!

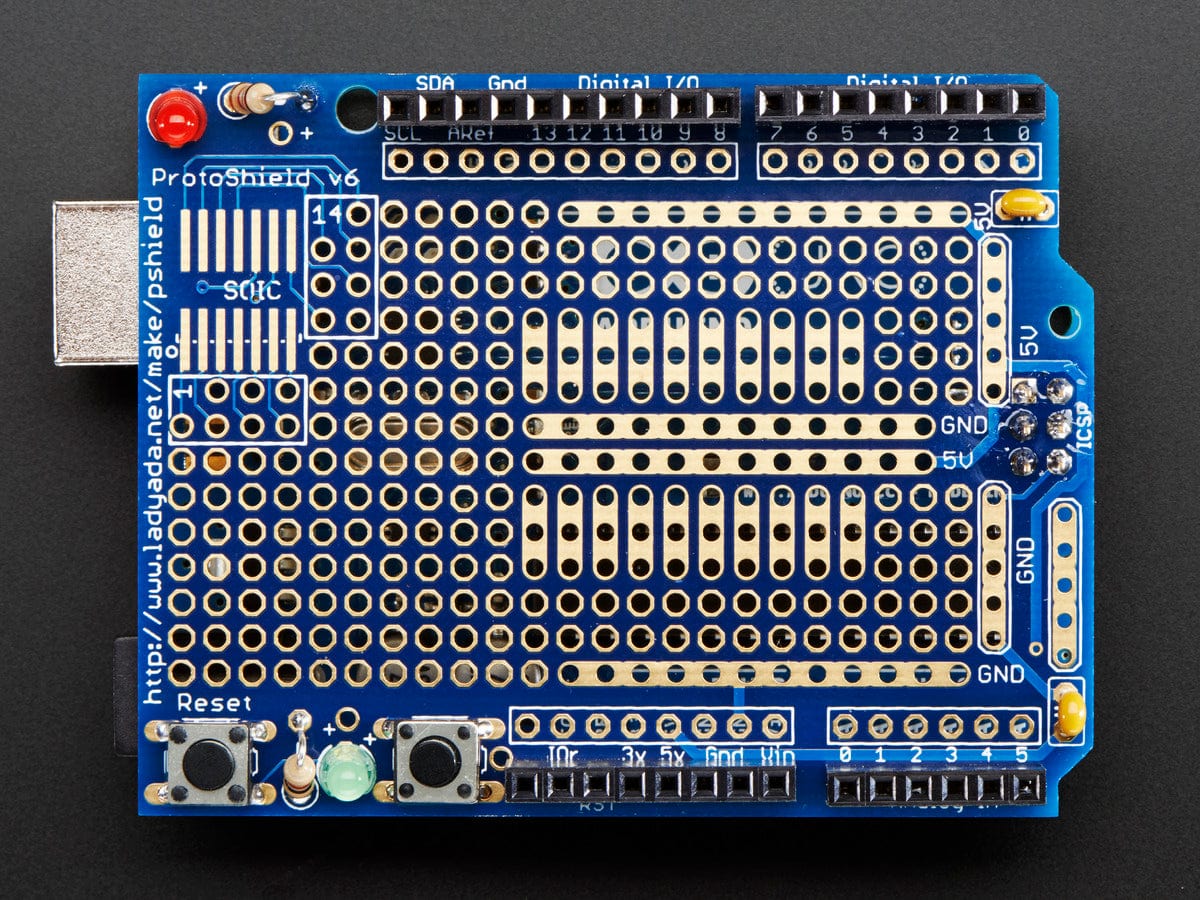

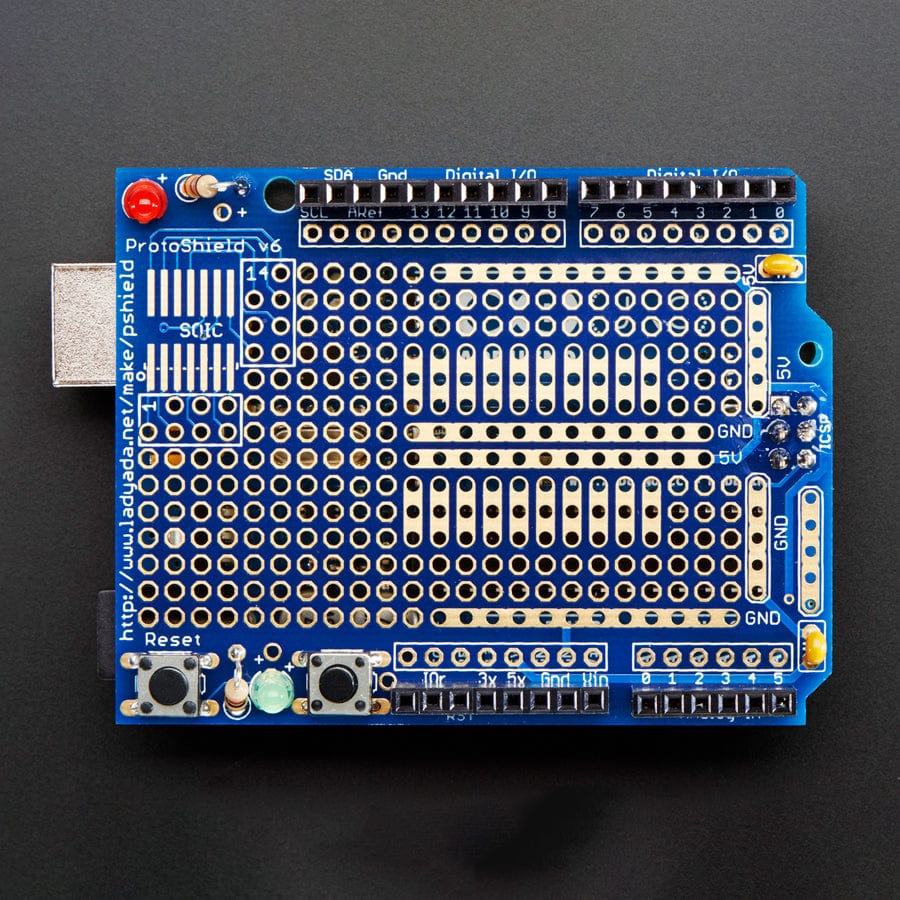

- Standard 0.1"x0.1" prototying grid with big pads

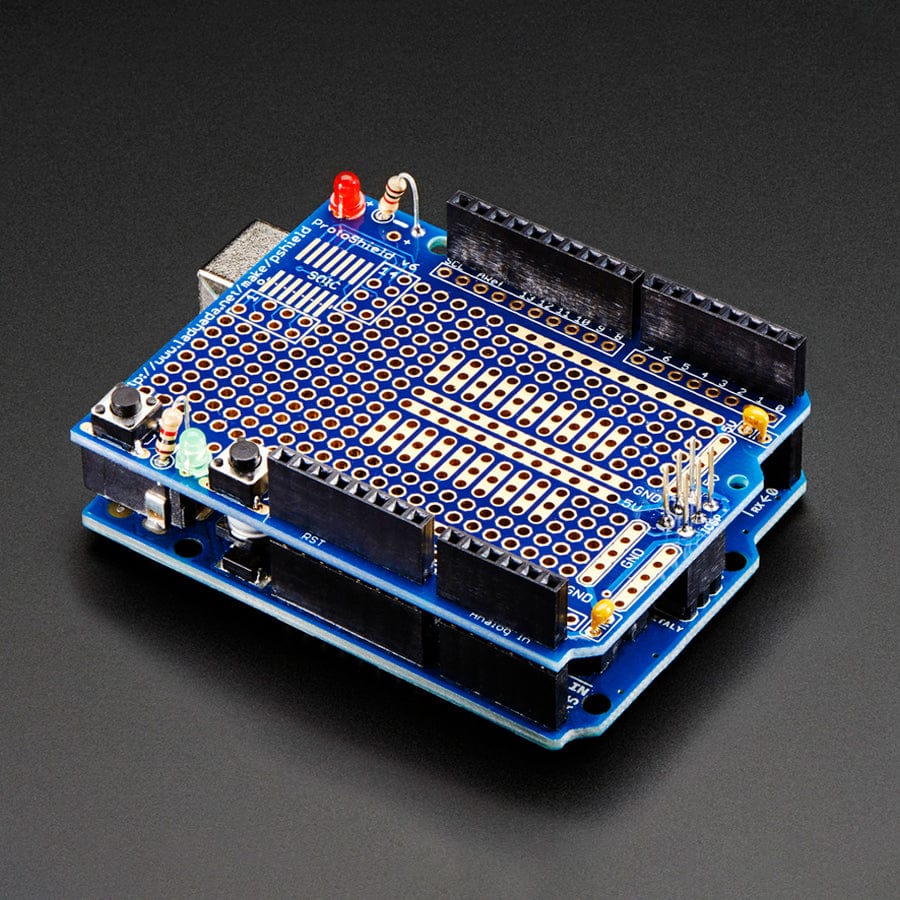

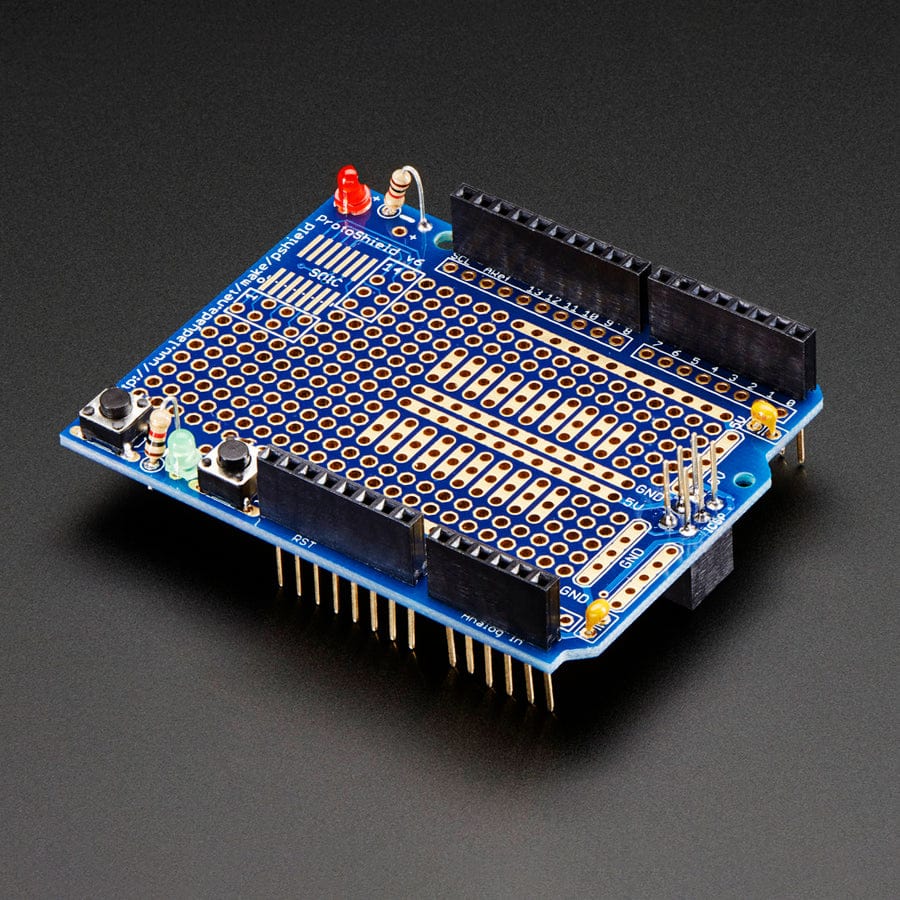

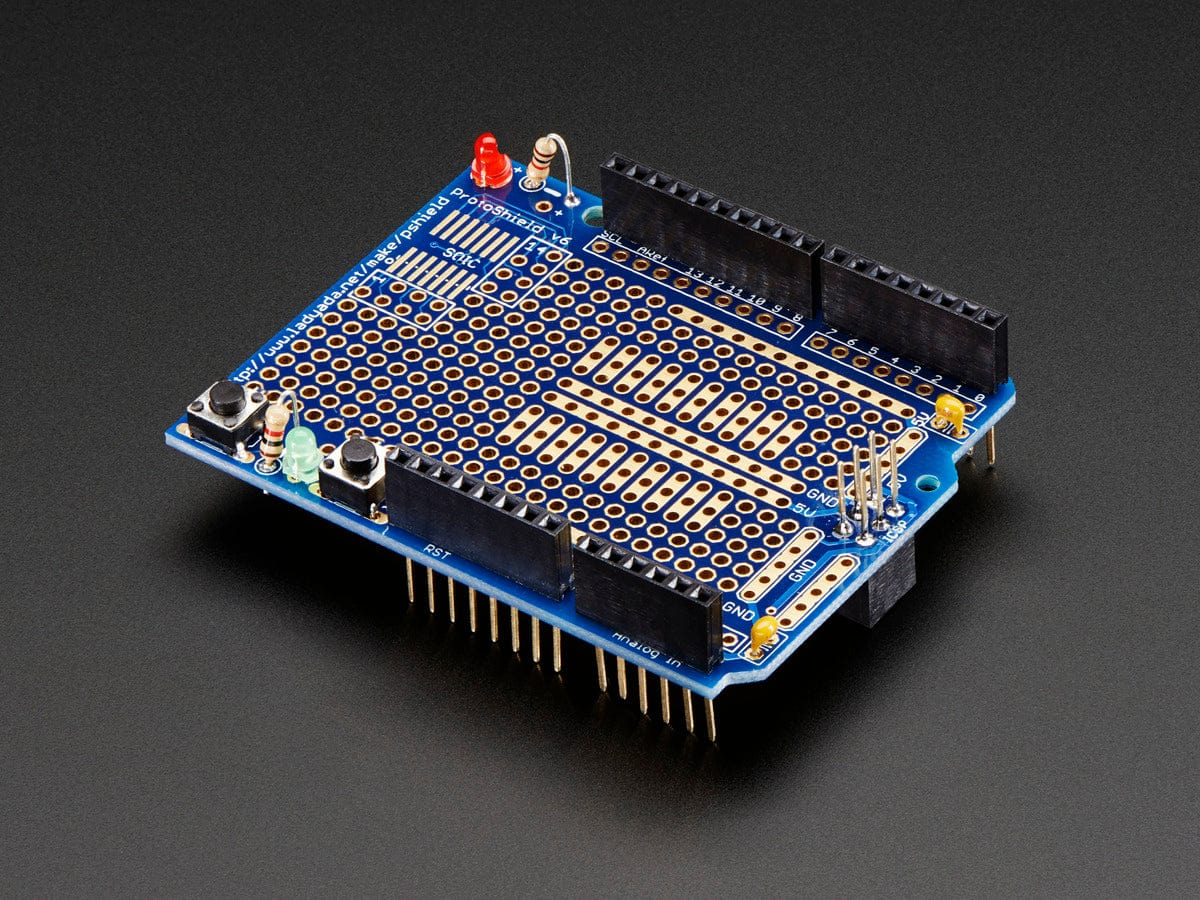

- Comes with Stacking headers and plain header, choose whichever you want when soldering together
- A IC pattern for adding DIP ICs up to 20 pins
- Power rails down the middle and sides
- A reset button and an extra general use button
- 2 3mm general use LEDs, red and green, as well as 2 matching resistors

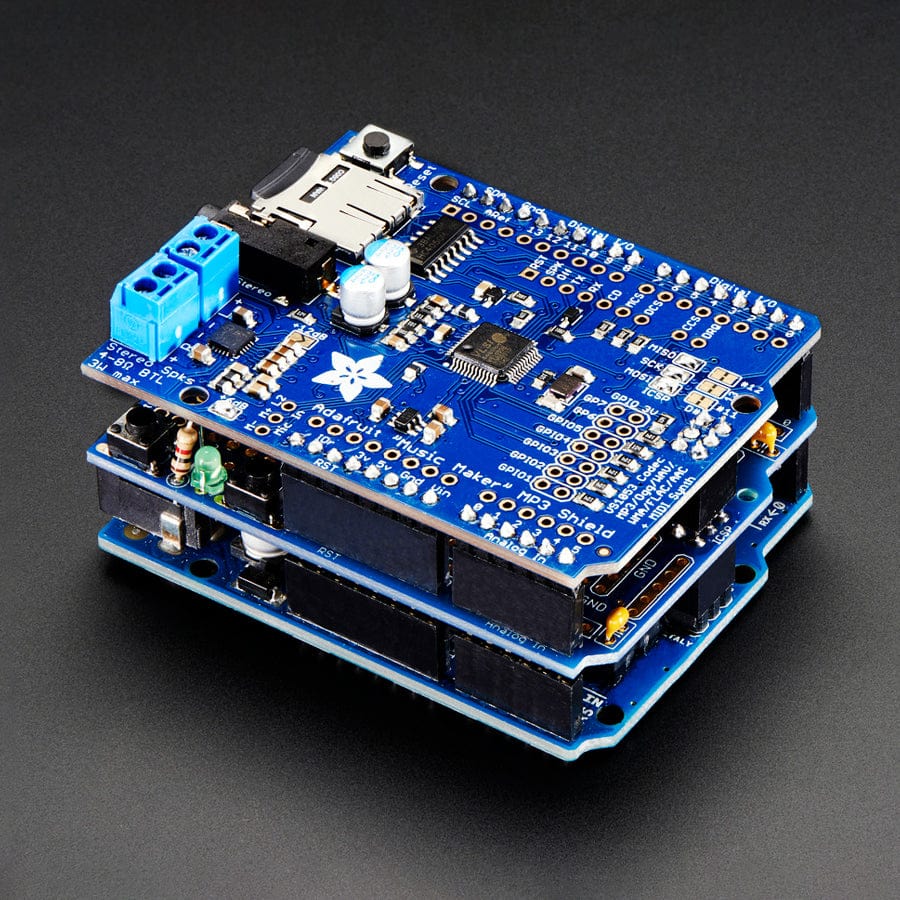

- A pass-thru ICSP stacking header so you can stack any kind of shield on top, and/or use an AVR programmer
- A surface-mount chip area for up to 14 SOIC size parts

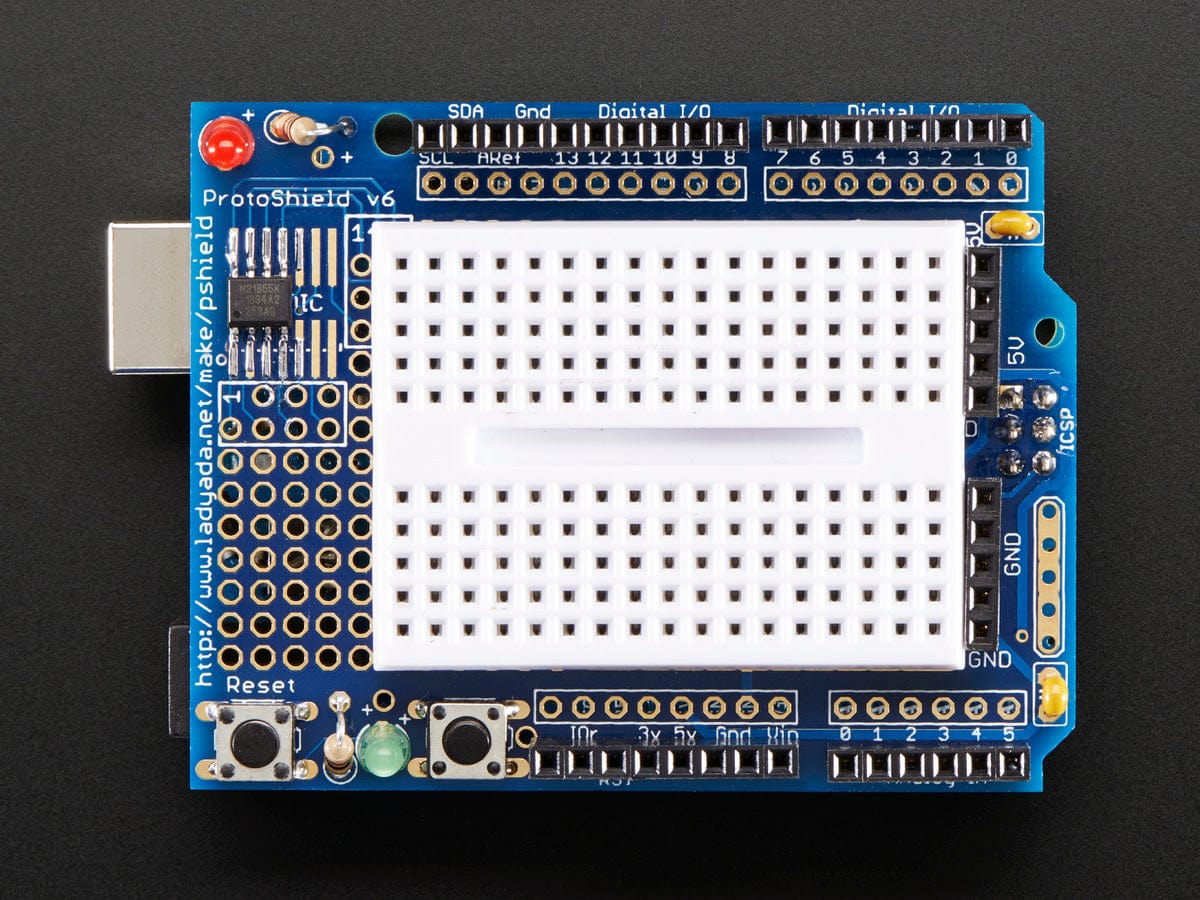

- Compatible with tiny breadboards
- Every pin is brought out!
- Gold plated pads
- 2 x 0.1uF capacitors on either side for extra power stability
- Fits regular Arduino headers
- Dimensions (assembled): 69mm x 53mm x 13mm (2.7in x 2.1in x 0.5in)
- PCB CAD files and Fritzing object available in the tutorial
