The HDMI Plug to Breakout provides easy solder access to HDMI connections through labelled through-hole pads, with a solid PCB and clip-on housing for custom cables, test setups and specialised wiring.

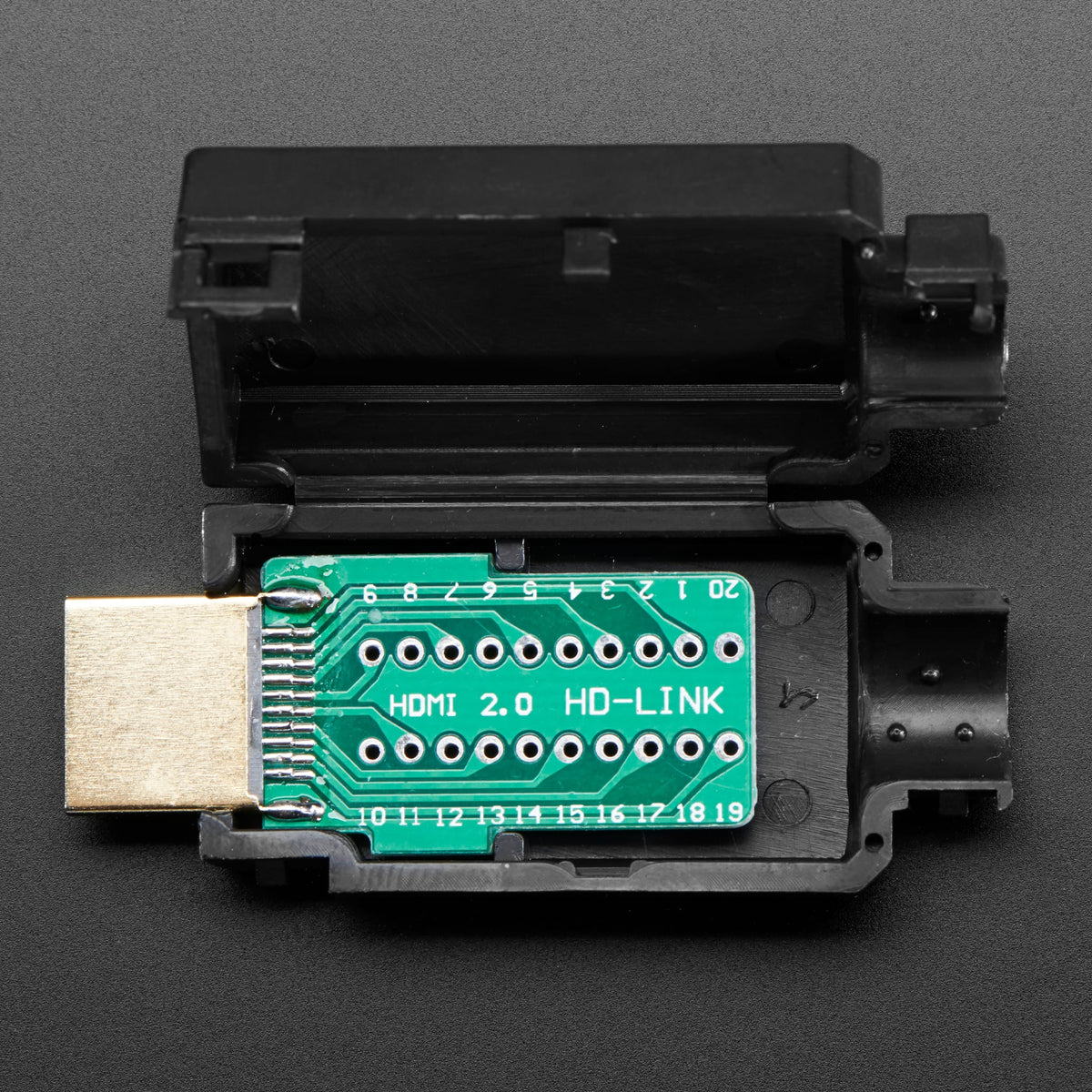

Make your own custom HDMI cable or HDMI interface with ease, using this HDMI Plug to Breakout. You get a nice solid PCB with an HDMI plug and through hole pads that you can solder to assemble your own wiring jigs. You can add in some terminal blocks to make the wiring easier, or check out the HDMI Plug to Terminal Block Breakout which comes with them built in.
If you just need a plain HDMI cable, we have plenty and it's less expensive to just buy a standard cable than DIY it. So, we recommend this adapter when you have some unusual setup or wiring needs like splicing off the I2C or power pins.
Features
HDMI plug to breakout PCB adapter
Through hole pads for custom soldering
Solid PCB construction
Ideal for custom wiring configurations
Access to I2C and power pins
Compatible with terminal block installation

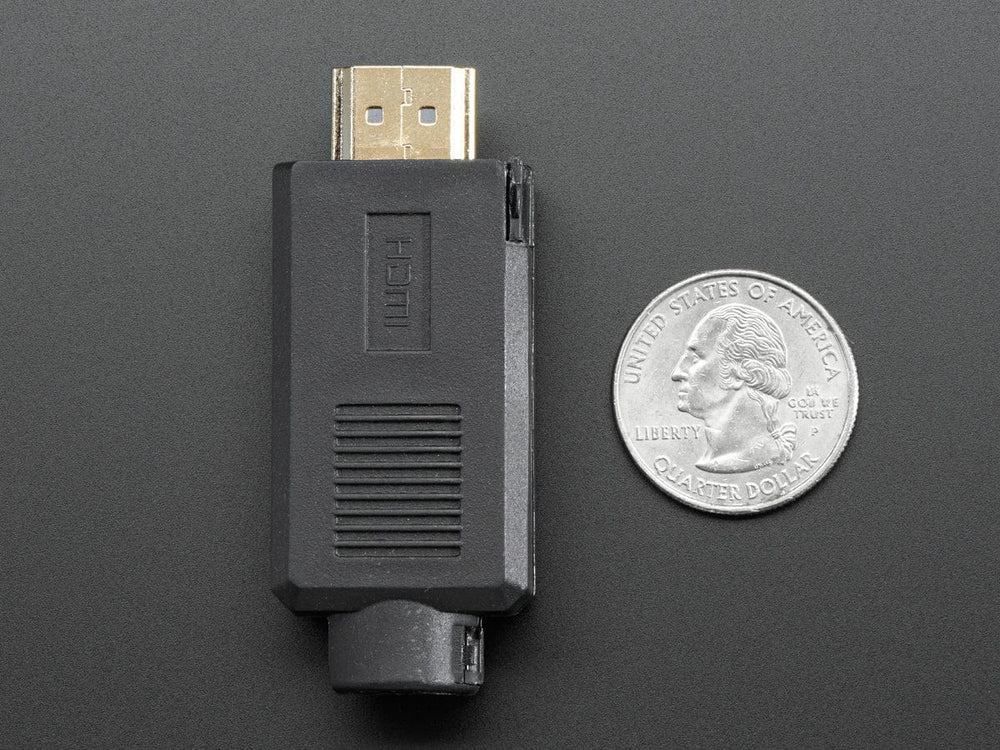

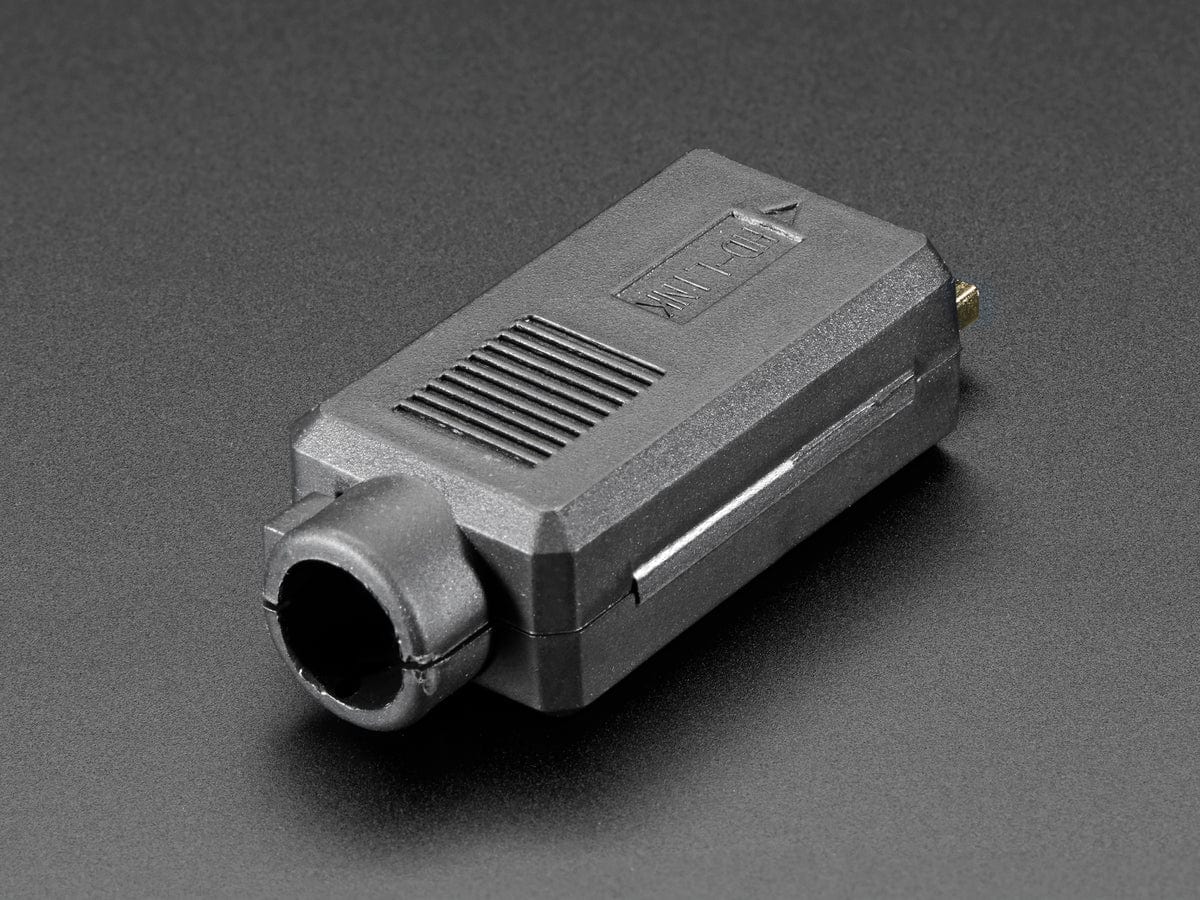

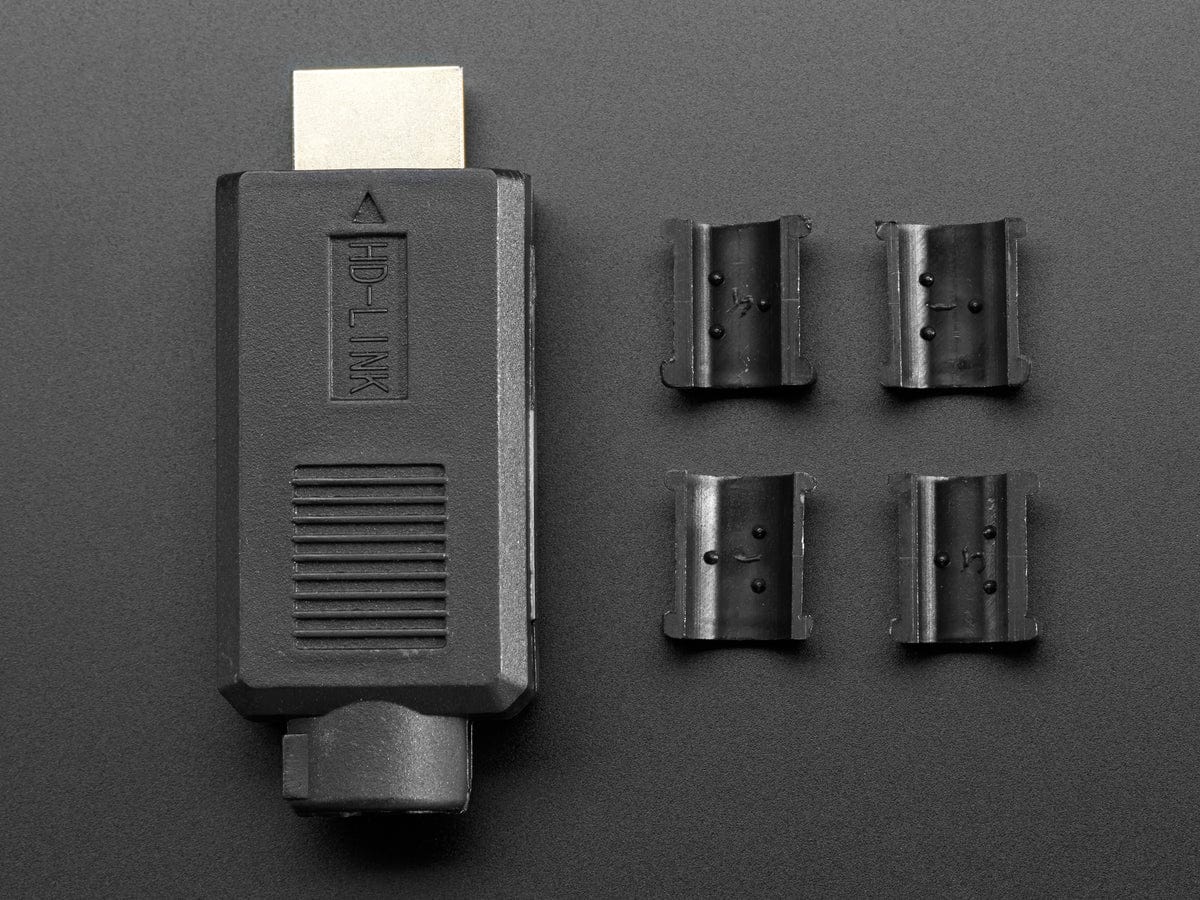

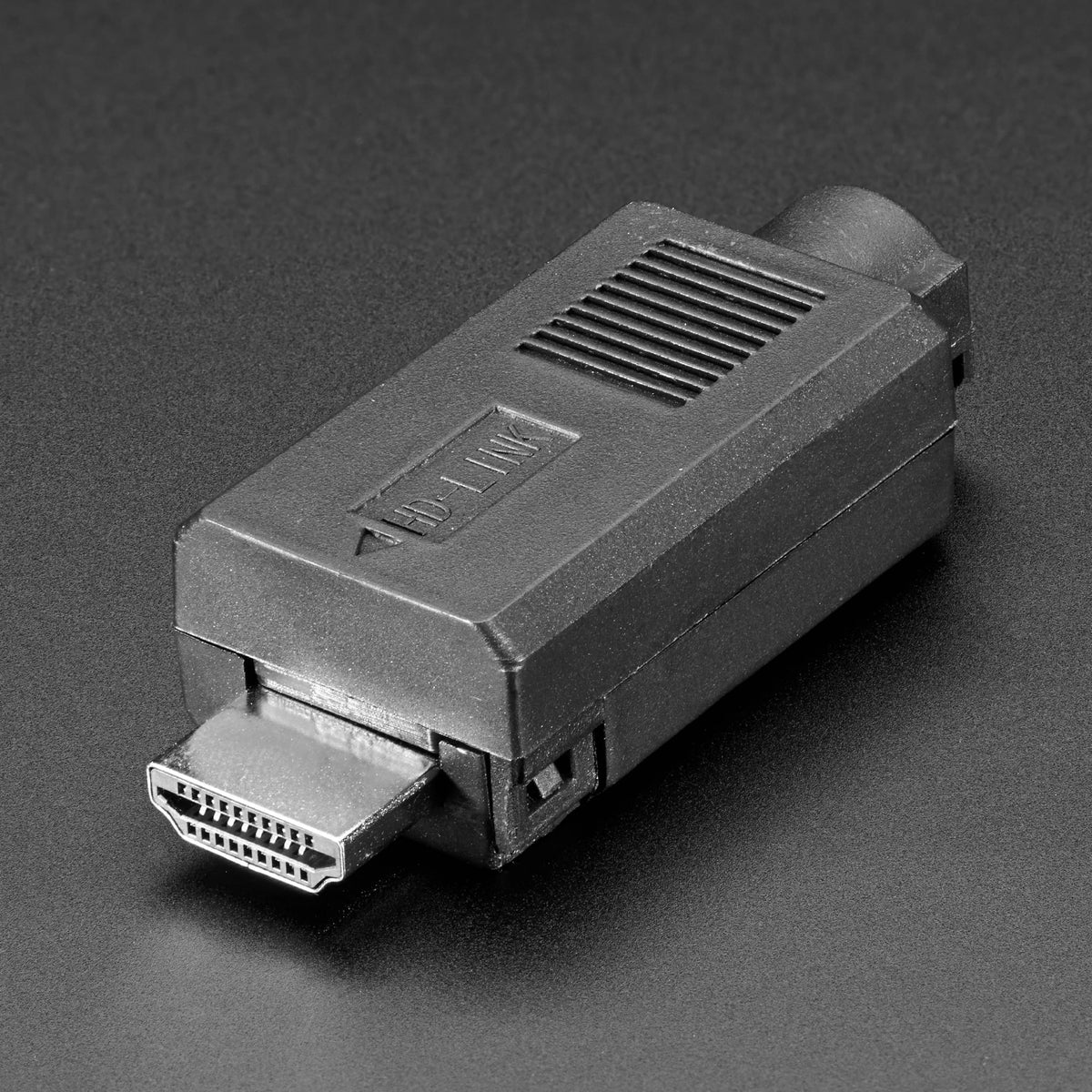

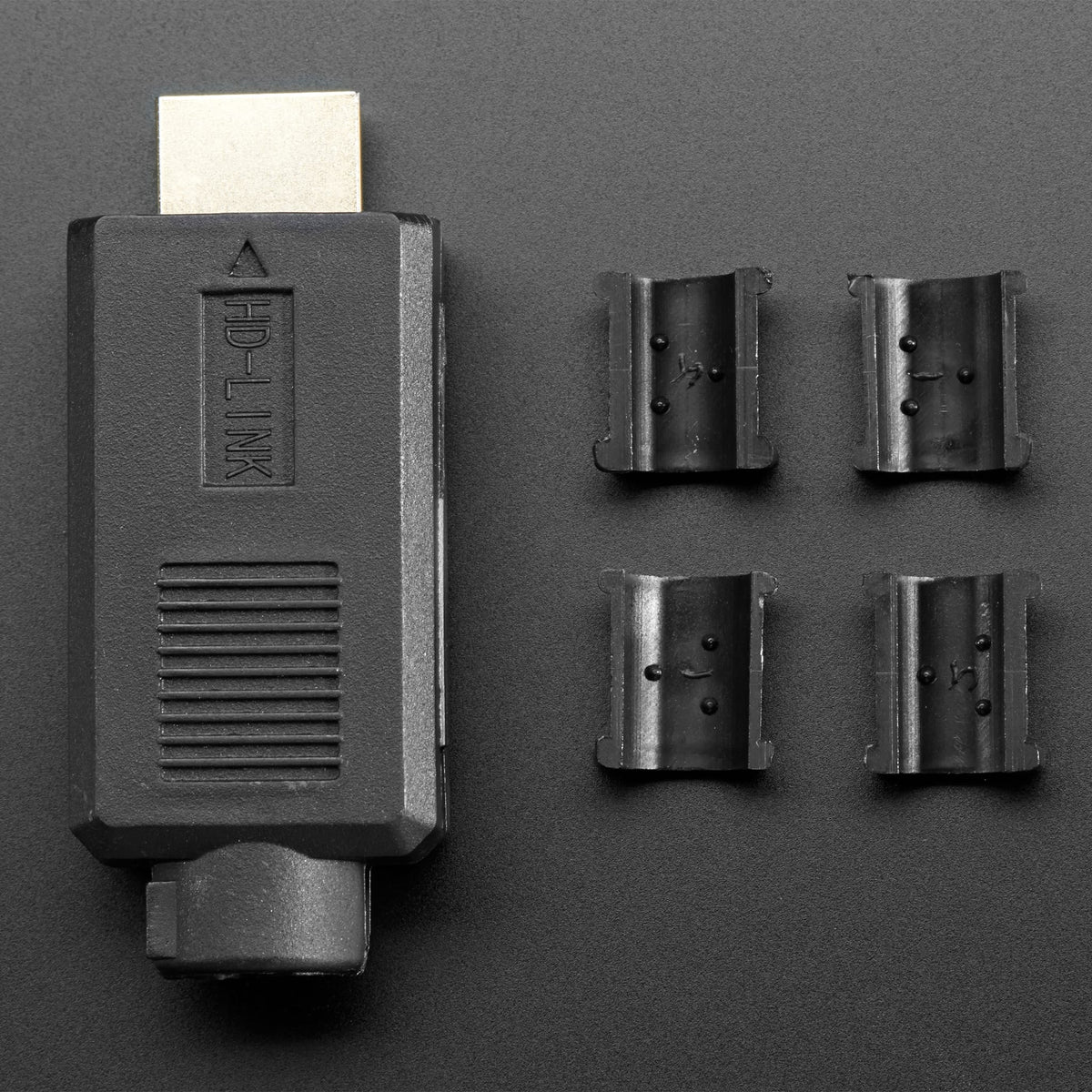

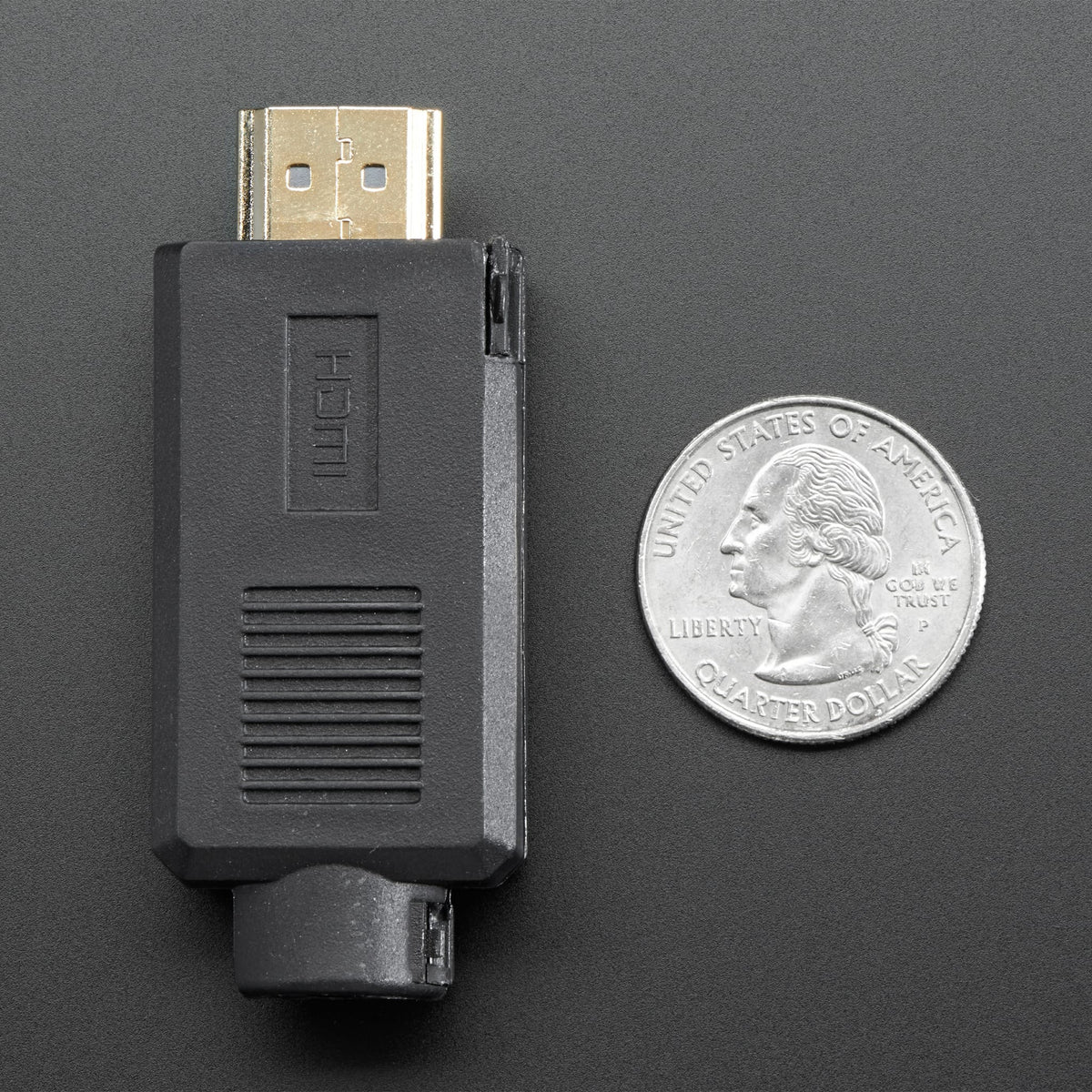

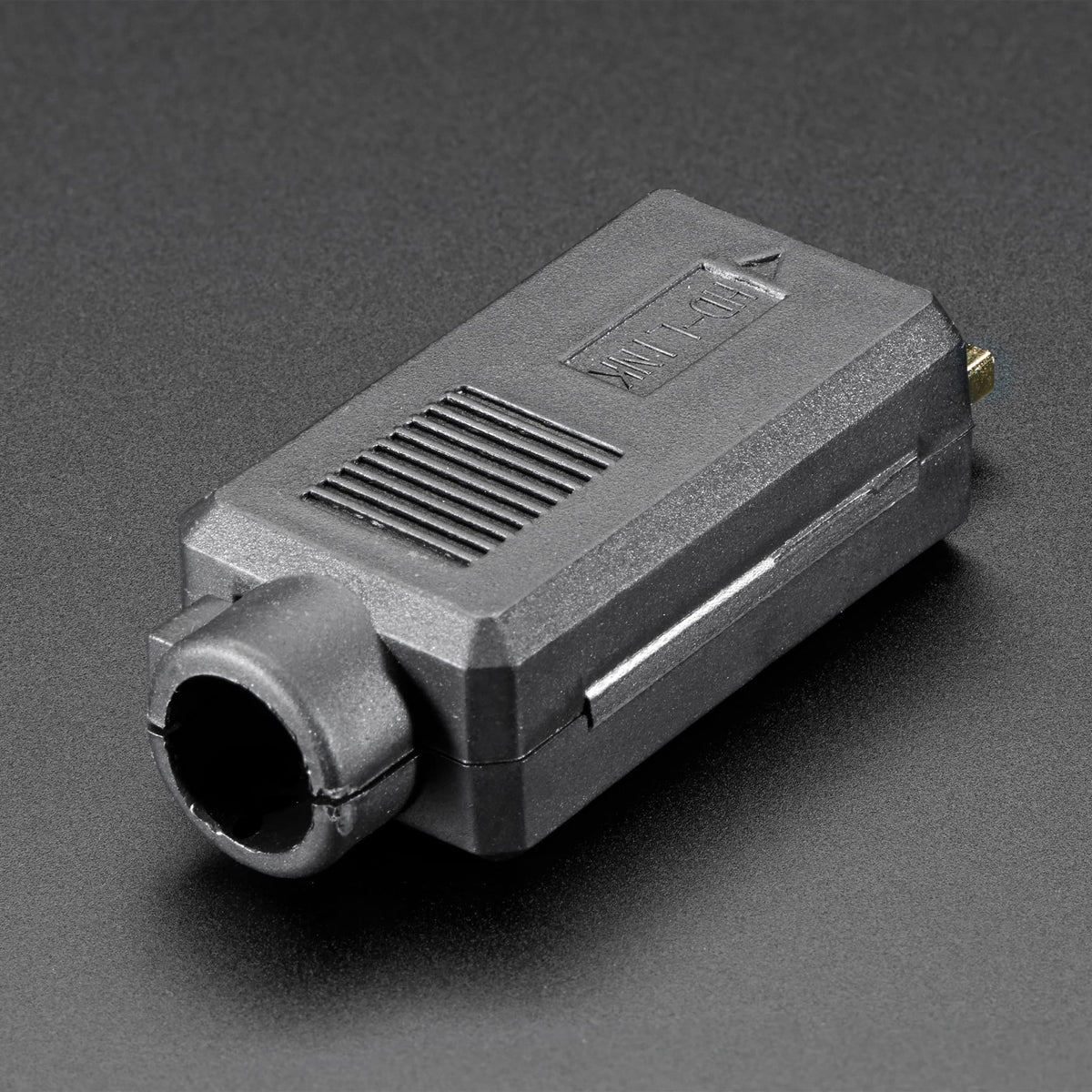

Includes clip-on housing
Suitable for splicing and custom jigs
Specifications
In between Pitch: 6mm
Pin-to-pin Distance: 2.54mm
Dimensions: 50.6mm x 25.0mm x 16.5mm
Weight: 10.0g
Package Contents
1x HDMI Plug Breakout Board
1x Breakout
1x Clip on housing
