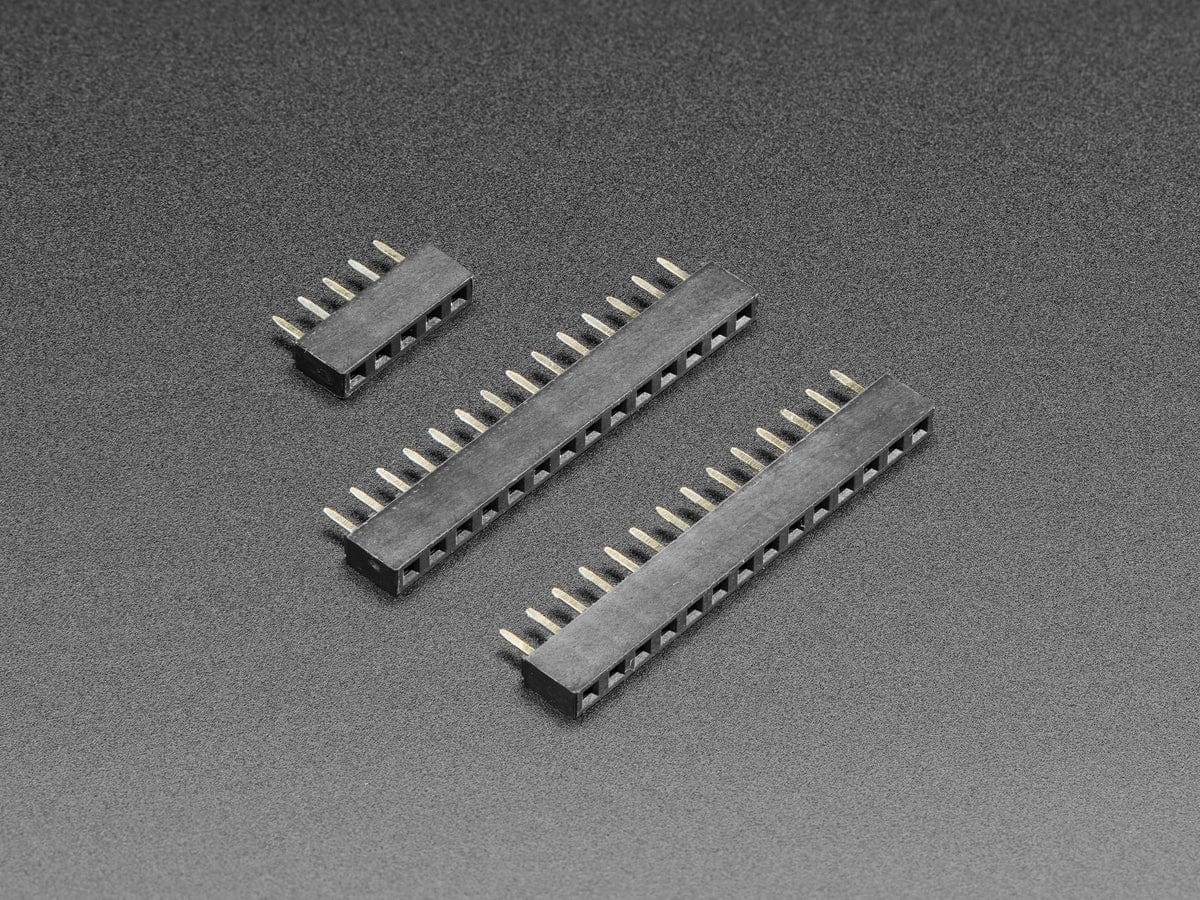

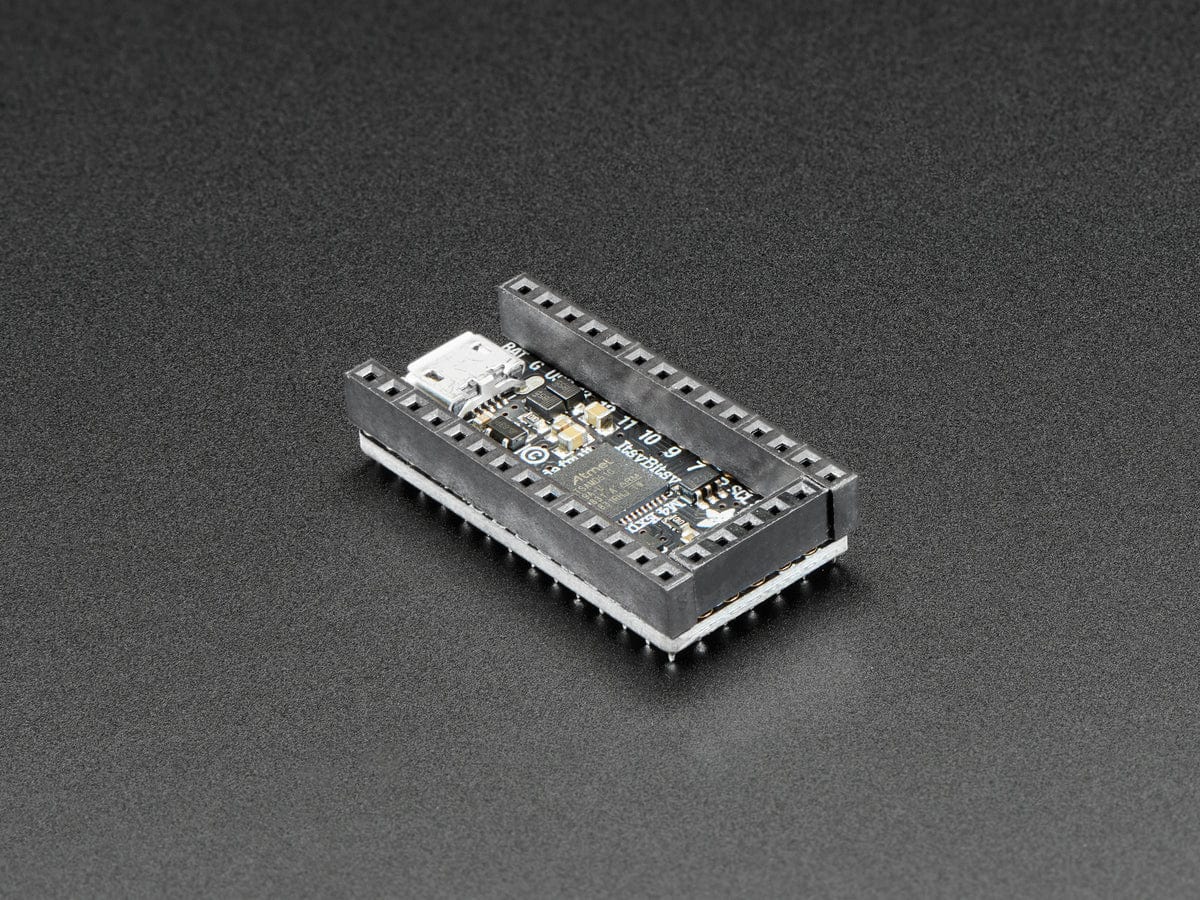

Short Female Header Kit for ItsyBitsy - The Pi HutShort Female Header Kit for ItsyBitsy - The Pi Hut
The Pi HutShort Female Header Kit for ItsyBitsy
Sale price £1.20 incl. VAT excl. VAT

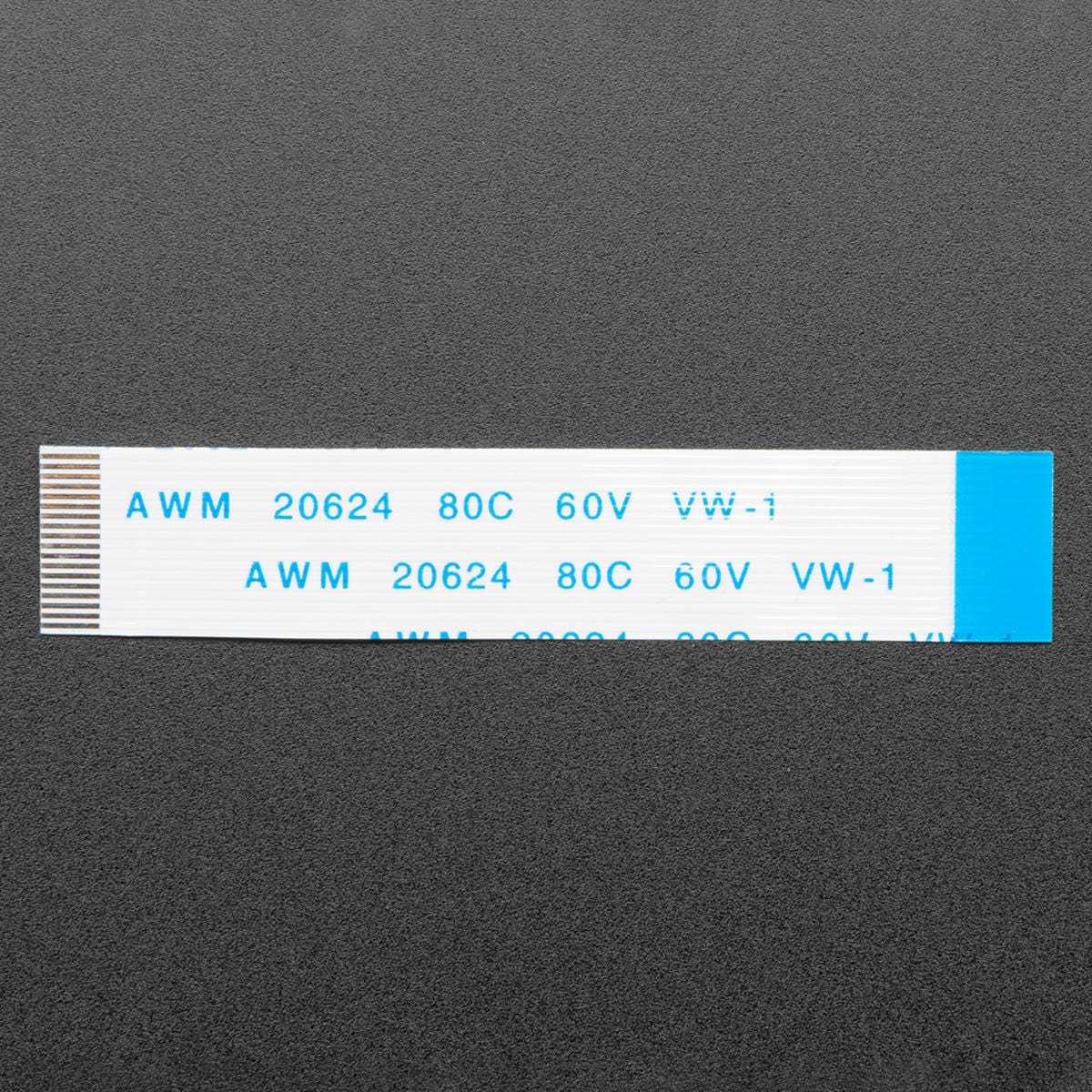

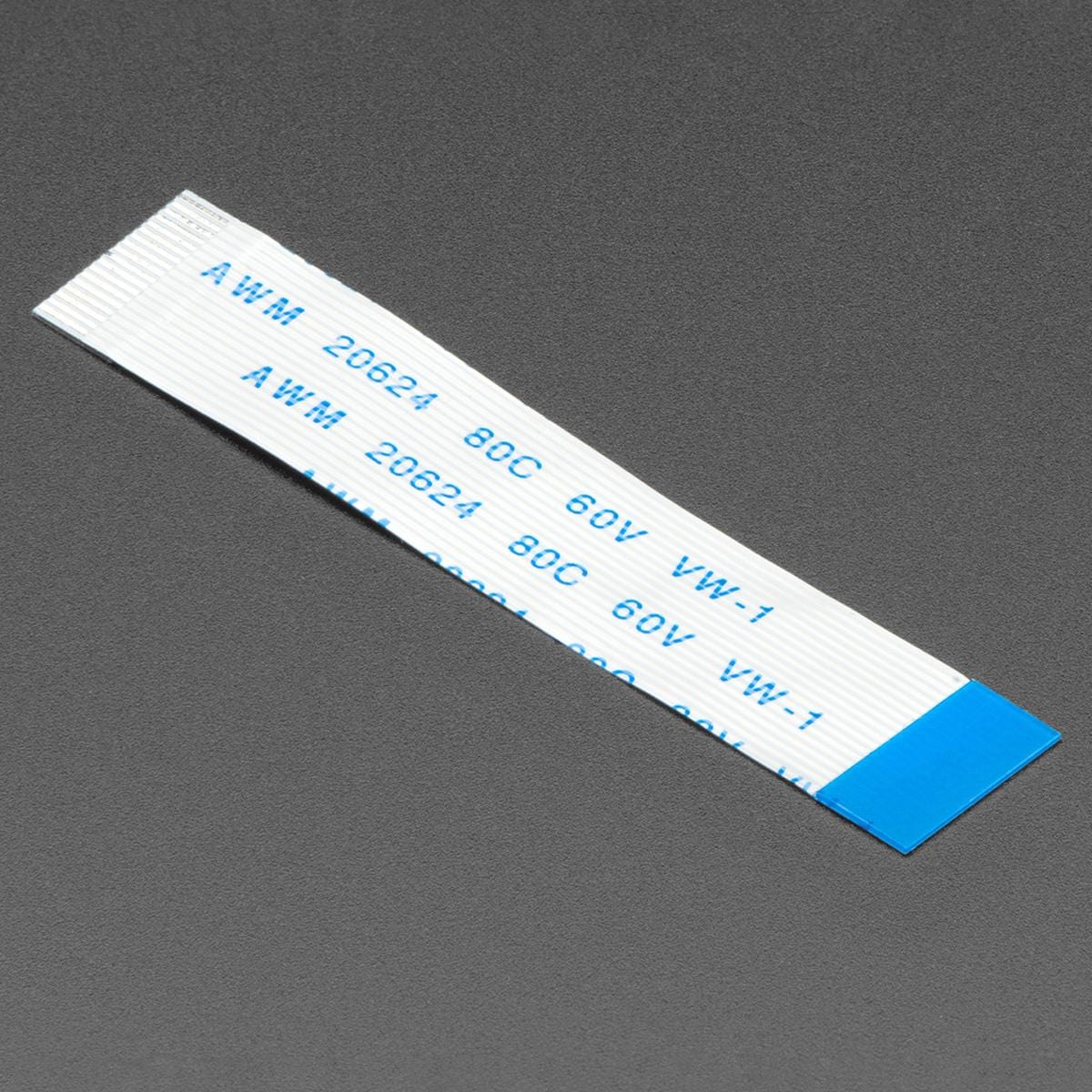

EYESPI Cable - 18-pin 50mm Long Flex PCB (FPC) A-B Type - The Pi HutEYESPI Cable - 18-pin 50mm Long Flex PCB (FPC) A-B Type - The Pi Hut

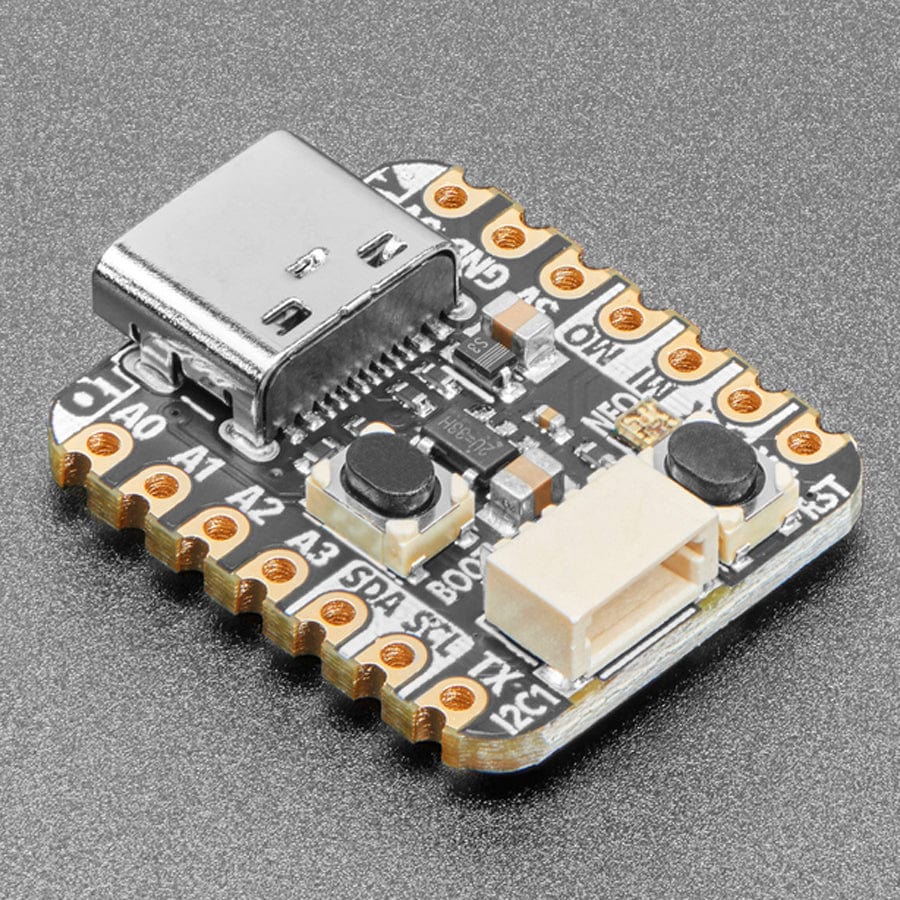

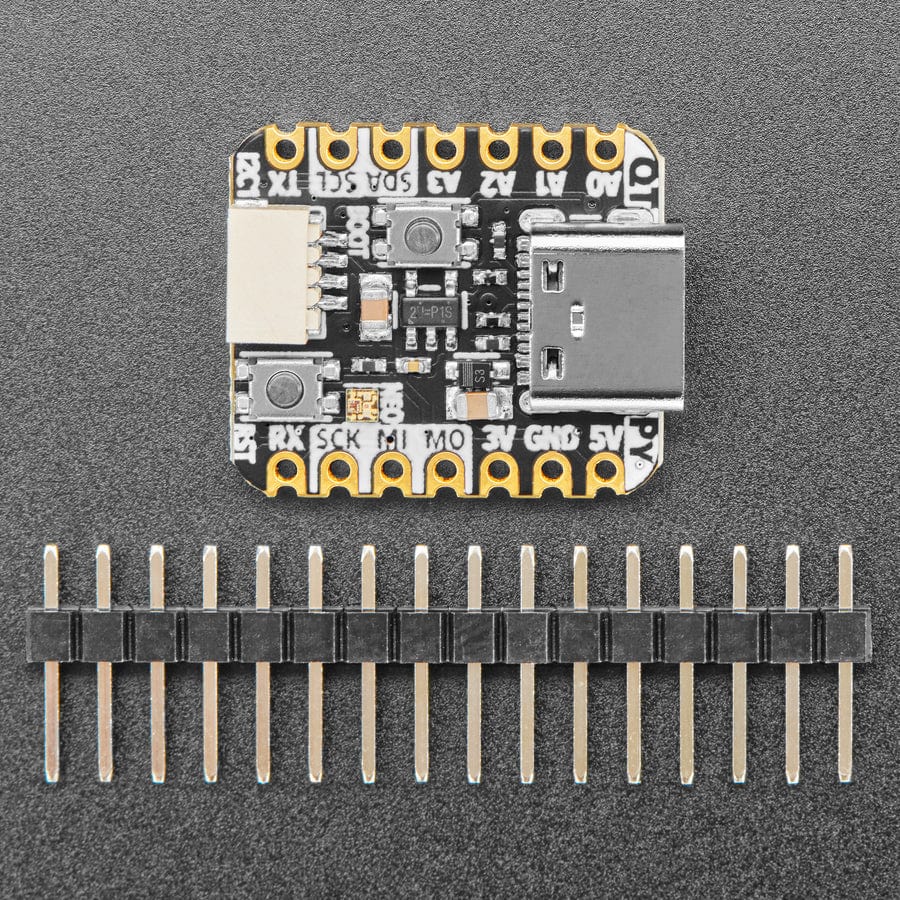

Adafruit QT Py RP2040 - The Pi HutAdafruit QT Py RP2040 - The Pi Hut
AdafruitAdafruit QT Py RP2040
Sale price £9.20 incl. VAT excl. VAT
Seeed XIAO ESP32C3 - The Pi HutSeeed XIAO ESP32C3 - The Pi Hut
SeeedSeeed XIAO ESP32C3
Sale price £5 incl. VAT excl. VAT
Seeed XIAO BLE nRF52840 - The Pi HutSeeed XIAO BLE nRF52840 - The Pi Hut
SeeedSeeed XIAO BLE nRF52840
Sale price £10.80 incl. VAT excl. VAT

Our QT Py boards are a great way to make very small microcontroller projects that pack a ton of power - and now we have a way for you to add a small, colourful, and bright display to any project.

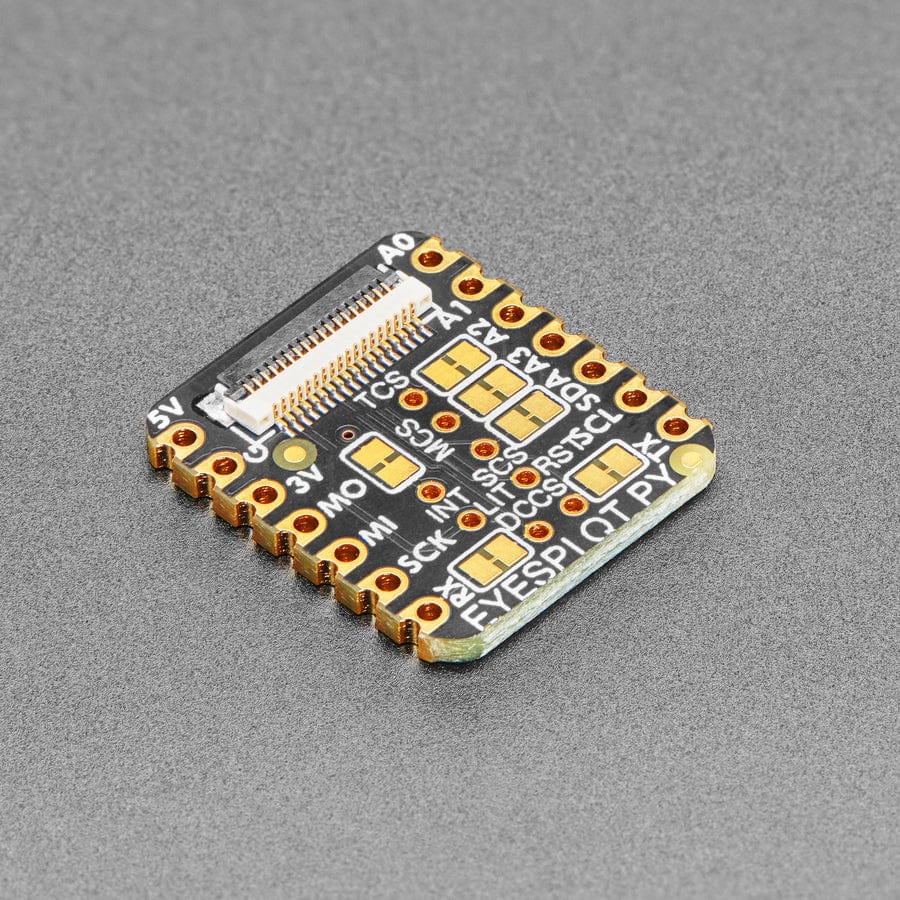

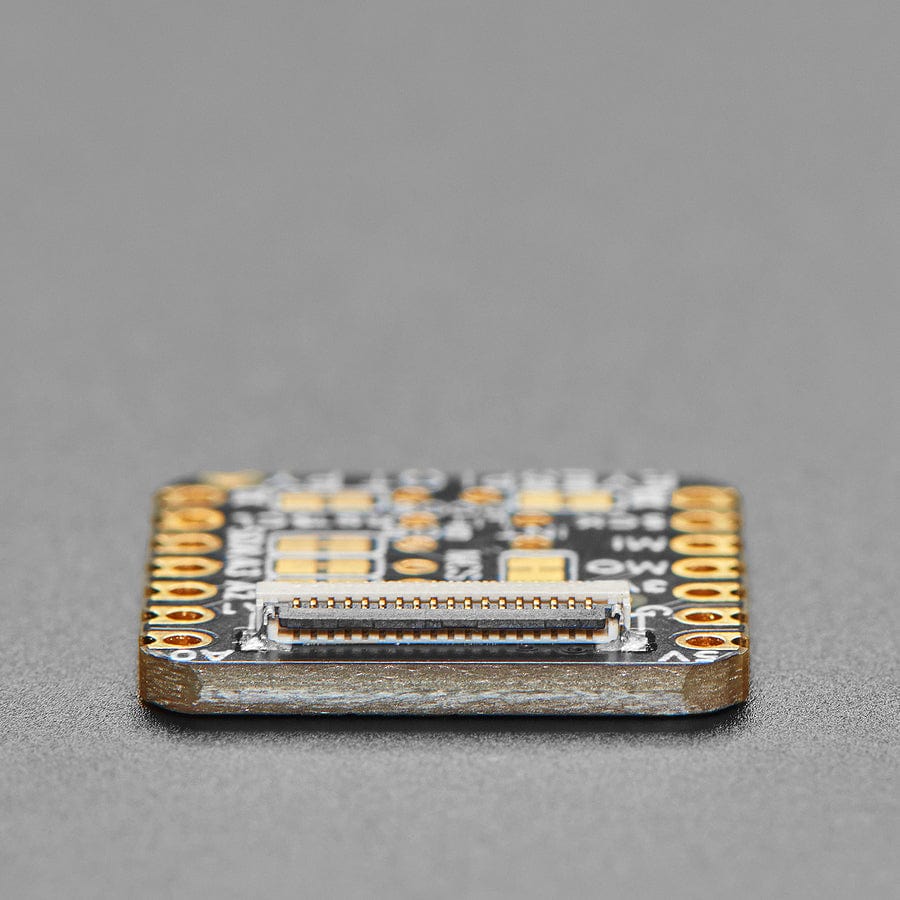

Our most recent display breakouts have come with a new feature: an 18-pin "EYE SPI" standard FPC connector with a flip-top connector. This is intended to be a sort of "STEMMA QT for displays" - a way to quickly connect and extend display wiring that uses a lot of SPI pins. In this case, we need a lot of SPI pins, and we want to be able to use long distances, so we go with an 18-pin 0.5mm pitch FPC.

With such a slim and flexible cable, it's a perfect match for our QT Py boards to make extra small microcontroller boards with big bold colourful displays or power-sipping E-Ink.

Don't forget you'll also want an 18-pin EYESPI FPC cable. And of course one of our EYESPI displays too - look for the EYESPI logo on the back to know you've got one that can clip in.

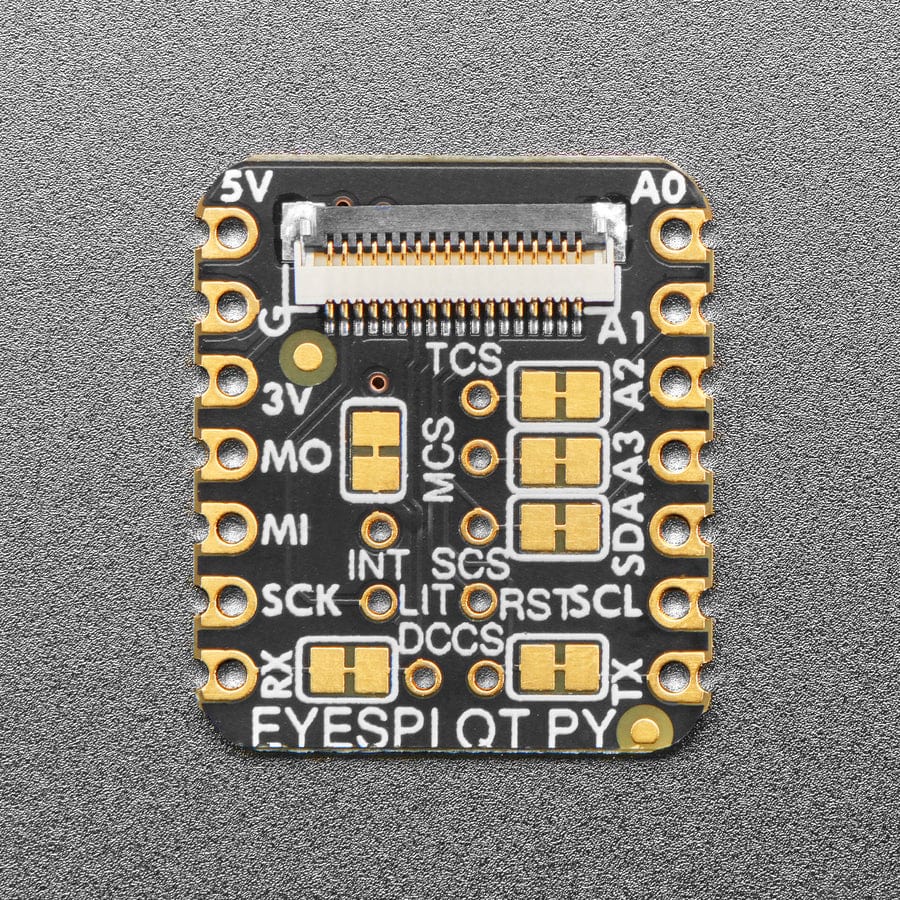

  • MOSI/MISO/SCK SPI pins are connected to the default SPI port on the QT Py
  • SDA/SCL I2C pins are connected to the I2C port on the QT Py headers - some boards have a separate QT Py I2C port so keep in mind they may be separate busses.
  • TFT CS on TX pin - but can be re-configured/disabled by cutting a solder jumper.
  • TFT DC on RX pin - but can be re-configured/disabled by cutting a solder jumper.

We also have 'sometimes used' pins that can be re-configured/disabled by cutting a solder jumper

  • IRQ on A0 pin - Many of our displays don't use the IRQ pin unless there's a touchscreen.
  • Touch CS on A1 pin - Many of our displays don't have a touchscreen.
  • Memory CS on A2 pin - Only our E-Ink displays have a separate memory SRAM chip, which you may be able to skip using on most QT Py's.
  • SD Card CS on A3 pin - Or use for whatever you like if you aren't using the SD Card socket on of our display breakouts.

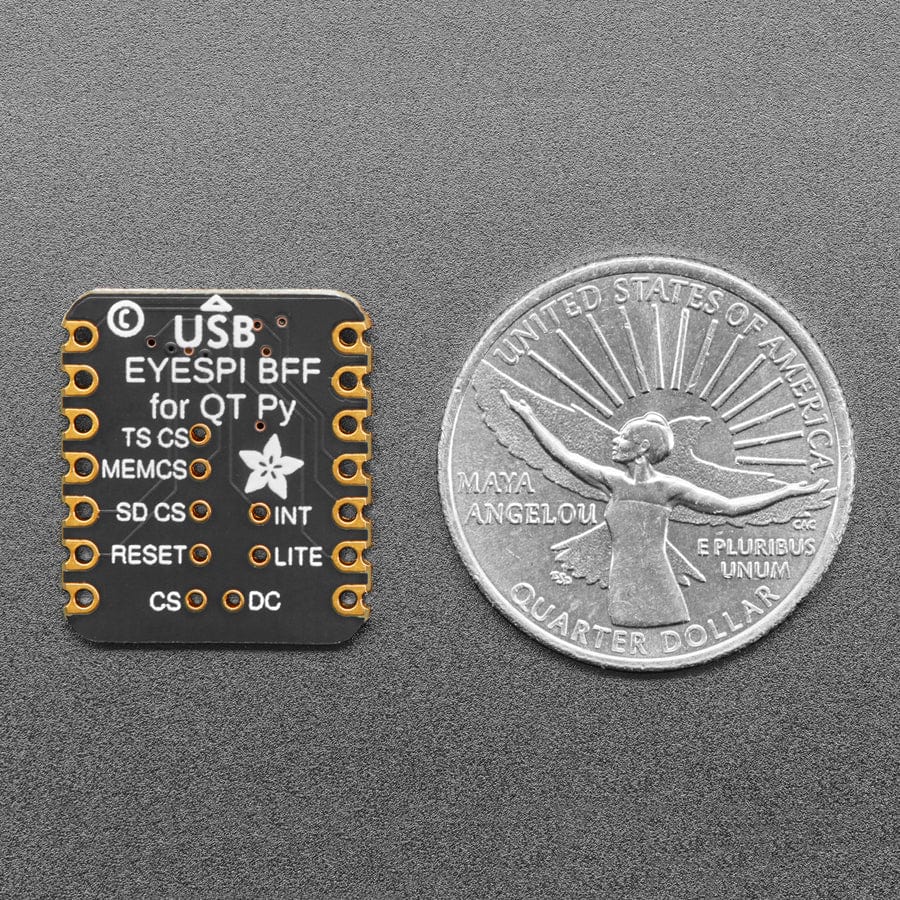

There are also two through-hole solder pads for extra pins that are often considered optional and we didn't have any more IO to spare. If you aren't using any of the 4 pins above or the I2C port, you could wire these two pins with jumper wires as you desire.

  • Backlight control - this is default on for most of our displays, or unused on E-Ink,
  • Display reset - this is the default one for most of our displays. Sometimes it's used for low-power on E-Ink.

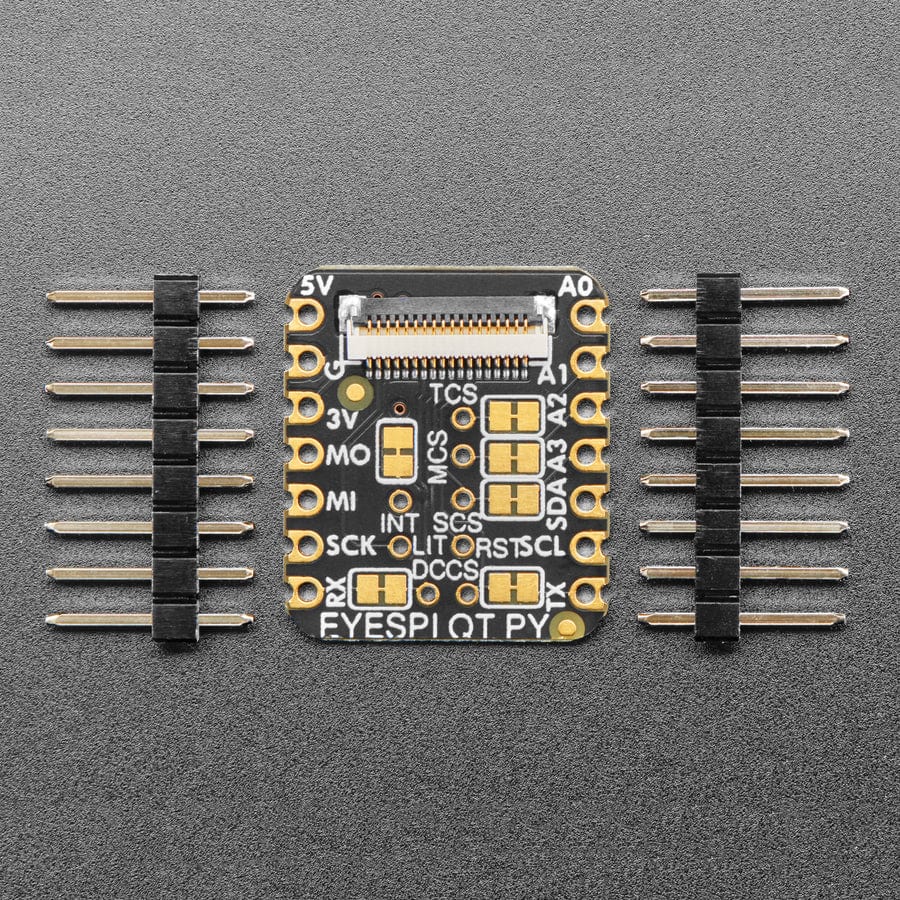

We include some headers that you can solder to your QT Py. You can also pick up an Itsy Bitsy short female header kit to make it removable but compact, you'll just need to trim down the headers to 7 pins long.

  • Comes as an assembled and tested PCB
  • For any QT Py or Xiao boards

QT Py, display and EYESPI cable are not included.

Specifications

  • Product Dimensions: 20.6mm x 17.8mm x 2.7mm
  • Product Weight: 1.1g
