Adafruit Chainable DS18B20 Extender Breakout - STEMMA JST PH 2mm

AdafruitSKU: ADA5971
Sale price £5
incl. VAT
excl. VAT
Coming Soon
Notify me

Awesome Extras

The Pi HutDS18B20 Digital temperature sensor + extras
Sale price £3.90 incl. VAT excl. VAT
The Pi HutJST PH 3-pin Plug-Plug Cable - 100mm long
Sale price £0.80 incl. VAT excl. VAT

One of the perks of working at adafruit is you get to request hardware - and you'll probably get a fast turnaround! One of our developers requested "an easy way to chain DS18B20 sensors for testing with's wippersnapper service" at 11:54 am one Monday morning, and after a few back-and-forths, we came up with the Adafruit Chainable DS18B20 Extender Breakout. Bit of a mouthful, but we're better engineers than marketers doncha-know?

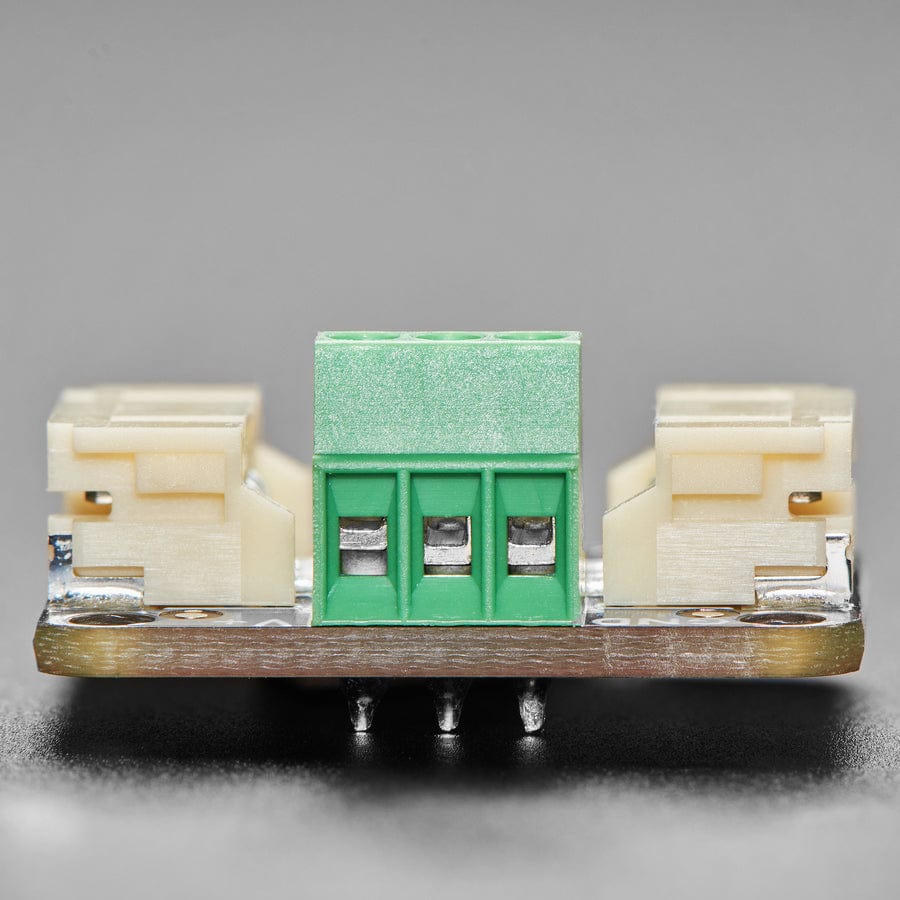

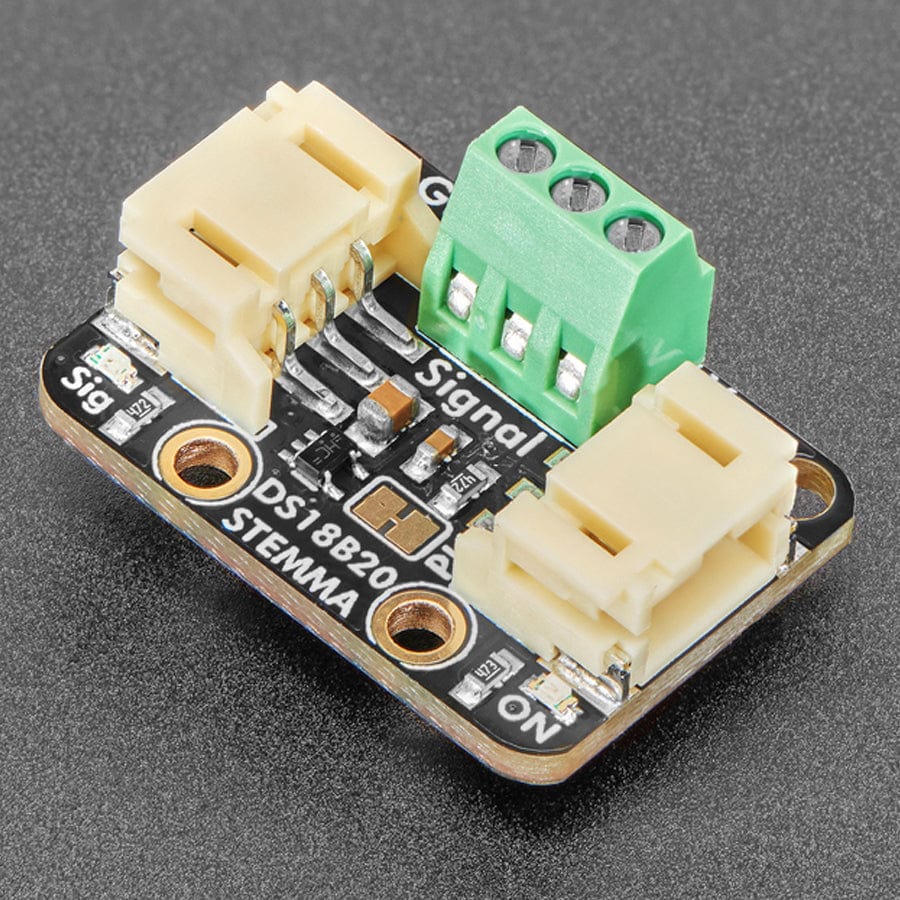

While there is absolutely nothing stopping you from just wiring up DS18B20s directly to your microcontroller, these extender breakouts will make things just a lil bit easier. You can use JST 3-pin cables to chain the extenders, the soldered-on screw terminal blocks mean you can easily connect DS18B20s in TO-92 or cable style with just a screwdriver.

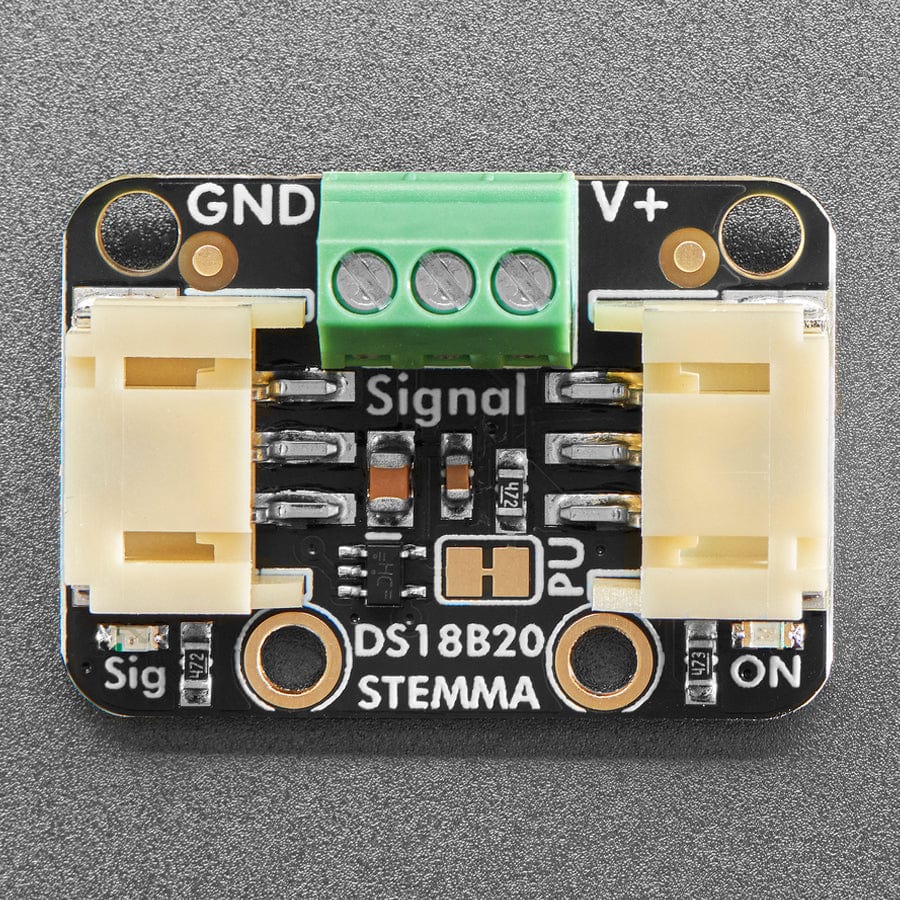

Each extender has a 4.7K signal pullup on board that can be disabled by cutting a trace, and a buffered signal LED that will let you know when there's data transmission on the 1-Wire line. When the red LED blinks, you know that data is going over the 1-wire line.

Please Note: This board doesn't come with a DS18B20 sensor itself; it's just an adapter helper. You supply the sensor + a JST PH-compatible 3-pin cable.

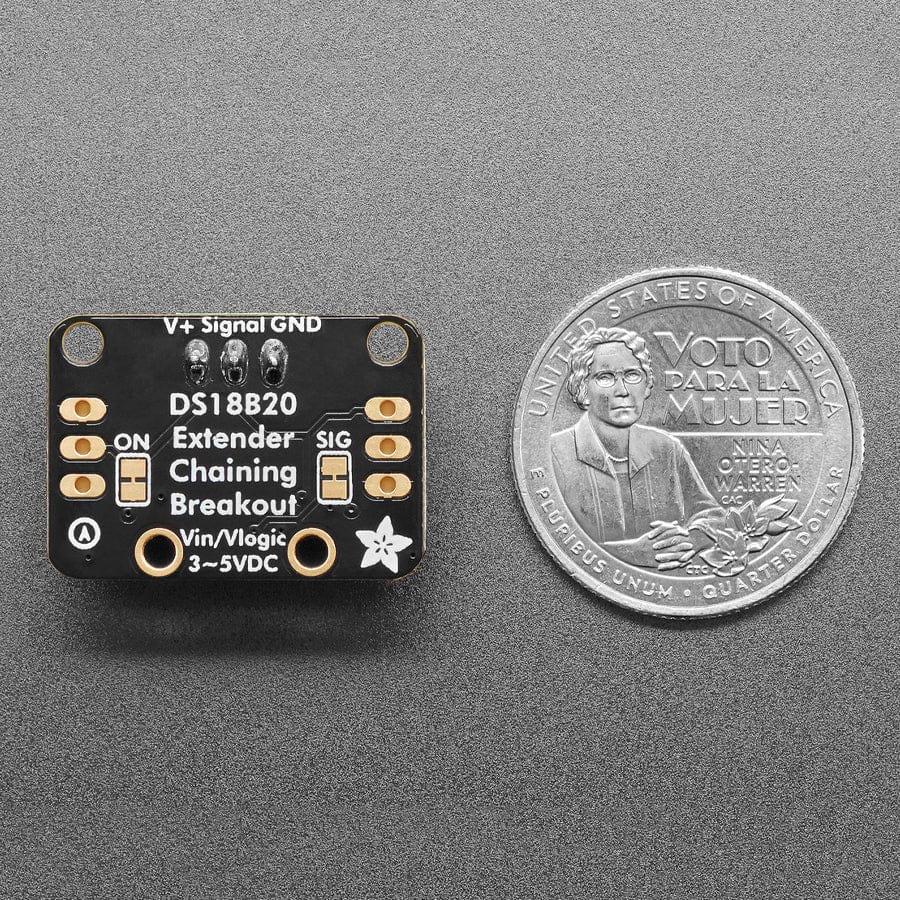

  • Dimensions: 25.3mm x 18.0mm x 10.2mm
  • Weight: 3.1g
