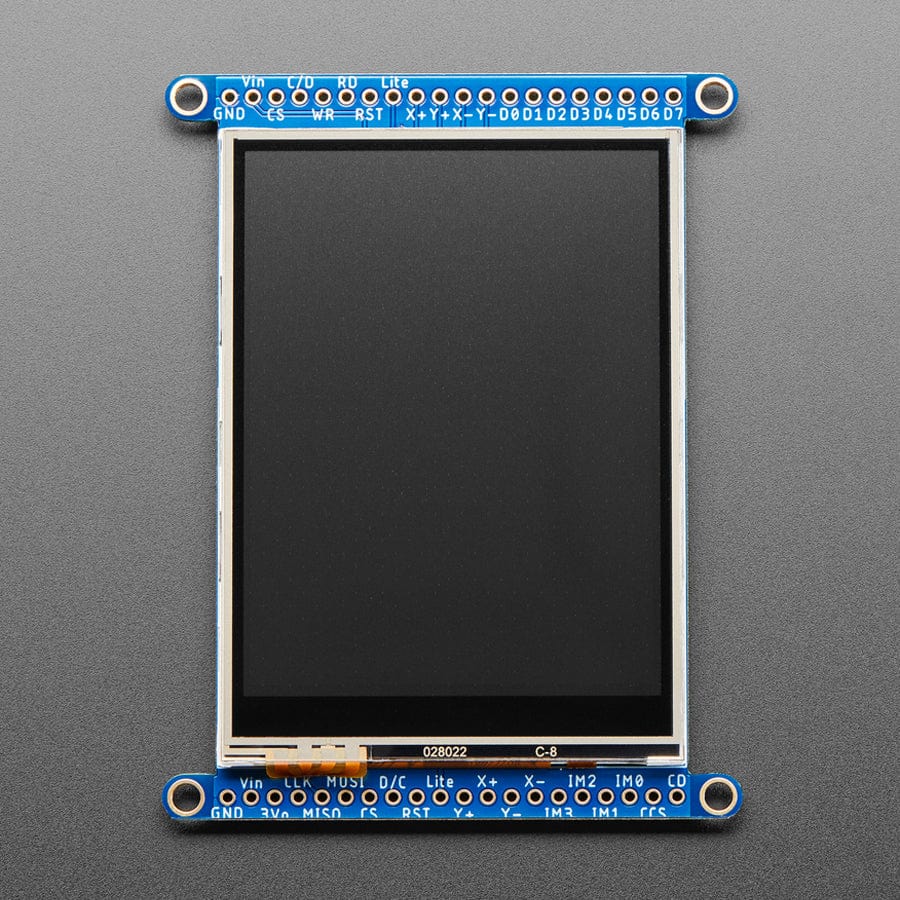

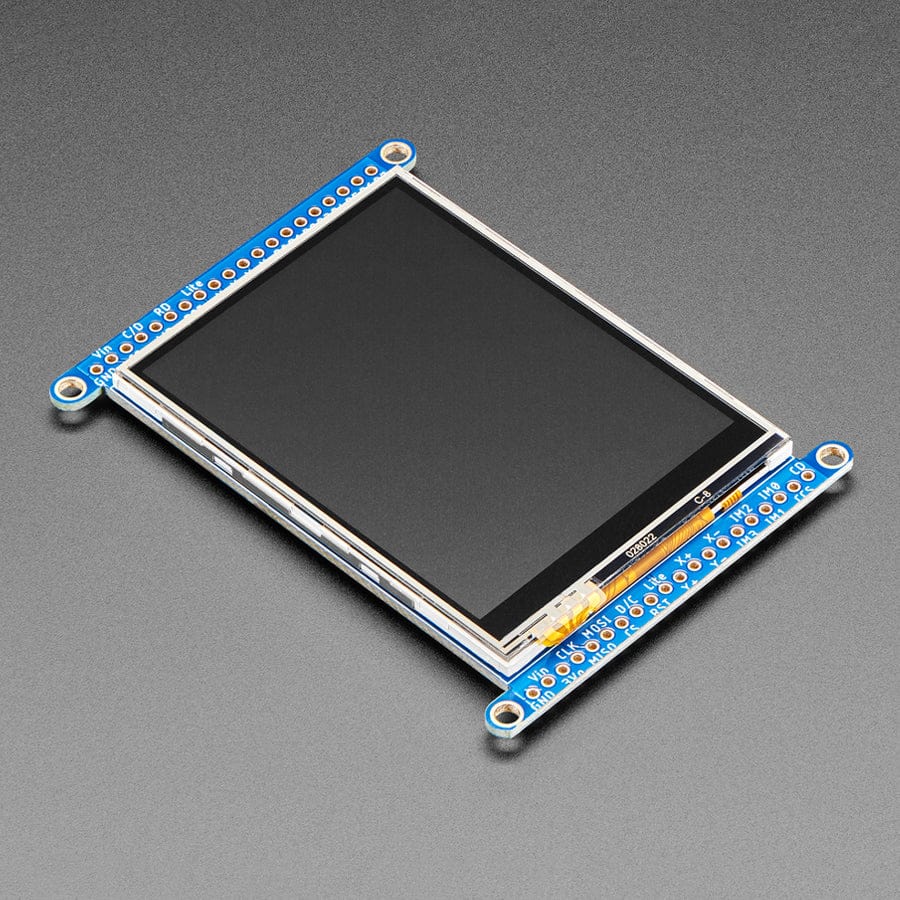

Add some jazz & pizazz to your project with a colour touchscreen LCD. This TFT display is big (2.8" diagonal) bright (4 white-LED backlights) and colourful! 240 x 320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128x64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen. We also have a version of this display breakout with a capacitive touchscreen.
This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller. The display can be used in two modes: 8-bit and SPI. For 8-bit mode, you'll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than 8-bit mode. In addition, 4 pins are required for the touch screen (2 digital, 2 analog) or you can purchase and use our resistive touchscreen controller (not included) to use I2C

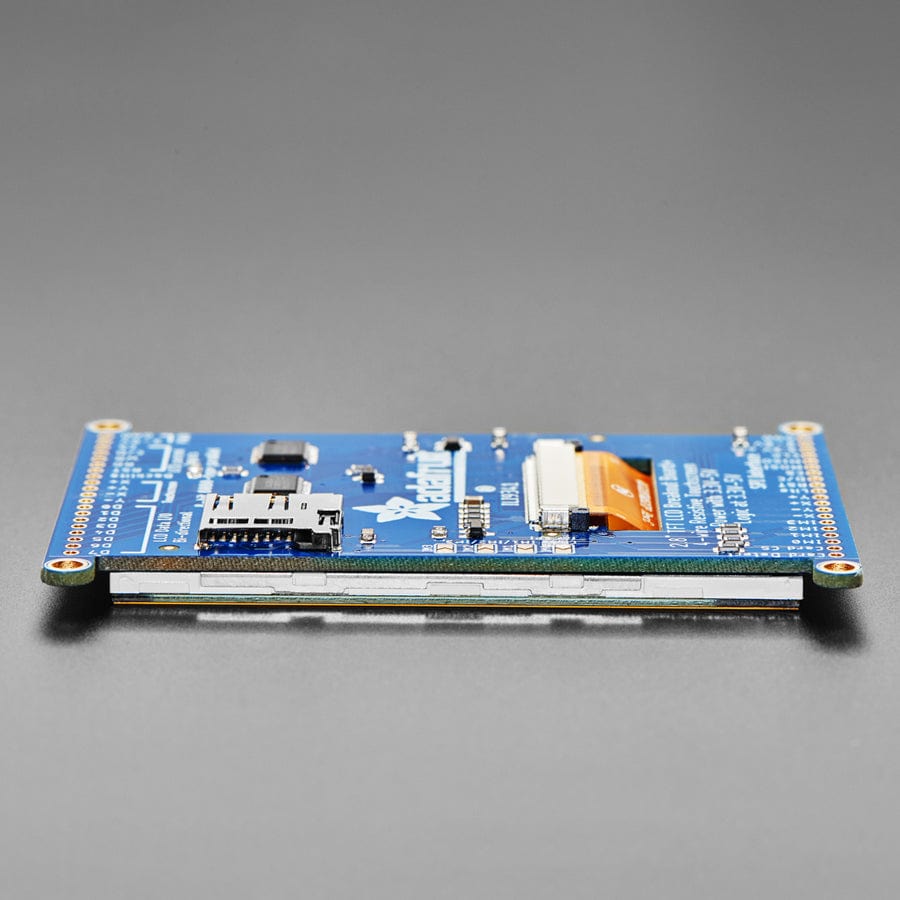

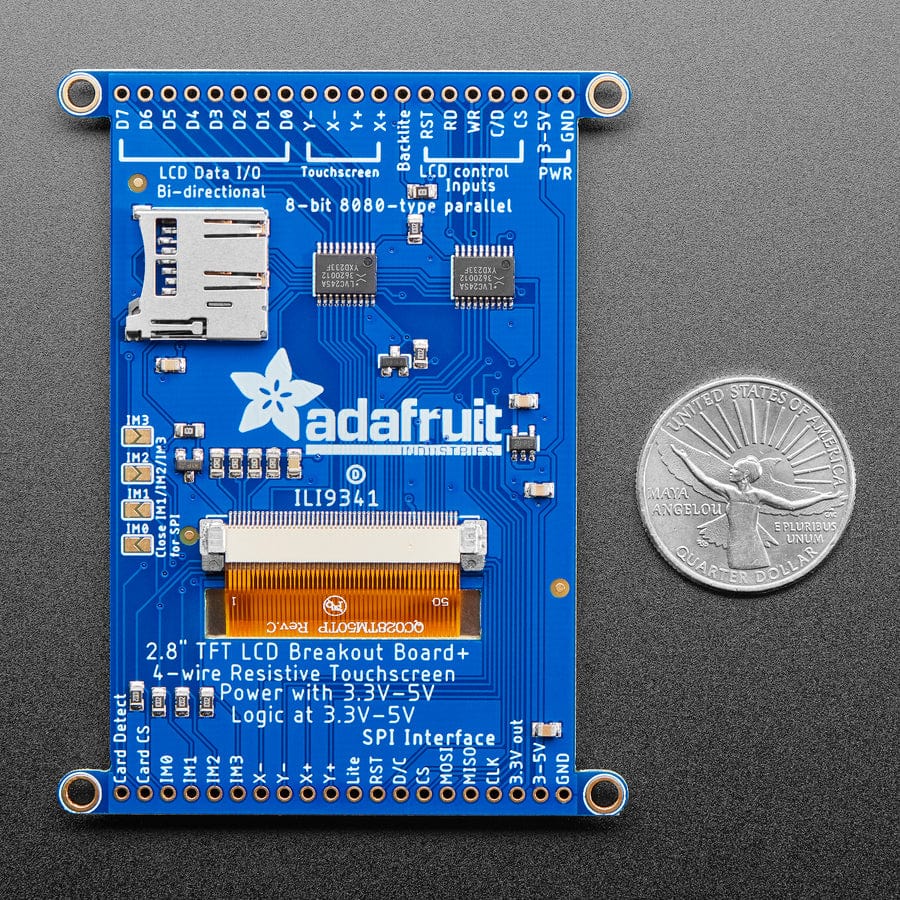

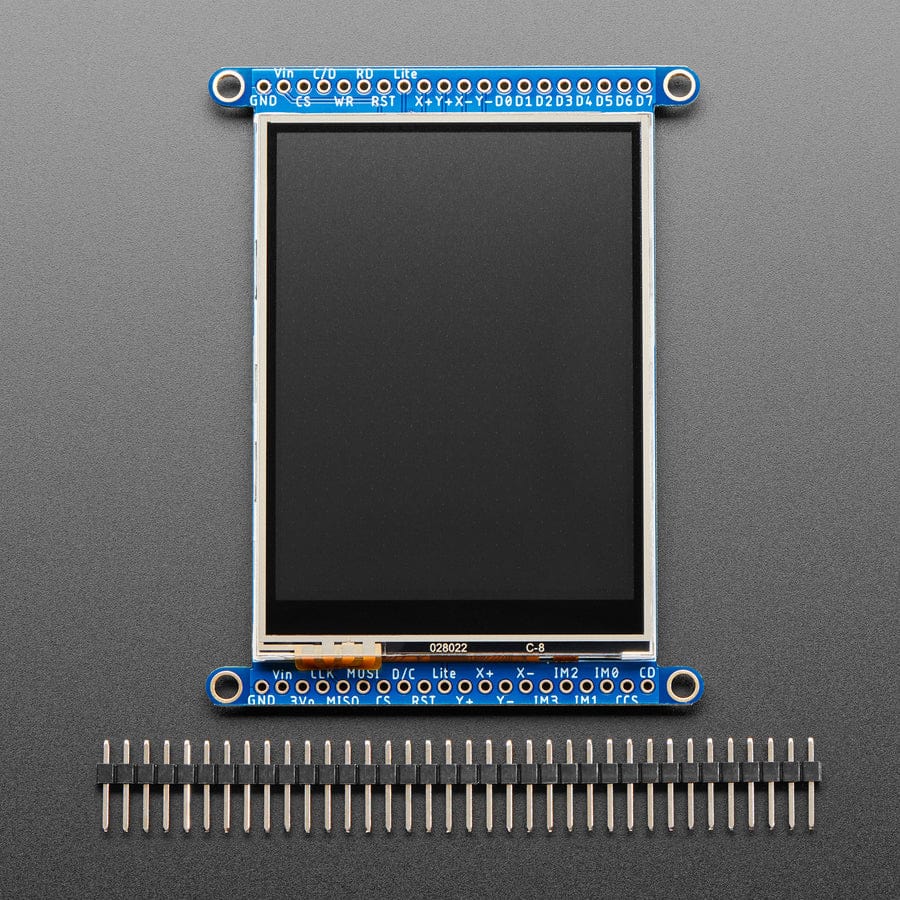

We wrapped up this display into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use with any microcontroller. If you're going with SPI mode, you can also take advantage of the onboard MicroSD card socket to display images. (microSD card not included, but any will work)
As of August 27th, 2024– we've updated this PCB to use the TSSOP version of the level shifters - also the silkscreen vector font changed slightly. You may get either version of the PCB
Specifications
8-bit digital interface, plus 4 or 5 control lines (12 pins minimum) or SPI mode with 4 or 5 SPI data/control lines (4 pins minimum) - not including the touch screen.
5V compatible! Use with 3.3V or 5V logic such as an Arduino
Onboard 3.3V @ 150mA LDO regulator
4 white LED backlight, transistor connected so you can PWM dim the backlight
