Adafruit 2.13" HD Tri-Colour eInk / ePaper Display FeatherWing (250x122 RW Panel with SSD1680)

AdafruitSKU: ADA4814
Price:
Sale price £24.60
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

Assembled Adafruit HUZZAH32 – ESP32 Feather Board - The Pi HutAssembled Adafruit HUZZAH32 – ESP32 Feather Board - The Pi Hut
Adafruit HUZZAH32 – ESP32 Feather Board - The Pi HutAdafruit HUZZAH32 – ESP32 Feather Board - The Pi Hut
AdafruitAdafruit HUZZAH32 – ESP32 Feather Board
Sale price £19.50 incl. VAT excl. VAT
USB-A to Micro-USB Cable - The Pi Hut
The Pi HutUSB-A to Micro-USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT

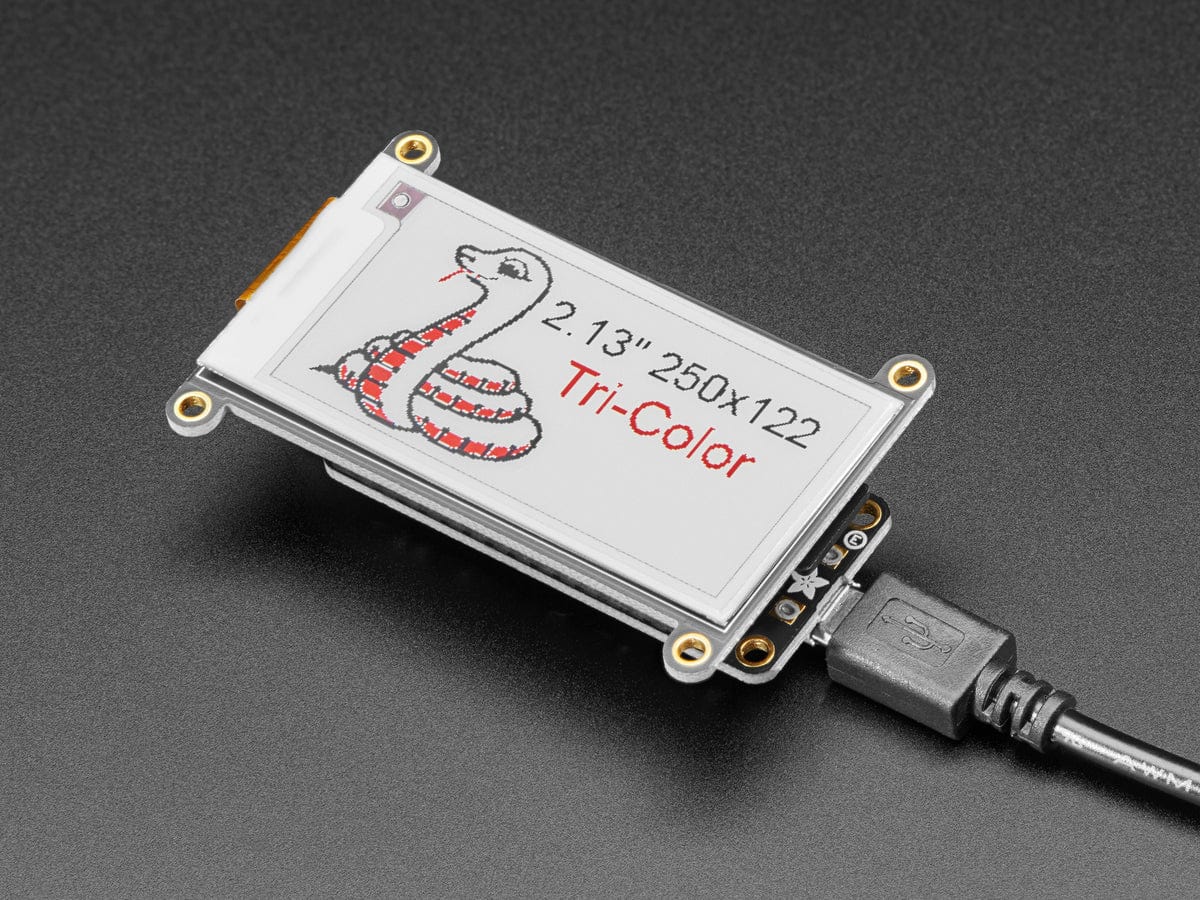

Easy e-paper comes to your Feather, with this breakout that's designed to make it a breeze to add a tri-color eInk display. Chances are you've seen one of those new-fangled 'e-readers' like the Kindle or Nook. They have gigantic electronic paper 'static' displays - that means the image stays on the display even when power is completely disconnected. The image is also high contrast and very daylight readable. It really does look just like printed paper!

We've liked these displays for a long time, and they're just about Feather sized, so wouldn't a custom e-paper FeatherWing make a ton of sense? This 'Wing is tested to work with all of our Feathers, from the ESP8266 to the M0. It has built-in memory buffering so it can work with chips as small as the '32u4 and '328. It does use a lot of pins: the 3 SPI pins, and up to 4 control pins to manage the SD card slot and SRAM.

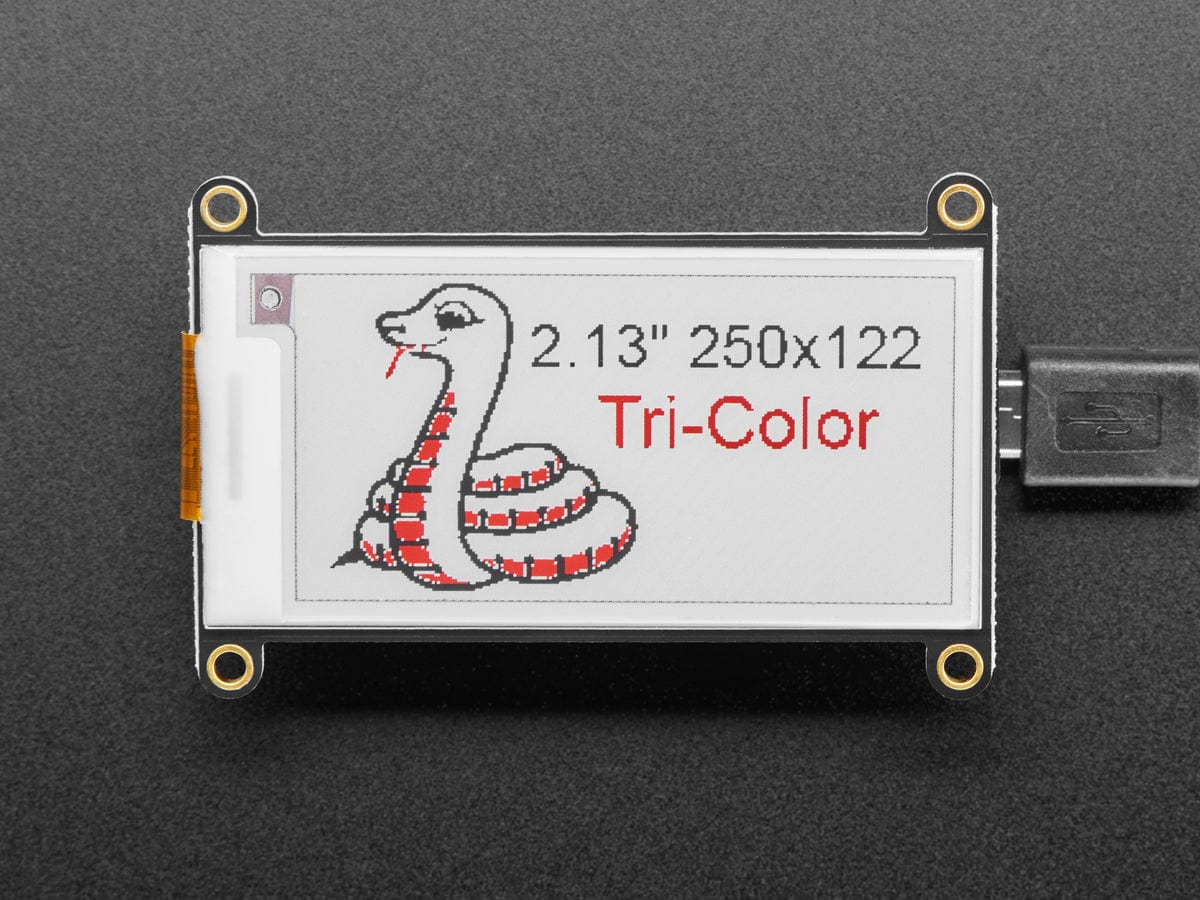

The FeatherWing sports a 2.13" tri-color (red, black, and white) display. It has 250x122 black and red ink pixels and a white-ish background. We used to stock a version of a 2.13" tricolor E-Ink with a lower-resolution display, this version is 250x122 pixels instead of 212x104 pixels and uses a different chipset (SSD1680) so code will need to be recompiled.

Using our CircuitPython or Arduino libraries, you can create a 'frame buffer' with what pixels you want to have activated and then write that out to the display. Most simple breakouts leave it at that. But if you do the math, 250 x 122 pixels x 2 colors = 7.5 KBytes. Which won't fit into many microcontroller memories. Heck, even if you do have 32KB of RAM, why waste 8KB?

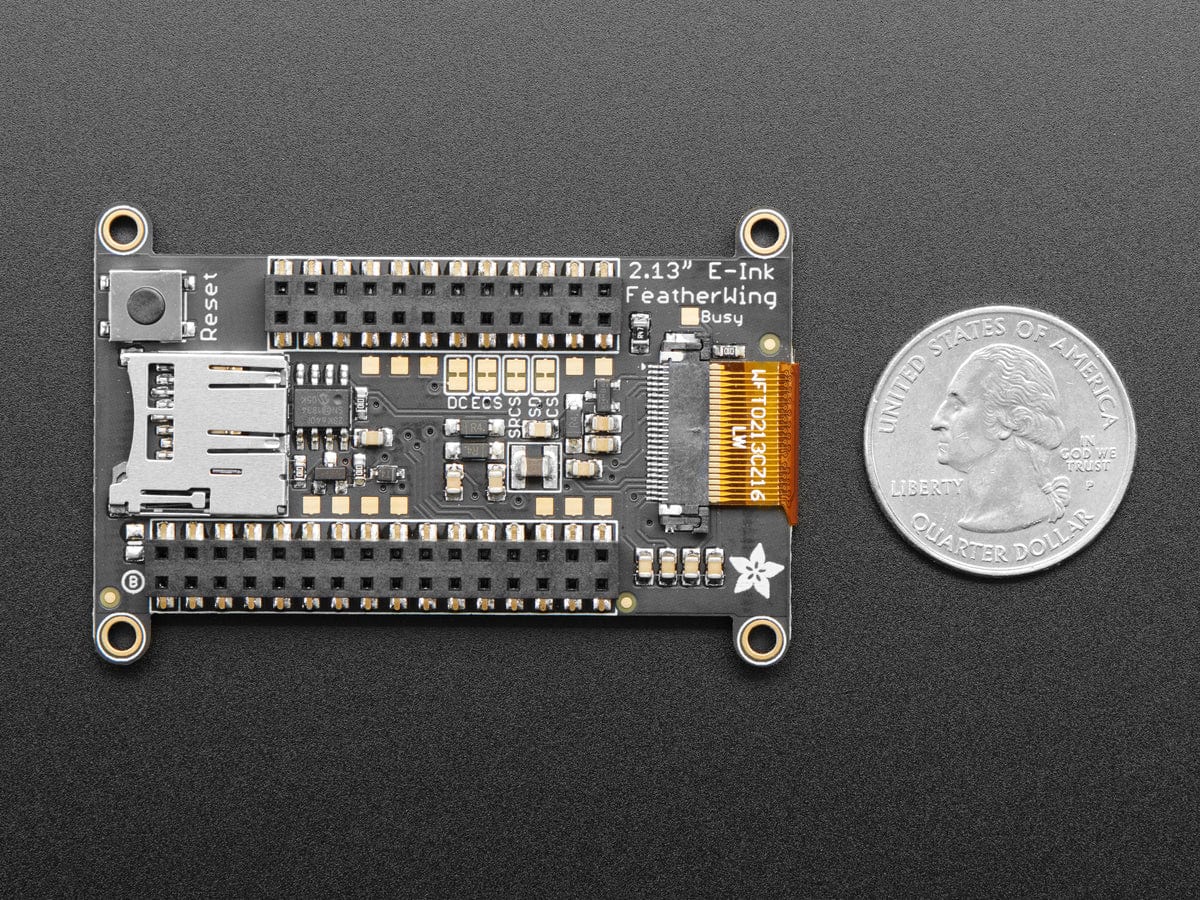

So we did you a favor and tossed a small SRAM chip on the back. This chip shares the SPI port the eInk display uses, so you only need one extra pin. And, no more frame-buffering! You can use the SRAM to set up whatever you want to display, then shuffle data from SRAM to eInk when you're ready. The library we wrote does all the work for you, you can just interface with it as if it were an Adafruit_GFX compatible display.

We even tossed on a MicroSD socket so you can store images, text files, whatever you like to display. Comes assembled and tested with socket headers that you can plug your Feather right into, no soldering required!

Technical Details

  • Dimensions (excluding mounting holes): 61.5mm x 31.4mm x 6.6mm
  • Driver chip is the SSD1680
  • Panel variant is RW

Product Weight: 14.5g / 0.5oz
