Adafruit 14-segment LED Alphanumeric Backpack - STEMMA QT

AdafruitSKU: ADA1910
Price:
Sale price £6
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT

By popular request, you can now get our 14-segment LED backpacks without the LEDs! These backpacks feature an HT16K33 I2C LED driver, they're simple and easy to use - you can use our very nice library for the backpacks to get running in under half an hour, with numbers and letters displaying. If you've been eyeing matrix displays but hesitated because of the complexity, this is the solution you've been looking for!

Like our other LED backpacks, these are end-to-end stackable and by soldering the address jumpers on the back you can have up to 8 backpacks all sharing the same two I2C wires!

To get you going fast, we have revised this popular board to be the same size and pinout as before but now with two STEMMA QT connectors on either side that are compatible with the SparkFun Qwiic I2C connectors. This allows you to make solderless connections between your development board and the HT16K33 or to chain it with a wide range of other sensors and accessories using a compatible cable.

Comes with a fully tested and assembled LED backpack & 4-pin header. Some light soldering is required to attach the header if you desire to use this on a breadboard, and, of course, the display.

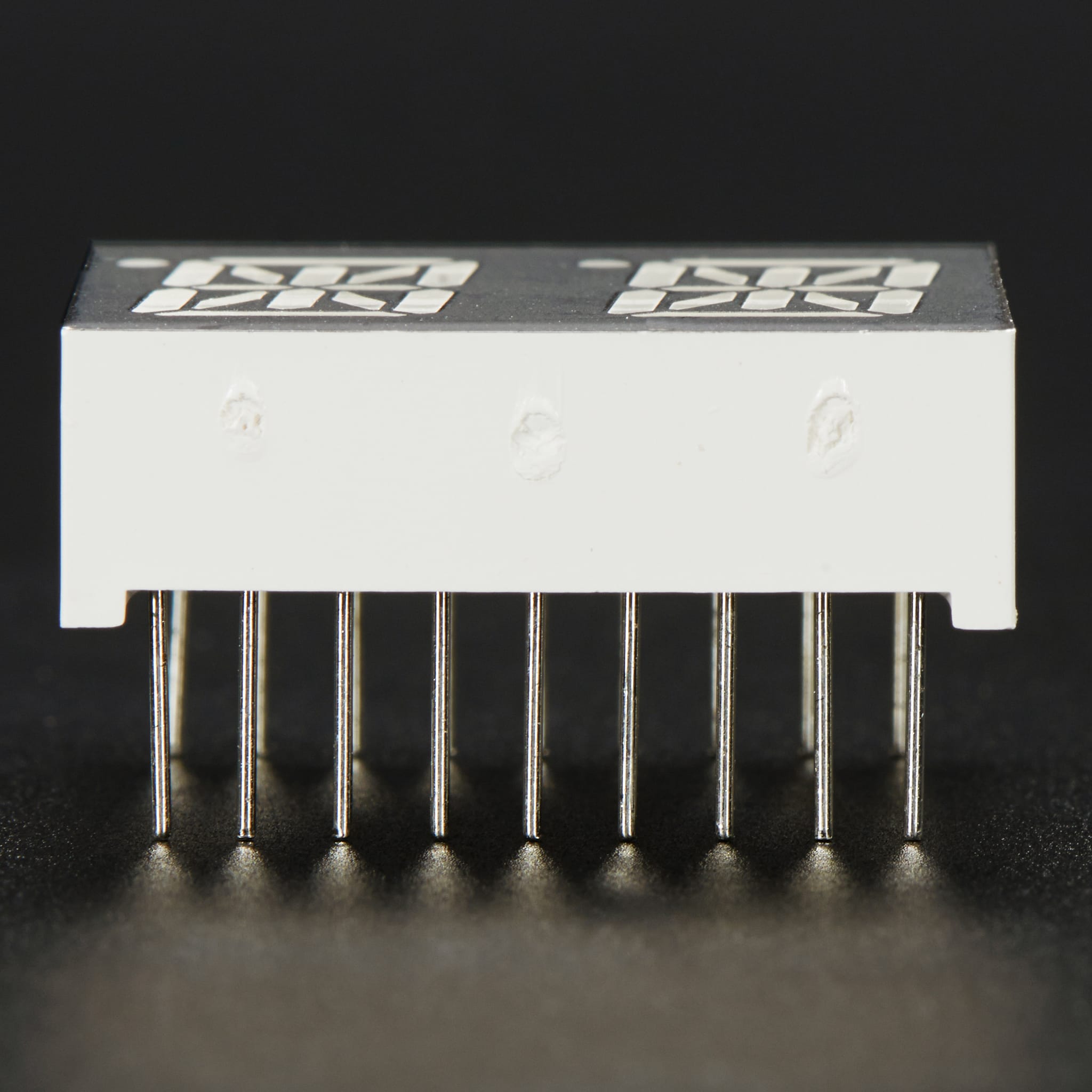

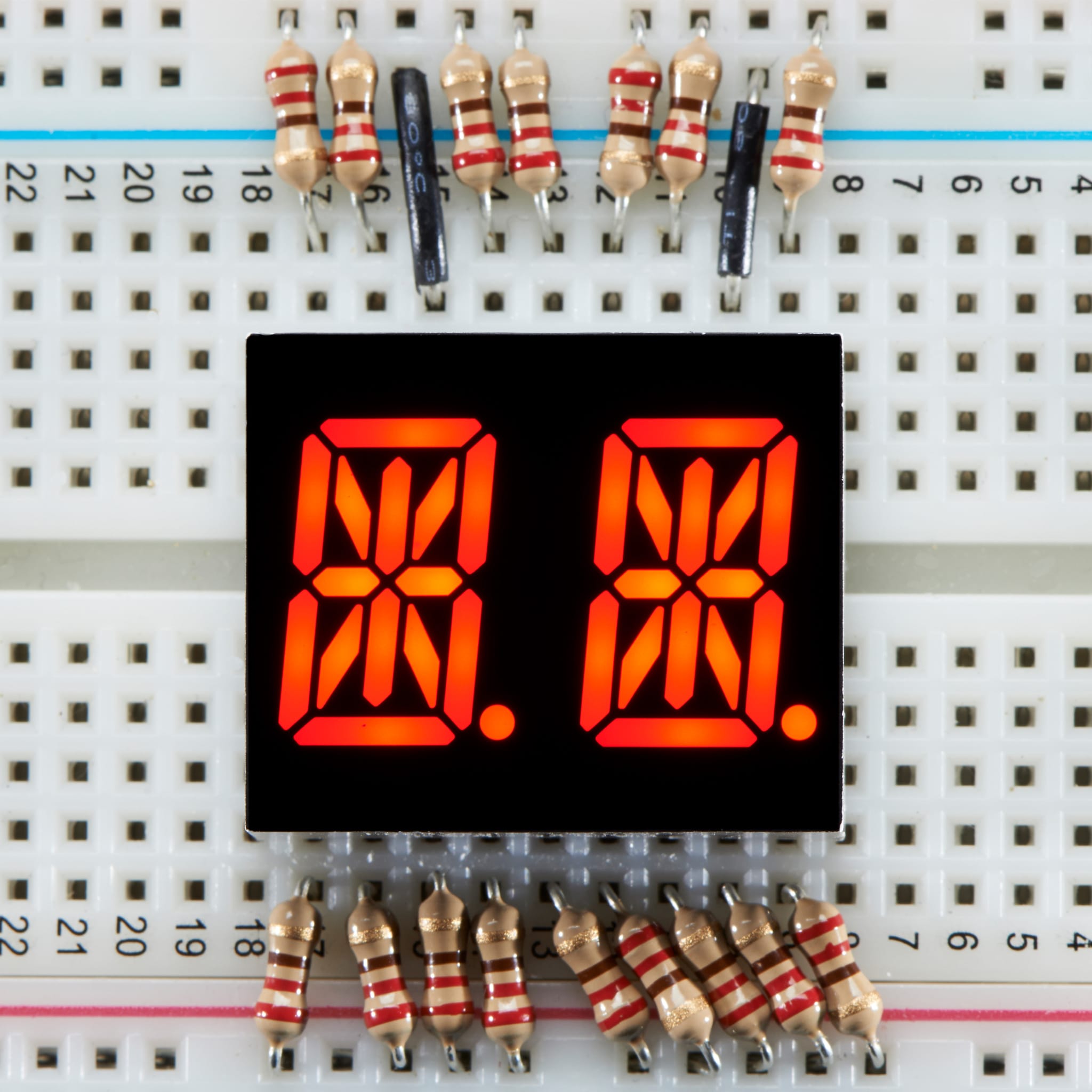

A set of two 2-digit 0.54" tall alphanumeric displays is not included, but we have lots of options in the store! We only know that this backpack works with the ones we stock. Other displays may not work, we don't guarantee 'em.

Revision History

  • As of June 14th, 2024 – we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen. Additionally, this backpack may come with black or tan STEMMA QT connectors. They work the same!

Specifications

  • Dimensions: 50.0mm x 27.0mm x 4.0mm
  • Weight: 5.5g
