ABS Fan Case for Raspberry Pi 5

52PiSKU: ZP-0167
Sale price £15
incl. VAT
excl. VAT
In stock

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi 5
Sale priceFrom £57.60 incl. VAT excl. VAT
The Pi HutRaspberry Pi OS Pre-installed Micro SD Card
Sale priceFrom £9.90 incl. VAT excl. VAT
Raspberry PiOfficial Raspberry Pi Micro-HDMI Cable
Sale priceFrom £4.80 incl. VAT excl. VAT

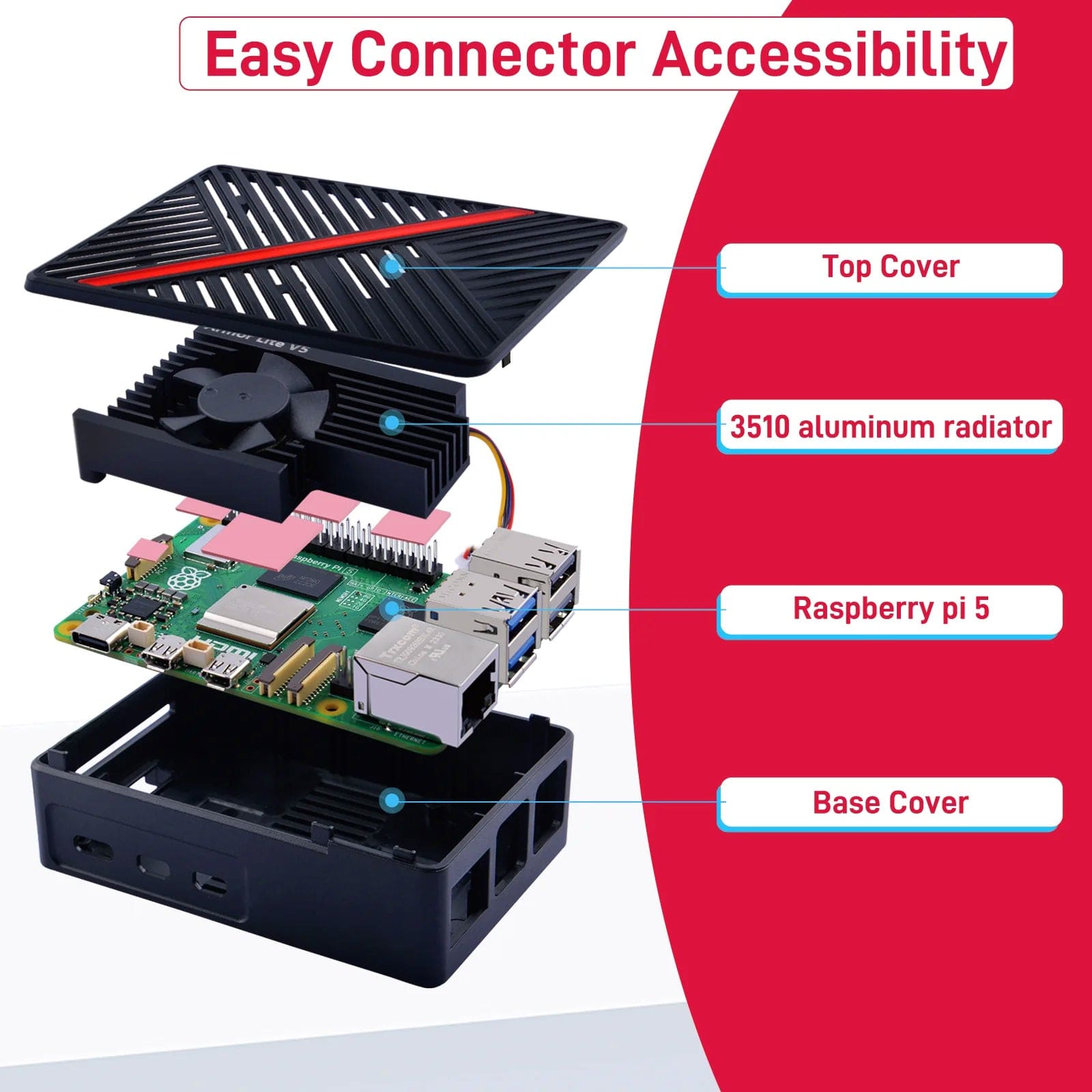

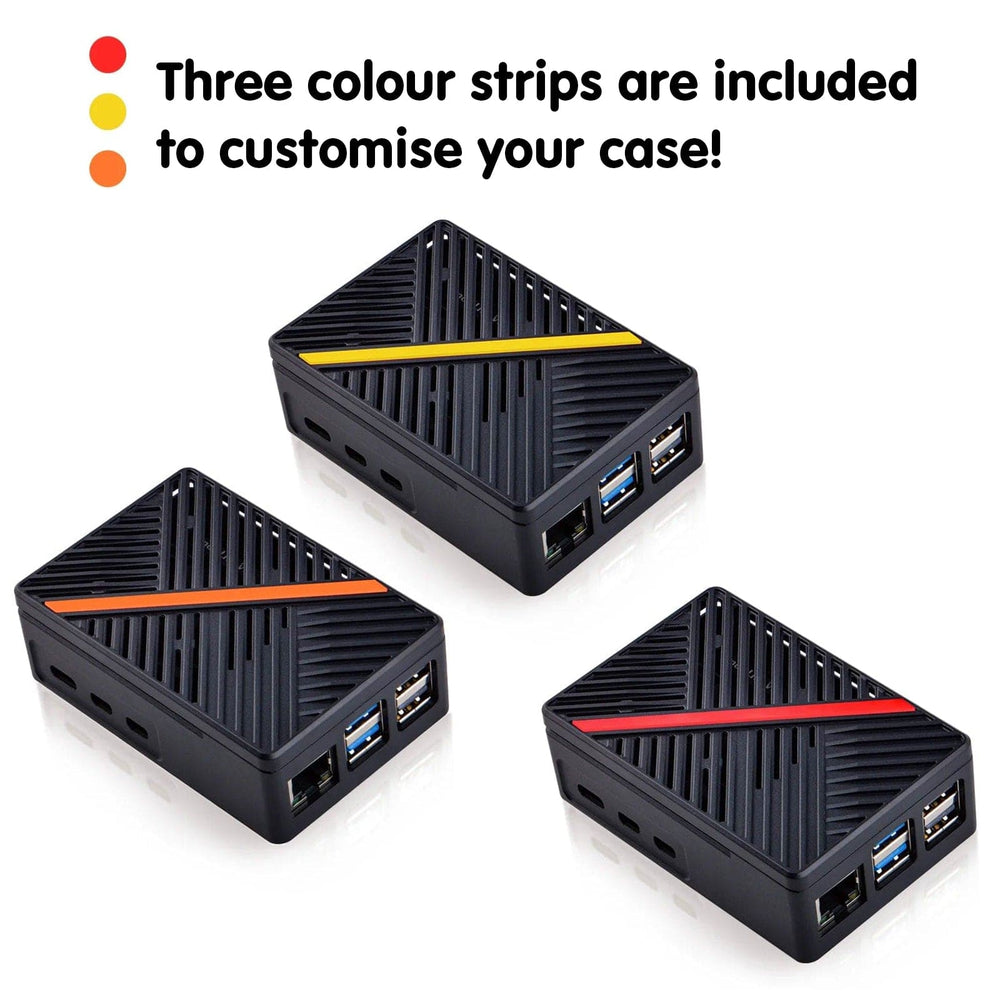

This case for Raspberry Pi 5 features a customisable strip-pattern ventilation design, not only adding a touch of style but also promoting effective heat dissipation. The decorative strip on top of the case can be replaced to get the look you want (three colour strips are included!). It's made from high-quality ABS, offering protection against physical impacts.

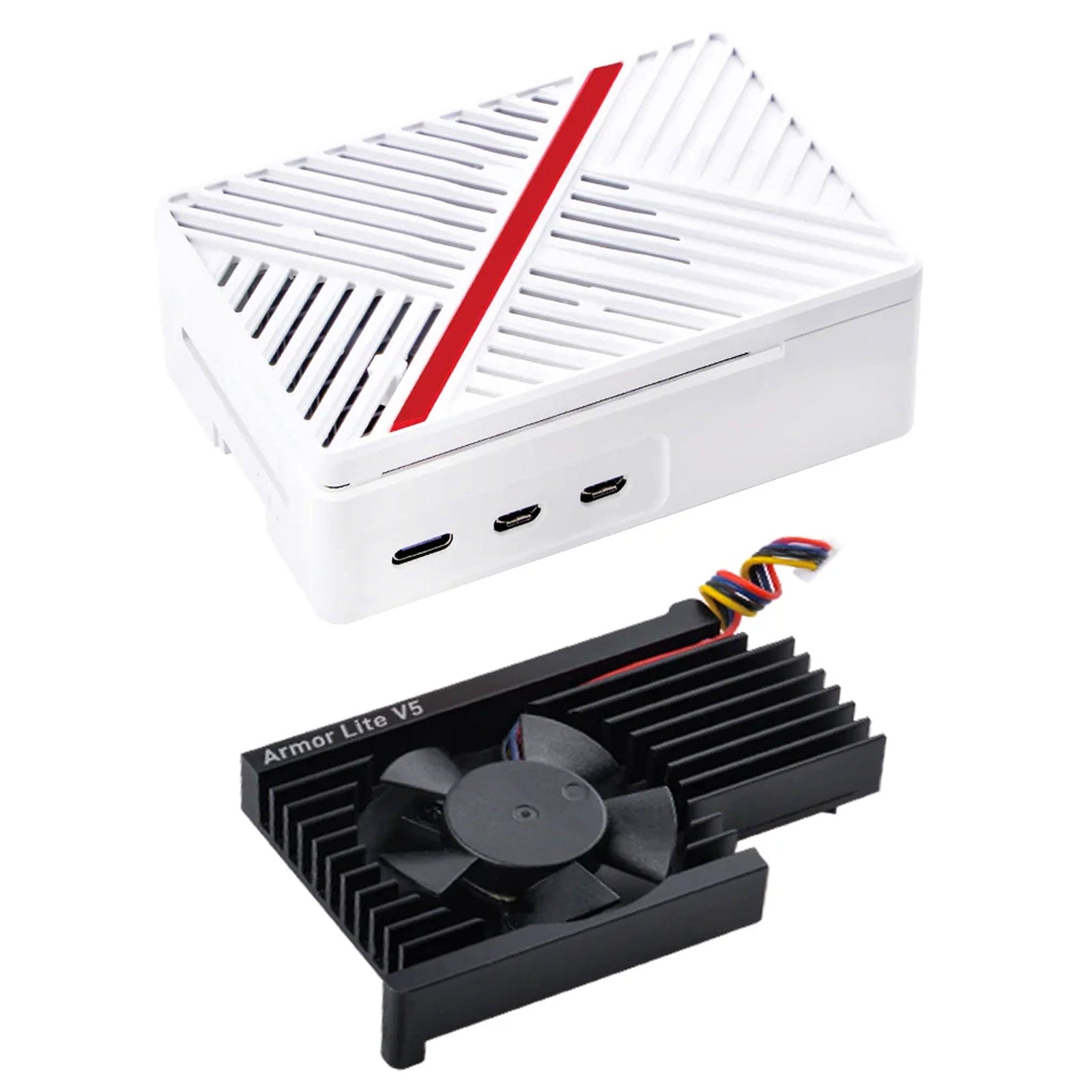

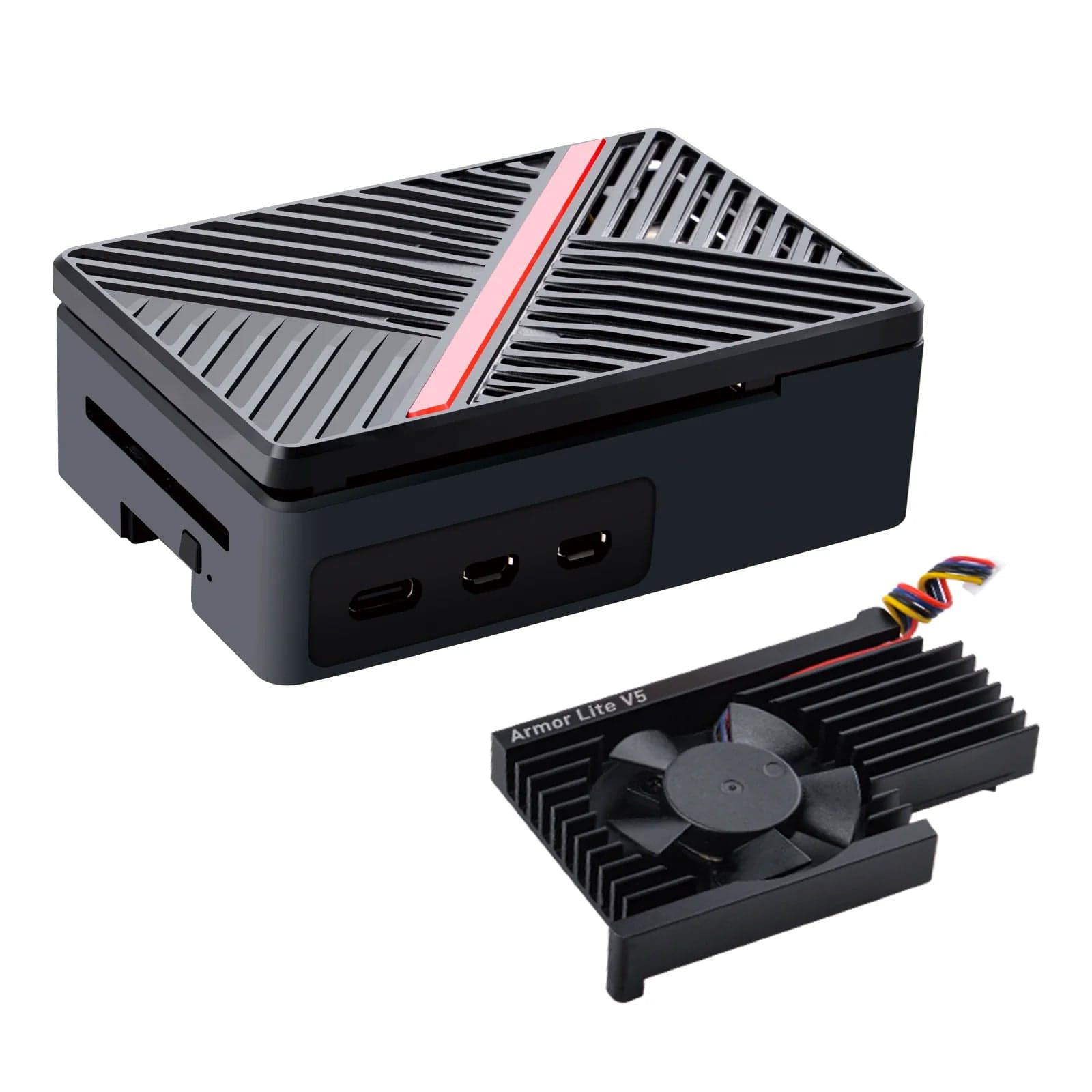

The case includes an Armour Lite V5 heatsink, enhancing the case's cooling efficiency. This means even when your Raspberry Pi 5 is under a heavy workload, it remains cool and stable. The heatsink's fan has a JST-interface for the dedicated Raspberry Pi 5 fan header, allowing software fan control and keeps your GPIO pins free for your project at the same time.

This case is available in black or white, please select a colour before purchasing.


  • Colour Options: Choose between classic black or pristine white to complement your style and surroundings.
  • Perfect Fit: Designed specifically for Raspberry Pi 5
  • Ventilation Design: Stylish strip-patterned ventilation holes for effective heat dissipation
  • Compact and Cool: The compact design and horizontal heatsink contribute to efficient cooling, even under heavy workloads.
  • Cooling Fan: Equipped with a JST interface for the Pi 5 fan header. The fan supports software speed adjustment.


  • Weight: 150g

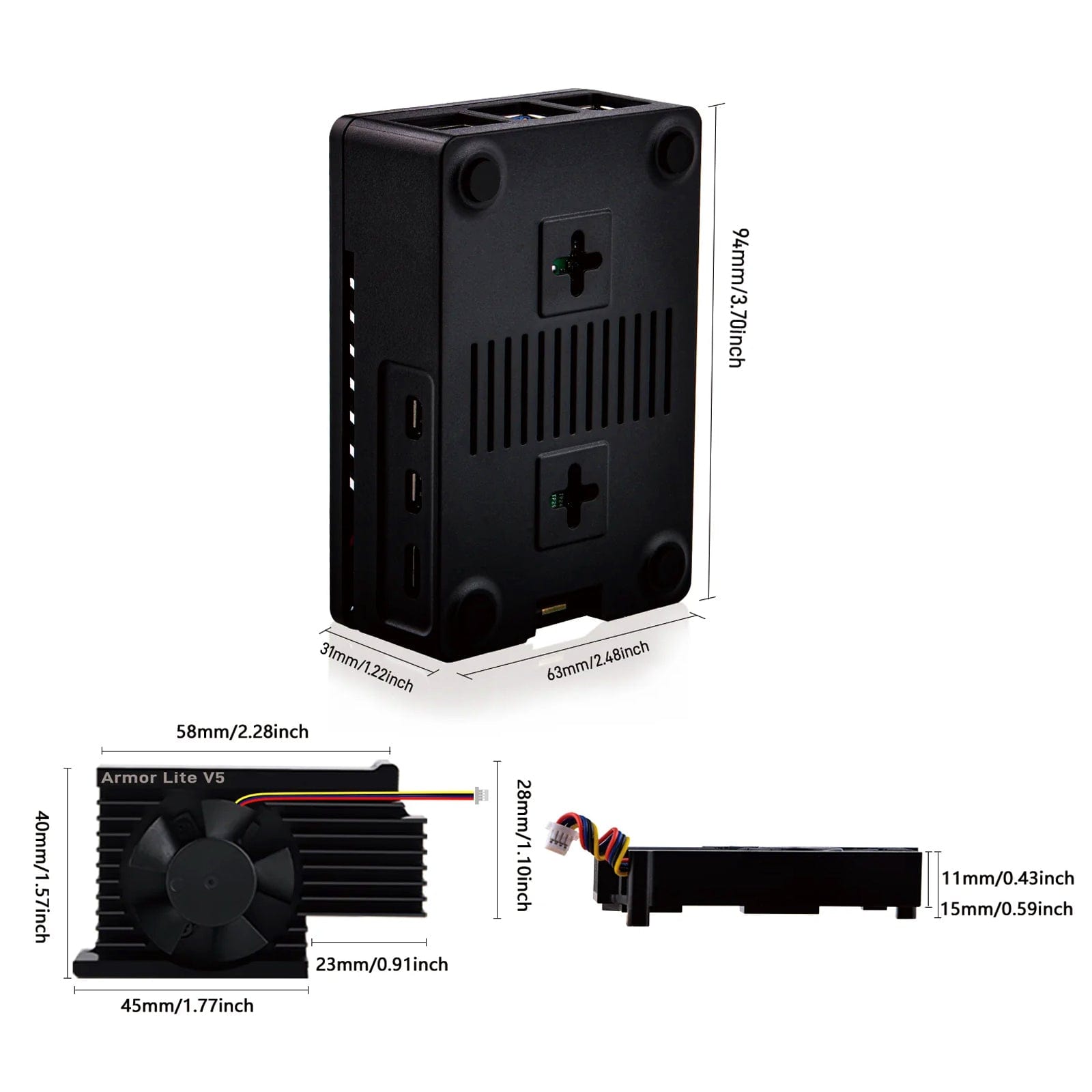

  • Case size: H: 31mm x L: 94mm x W: 63mm


Package Contents

  • 1x ABS case for Raspberry Pi 5 (select colour before adding to cart)
  • 1x Heat sink with adjustable speed fan
  • 4x Nylon screws for the heat sink
  • 4x M2.5 Self-tapping screw
  • 10x Thermal pads
  • 3x Colour strips
