8x8 RGB Dot Matrix Display - Common Cathode, 60mm

The Pi HutSKU: 103528
£13
incl. VAT
excl. VAT
Only 2 units left

Awesome Extras

Full-Size Breadboard - White - The Pi HutFull-Size Breadboard - White - The Pi Hut
The Pi HutFull-Size Breadboard - White
£5 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT
Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
£24.50 incl. VAT excl. VAT

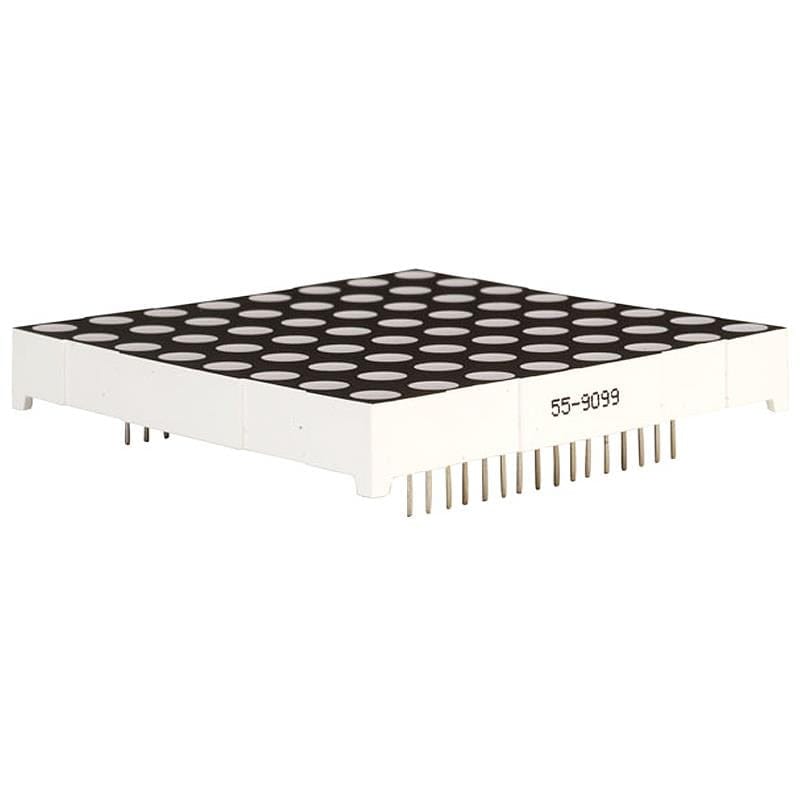

This is a common cathode 60mm x 60mm RGB Dot Matrix display with an 8x8 LED layout.

The versatile colour display options make this dot matrix suitable for applications such as clocks, counters, signage and more. You'll need an LED matrix driver/IC to drive it from your microcontroller, and remember this is an RGB matrix so you have 3x the LEDs/colours to drive (the popular MAX7219 isn't ideal for this unless you're happy just running one colour).

This is a big ol' matrix so you won't be able to use this in a single standard breadboard, you'll need to join two together and straddle them with the matrix.

Datasheet available here

Features

  • Large 60mm x 60mm matrix
  • 8x8 layout
  • Common Cathode
  • Black surface gives excellent contrast
  • Long operational life
  • Low power dissipation
  • Dimensions 60.2 x 60.2 x 9.2mm

Specifications

Ratings are per LED in the matrix, not per row:

Colour component Red Green Blue
Wavelength (nm) 625 520 470
Luminous intensity (mcd) 70 90 18
Forward current (mA) 15 10 10
Forward voltage range (V) 1.8-2.6 2.7-3.4 2.7-3.4
