The 7″ Touch Display Kit for Raspberry Pi Zero is an all-inclusive solution that brings stunning visuals and interactive touch capabilities to your Raspberry Pi Zero projects. This comprehensive kit includes a high-quality IPS display with a resolution of 1024x600, delivering crisp and vibrant visuals with a wide 170° viewing angle.

The 5-point capacitive touch feature allows for precise and responsive touch control. Designed specifically for the Raspberry Pi Zero, the included IPS display expansion board ensures easy and hassle-free plug-and-play connectivity, eliminating the need for complex wiring. It comes equipped with an audio jack, allowing you to integrate audio output seamlessly into your projects. Additionally, with 2 USB ports, you have the flexibility to connect various USB devices.

This Display Kit offers a winning combination of impressive visuals, responsive touch control, audio and USB functionalities, and an expansive viewing angle.

Note: The Raspberry Pi Zero is NOT included

Features

  • 7" IPS touch display with a hardware resolution of 1024 x 600
  • 5-point touch control, toughened glass panel with up to 6H hardness
  • When working with Raspberry Pi Zero, supports Raspberry Pi OS, Ubuntu, Kali, and Retropie systems

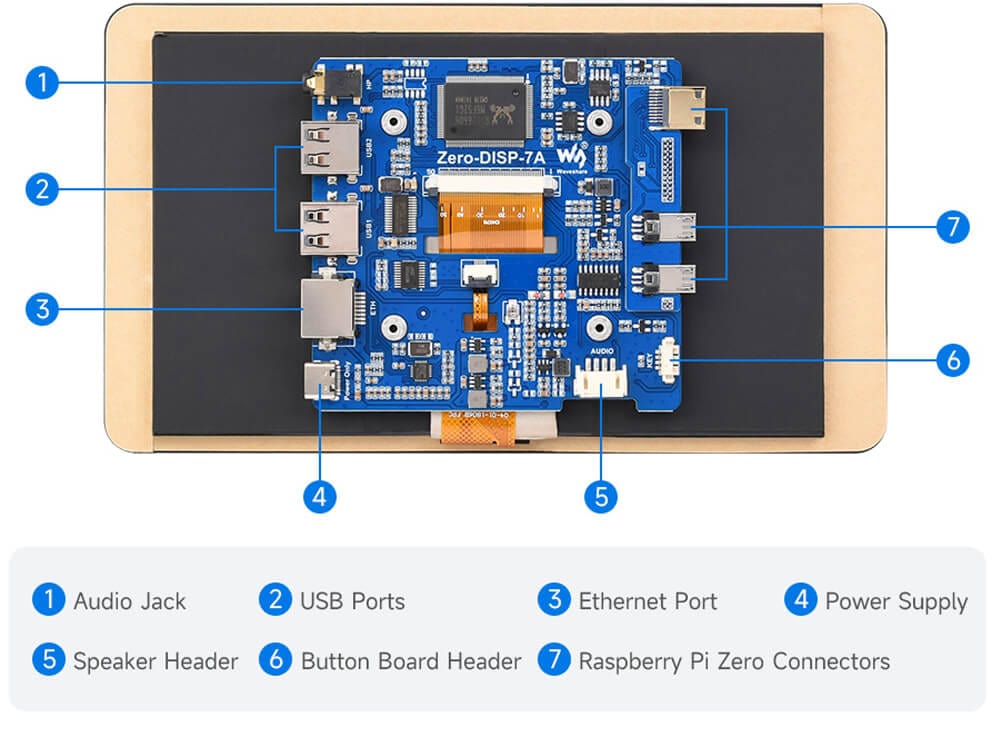

  • Onboard ETH/USB HUB function, adapting RJ45 and USB port serving as an all-in-one mini computer
  • Onboard 4-pin speaker header with 3.5mm audio and support for HDMI audio output

Specifications

Item Description Unit
Dimensions 7 Inch
Viewing Angle 170 Deg
Resolution 1024x600 Pixels
Overall Dimensions 192.96(H)×110.76(V)×17.00(D) mm
Display Area 154.88(H)×86.72(V) mm
Pixel Pitch 0.1506(H) x 0.1432(V) mm
Color Gamut 0.45 NTSC
Max. Brightness 300 cd/m²
Contrast 33.33402778 /
Backlight Adjustment OSD Menu /
Refreshing Rate 60 Hz
Display Interface Mini HDMI Interface /
Power Port 5V Type-C /
Weight 227 g

Resources

Pinout

Package Contents

  • 1x 7″ Touch Display Kit
  • 1x Button Board
  • 1x Button board cable - 9cm
  • 1x White nylon spacer (4 Pieces)
