7.5" E-Paper Display Module for Raspberry Pi Pico (Black/White) (800×480)

WaveshareSKU: WAV-20128
Price:
Sale price £62.60
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Compatible with:

Looking for a large eInk / ePaper display for your Raspberry Pi Pico? Look no further! This nice medium-sized 7.5" black/white eInk/ePaper display from Waveshare is perfect for adding an ultra-low-power display to your Pico project. Featuring a resolution of 800x400 pixels, and an SPI interface, this display consumes less than 0.01uA during standby, and just 26.4mW during a screen refresh.

ePaper / eInk displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which loose their image when power is removed, eInk screens are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra low power, designed to have a wide viewing angle, and additionally have limited reflection under sunlight. The applications are limitless!

This display module includes a driverboard that allows you to just push your Pico into the female headers, connect the included ribbon cable to the display and you're ready to go (Pico with male headers required).

A Raspberry Pi Pico is not included - click here if you'd like to buy one . Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our Pre-soldered Picos ).

Features

  • Designed specifically for the Raspberry Pi Pico
  • No soldering required
  • 7.5" display
  • 800 x 400 resolution
  • 170 ° viewing angle
  • No backlight - keeps displaying the last image for a long time even when powered down
  • Ultra-low power consumption - power is only required for refreshing
  • SPI interface - requires minimal IO pins
  • 2x user buttons for easy interacting
  • Online development resources and manual available (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimensions: 170.2 × 111.2mm
  • Display size: 163.2 × 97.92mm
  • Dot pitch: 0.204 × 0.204mm
  • Resolution: 800×480 pixels
  • Display colour: Black, white
  • Greyscale: 2
  • Full refresh time: 5s
  • Refresh power: 46.4mW(typical)
  • Standby current: <0.01uA(almost 0)
  • Viewing Angle: >170°

    Raspberry Pi Pico not included

    Resources

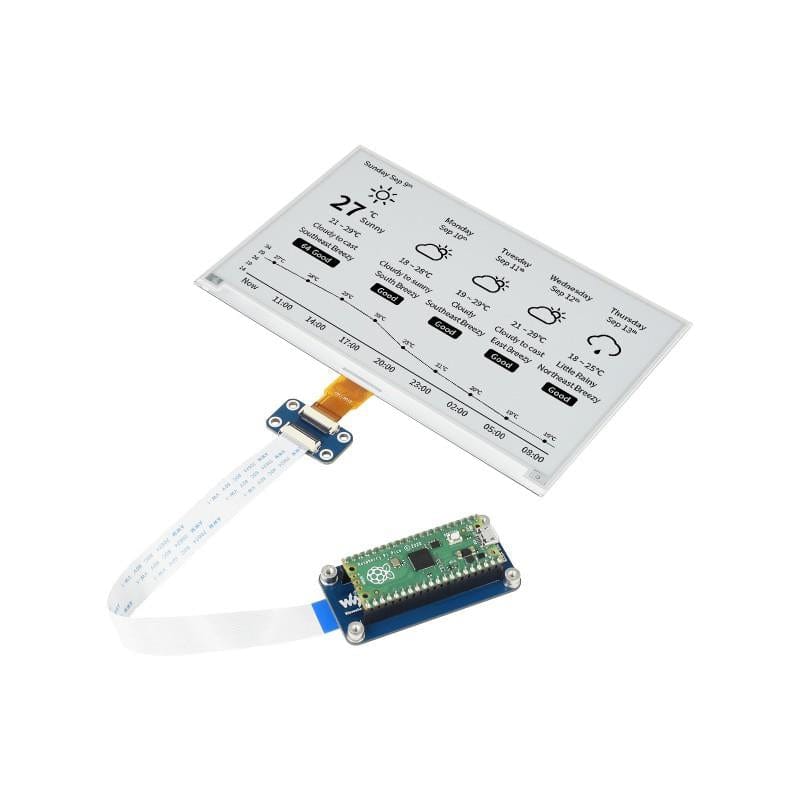

    Connection Example

    Onboard Female Pin Header For Direct Attachment To A Raspberry Pi Pico

    Driver Board Pinout

    Package Contents

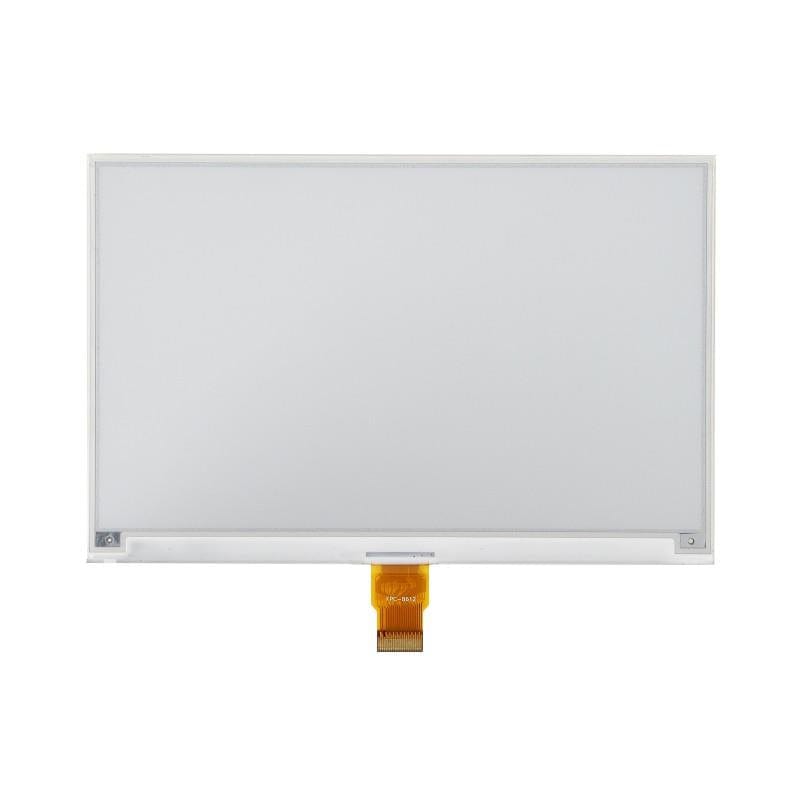

    • 1x - 7.5" e-Paper

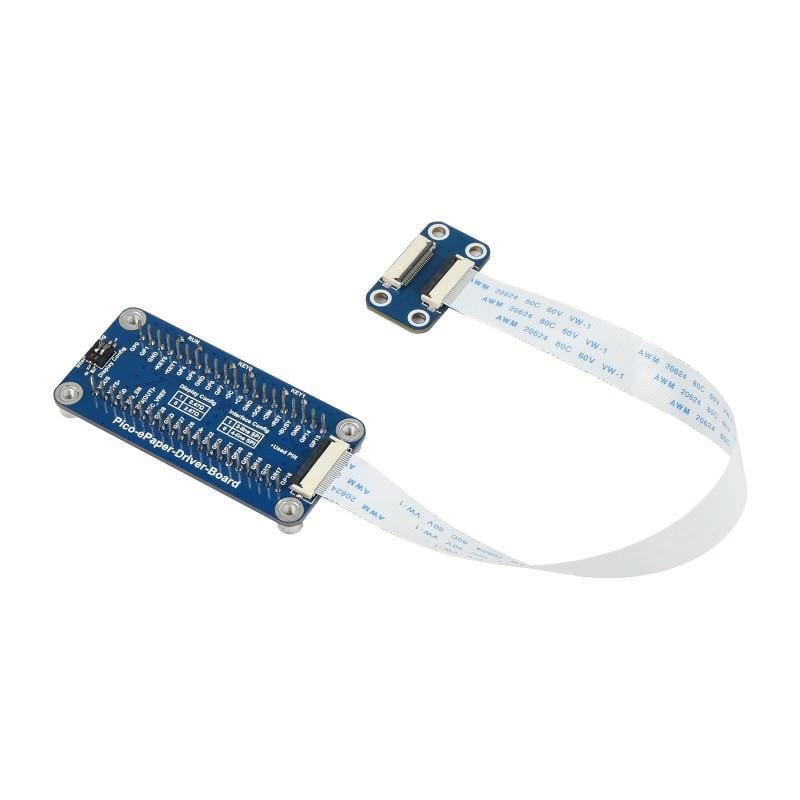

    • 1x - Pico-ePaper-Driver-Board
    • 1x - Standoff pack
