6V 2W Solar Panel - ETFE (Voltaic P126)

Voltaic SystemsSKU: ADA5366
£24
incl. VAT
excl. VAT
Sold out
Notify me

Awesome Extras

5V 10W Solar Panel - ETFE - Voltaic P110 - The Pi Hut5V 10W Solar Panel - ETFE - Voltaic P110 - The Pi Hut
Voltaic Systems5V 10W Solar Panel - ETFE - Voltaic P110
£74.40 incl. VAT excl. VAT
3.8 / 1.3mm or 3.5 / 1.1mm to 5.5 / 2.1mm DC Jack Adapter Cable - The Pi Hut3.8 / 1.3mm or 3.5 / 1.1mm to 5.5 / 2.1mm DC Jack Adapter Cable - The Pi Hut
The Pi Hut3.8 / 1.3mm or 3.5 / 1.1mm to 5.5 / 2.1mm DC Jack Adapter Cable
£1.50 incl. VAT excl. VAT
Adafruit Universal USB / DC / Solar Lithium Ion/Polymer Charger (bq24074) - The Pi HutAdafruit Universal USB / DC / Solar Lithium Ion/Polymer Charger (bq24074) - The Pi Hut
AdafruitAdafruit Universal USB / DC / Solar Lithium Ion/Polymer Charger (bq24074)
£14.70 incl. VAT excl. VAT

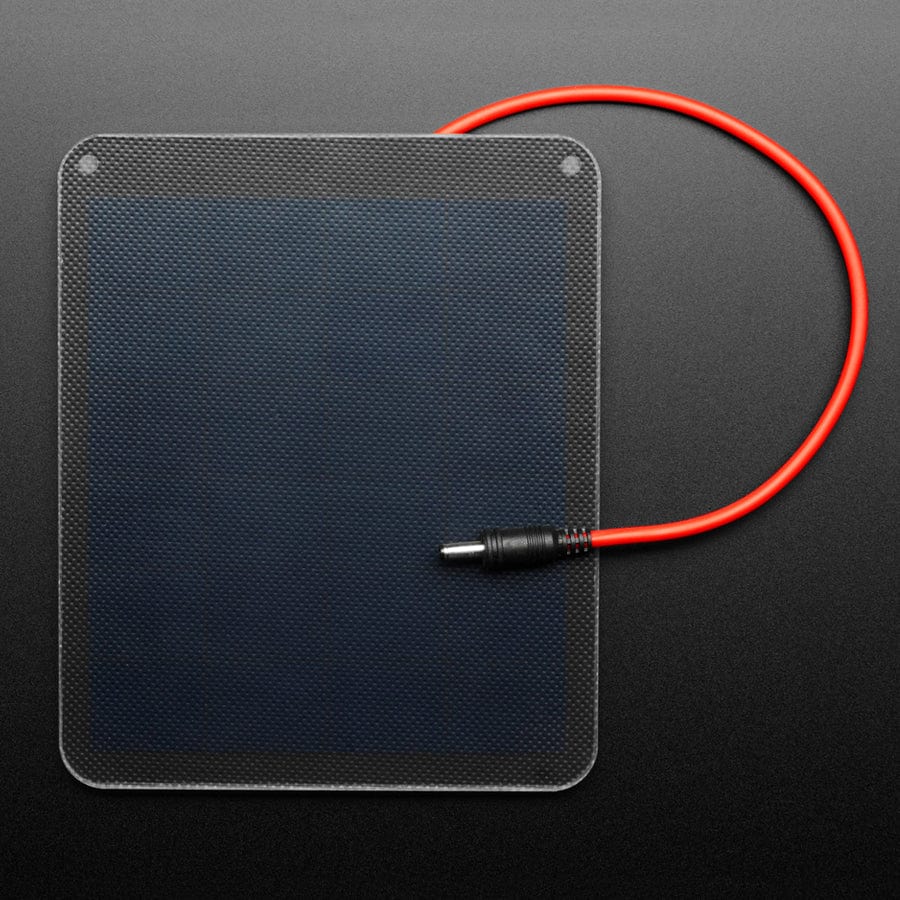

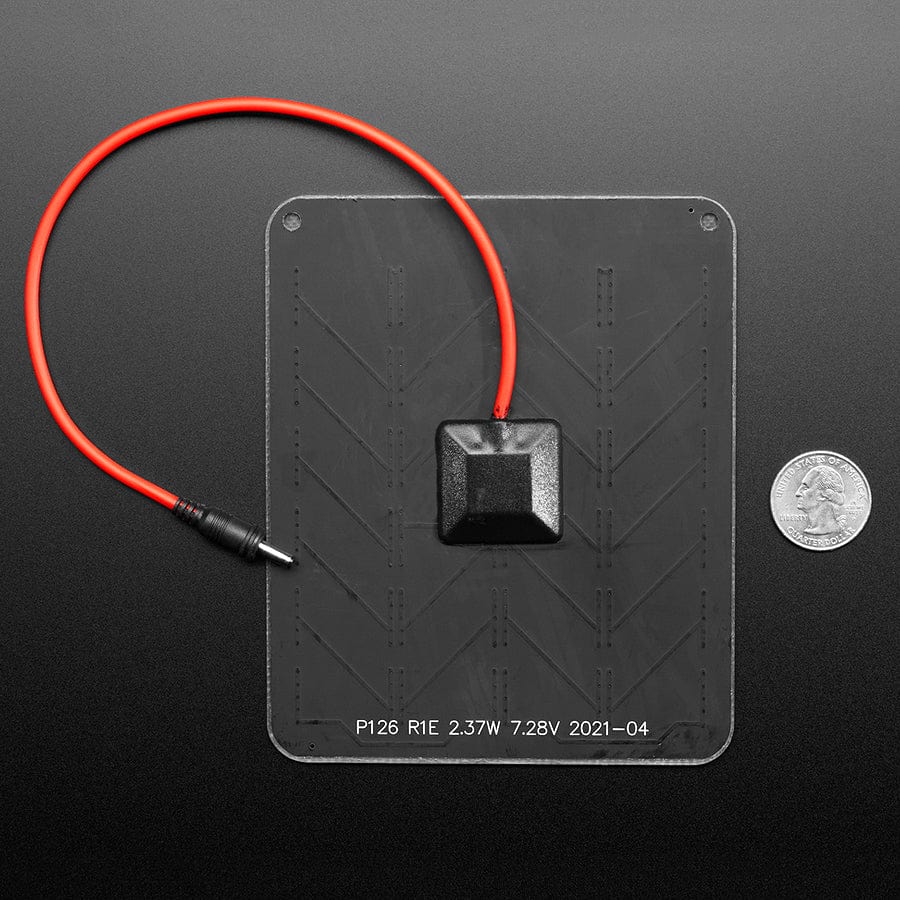

These panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV resistant, and they use 12 high efficiency monocrystalline SunPower cells with 22+% efficiency (praise the sun!). Each cell has a nominal voltage of 0.5V so we call this a "6V" panel

They output a 'nominal' 6V at 330 mA peak via a 3.5mm x 1.1mm DC jack connector. The panel is constructed with ETFE (Ethylene Tetrafluoroethylene), making it extremely durable and resistant to environmental elements, a superior upgrade to PET or laminate solar panel construction. They can easily stand up to typical outdoor use, including being dropped and leaned on.

To connect, we suggest a 3.5mm OD/1.1mm ID DC jack or you can use this handy 2.1mm adapter cable which will turn it into a standard 5.5mm/2.1mm DC plug

Features

  • Waterproof (IP67)
  • UV resistant (5-7 year life)
  • Durable and lightweight
  • High-efficiency monocrystalline SunPower cells:

Specifications

  • Size and Weight
    • 112 x 136 x 2.7mm / ~5.25" x 4.4" x 0.4"
    • 79 grams
  • Output
    • Open Circuit Voltage: 8.51V
    • Peak Voltage: 7.28V
    • Peak Current: 330mA
    • Peak Power: 2.37W
    • Power Tolerance: +/-10%
    • For maximum power output, orient the panel towards the sun
  • Construction
    • Matte ETFE coating
    • 1.5mm double-sided PCB
  • Warranty
    • 2-year warranty on solar panels
    • For more warranty information, see the warranty guide
