52Pi Tiny M.2 PCIe Adapter for Raspberry Pi 5

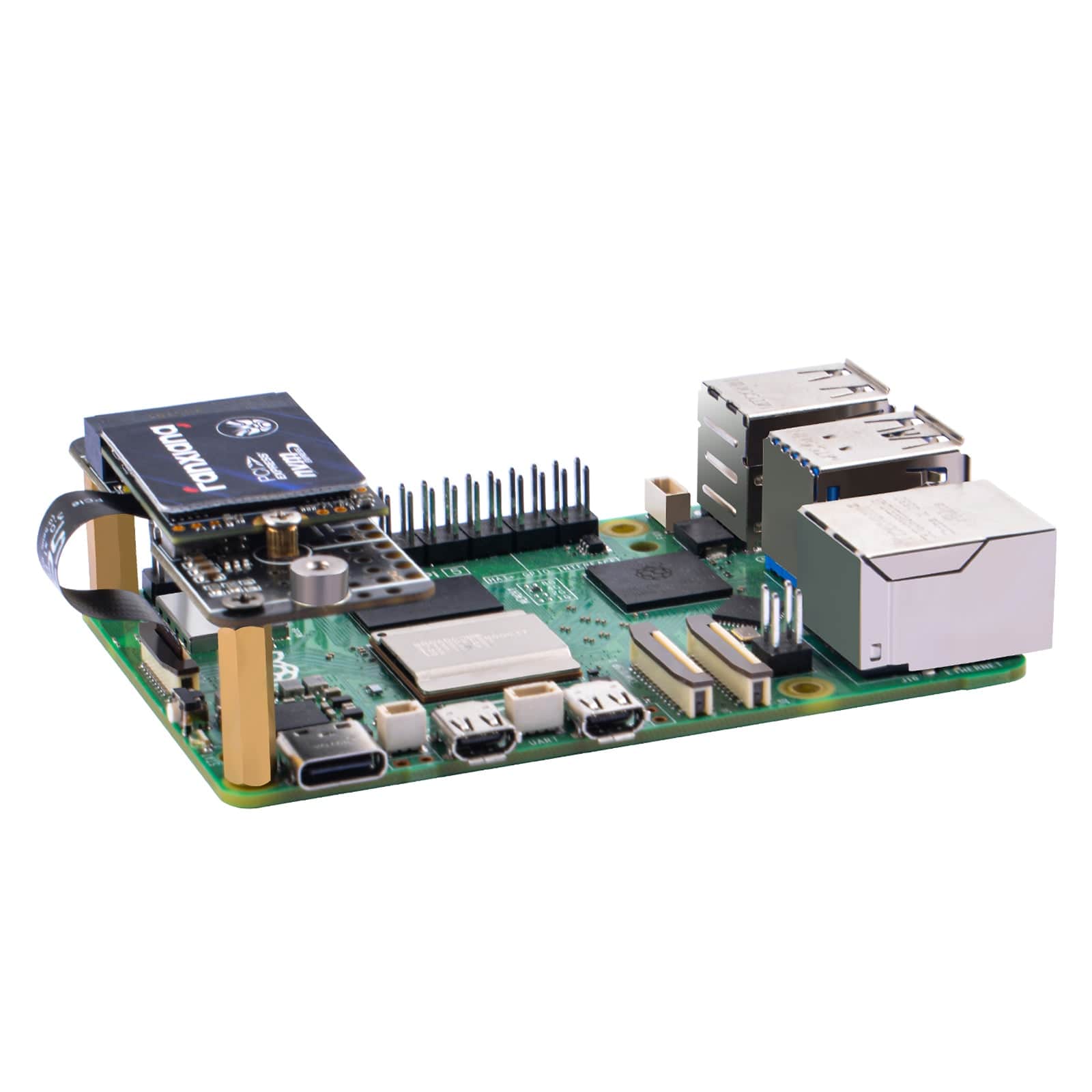

Aww cute! This little fella is 52Pi's Tiny M.2 PCIe Adapter for Raspberry Pi 5 - a super-compact (56mm x 23mm) expansion board which enables direct connection of 2230 or 2242-format M.2 NVMe SSDs, offering high-speed storage through the Pi 5's PCIe interface.

The board supports M-Key NVMe SSDs in 2242 and 2230 form factors, which pretty much cover the surface of the board once fitted (it's that small!).

The shape of the board means your GPIO pins are completely unrestricted, and 52Pi also managed to find some room on the board for a small activity LED indicator showing SSD activity.

It comes with a PCIe cable, standoffs, fixings and M.2 nuts/screws - just add your Raspberry Pi 5 and an NVMe SSD!

Raspberry Pi and SSD not included.

Features

• Compatible with Raspberry Pi 5
• Supports M.2 NVMe SSDs (M-key)
  • Fits 2242 and 2230 SSD form factors
• PCIe interface for high-speed data transfer
• Works with Raspberry Pi OS
• 56mm x 23mm
• Cute!

Resources

• Product Wiki
• Assembly

Package Contents

• 1x 52Pi N10 Tiny M.2 PCIe Adapter for Raspberry Pi 5
• 2x PCIe FFC cable (40mm)
• 4x M2.5x4mm Screw
• 2x M2.5x17mm Copper pillar
• 1x M2x3mm Screw (for fixing SSD)
• 1x M2x3mm Copper pillar (Spacer for 2230 SSD)
• 2x M2x2mm Screw
• 1x Screw driver

Raspberry Pi and SSD not included.
