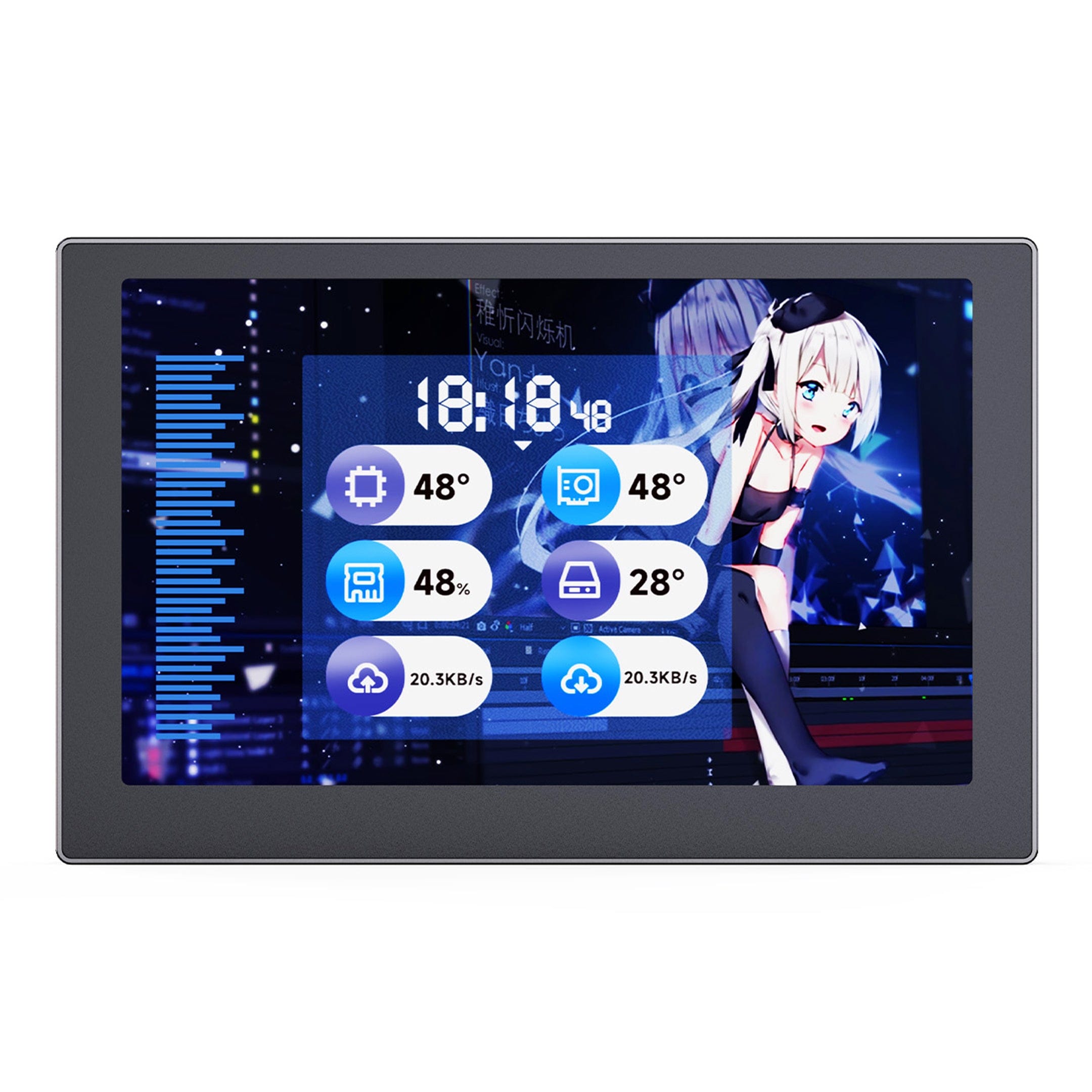

5" USB IPS Monitor (800 x 480)

WaveshareSKU: WAV-26187
Sale price £37.90
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

Waveshare2.8" USB Monitor with AIO LCD Screen
Sale price £40.80 incl. VAT excl. VAT

The 5" USB Monitor is a versatile display designed as a secondary screen for PC cases or desktop ambient displays. It features an IPS panel with an 800 x 480 resolution, providing sharp and vibrant visuals. The monitor supports music spectrum analysis, allowing for dynamic audio-visual effects. It connects via a single USB Type-C cable for both power and data, making setup a lot easier. The CNC aluminium alloy case provides durability. The device has customisable themes, real-time UI editing, and automatic startup, making it user-friendly and efficient without impacting computer performance.

Note: Due to the software compatibility, it does NOT support macOS

What is Supported

  • Supported devices: PC and tablet
  • Supported systems: Win10 and Win11 (Requires a system version from 2021 or later).
  • Supported graphics cards: Intel and AMD integrated graphics cards and NVIDIA and AMD discrete graphics cards are supported, other graphics card models are not supported at this time.


  • Music Spectrum Analysis
  • 800 x 400 Resolution
  • Dynamic Theme Editor
  • USB-C one cable connection
  • Display Rotation Adjustment (Horizontal/ Vertical Flip)
  • Brightness Adjustment
  • Fan Speed Control
  • Aluminum Alloy Case

What's on Board


Package Contents

  1. 1x 5" Black USB Monitor
  2. 2x H5 angle bracket (with screws)
  3. 2x Round double-sided tape (diameter 50mm)
  4. 1x 4GB SD card
  5. 1x 9-pin to 4PIN USB cable ~1m
  6. 1x USB Type-A to Type-C cable ~1m
