Need to drive high current or high voltage devices with a low voltage or low current signal? This premium dual 10A relay breakout board can handle it! This version of the board uses 12V relays and can be triggered with logic signals from 3.3V to 12VDC – ideal for automotive, marine, and other systems that have 12VDC power.

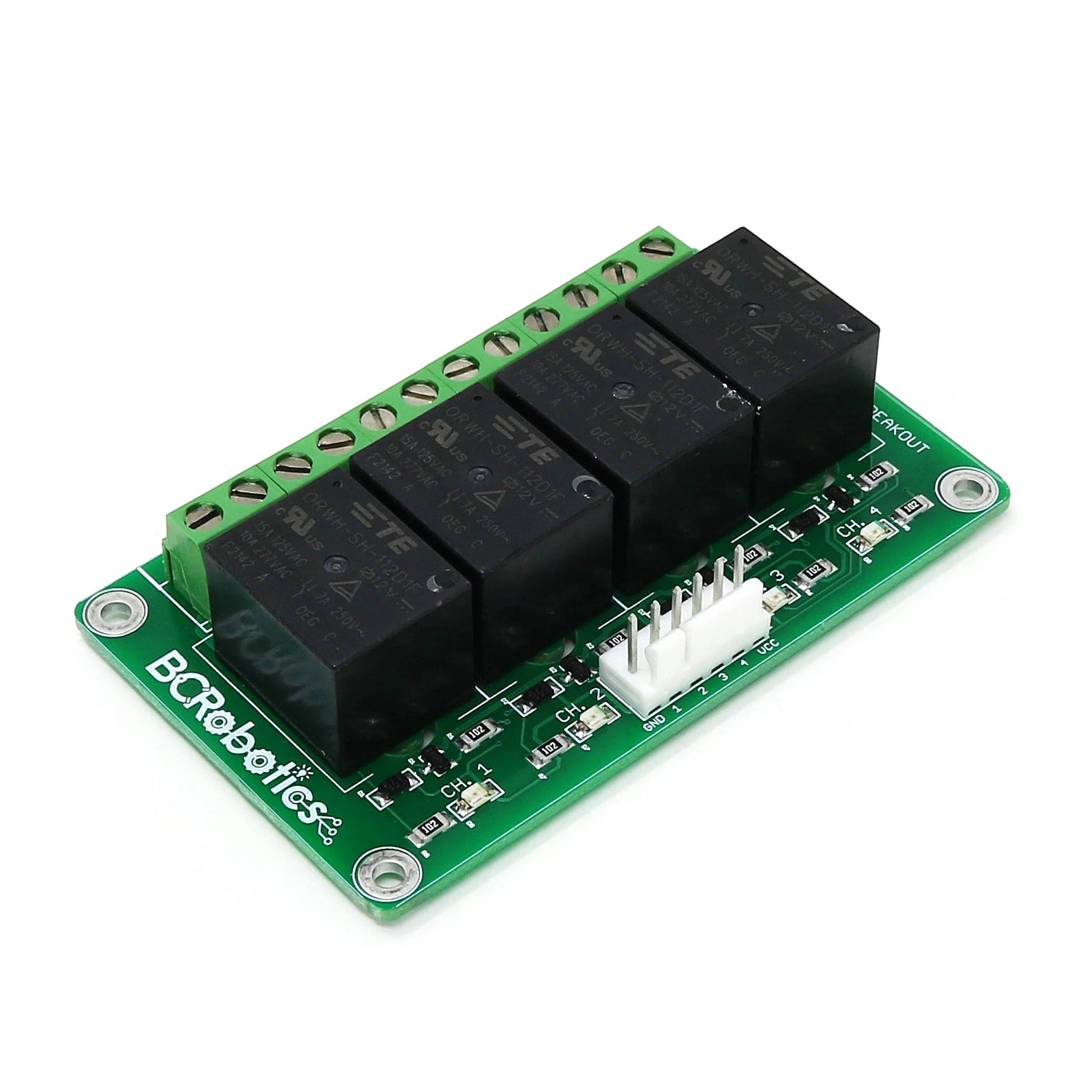

The board uses high quality North American sourced parts. Simply connect 12V power, Ground, and your digital inputs to the 4 pin header and that’s it – no need for any additional components! The wide input range to trigger the relays means anything from a Raspberry Pi or Arduino to 12V power and signal lines can be used to trigger these relays.

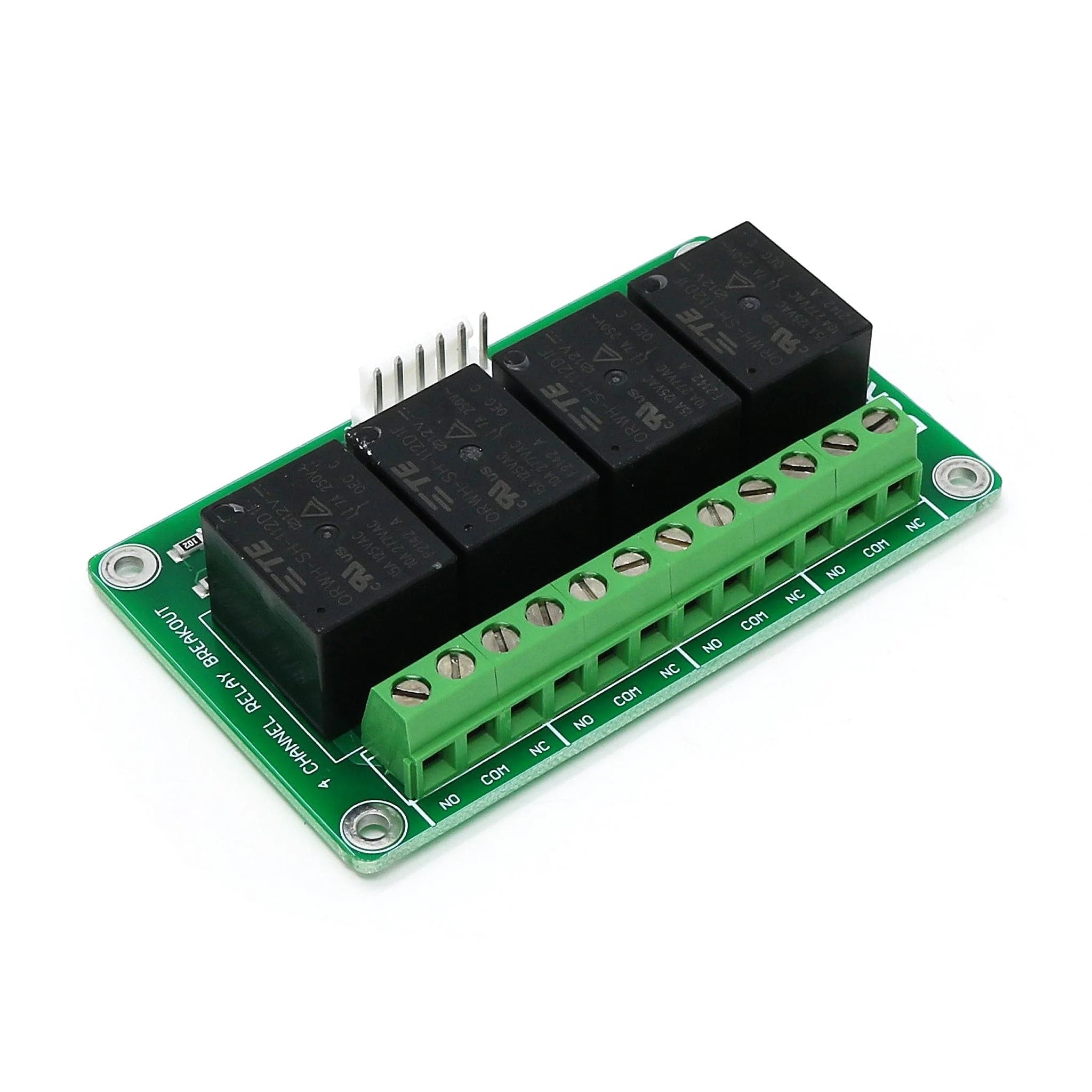

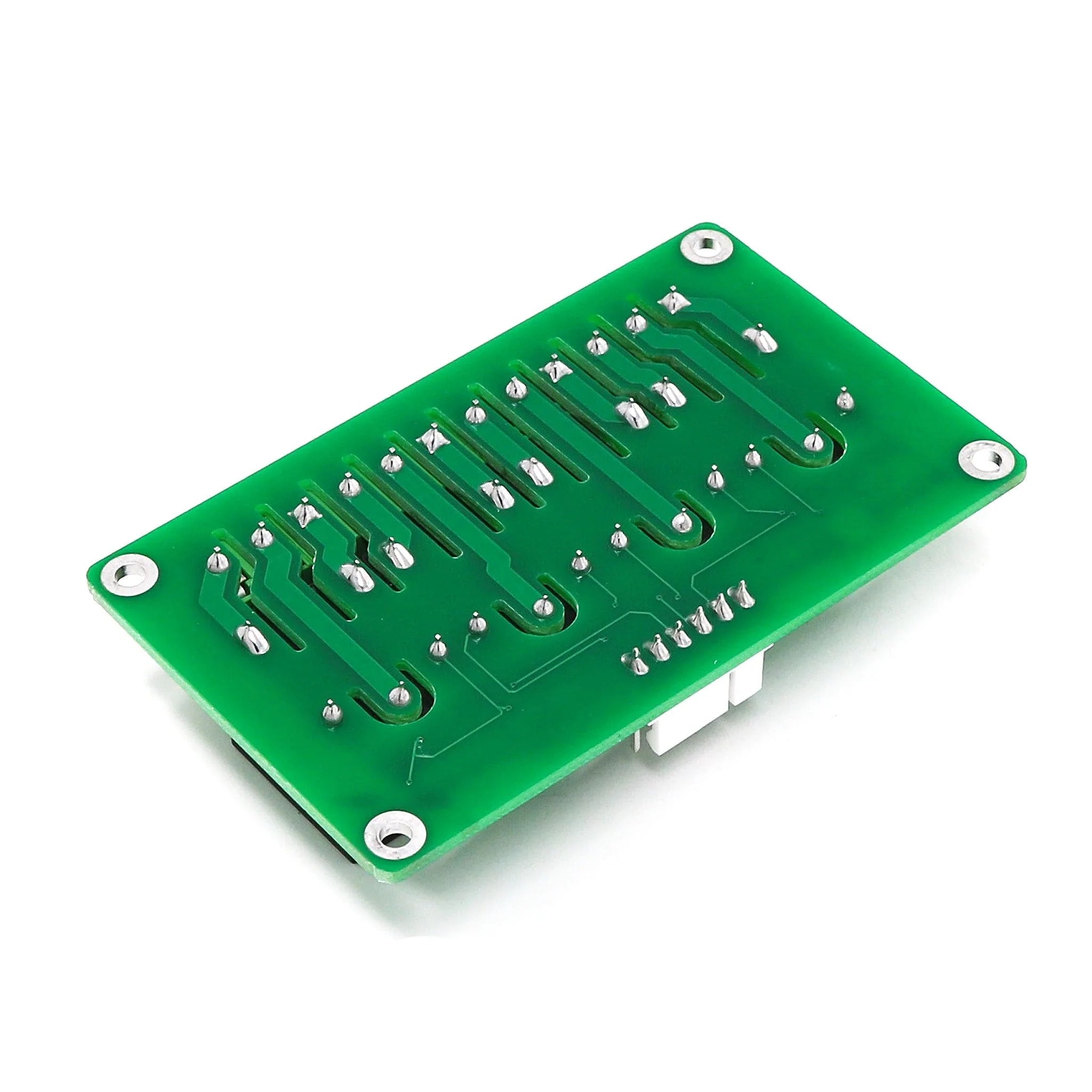

Each relay has the Input, Normally Open, and Normally Closed contact broken out to a nice 5mm pitch screw terminal and each trace is separated by isolation routing. Indicator LEDs show the status of the relay coil, when lit the coil is active.

Please Note: While this board is capable of switching higher voltages, please exercise caution.

Features

  • 10A/250VAC per channel
  • 3.3 / 5V / 12V Logic Level Compatible
  • 12V Relay Power
  • Dimensions: 78 x 47.3 x 18.7mm
  • 8A/28VDC per channel
  • LEDs to indicate activated relays
  • 4 mounting holes
  • Dimensions 80 × 50 × 20 mm
  • Weight 60 g

Package Contents

  • 1 x 4 Channel Relay Breakout - 12V
