Whilst we offer a growing range of SSD HATs for Raspberry Pi 5, not many of them can accept four NVMe SSDs - and even fewer include a power supply to handle the power requirements!

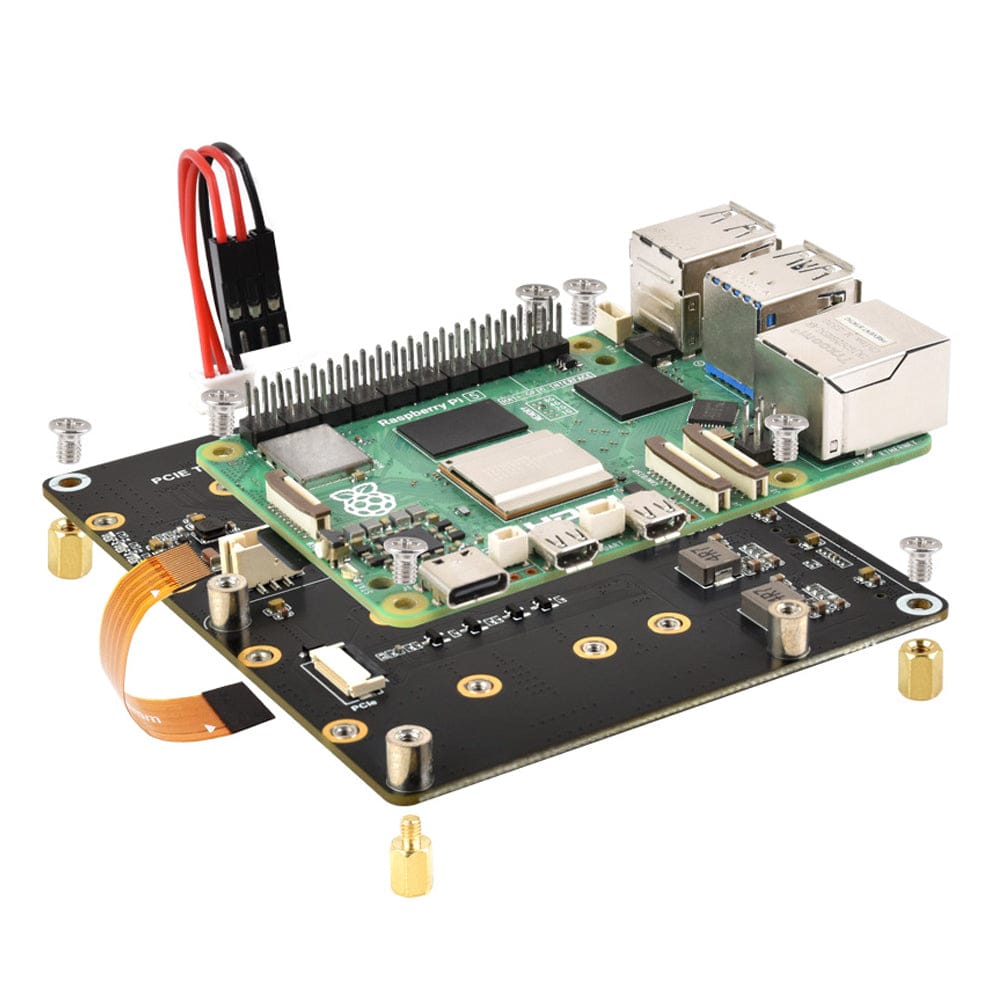

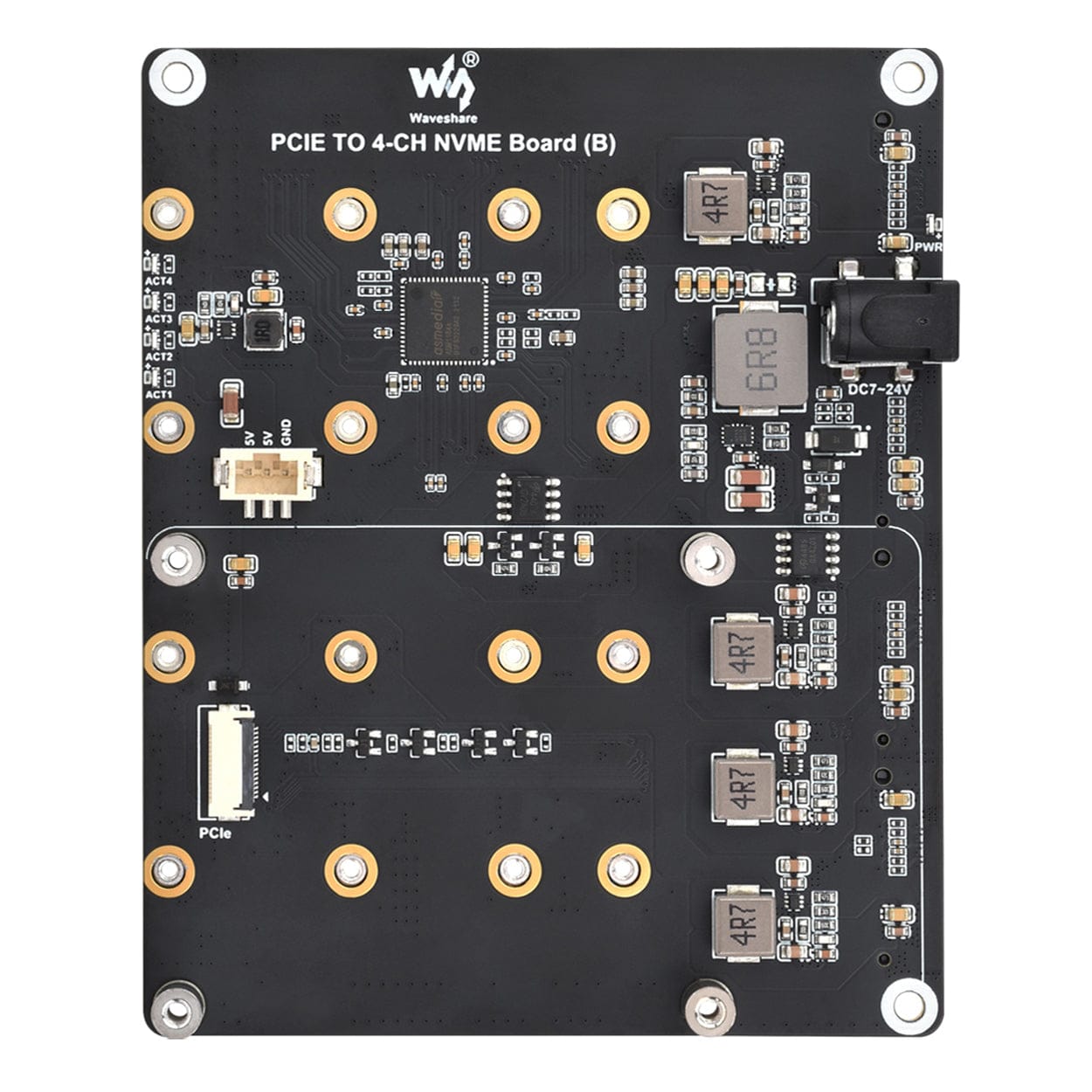

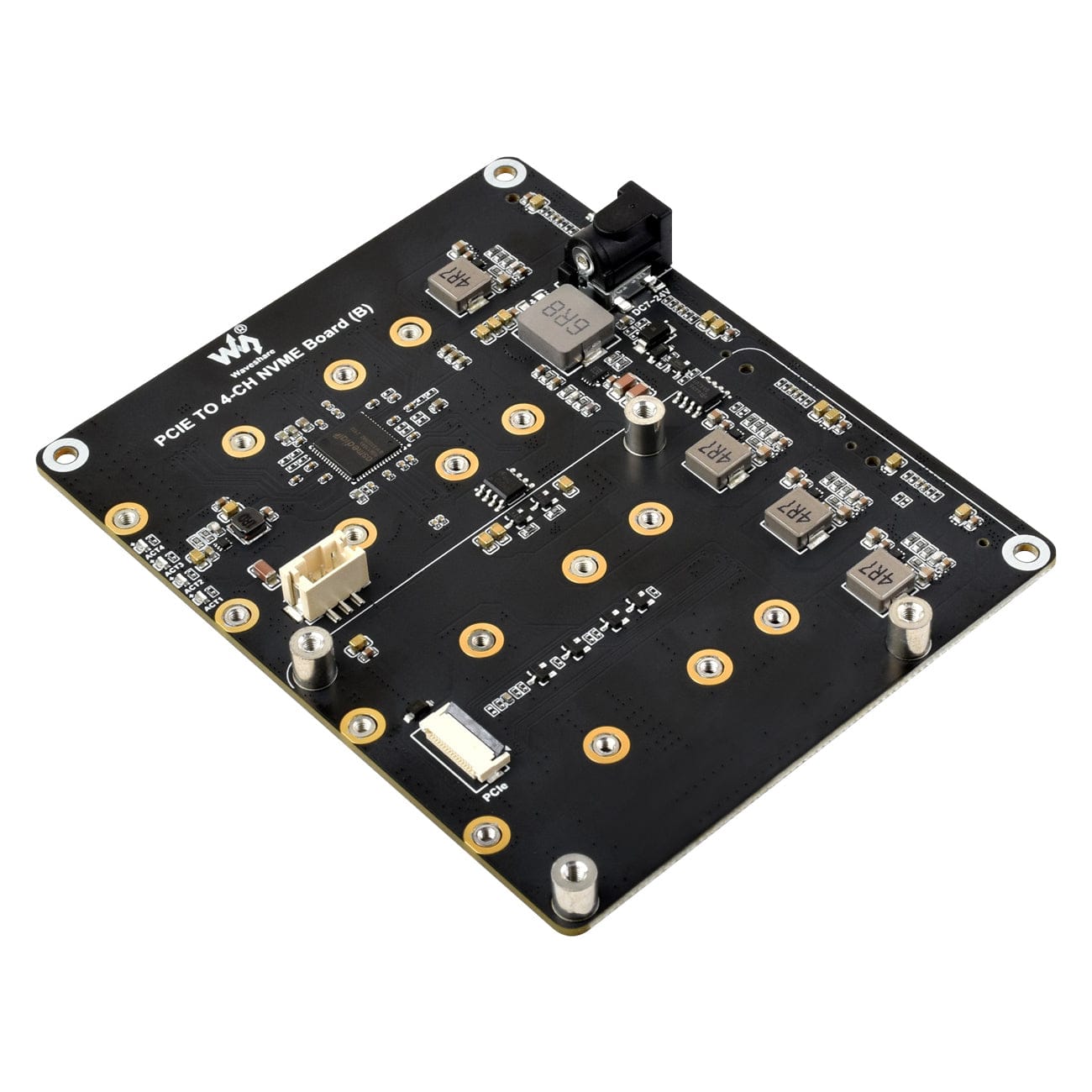

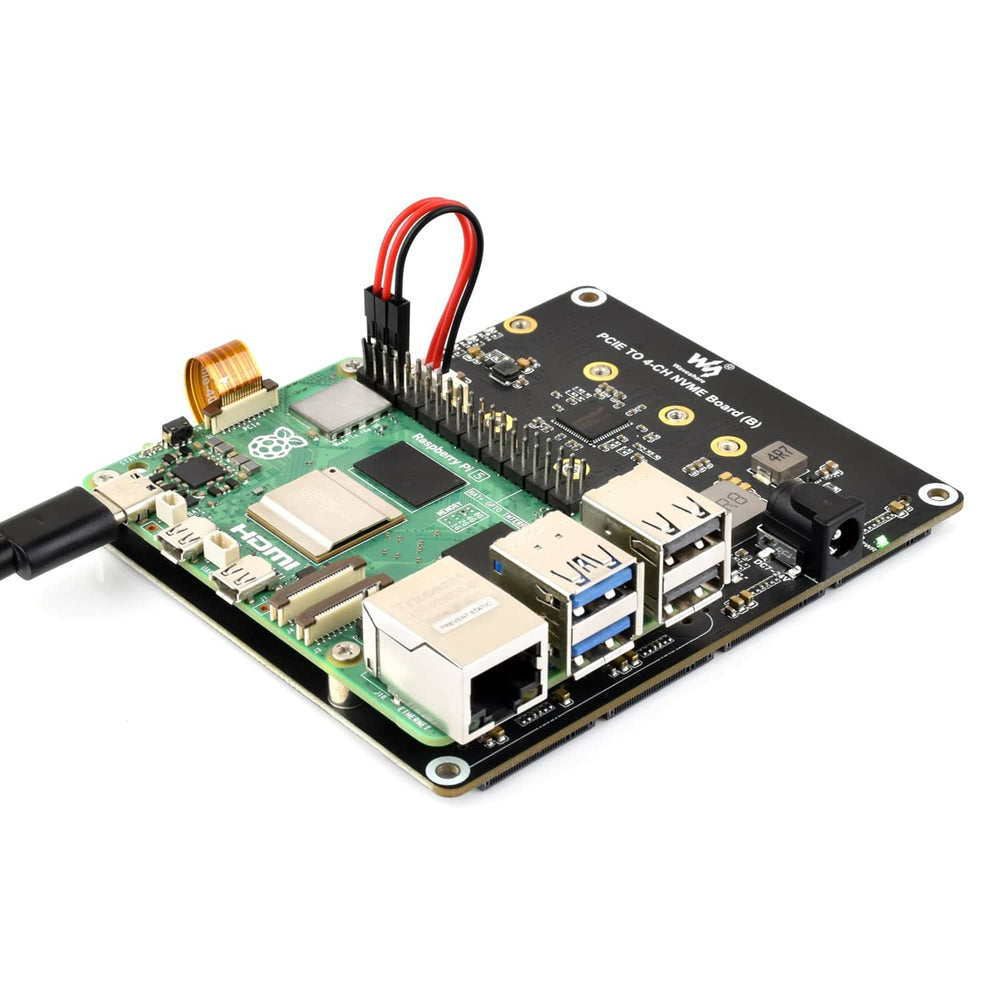

This is Waveshare's4-Channel M.2 Adapter for Raspberry Pi 5. It uses the Pi 5's PCIe connection along with an ASMedia ASM1184e packet switch to allow you to use four NVMe devices with a single Raspberry Pi.

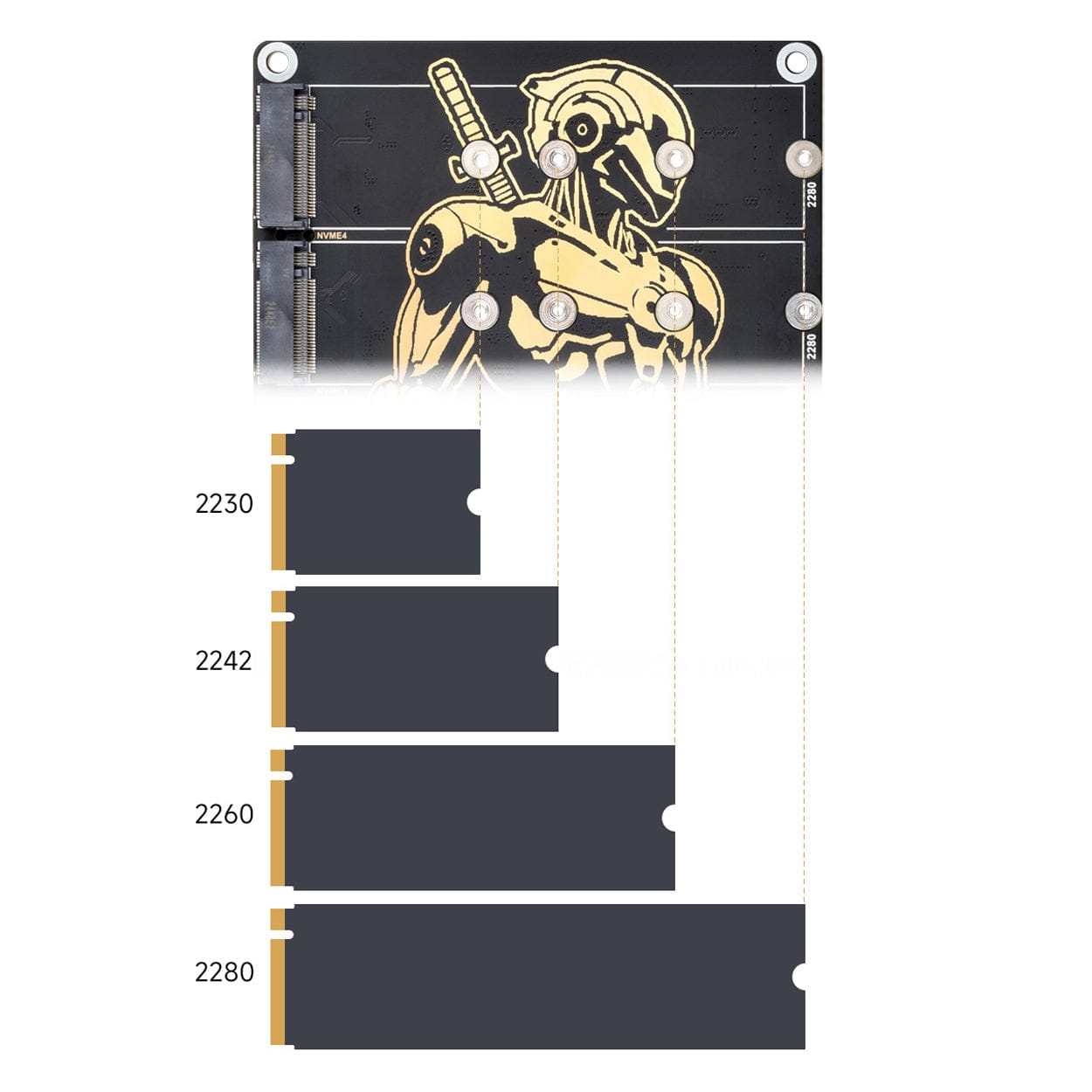

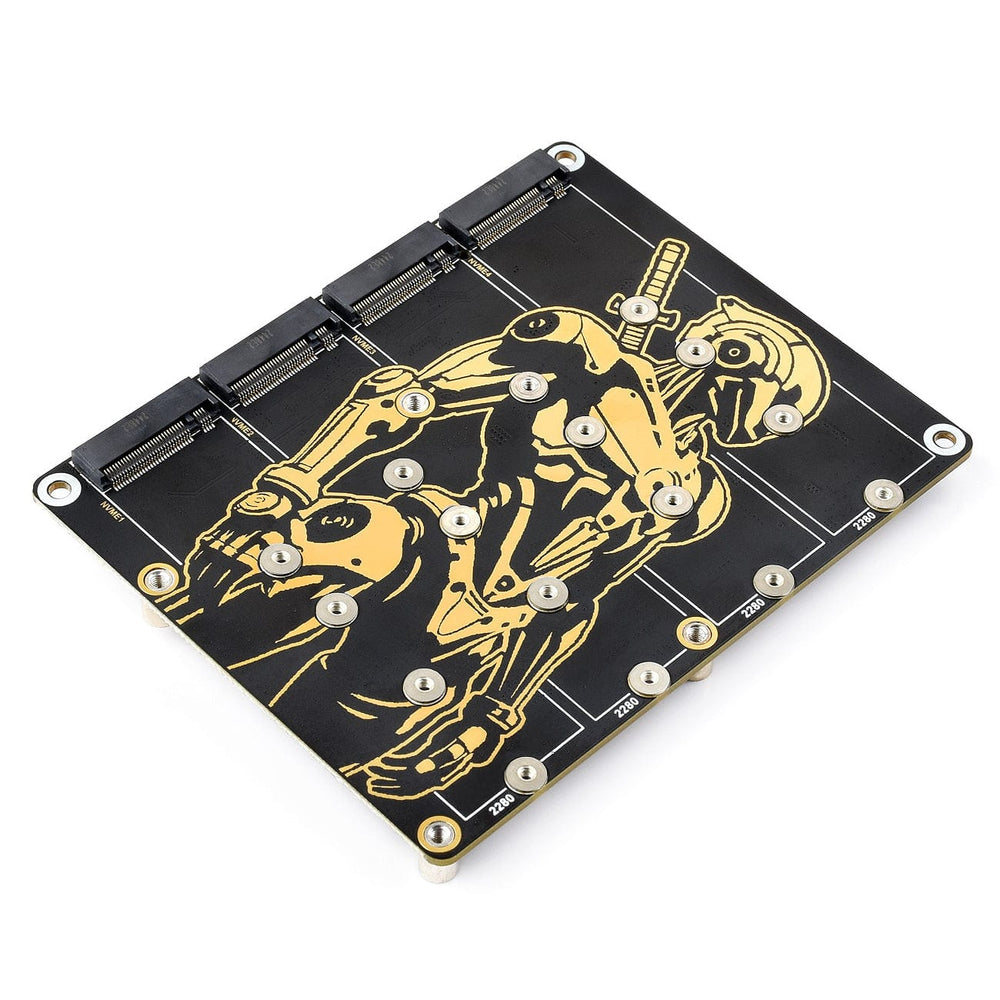

Each slot can accept 2230, 2242, 2260 or 2280-format NVMe devices, and includes M.2 fixing screws to keep them securely in place. Each M.2 slot has its own indicator LED at the edge of the board. There is also a power LED (controlled by the PCIe power enable signal).

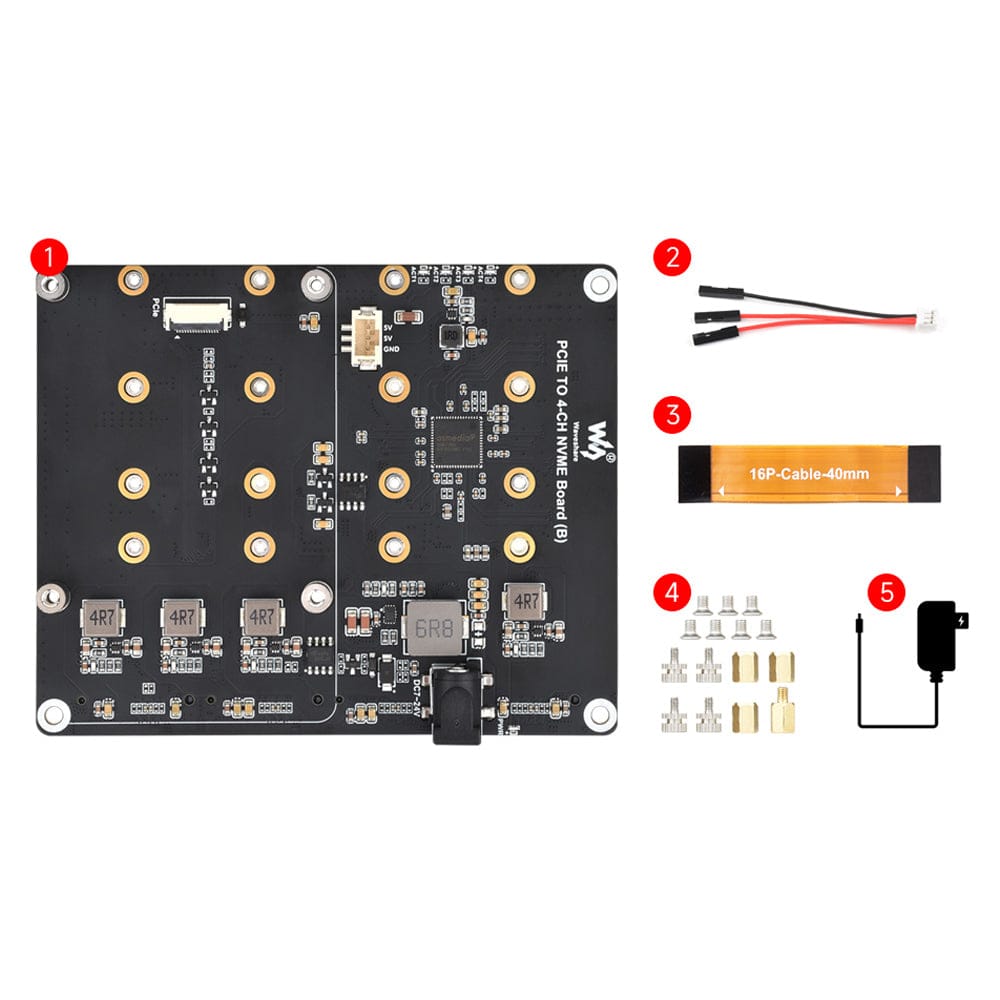

A 12V 4A UK power supply (barrel jack) is included, along with a PCIe cable, GPIO powering cable and a set of fixings.
Raspberry Pi and NVMe devices not included. This product contains a three-pin UK power supply.
Features
Compatible with Raspberry Pi 5 only
Connects up to four NVMe devices to Raspberry Pi 5

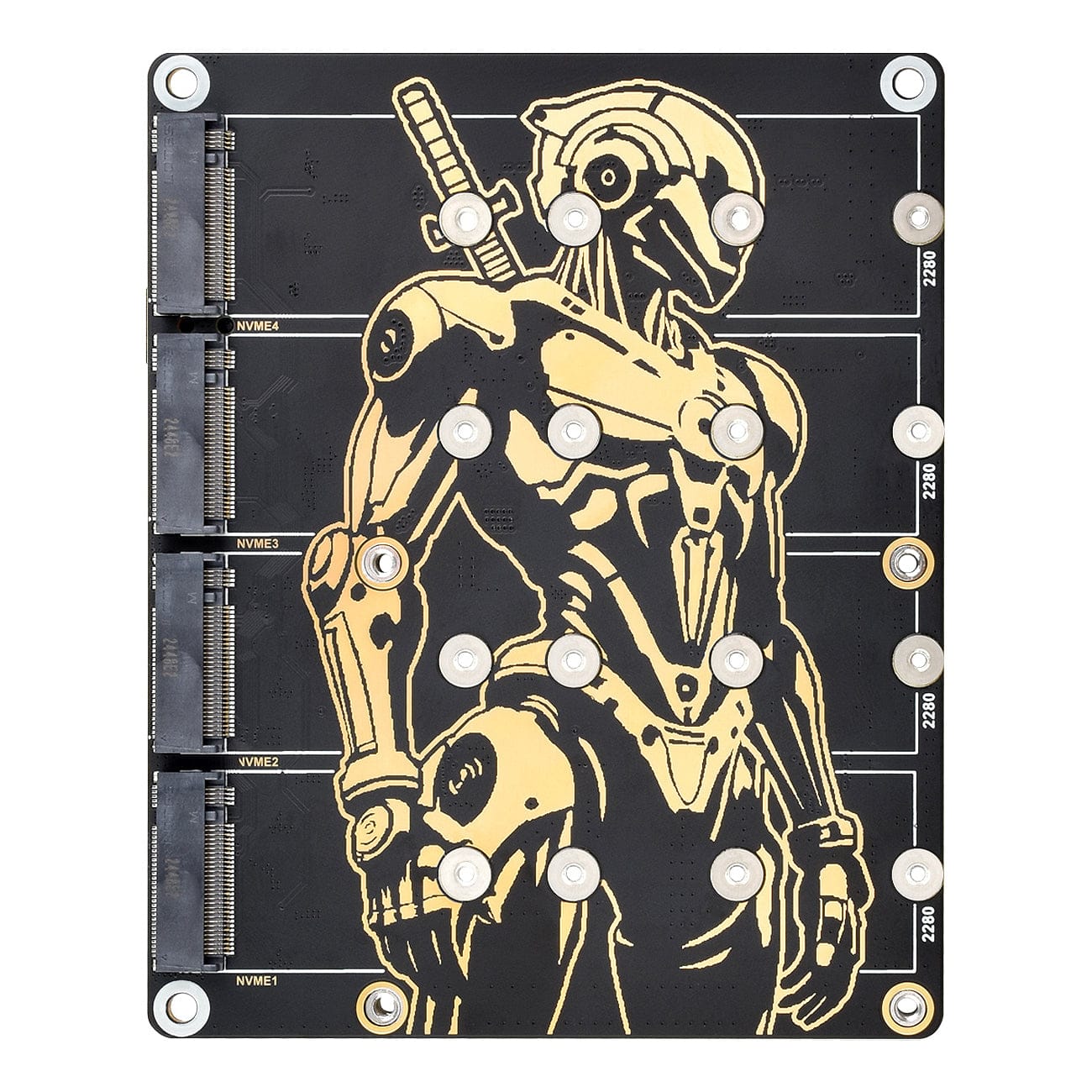

Features four M.2 M-key slots
Supports 2230, 2242, 2260 and 2280 M.2 NVMe drives
Supports NVMe protocol drives
ASMedia ASM1184e packet switch
Supports booting Raspberry Pi 5 from NVMe SSD

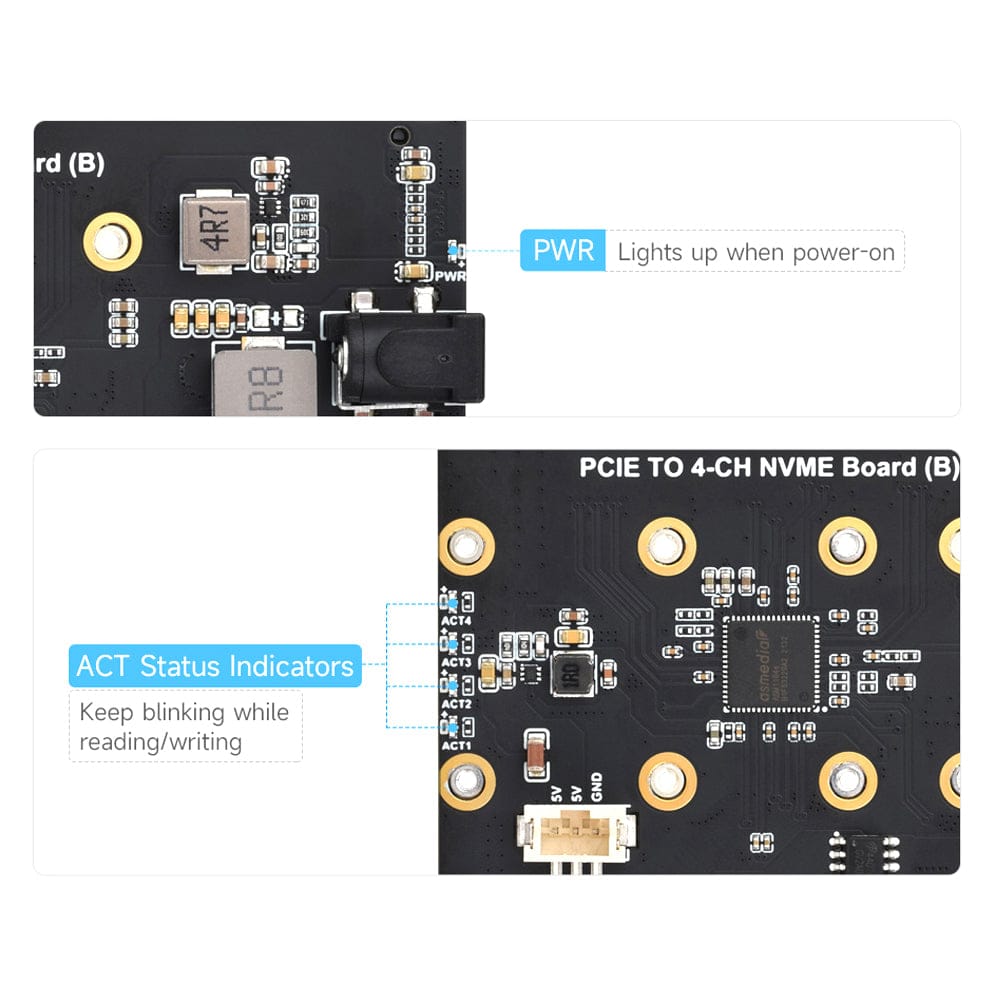

Includes indicator LEDs for each M.2 slot
Includes onboard power LED
Can supply power to Pi 5 via included GPIO cable
Also supports some CM5 baseboards with PCIe 16-pin
