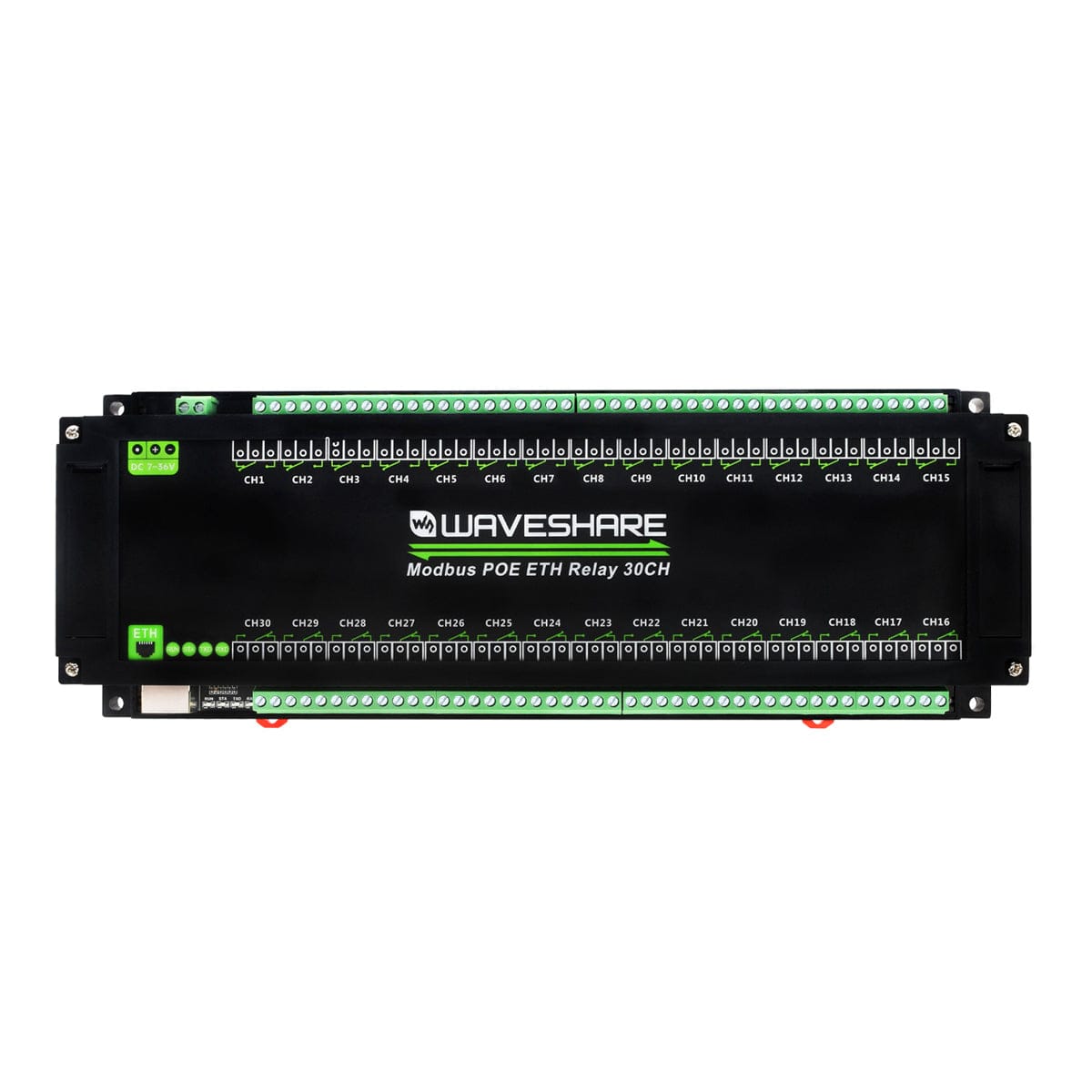

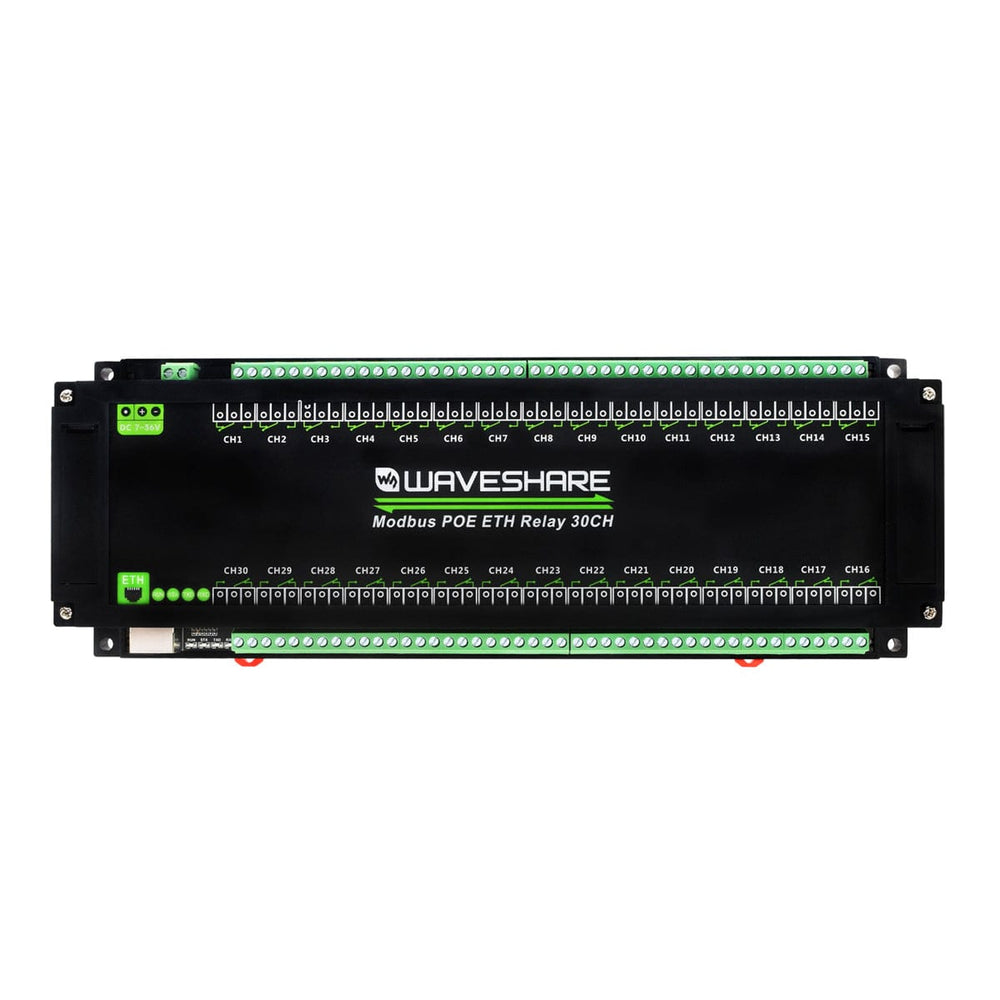

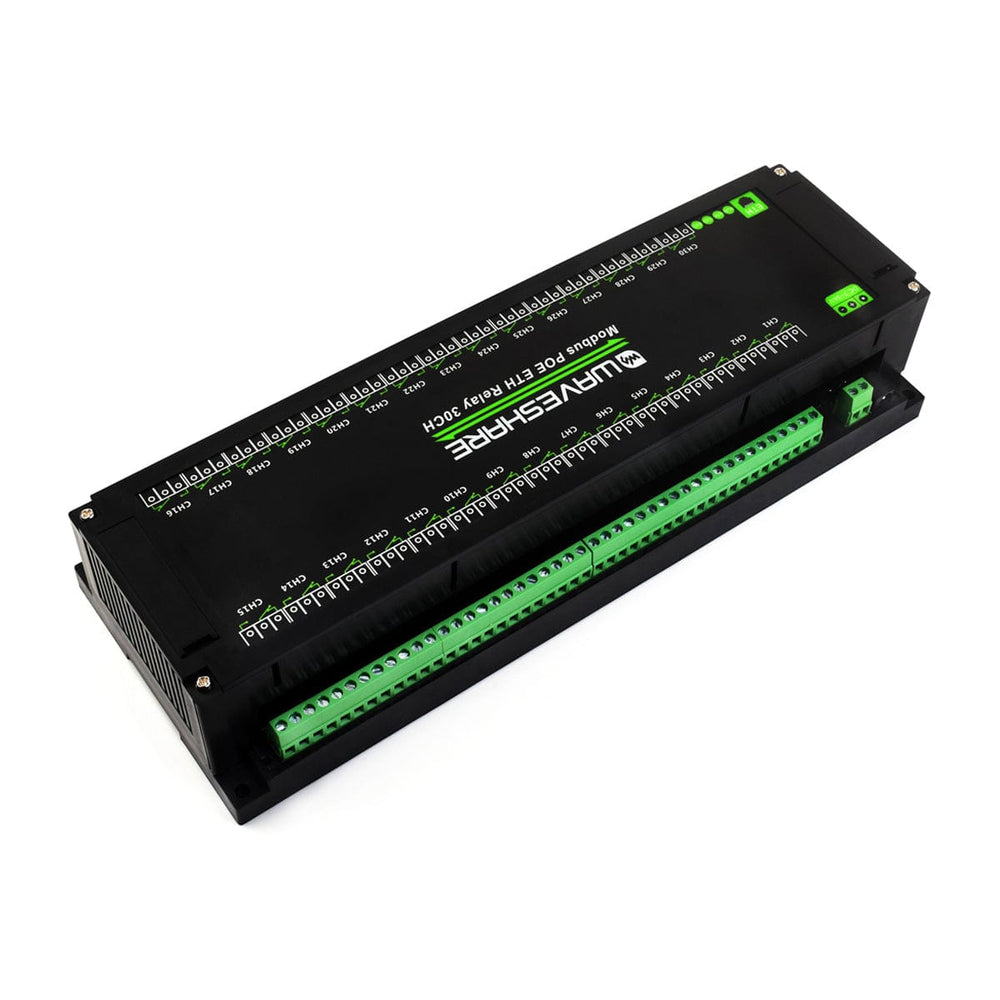

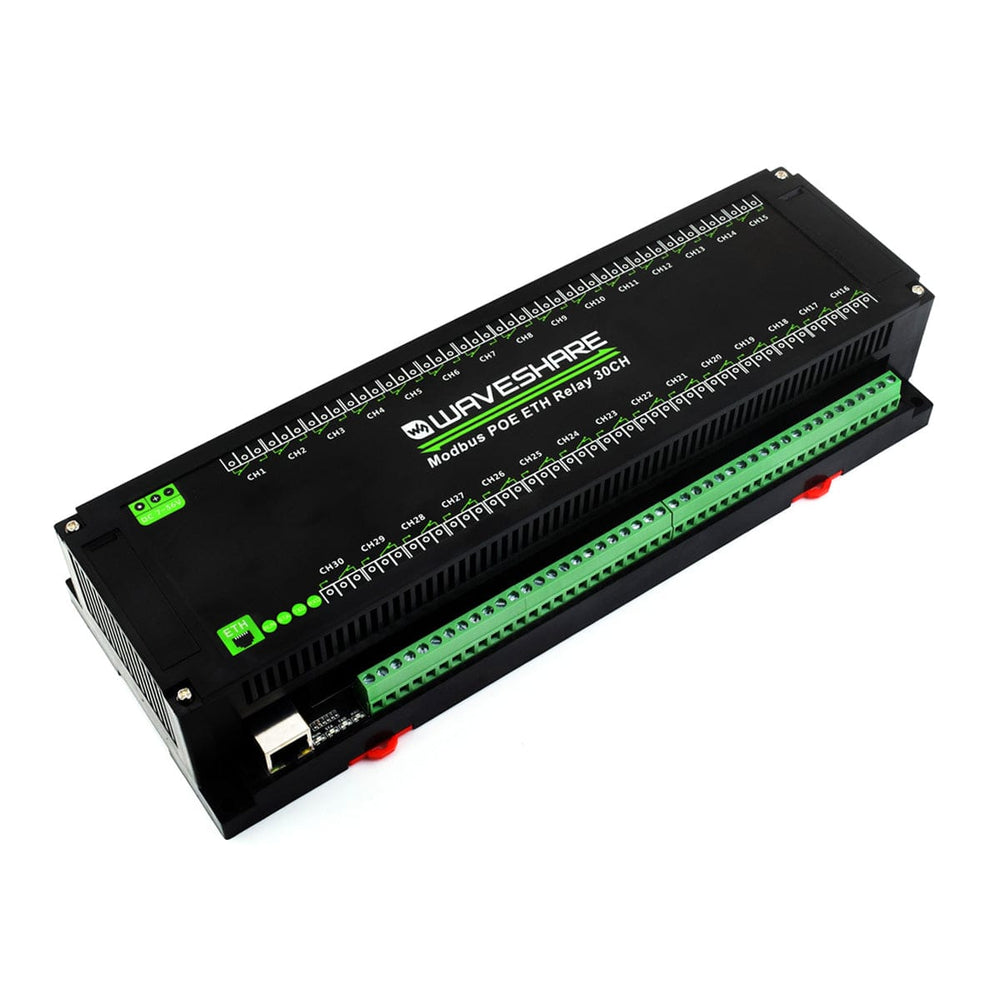

30-Channel Ethernet Relay Module with PoE
Price:
Sale price
£63.80
Stock:
Awesome Extras
This 30-channel relay module allows you to manage multiple devices simultaneously through a single Ethernet port, using Modbus RTU and Modbus TCP protocols. Its support for Power over Ethernet (PoE) means you can power the device directly through the Ethernet cable, simplifying installation and reducing the need for extra wiring. Additionally, the module comes housed in a durable ABS rail-mount case for easy and secure installation in various industrial environments.
It has a flash-on and flash-off function, allowing you to control the relays with precision by setting them to turn on and off automatically for a specified duration. With support for DC 7~36V wide-range power input and PoE, it offers flexibility in different projects.
The module also supports relay control through the MQTT protocol, including an Alibaba Cloud MQTT application demo, making it perfect for IoT applications. The optocoupler isolation protects the relays from interference caused by high-voltage circuits, providing reliable performance in even the most demanding settings.
If you are looking for a module with fewer channels, click here to find our 8-Channel module
Note: The external power supply adapter is NOT included. Click here to get one in our shop
Features
- Features flash-on, and flash-off functions, by passing an argument to the command, it is possible to turn on the relay for a while and then close it automatically
- DC 7~36V wide range power input and PoE power supply
- Relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
- Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit

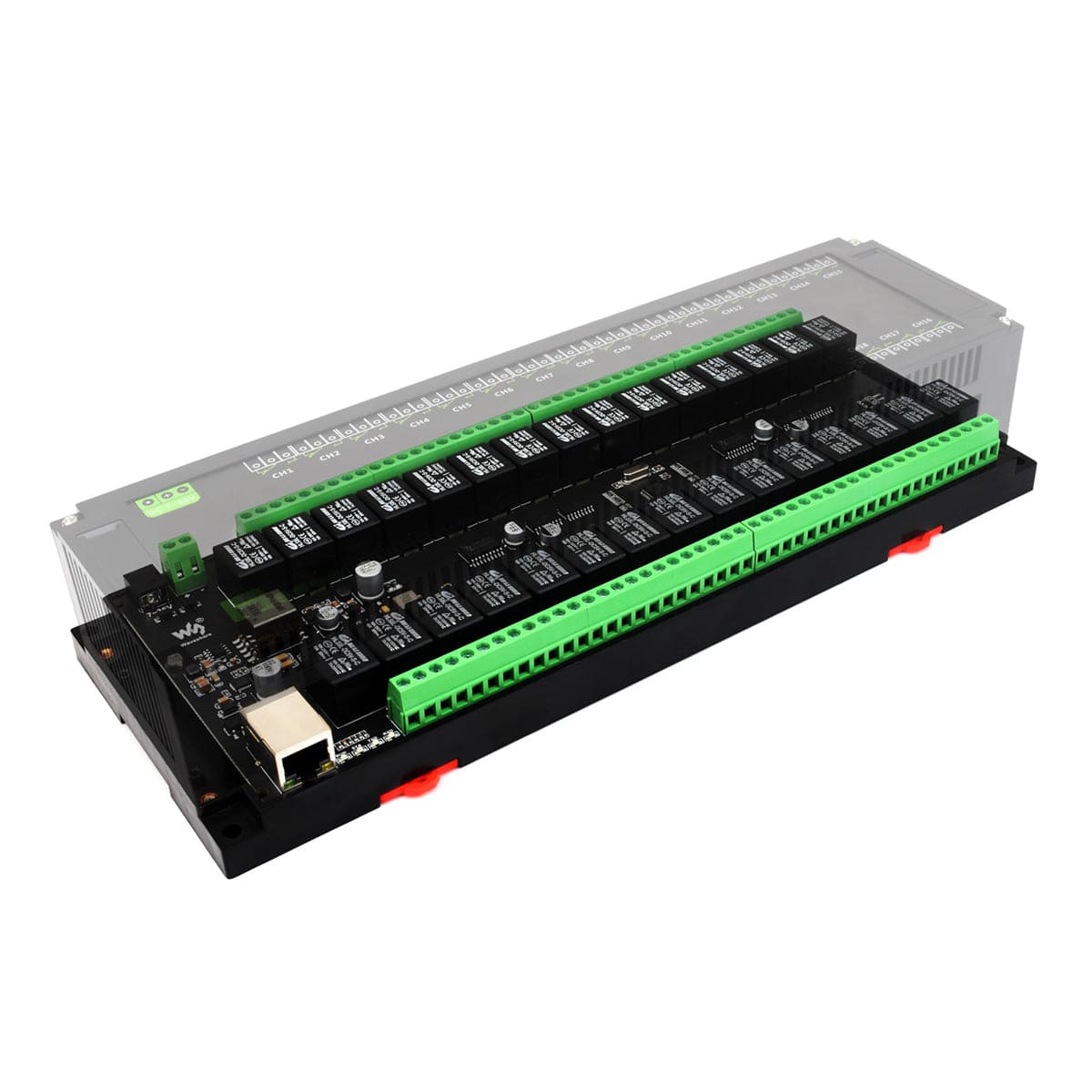

- Dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
- Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
- High-quality relay, contact rating: ≤10A 250VAC/30VDC

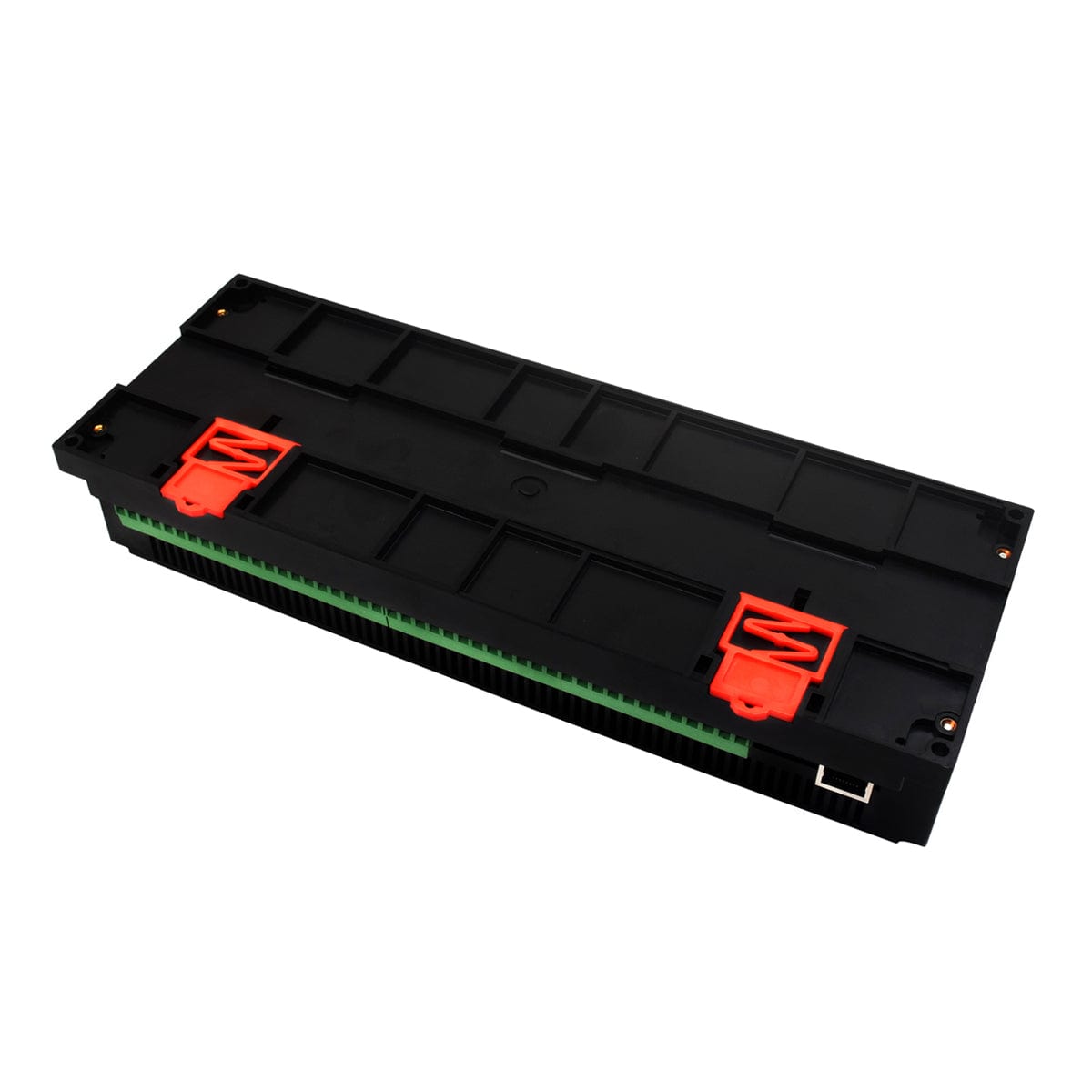

- Rail-mounted ABS plastic enclosure, easy to install, safe to use
- 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
Specifications
| Power Supply | PoE Ethernet Port, DC 5.5*2.1 power port or power supply screw terminal (7~36V) |
| Communication Interface | PoE Ethernet Port, Support IEEE 802.3af Standard |
| Relay Channels | 8 Channels |
| Touch Contact | 1NO, 1NC |
| Touch Contact Load | ≤10A 250V AC Or ≤10A 30V DC |
| Modbus Protocol | Modbus RTU Protocol Or Modbus TCP Protocol |
Resources
Pinout
| RUN | Ethernet port indicator blinks when the Ethernet port is normally working |
| STA | MCU indicator, blinking when the MCU normally working |
| TXD | TX indicator lights up when sending data |
| RXD | RX indicator lights up when receiving data |
| Ethernet port Green Indicator | Lights up when the connection is established |
| Ethernet Port Yellow Indicator | Data activity indicator, blinking when transmitting data |
Package Contents
- 1x 30-Channel Ethernet Relay Module
