3.5mm Jack TRRS Breakout - Horizontal

Price:
Sale price £2.60
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

4-Pole 3.5mm Jack Audio Cable (2m) by The Pi Hut - The Pi Hut4-Pole 3.5mm Jack Audio Cable (2m) by The Pi Hut - The Pi Hut
The Pi Hut4-Pole 3.5mm Jack Audio Cable (2m)
Sale price £2.20 incl. VAT excl. VAT
3.5mm Jack Extension Cable for Raspberry Pi by The Pi Hut - The Pi Hut
The Pi Hut3.5mm Jack Extension Cable (TRRS)
Sale price £1.50 incl. VAT excl. VAT
2.54mm Terminal Block - 4-pin by The Pi Hut - The Pi Hut2.54mm Terminal Block - 4-pin by The Pi Hut - The Pi Hut
The Pi Hut2.54mm Terminal Block - 4-pin
Sale price £1.30 incl. VAT excl. VAT
M2.5 Nylon Standoff Packs by The Pi Hut - The Pi HutM2.5 Nylon Standoff Packs by The Pi Hut - The Pi Hut
The Pi HutM2.5 Nylon Standoff Packs
Sale price £0.70 incl. VAT excl. VAT
M2.5 Nylon Fixing Packs by The Pi Hut - The Pi HutM2.5 Nylon Fixing Packs by The Pi Hut - The Pi Hut
The Pi HutM2.5 Nylon Fixing Packs
Sale price £0.70 incl. VAT excl. VAT
Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi HutAutosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi Hut
Prototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT
Half-Size Breadboard - White by The Pi Hut - The Pi HutHalf-Size Breadboard - White by The Pi Hut - The Pi Hut
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT
3.5mm (1/8") 4-Pole (TRRS) Audio Plug Terminal Block by The Pi Hut - The Pi Hut3.5mm (1/8") 4-Pole (TRRS) Audio Plug Terminal Block by The Pi Hut - The Pi Hut
3.5mm (1/8") 4-Pole (TRRS) Audio Jack Terminal Block by The Pi Hut - The Pi Hut3.5mm (1/8") 4-Pole (TRRS) Audio Jack Terminal Block by The Pi Hut - The Pi Hut
Cell-phone TRRS Headset - Earbud Headphones w/ Microphone by The Pi Hut - The Pi Hut

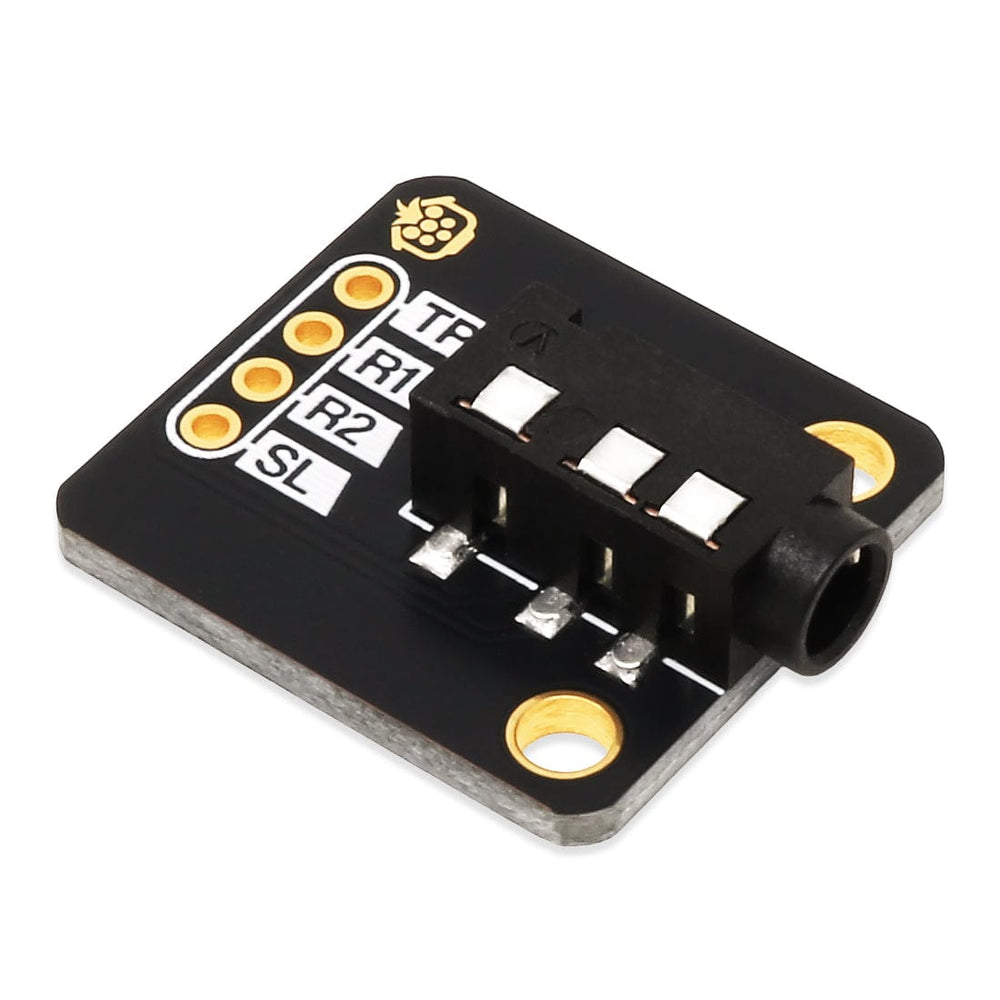

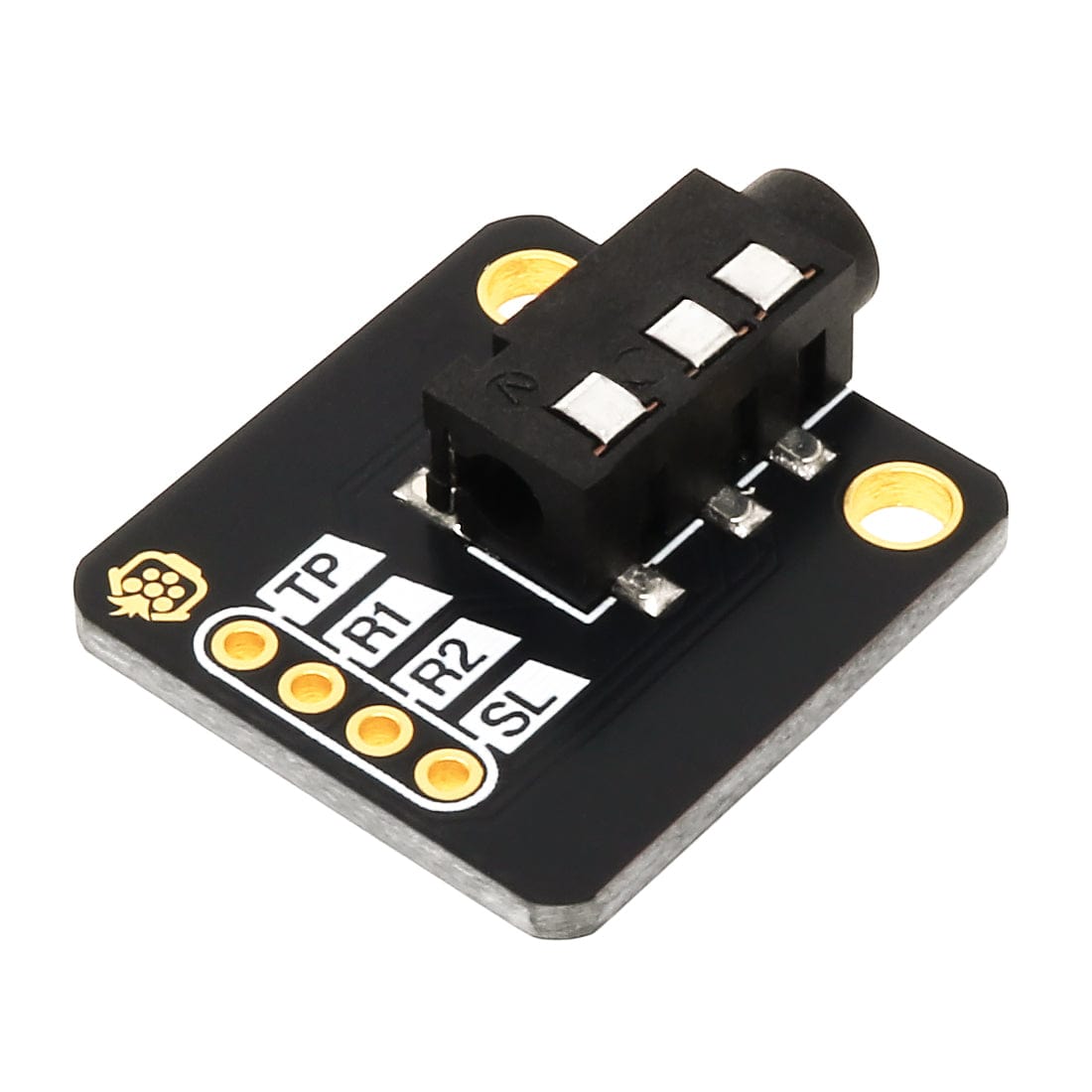

Our 3.5mm Jack breakout (TRRS) allows you to break out the four conductors from a standard TRRS 3.5mm jack cable/device with the flexibility to solder wires, headers and more, alongside M2.5 mounting options and underside soldering pads!

Obvious audio project usefulness aside, we think these could also be dead handy as a simple way to transmit low-speed data from a microcontroller to/from a device using common 3.5mm audio cables (just make sure your cable is the 4-pole TRRS type).

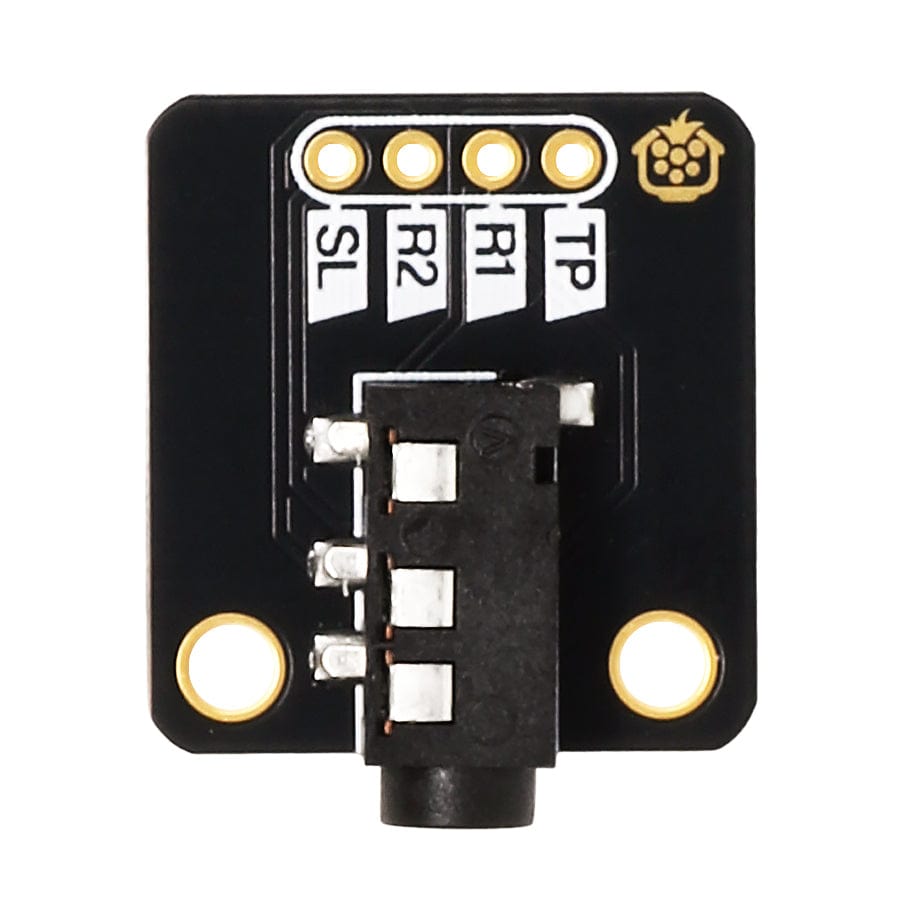

Each pin from the 3.5mm jack/TRRS socket is broken out to clearly labelled 2.54mm-spaced pads:

  • TP = Tip
  • R1 = Ring 1
  • R2 = Ring 2
  • SL = Sleeve

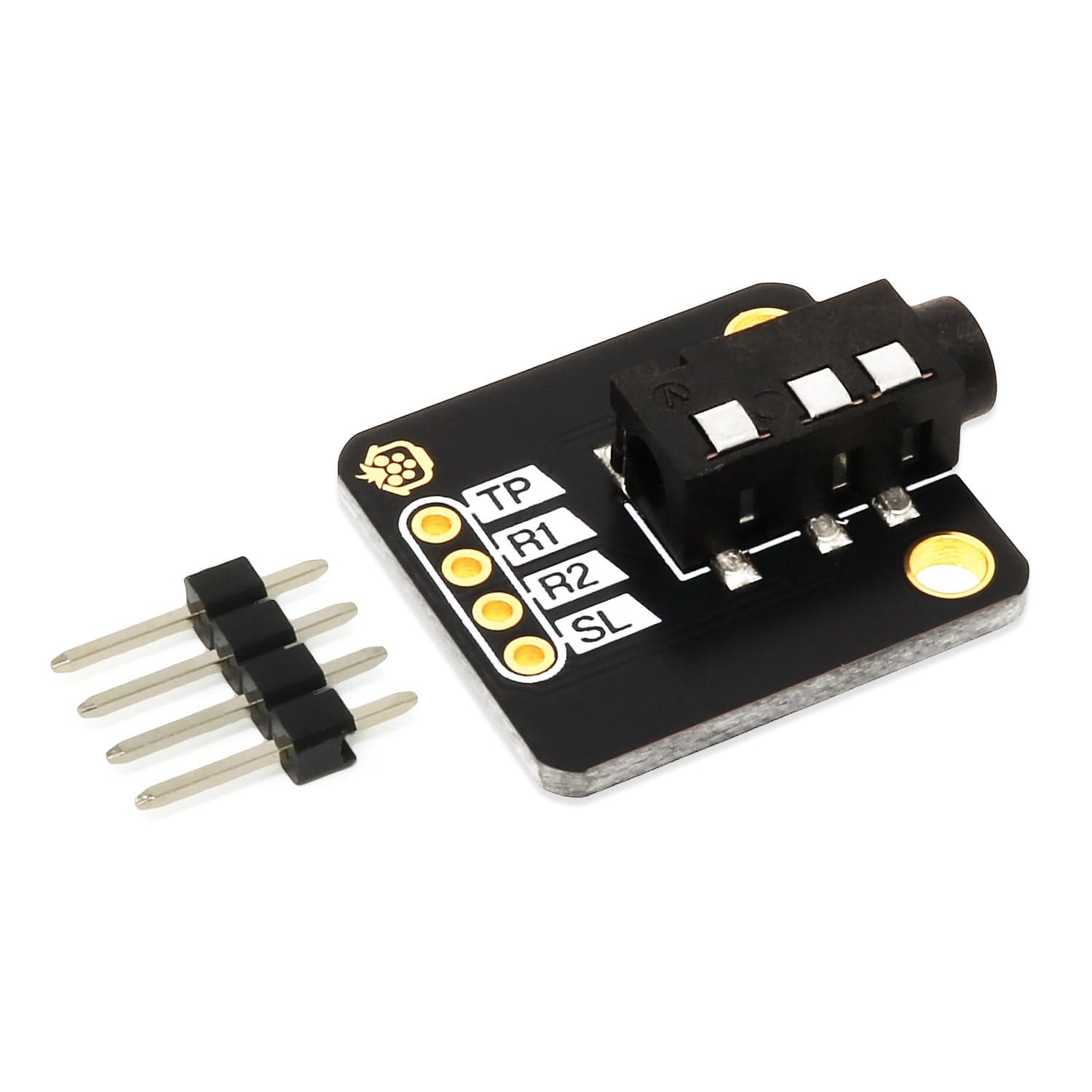

You can solder whatever you like to these, such as the included 4-pin 2.54mm header strip (great for breadboard usage), some prototyping wire, or even a 4-way 2.54mm terminal block.

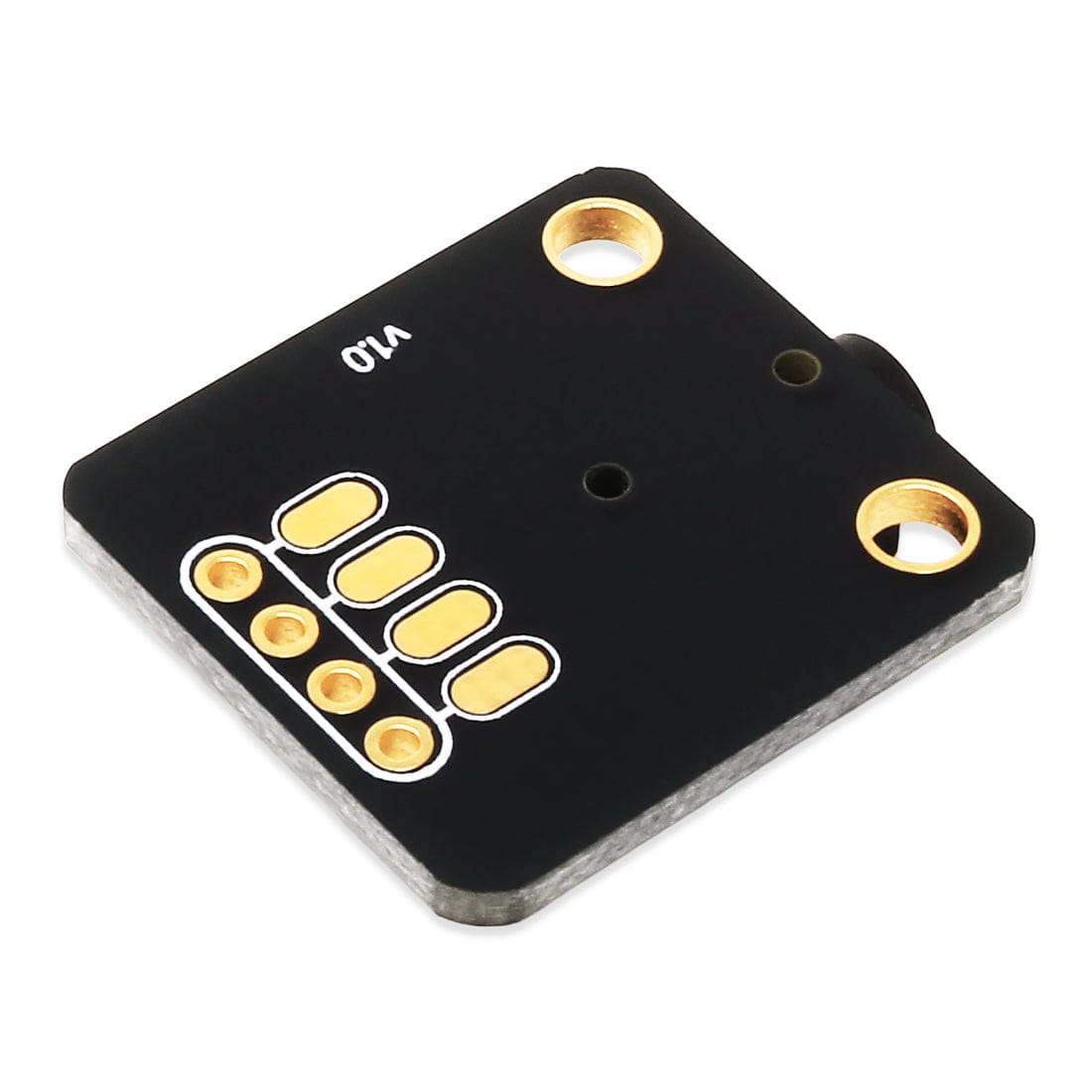

If you're soldering wires, consider using the underside solder pads. We added these because we know just how tricky it is to de-solder and re-solder a wire from a pad hole. With the underside pads, it's much, much easier to rework and reuse.

We also used M2.5 mounting holes as they're a popular size with easy-to-source fixings.

Key Features

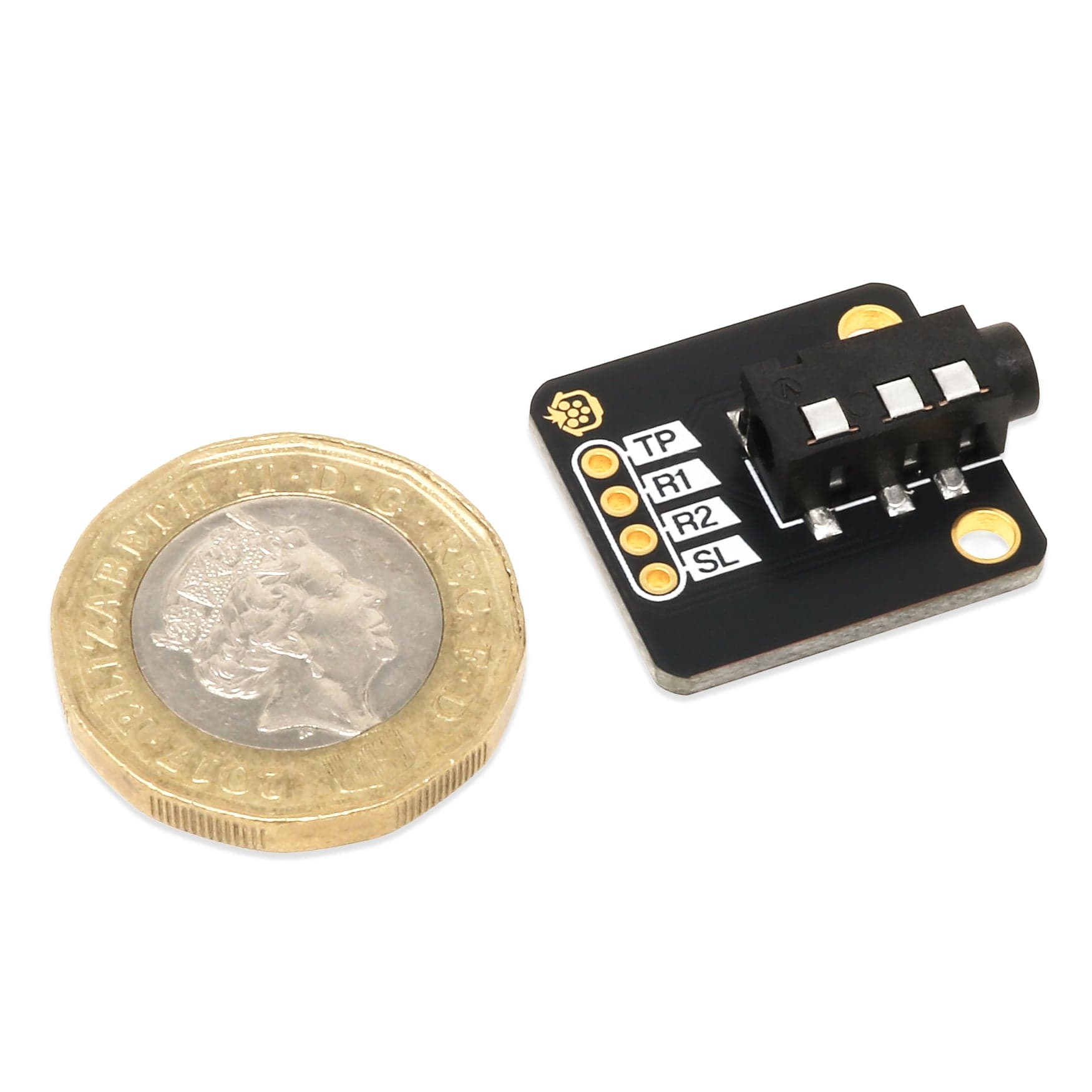

🤏 Compact, horizontal 3.5mm jack TRRS breakout with surface-mount connector

📌 TRRS pins broken out to clearly labelled 2.54mm pads

↩️ Underside solder pads for easy wire soldering and re-work

🔩 M2.5 mounting holes for fiddly-free mounting

🪙 ENIG (Gold) PCB plating for oxidation resistance and durability

💸 4-pin 2.54mm male header strip included!

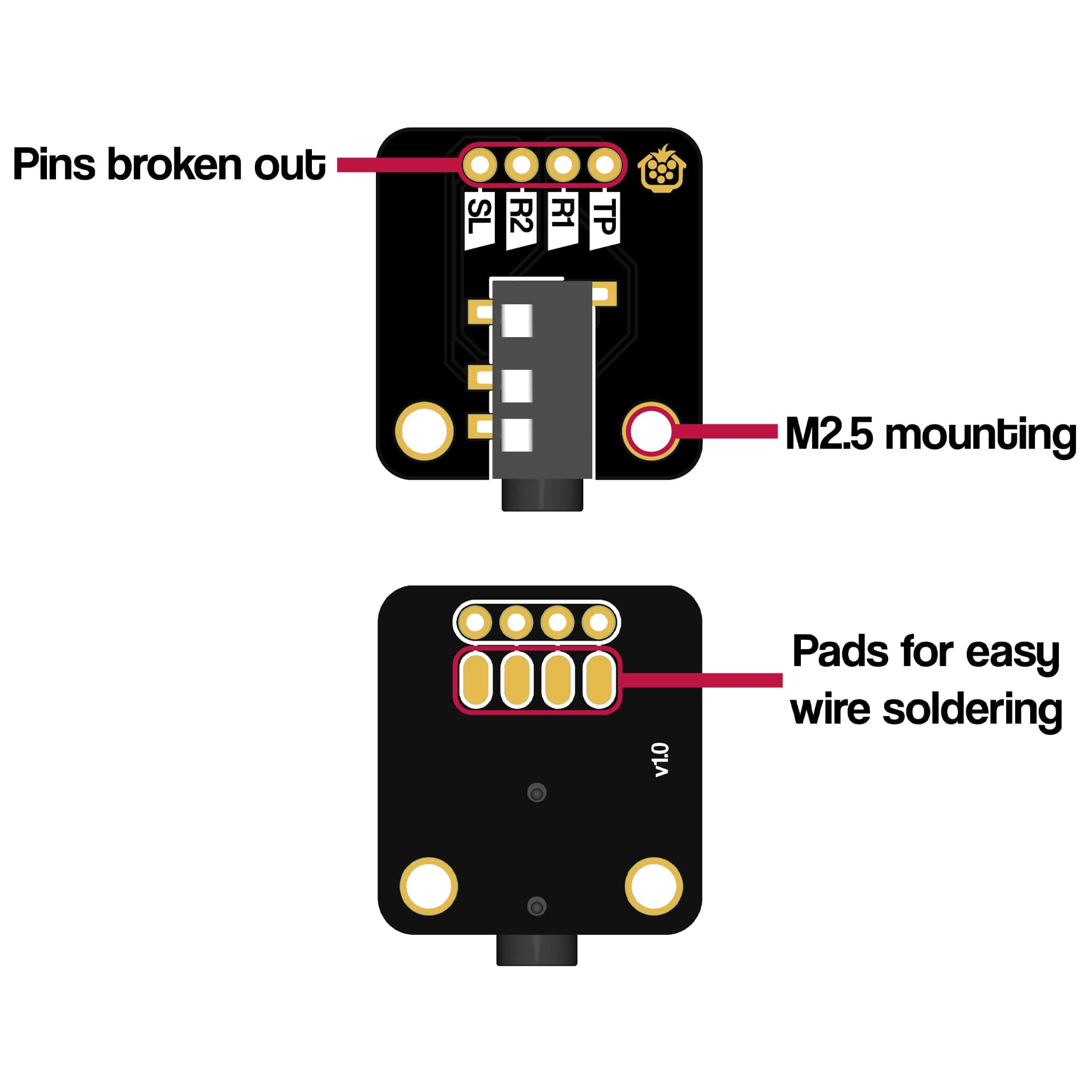

Board Layout

Resources

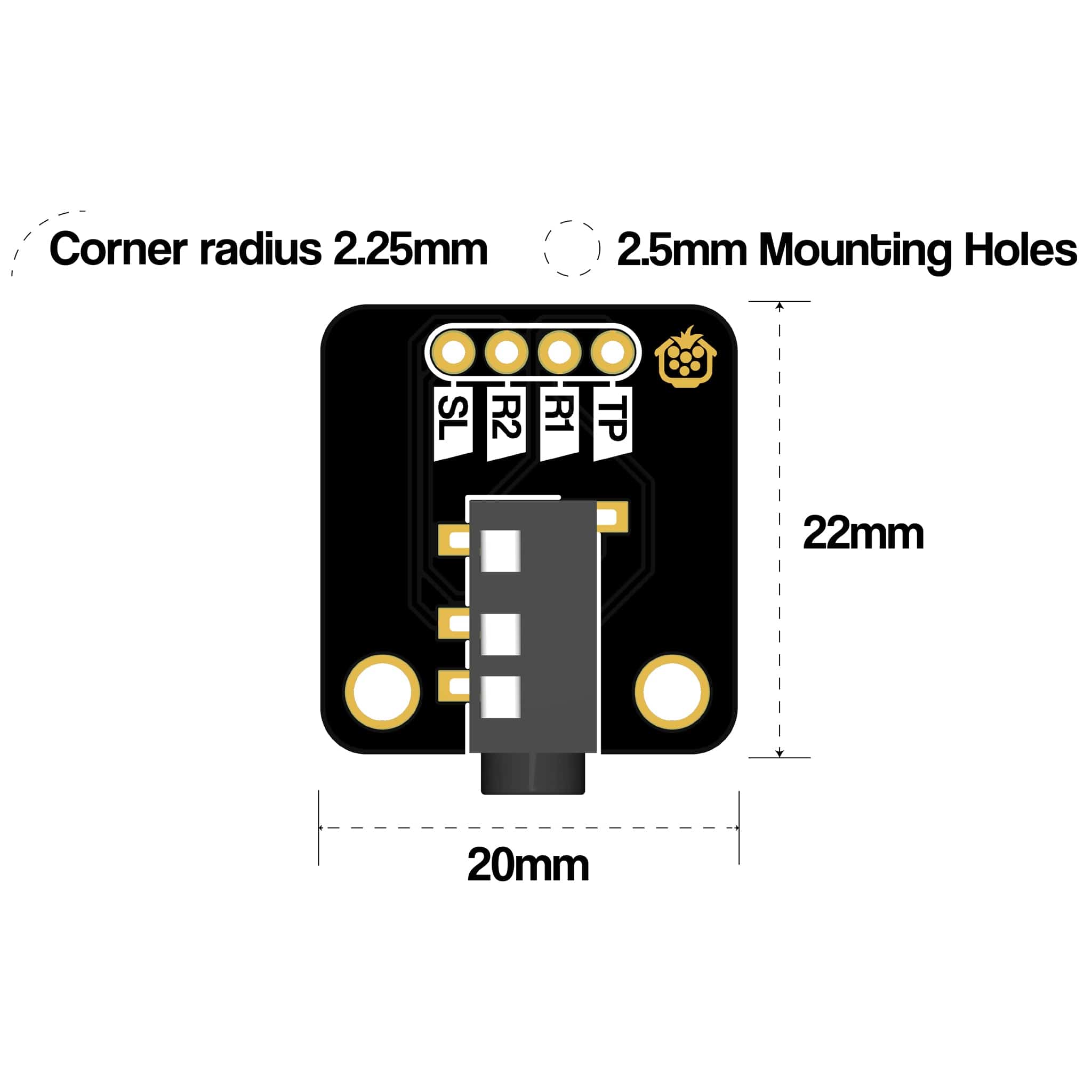

Dimensions

Please note that the corner radius may vary due to the manual PCB finishing process

Package Contents

  • 1x 3.5mm Jack Breakout (TRRS) - Horizontal
  • 1x 4-pin 2.54mm male header strip
