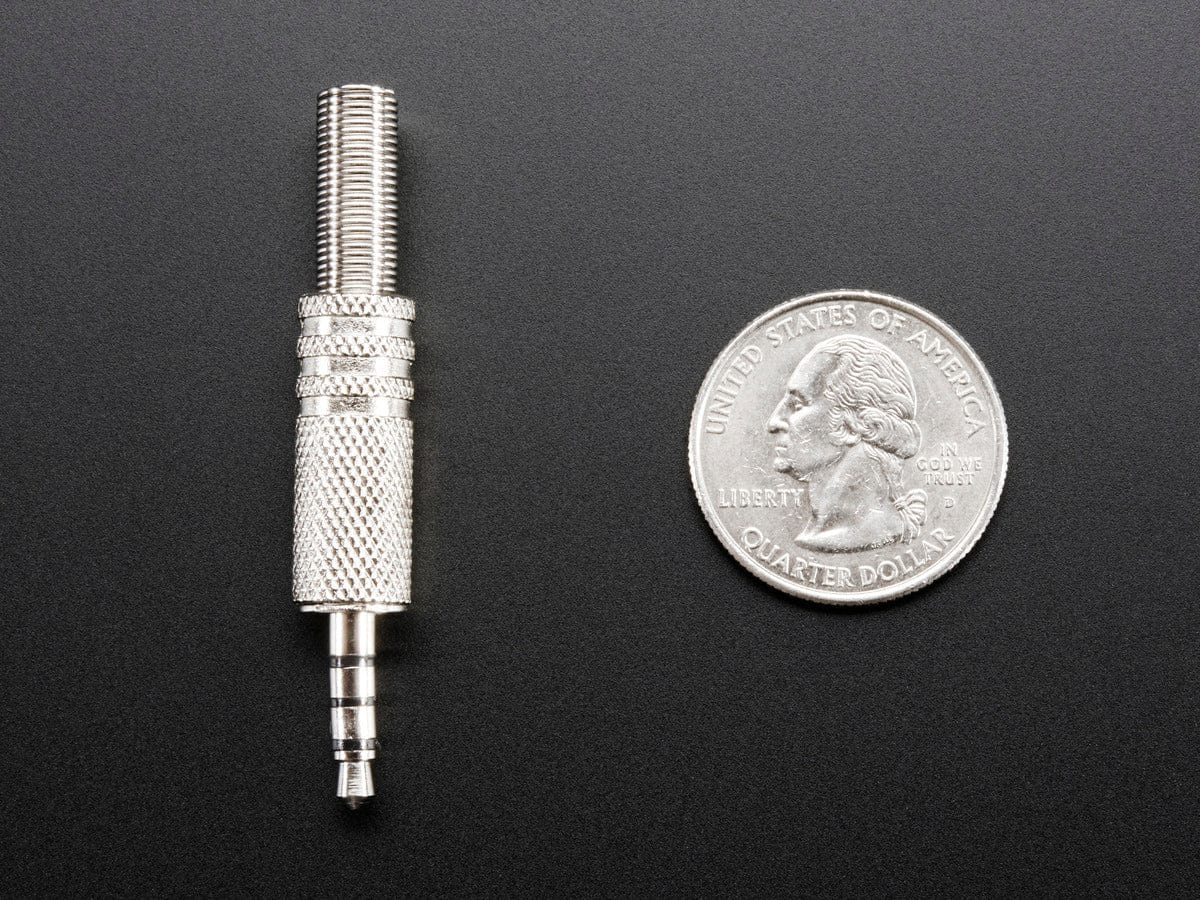

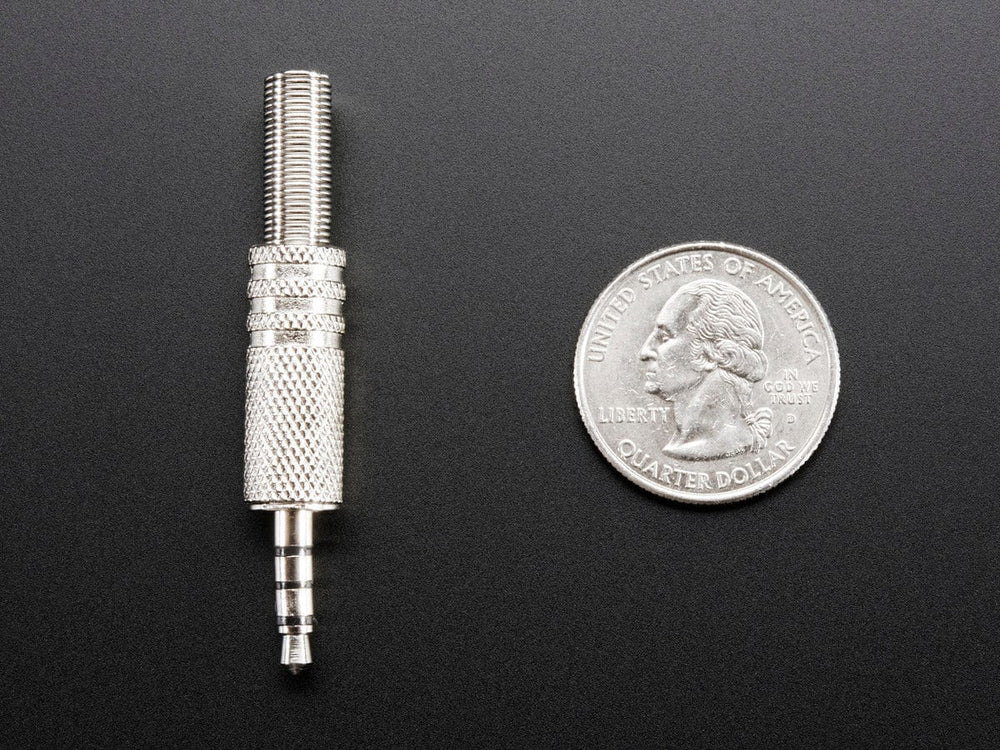

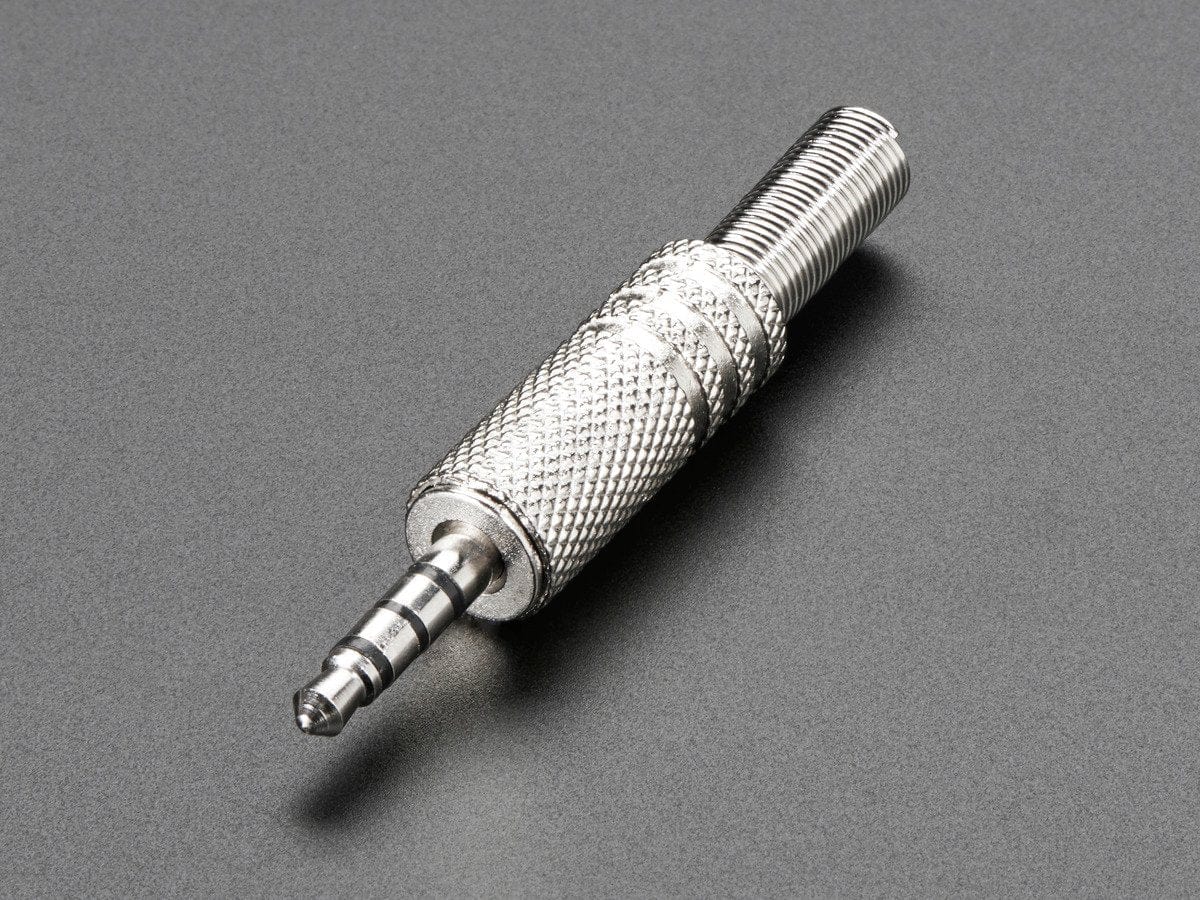

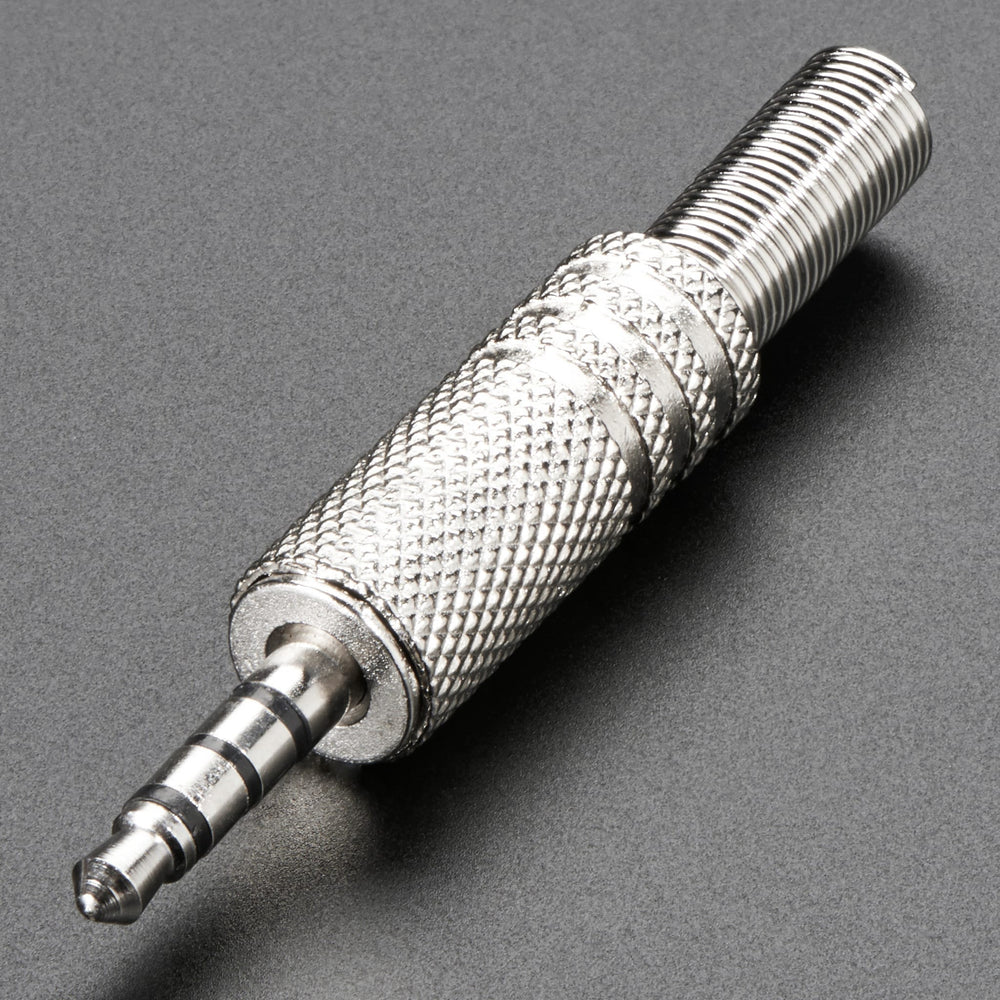

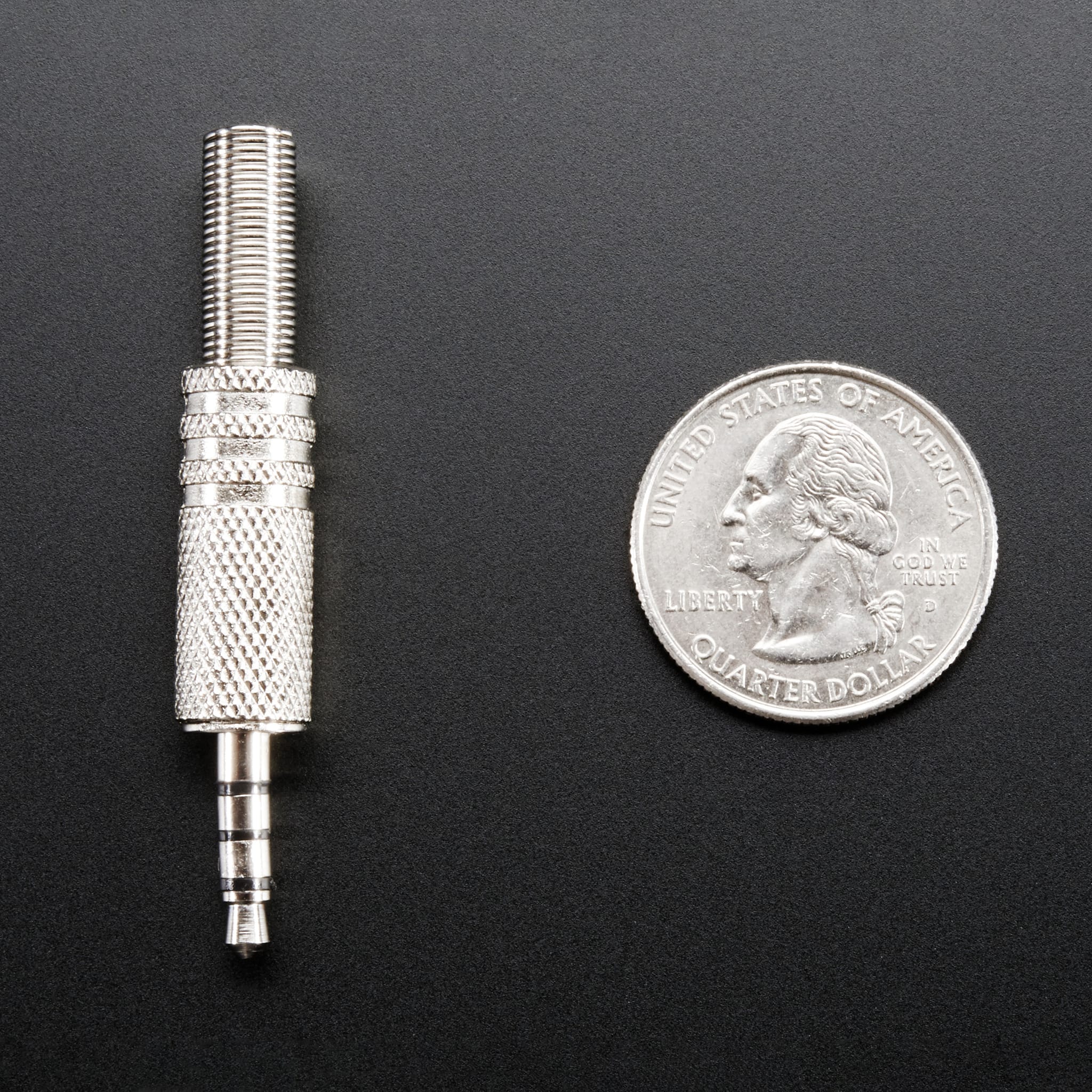

3.5mm (1/8") DIY 4-Pole (TRRS) Plug

The Pi HutSKU: ADA1799
£2.90
incl. VAT
excl. VAT
Only 2 units left

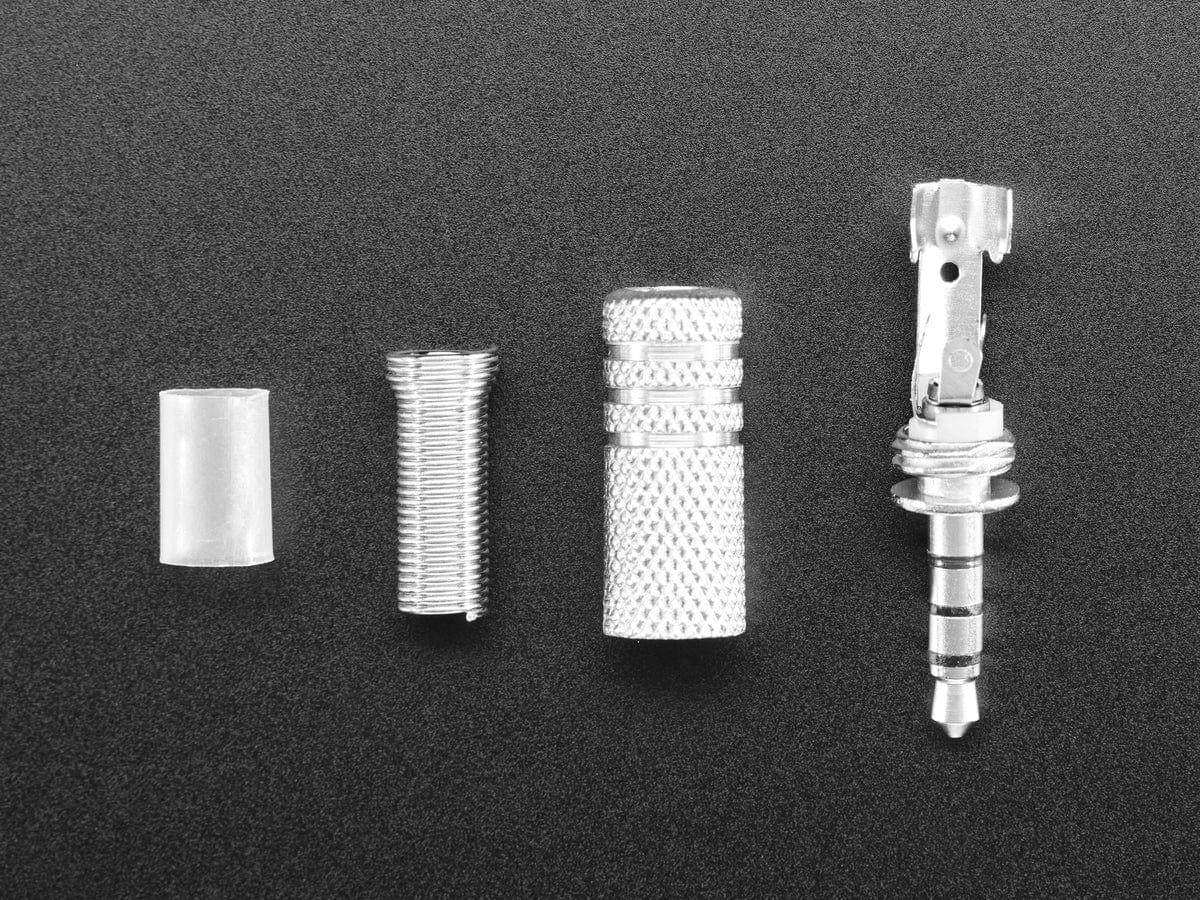

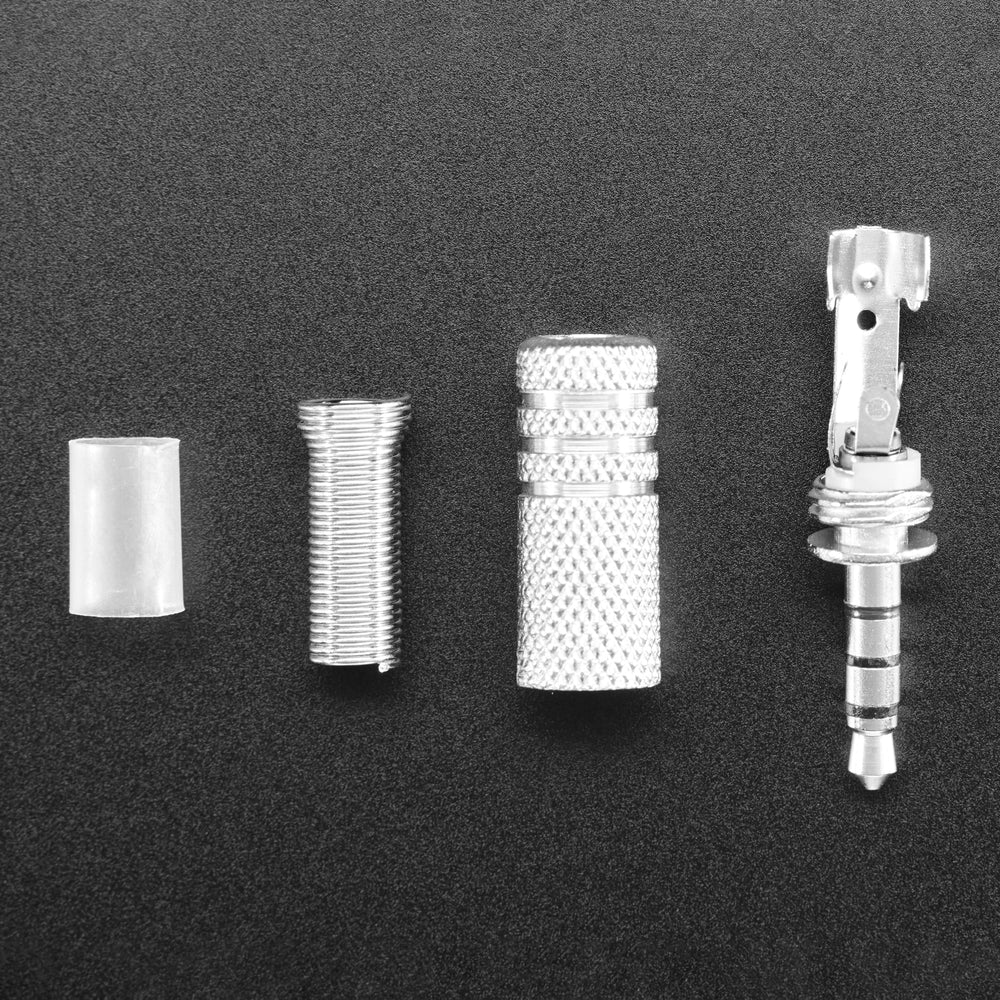

Repair or design your very own audio cables with these nice and durable phono-jack connectors. This is a great plug to make your own cable with. it's made out of durable metal with a flexible, sturdy spring for strain-relief. Just solder the connector to some wires and you have a DIY audio cable that can rival the best!

This item is a 3.5mm TRRS Plug with four poles. TRRS stands for Tip, Ring, Ring, Sleeve. It has four total conductors - three signal and a ground as opposed to a more common stereo jack's two. This connector is most often used in smartphones & cellphones to provide stereo audio and one mic channel.

Technical Details

Dimensions:

  • Length of Plug: 16mm / 0.6"
  • Length of Spring: 18mm / 0.7"
    • Inner diameter of "top": 4.3mm
    • Inner diameter of "bottom": 5.5mm
  • Length of Enclosure: 23mm / 0.9"
  • Weight: 5.4g
