3.5" Touch LCD Shield for Arduino

WaveshareSKU: WAV-13506
Price:
Sale price £29.10
incl. VAT
excl. VAT
Stock:
Only 14 units left
Quantity:

Awesome Extras

Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT
SanDisk MicroSD Card (Class 10 A1) - The Pi HutSanDisk MicroSD Card (Class 10 A1) - The Pi Hut
SanDiskSanDisk MicroSD Card (Class 10 A1)
Sale priceFrom £6 incl. VAT excl. VAT
Mini USB 2.0 MicroSD Card Reader - The Pi HutMini USB 2.0 MicroSD Card Reader - The Pi Hut
The Pi HutMini USB 2.0 MicroSD Card Reader
Sale price £2.50 incl. VAT excl. VAT

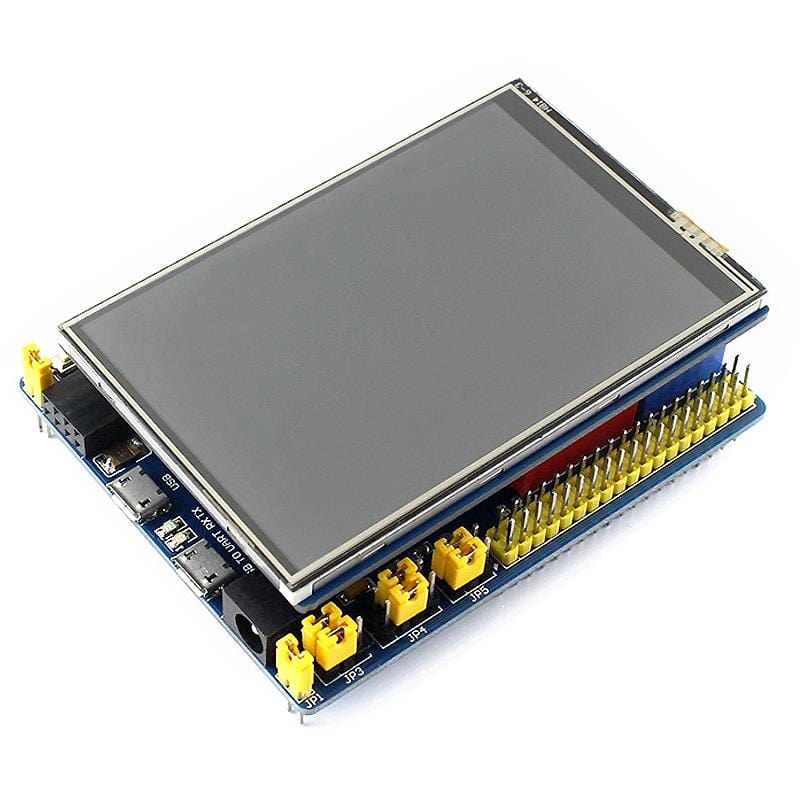

Add a crisp 3.5" touchscreen TFT LCD display to your Arduino project with this 480x320 display shield from Waveshare!

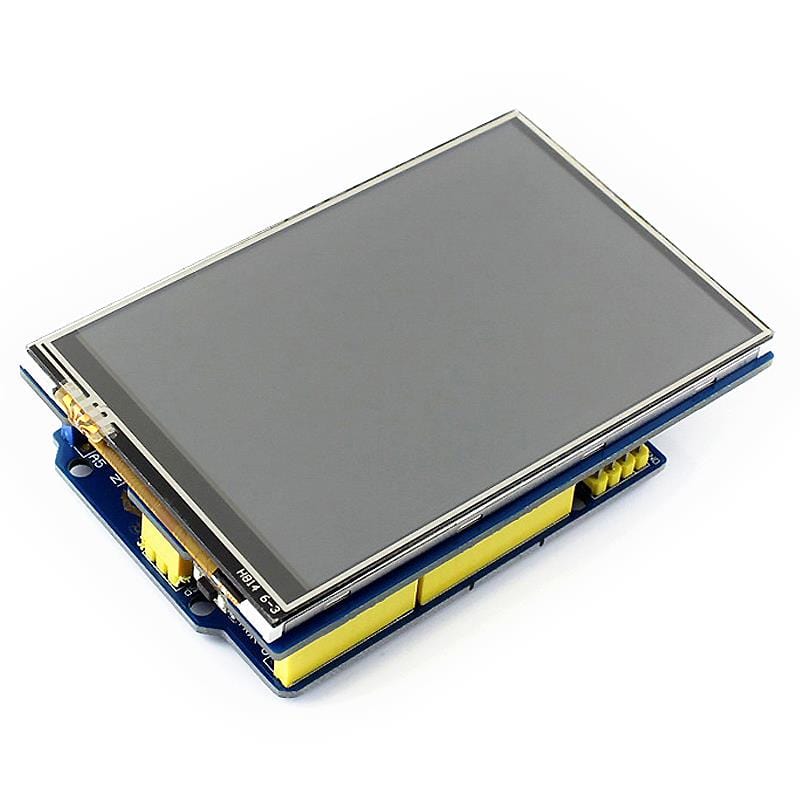

This display comes pre-assembled and is designed to be used with the Arduino Uno or a pin-compatible board. The display slots into your Arduino's female headers and is powered by the Arduino board as well.

The display includes resistive touch which is useful for interfacing with your project's menus and options, with PWM backlight control for adjusting brightness to a comfortable level. The onboard microSD slot can be used for storing images for your display project. The display is controlled by SPI, keeping more of your IO pins free.

The product wiki provides examples for the Arduino Uno to get you started. You will also find datasheets and other information in the resources section below.

Features

  • Resistive touch screen TFT LCD

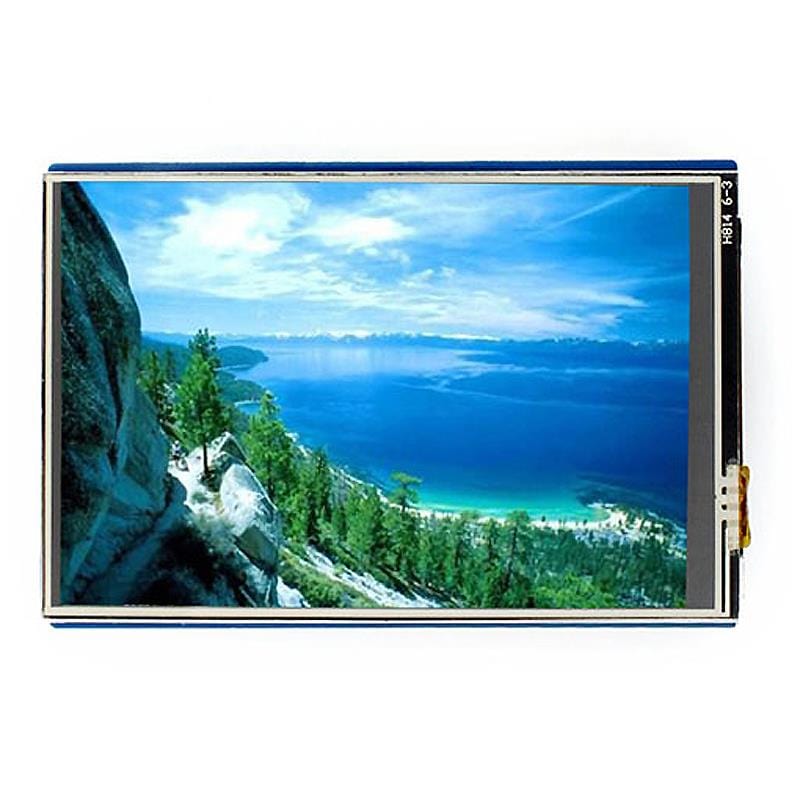

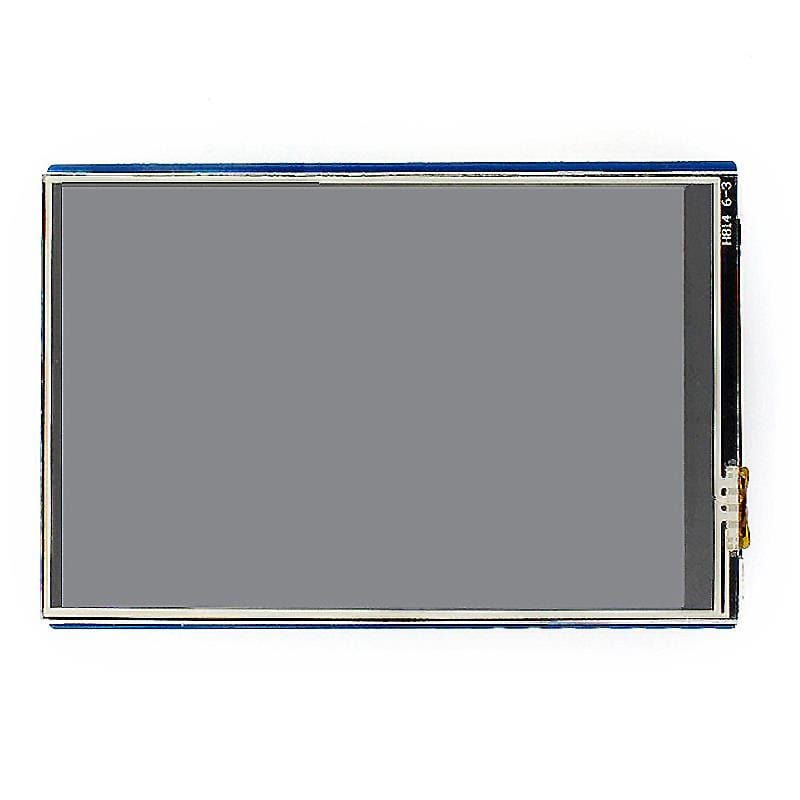

  • 3.5" 480x320 resolution
  • Standard UNO interface, compatible with Arduino UNO, Leonardo etc
  • Onboard stand-alone touch controller
  • PWM backlight control
  • Micro SD slot
  • Controlled via SPI
  • Online resources with Arduino examples

Specifications

LCD Type TFT
LCD Interface SPI
LCD Controller ILI9486
Touch Screen Type Resistive
Touch Screen Controller XPT2046
Colours RGB, 65K colours
Resolution 480x320 (Pixel)
Aspect Ratio 8:5
I/O Voltage 3.3V/5V

Interface

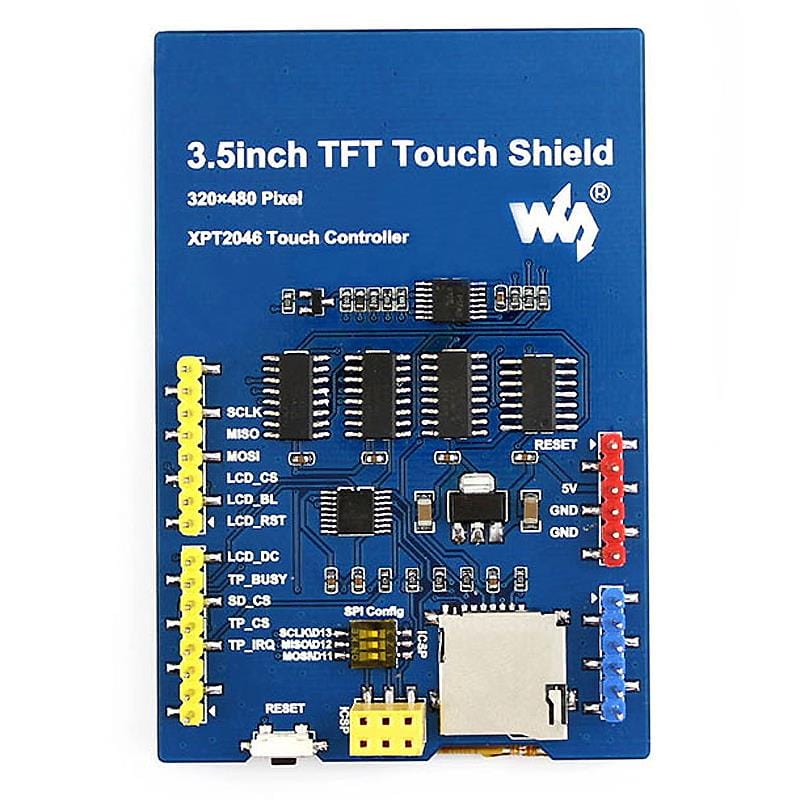

Pin Arduino Description
5V 5V 5V power input
GND GND Ground
SCLK D13 SPI clock
MISO D12 SPI data input
MOSI D11 SPI data output
LCD_CS D10 LCD chip select
LCD_BL D9 LCD backlight
LCD_RST D8 LCD reset
LCD_DC D7 LCD data/command select
TP_BUSY D6 Touch panel busy
SD_CS D5 Micro SD card chip select
TP_CS D4 Touch panel chip select
TP_IRQ D3 Touch panel interrupt

Package Contents

  • 1x 3.5" TFT LCD Touch Shield

Arduino board not included (pictured for reference)
