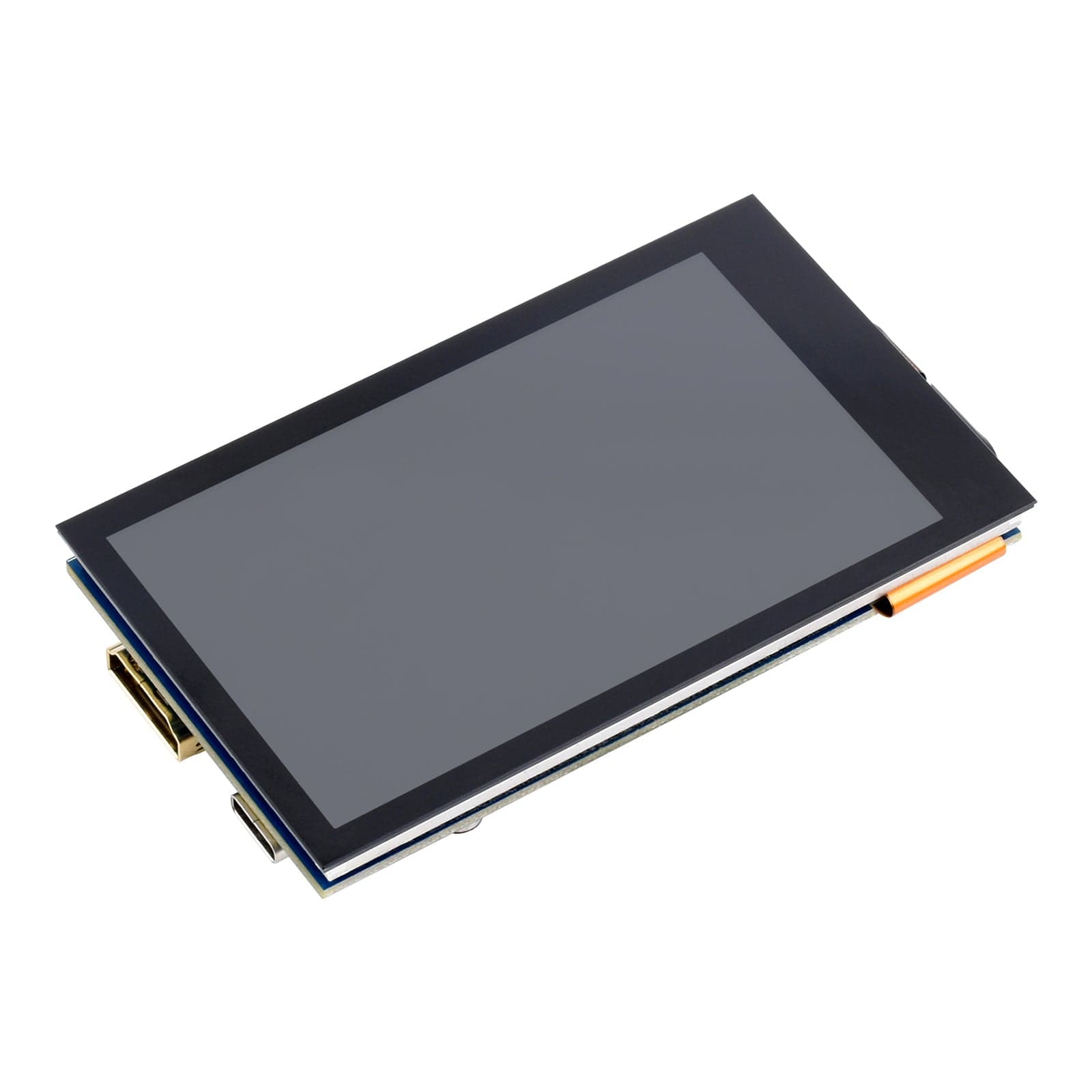

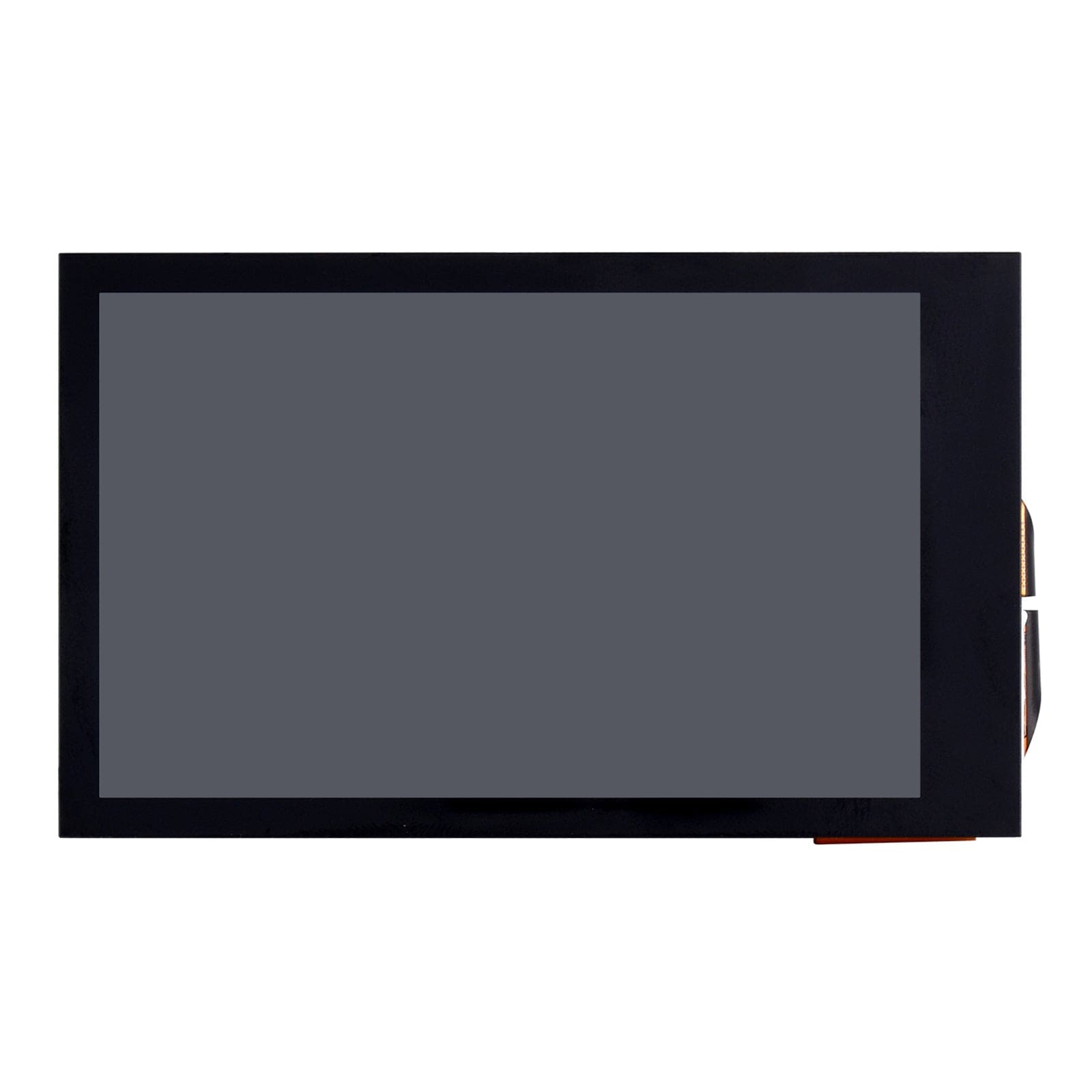

WAVEThis mini 3.5" IPS display from Waveshare packs a good list of features despite it being so compact, and thanks to the HDMI port, it's compatible with the Raspberry Pi (all versions) and most other HDMI-compatible development boards - including your Windows PC!

The display offers 170° viewing angles and a 480x800 resolution, with 5-point capacitive touch. Power and provide touch data via the USB-C port, use the buttons on the side of the display to adjust the brightness or turn off the backlight completely.

The display comes complete with a flat HDMI cable, USB-C cable and Micro-HDMI adapter.

Features

  • 3.5" IPS screen
  • 480x800 hardware resolution
  • 5-point capacitive touch
  • HDMI input
  • 170° viewing angles
  • Supports Raspberry Pi OS / Ubuntu and Kali (when used with Raspberry Pi)
  • Supports Windows 11 / 10 / 8.1 / 8 / 7
  • Backlight control (adjustable brightness inc. on/off)
  • Online wiki including setup instructions

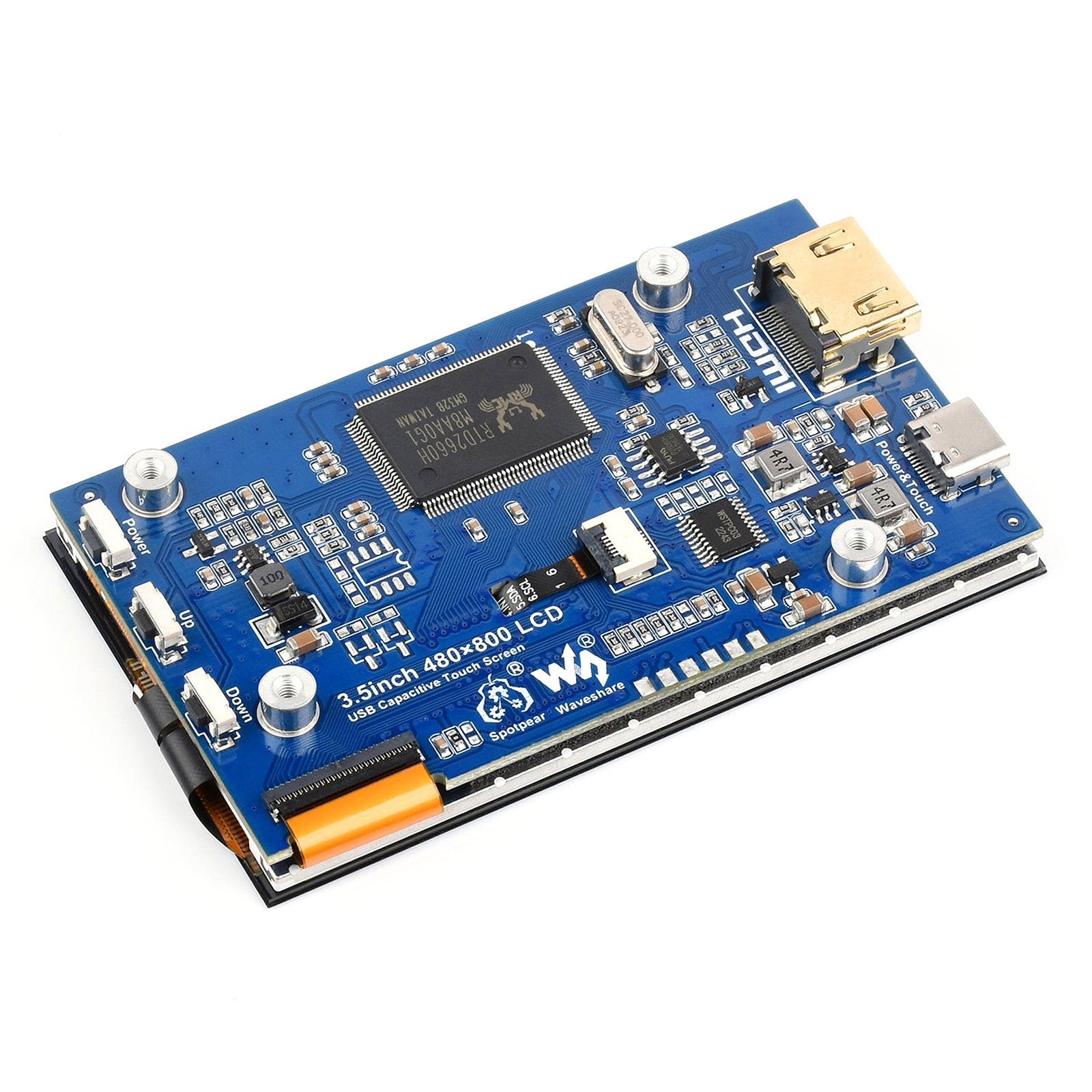

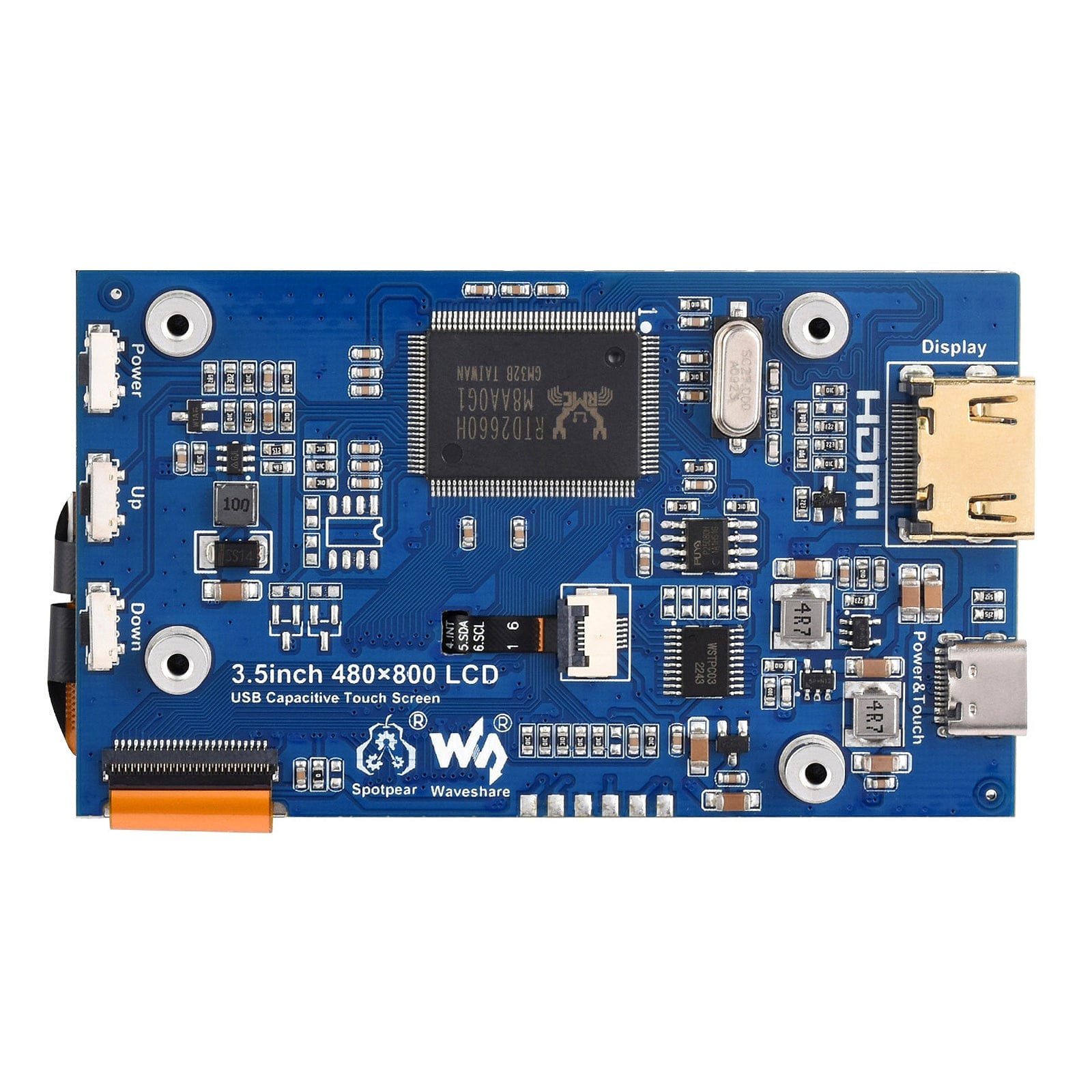

What's on Board

Specifications

Item Description Unit
Model 3.5" 480 × 800 LCD /
Size 3.5 Inch
Viewing Angle 170 Deg
Resolution 480 × 800 Pixels

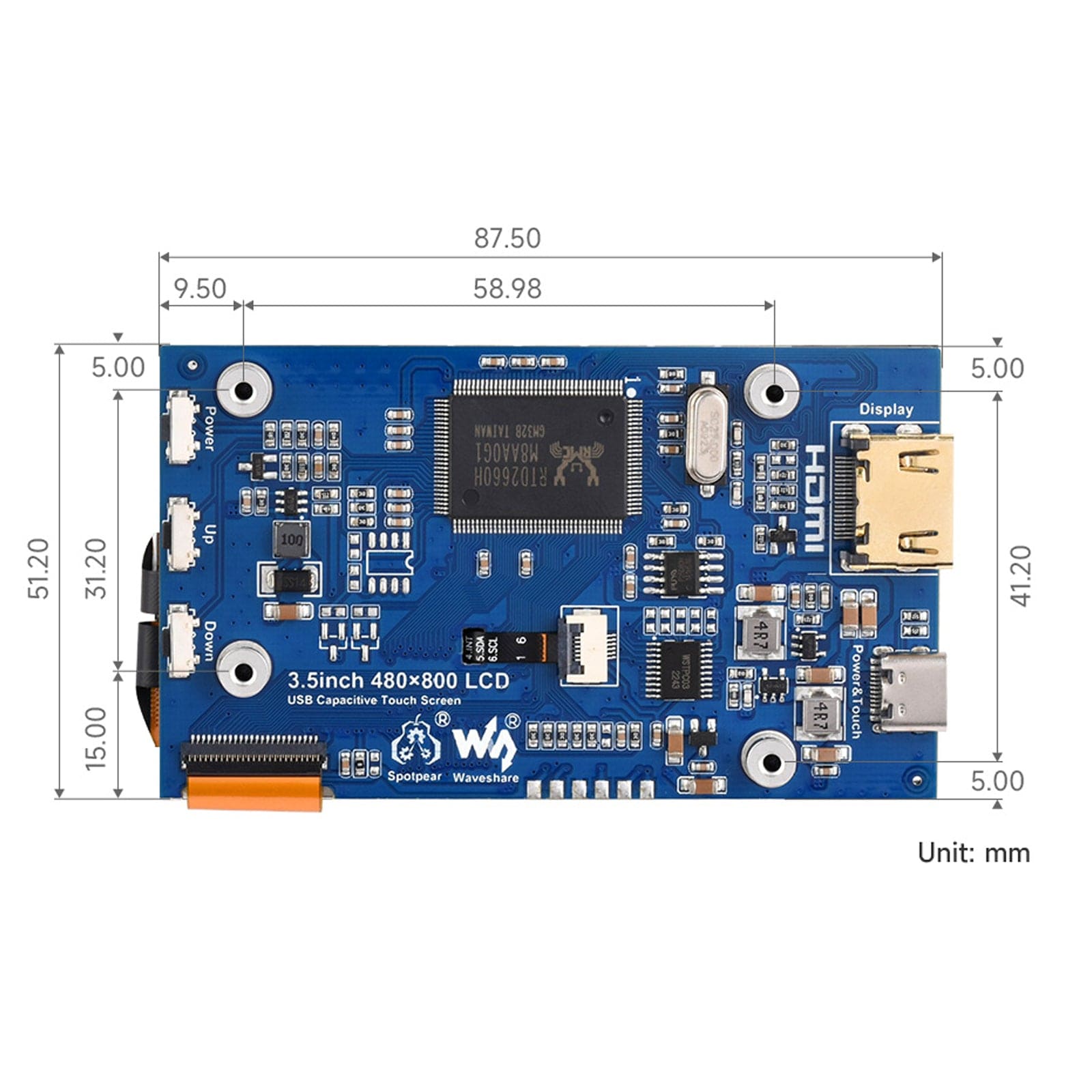

Outline Dimensions 88.87 (H) × 52.56 (V) × 7.15 (D) mm
Display Area 75.80 (H) × 45.36 (V) mm
Pixel Pitch 0.18 (V) × 0.18 (H) mm
Colour Gamut 0.7 NTSC
Maximum Brightness 300 cd/m²
Contrast 41.66736111 /
Backlight Adjustment Button Dimming /
Refresh Rate 60 Hz
Display Port Standard HDMI Port /
Touch Port 5V USB Touch /
Power Consumption 2 Watt
Weight 55 g

Resources

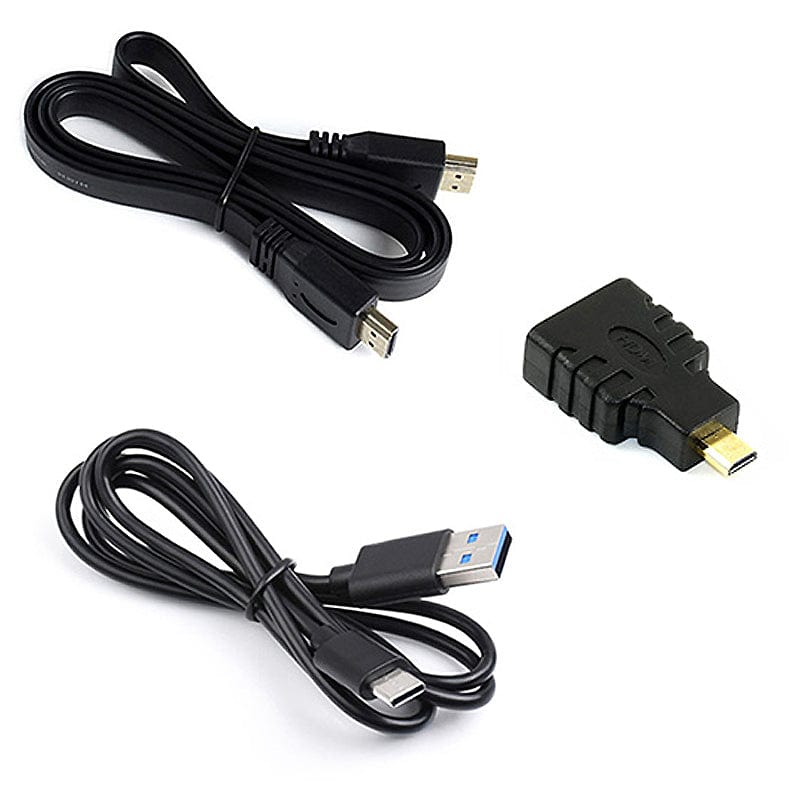

Package Contents

  • 1x 3.5" 480x800 LCD
  • 1x HDMI flat cable ~1m
  • 1x USB-C cable ~1m
  • 1x HDMI to Micro HDMI adapter
