2x3 Tactile Button Breakout - Narrow

Need to add a few buttons to your project? This simple 66x35mm breakout board is the perfect solution!

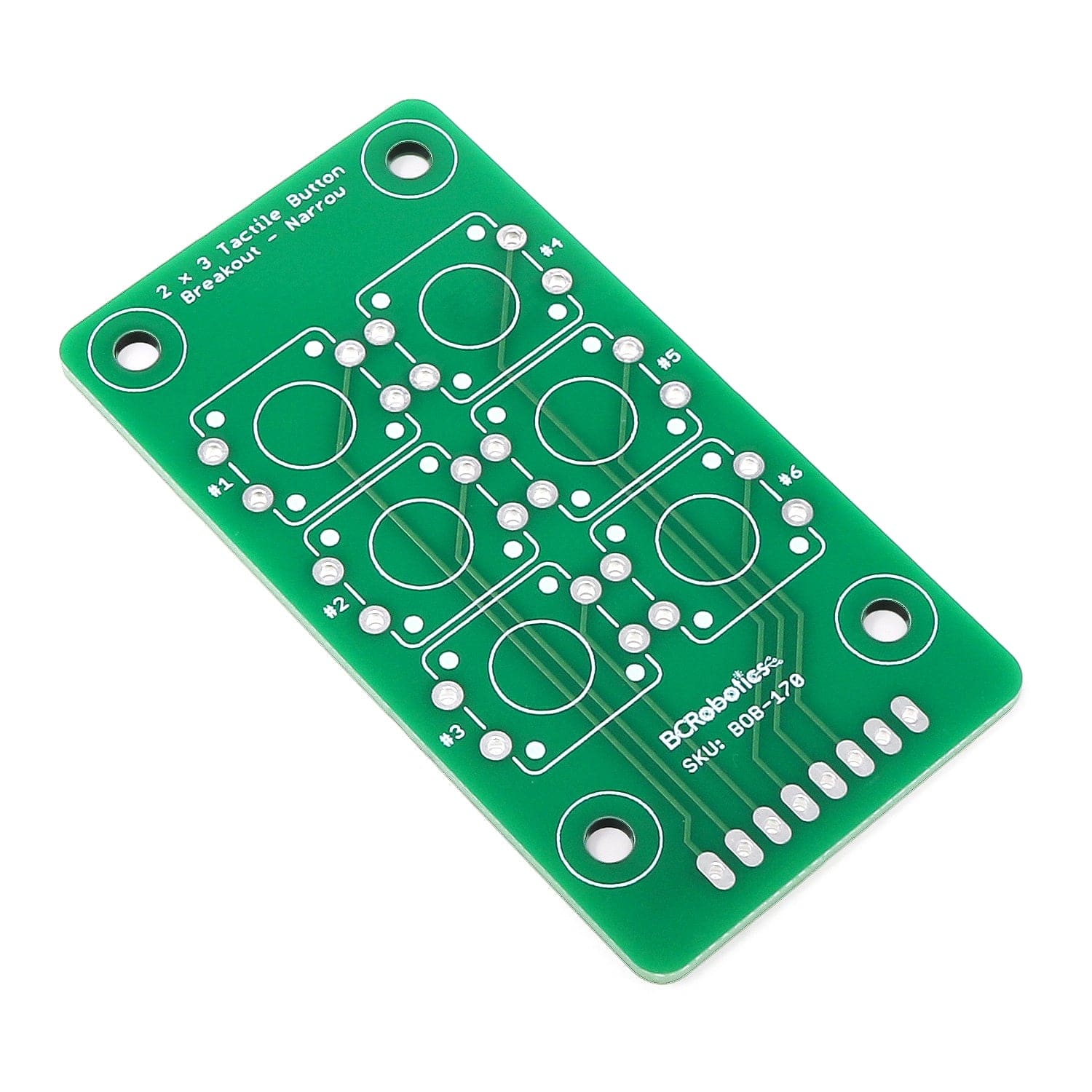

The board hosts 6x 12mm square buttons (buttons not included) in a narrow 2x3 configuration and is the easiest way to add a cluster of buttons to your project. The PCB has four M3 mounting holes and an 8-way 2.54mm pitch header pads on one end for adding a header strip or a terminal block to (or even just solder wires directly). The buttons are spaced at 2.54mm (1") centre to centre.

We think these work great for navigating an on-screen menu or as a part of a larger control panel. Any standard 12mm tactile button will fit, though some variants with plastic alignment pins may need to have the pins trimmed (easily done with flush cutters).

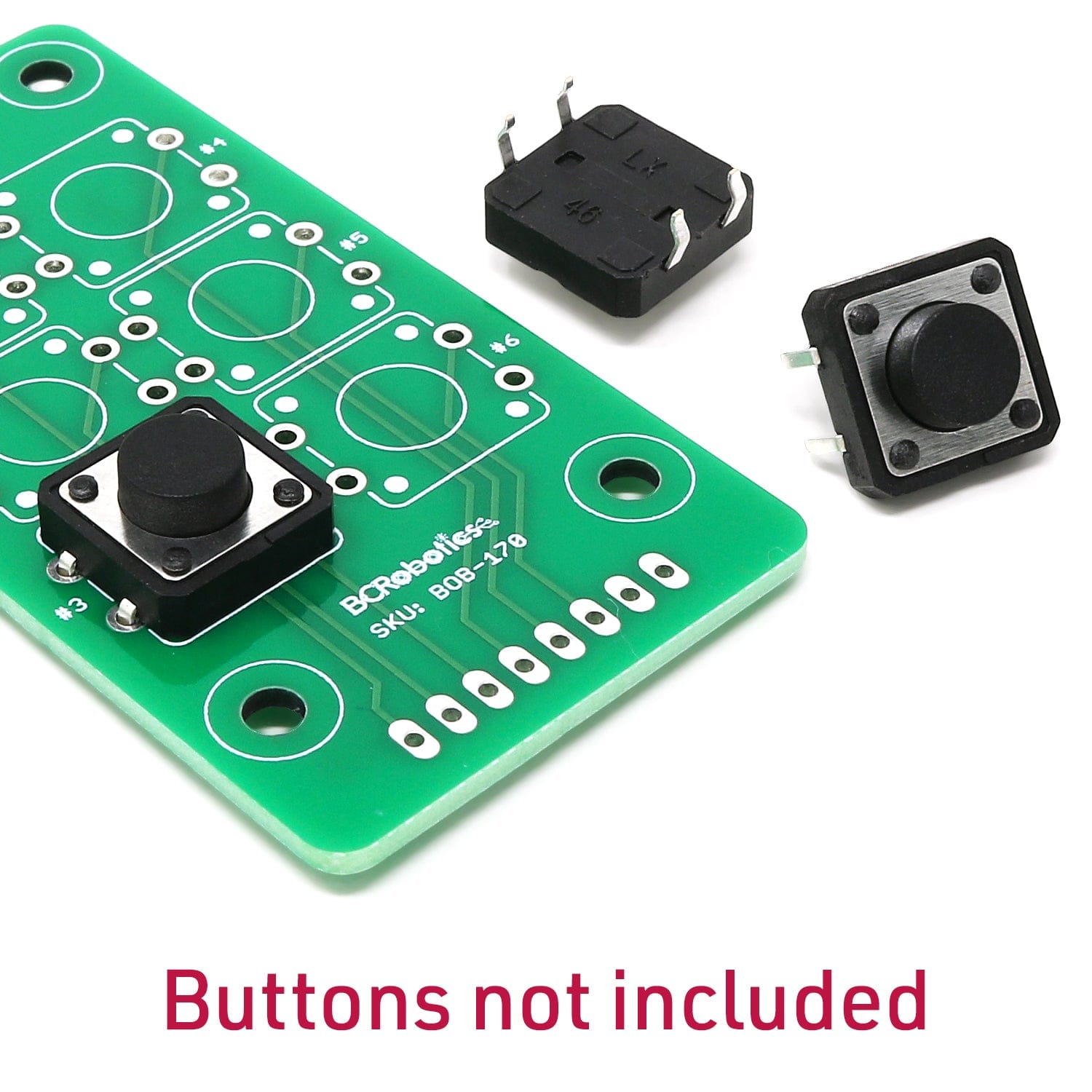

Tactile buttons sold separately

Features

• Breakout board for adding four tactile buttons to your project
• 2x3 configuration
• Compatible with 12mm square tactile buttons (not included)
• 8-way 2.54mm header pad
• M3 mounting holes
• 1.6mm FR4 PCB
• Dimensions: 66x35mm

Package Contents

• 1x 2x3 Tactile Button Breakout - Narrow

Tactile buttons sold separately
