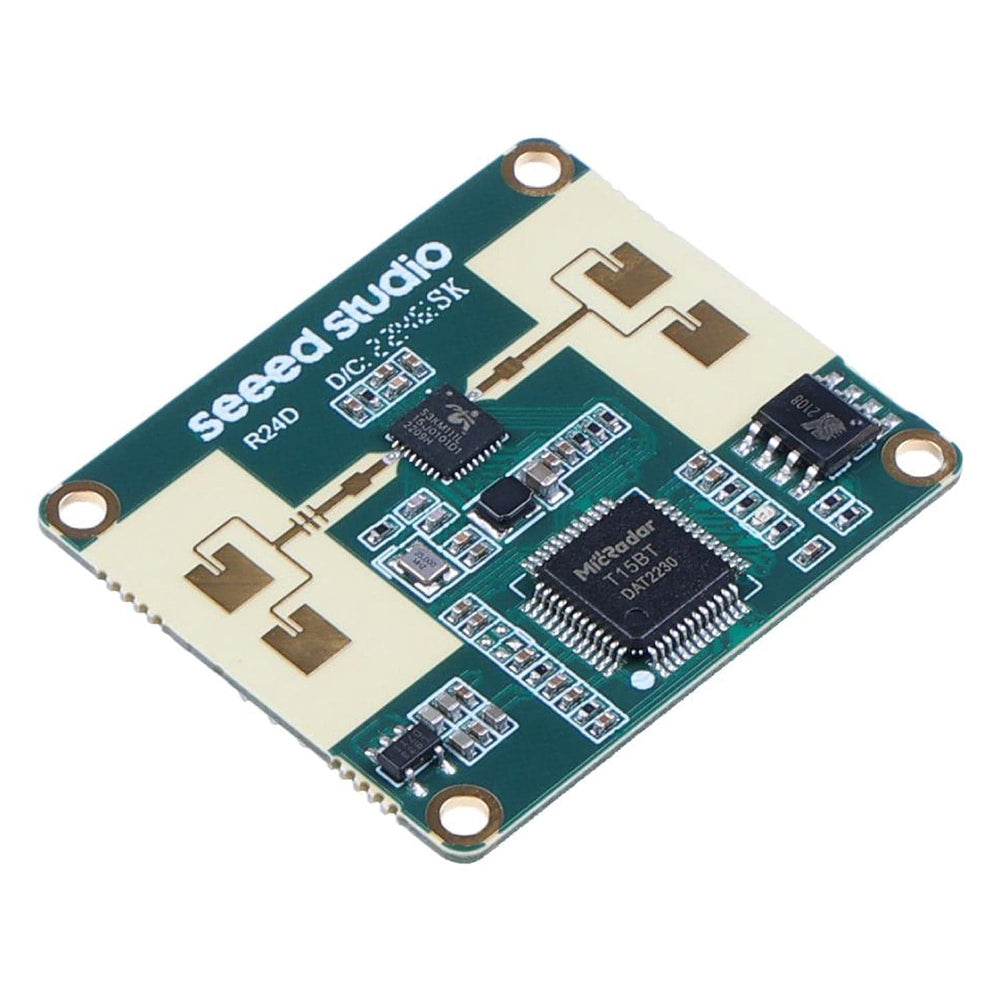

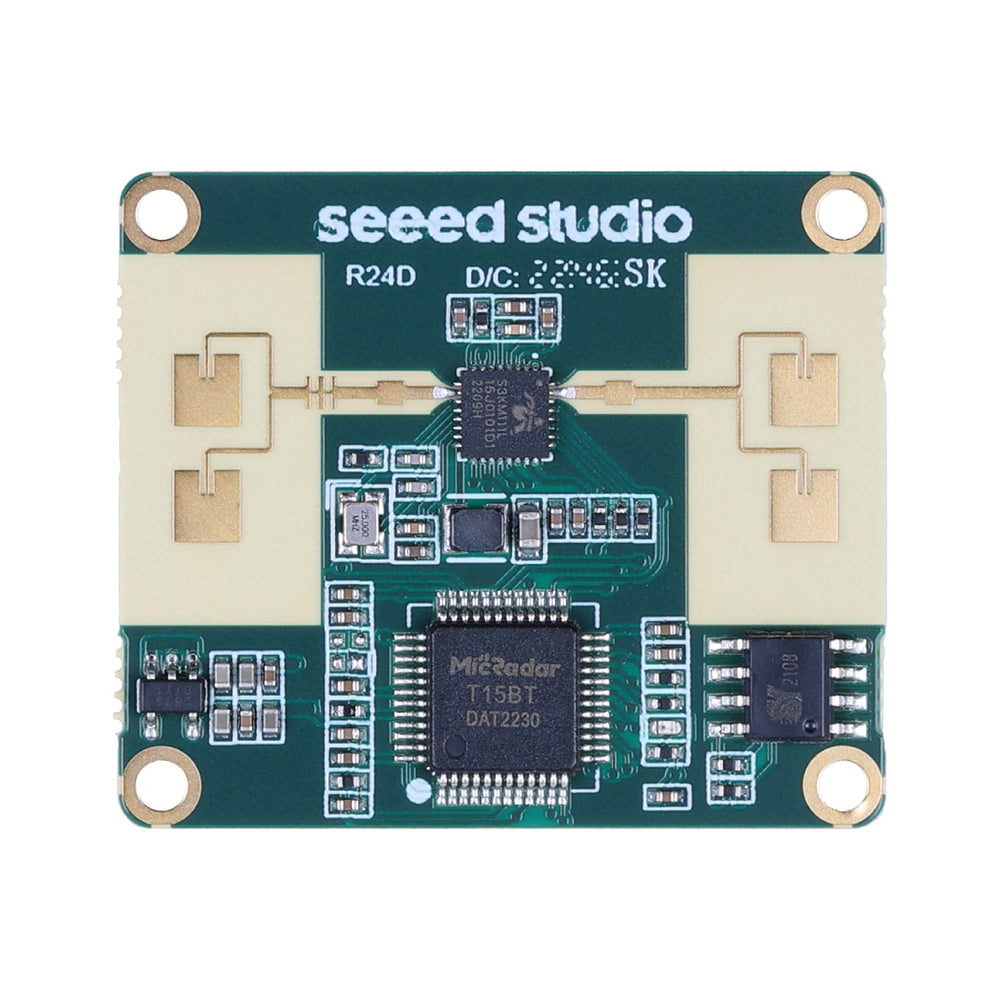

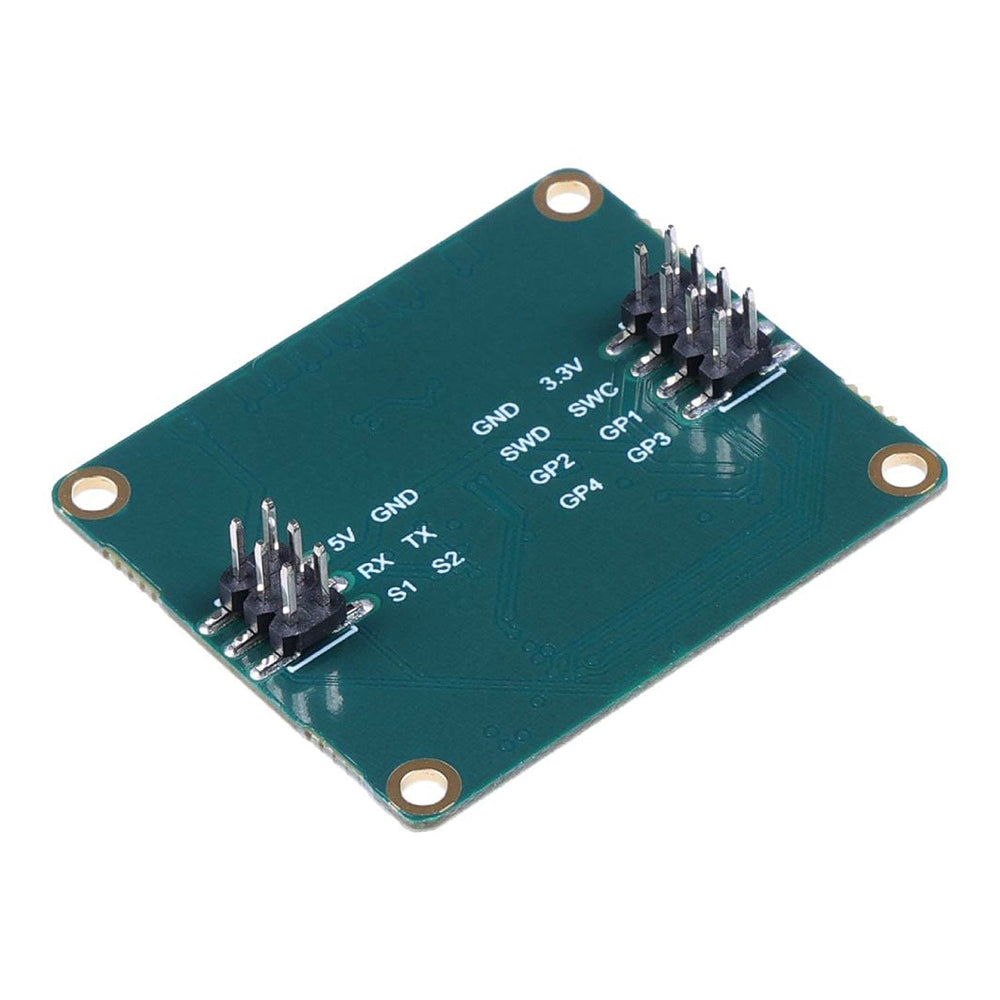

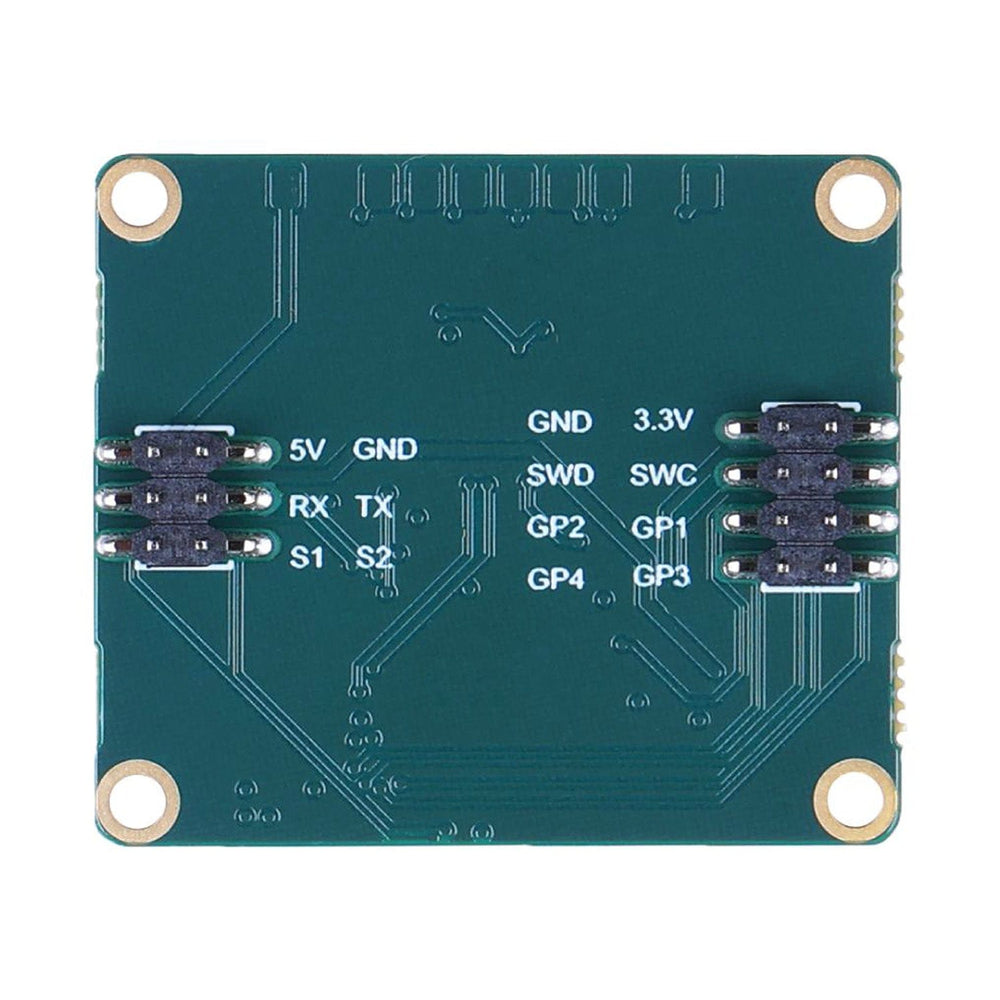

24GHz mmWave Sensor - Human Static Presence Module (Lite)

SeeedSKU: 105463
Price:
Sale price £7.50
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

SeeedSeeed XIAO BLE nRF52840 Sense
Sale price £15.90 incl. VAT excl. VAT
SeeedSeeed XIAO ESP32C3
Sale price £5 incl. VAT excl. VAT
SeeedSeeed XIAO SAMD21
Sale price £6.60 incl. VAT excl. VAT

This radar has multiple functions in one device which are customisable with your own definitions.

It can detect human presence and absence, the motion and the direction of motion, object speed, and detected distance. It provides the open custom function by offering adjustable underlying parameters for you to adjust detected range, sensing sensitivity, trigger threshold, valid time for states changing, and installation environment.

There is also an underlying open function provided and the parameters from it are the static noise of the environment, the detection range of presence, motion noise of the environment, the detection range of the object moving, and the detection speed of an object moving. You can utilise its performance to build your own object movement detection radars, to meet the different needs in various scenarios.

Features

  • Based on the FMCW principle: highly sensitive and immune to environmental interferences
  • Visual debugging and configuration tools: straightforward and simple to use while keeping the data clearly presented
  • More parameter modulation options: multiple configurable underlying parameter settings to meet the different needs in various scenarios
  • Compatible with Arduino Library: adopts UART and provides Arduino library support
  • Home Assistant Ready: wiki to walk you through how to integrate it with Home Assistant
  • Product number: Seeed 101991030

Specifications

Basic Information

Contents Minimum Typical Maximum Unit
Operating voltage (VCC) 4.5 5 6 V
Operating current (ICC) 95 110 120 mA
Operating I\O Input/output current(IIO) - 8 20 mA
Operating temperature -20 - 85
Storage temperature -40 - 85
Buad Rate 115200

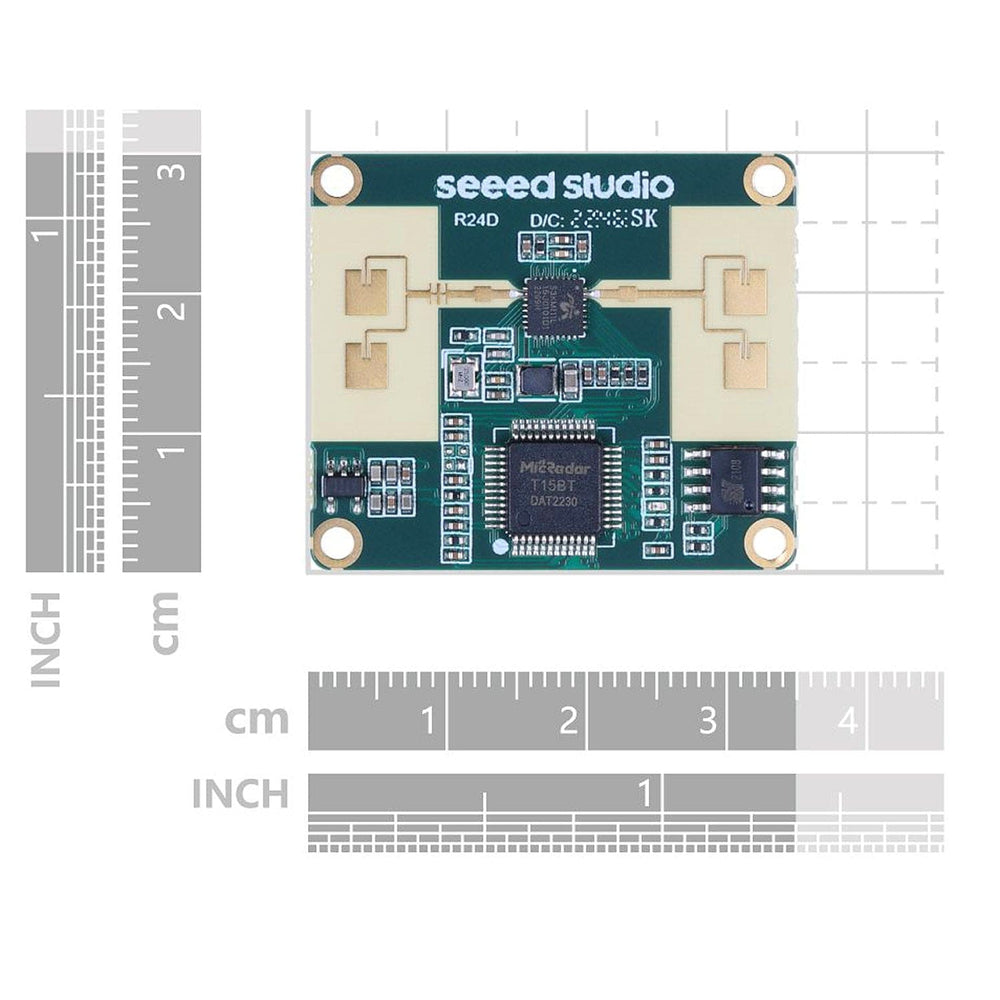

Size 35mmx30mmx9mm

Detect Angle and Range

Contents Minimum Typical(default) Maximum Unit Installation
Motion detection range - 5 5 meter slide mount
Stationary/micro movements detection range - 4 4 meter slide mount
Detection range in the case of sleep - 3 3.5 meter slide mount
Radar detection angle (horizontal) - 90 degree
Radar detection angle (pitch) - 60 degree

RF Performance

Contents Minimum Typical Maximum Unit
Operating frequency 24 - 24.25 GHz
Transmitted power - 6 8 dBm
Antenna gain 10 dBi
Horizontal beam (3dB) 100 degree
Vertical beam (3dB) 80 degree

Resources

Package Contents

  • 1x 24GHz mmWave Sensor
