24-pin 0.5mm FFC / FPC Extender

The Pi HutSKU: ADA4524

£1

incl. VAT

excl. VAT

In stock

Awesome Extras

2.66" 296x152 Monochrome or Gray eInk / ePaper - Bare Display - SSD1680 by Adafruit - The Pi Hut

Adafruit 2.66" 296x152 Monochrome or Gray eInk / ePaper - Bare Display - SSD1680

£12.50 incl. VAT excl. VAT

3.7" 416x240 Monochrome Black/White eInk / ePaper - Bare Display - UC8253 Chipset by Adafruit - The Pi Hut

Adafruit 3.7" 416x240 Monochrome Black/White eInk / ePaper - Bare Display - UC8253 Chipset

£21.60 incl. VAT excl. VAT

5.83" 648x480 Monochrome Black / White eInk / ePaper - Bare Display - UC8179 Chipset by Adafruit - The Pi Hut

Adafruit 5.83" 648x480 Monochrome Black / White eInk / ePaper - Bare Display - UC8179 Chipset

£48 incl. VAT excl. VAT

7.5" 800x480 Monochrome eInk / ePaper - Bare Display - UC8197 Chipset by Adafruit - The Pi Hut

Adafruit 7.5" 800x480 Monochrome eInk / ePaper - Bare Display - UC8197 Chipset

£57.60 incl. VAT excl. VAT

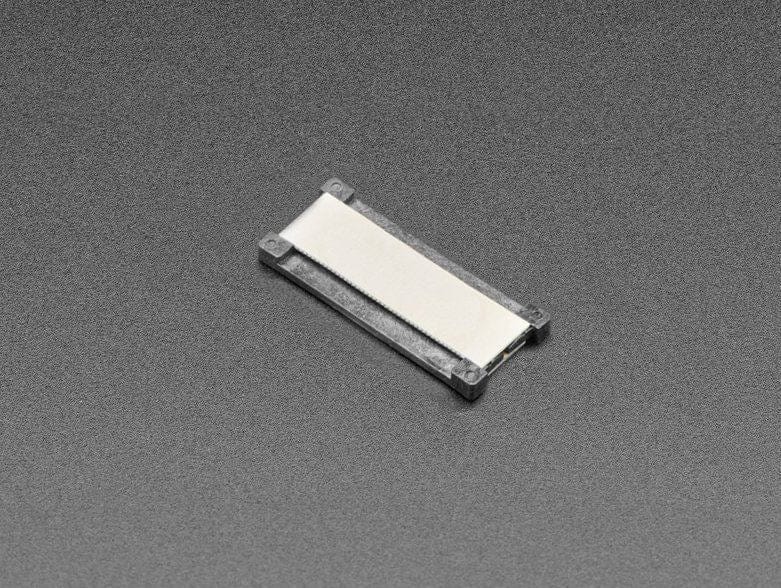

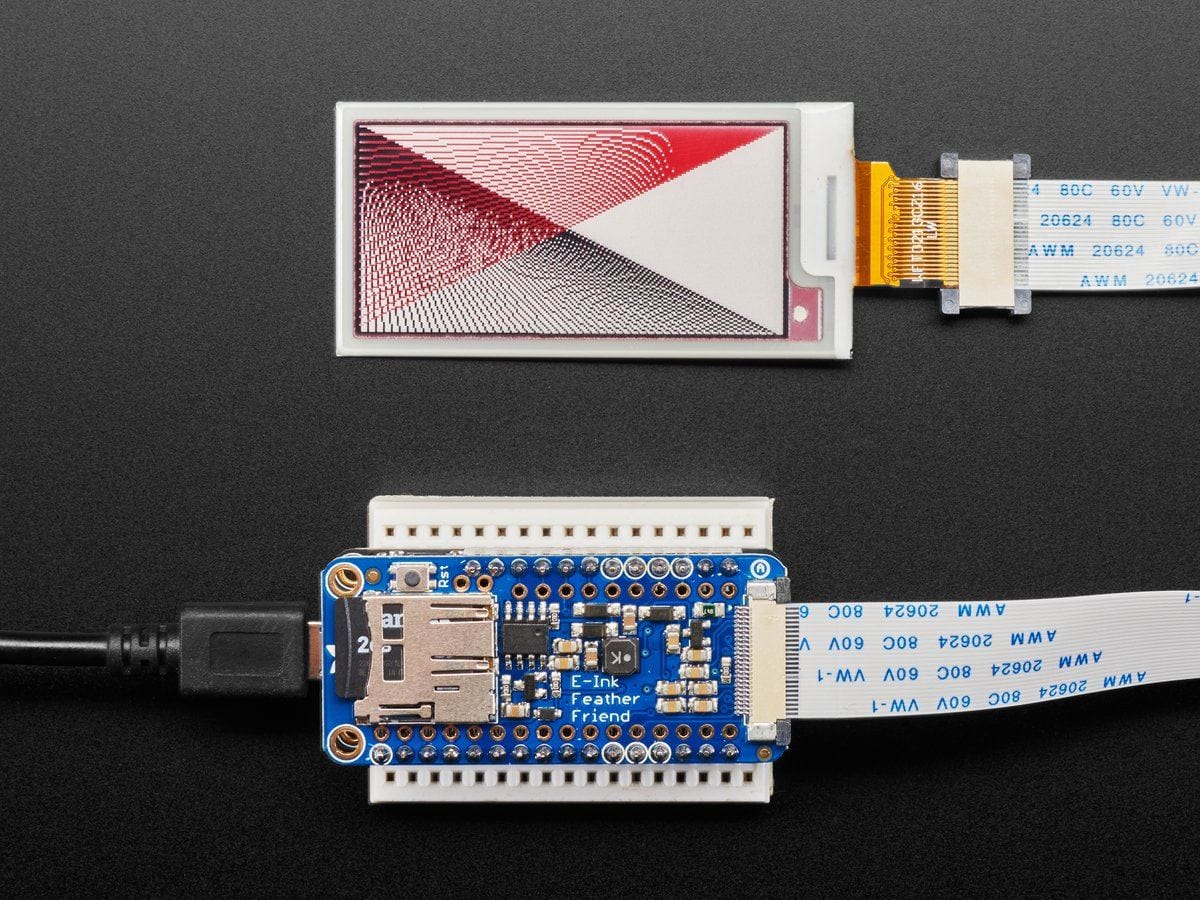

This 24-pin FFC / FPC Extender is very simple. It lets you connect two 24-pin 0.5mm pitch FFC (Flexible Flat Cable) / FPC (Flexible Printed Circuit) cables end-to-end and extend the length.

Note that pin 1 of one cable is connected to pin 24 of the other so you need to use a cable that has contacts on the same side (type A cable)

Carefully pry the two ears of the connectors, plug the cables with contacts pointing up, and then push the ears back in for a solid connection.

We also carry a 40-pin 0.5mm version and a 50-pin 0.5mm version.
