20kg.cm Copper Gear High-Torque 180° Digital Servo

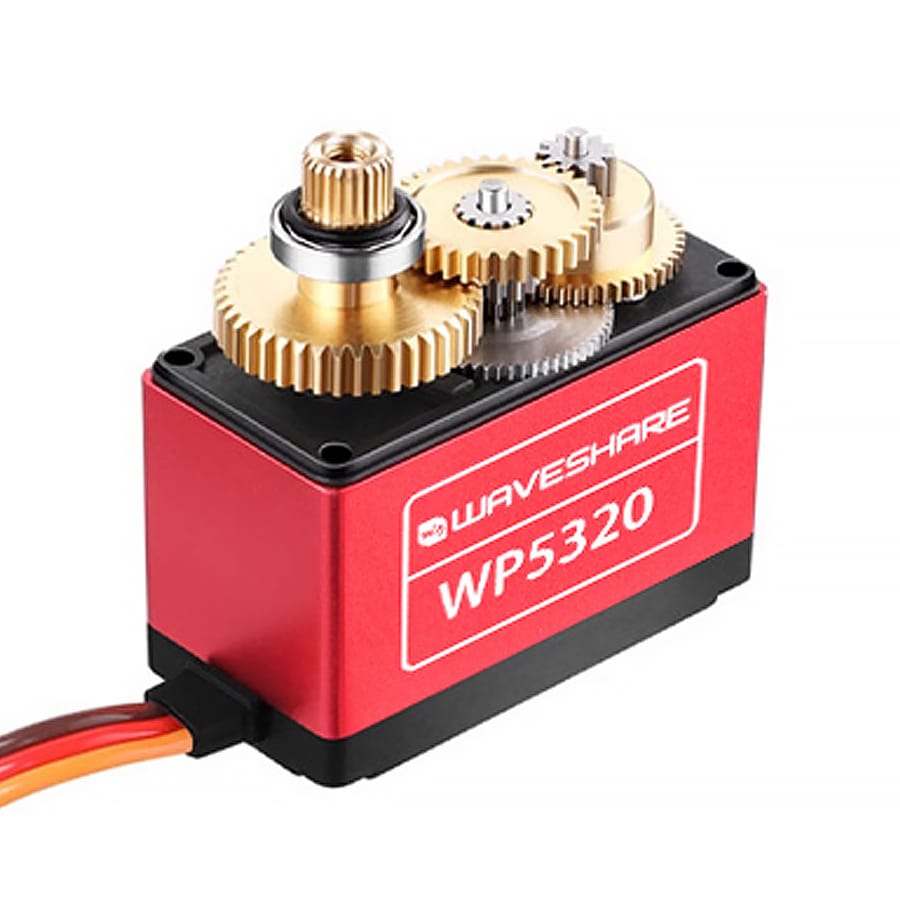

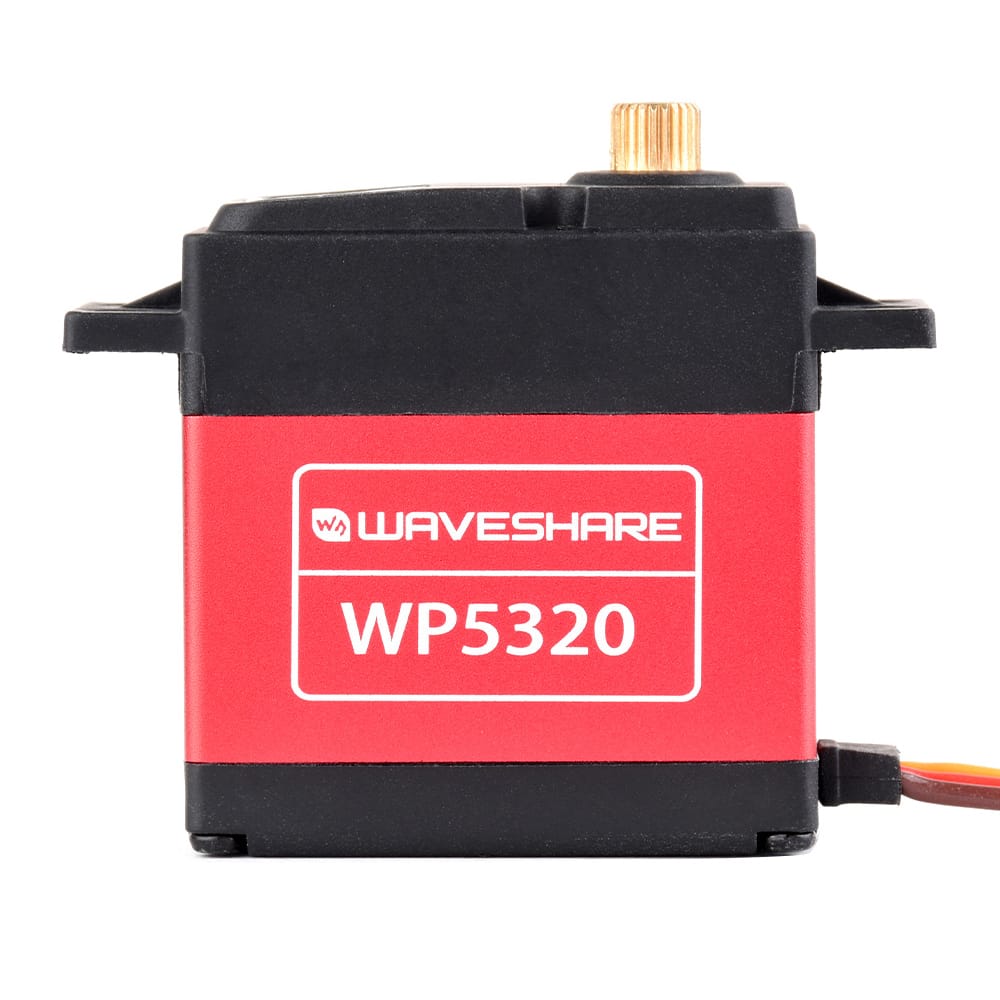

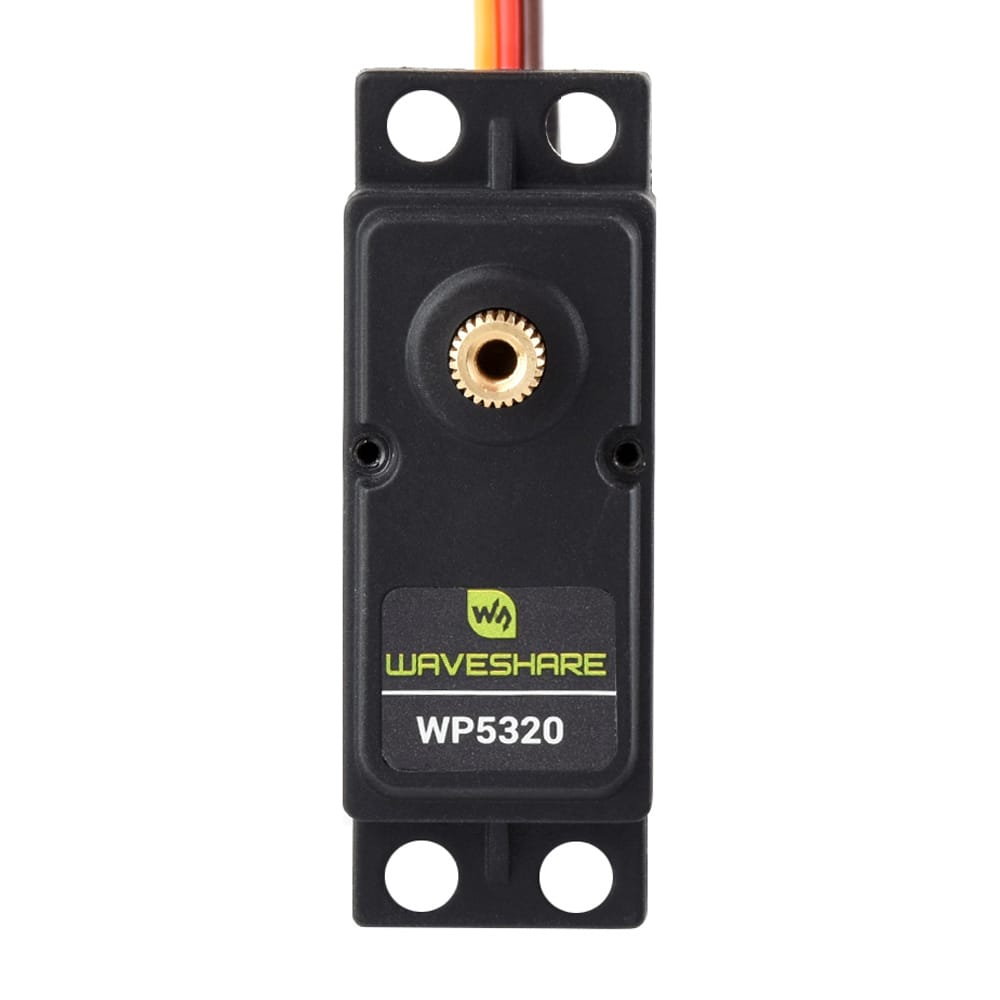

The WP5320 is a high-performance 180° copper gear, 20kg.cm, IP54 waterproof and dustproof digital servo with dual ball bearings.

The high torque servo operates between 4-8.4V with a no load current of 120mA and locked rotor current of 3A at 7.4V, with a KT rating (torque per amp of current) of 6.5kg.cm/A.

It's a 180° servo, controlled via PWM (pulse width modulation - 500μsec to 2500μsec) with a mechanically unlimited angle, using a standard 3-pin output for GND, VCC and PWM. It can be controlled with various servo drivers such as this 16-Channel HAT from Waveshare.

The servo also features an electronic protection function, which can automatically output protection torque during stalling, effectively protecting the safe operation of the servo and the system.

A set of servo horns and fixings are included in the package. We also stock a 35kg.cm version with all-steel gears.

Features

• WP5320 digital servo
  • 180° servo
  • 20kg.cm stall torque at 7.4V
  • IP54 waterproof and dustproof
  • Copper gears
  • Dual ball bearings
• Electrical characteristics
  • 4-8.4V operating voltage
  • 120mA no-load current
  • 3A locked-rotor current at 7.4V
  • KT rating of 6.5kg.cm/A
• Control and interface
  • PWM control
  • 500μsec to 2500μsec pulse width
  • Mechanically unlimited angle
  • Standard 3-pin output for GND, VCC and PWM
  • Digital comparator control system
  • Precise angle control and positioning
  • Adjustable control parameters
• Gear and bearing construction
  • Copper and aluminium teeth combination
  • 2.0 gear shaft
  • Optimised centre distance
  • Double ball bearing design
• Protection
  • Electronic protection function

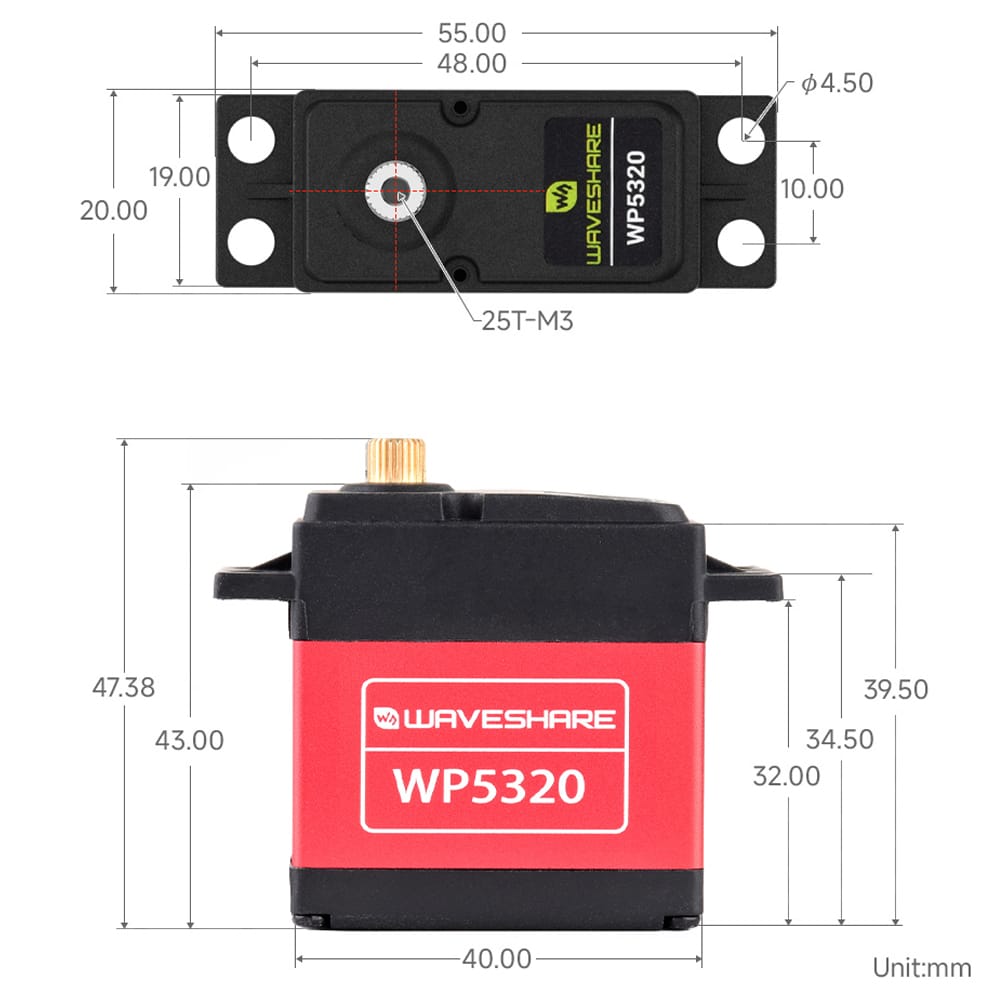

Specifications

Resources

• Product Wiki

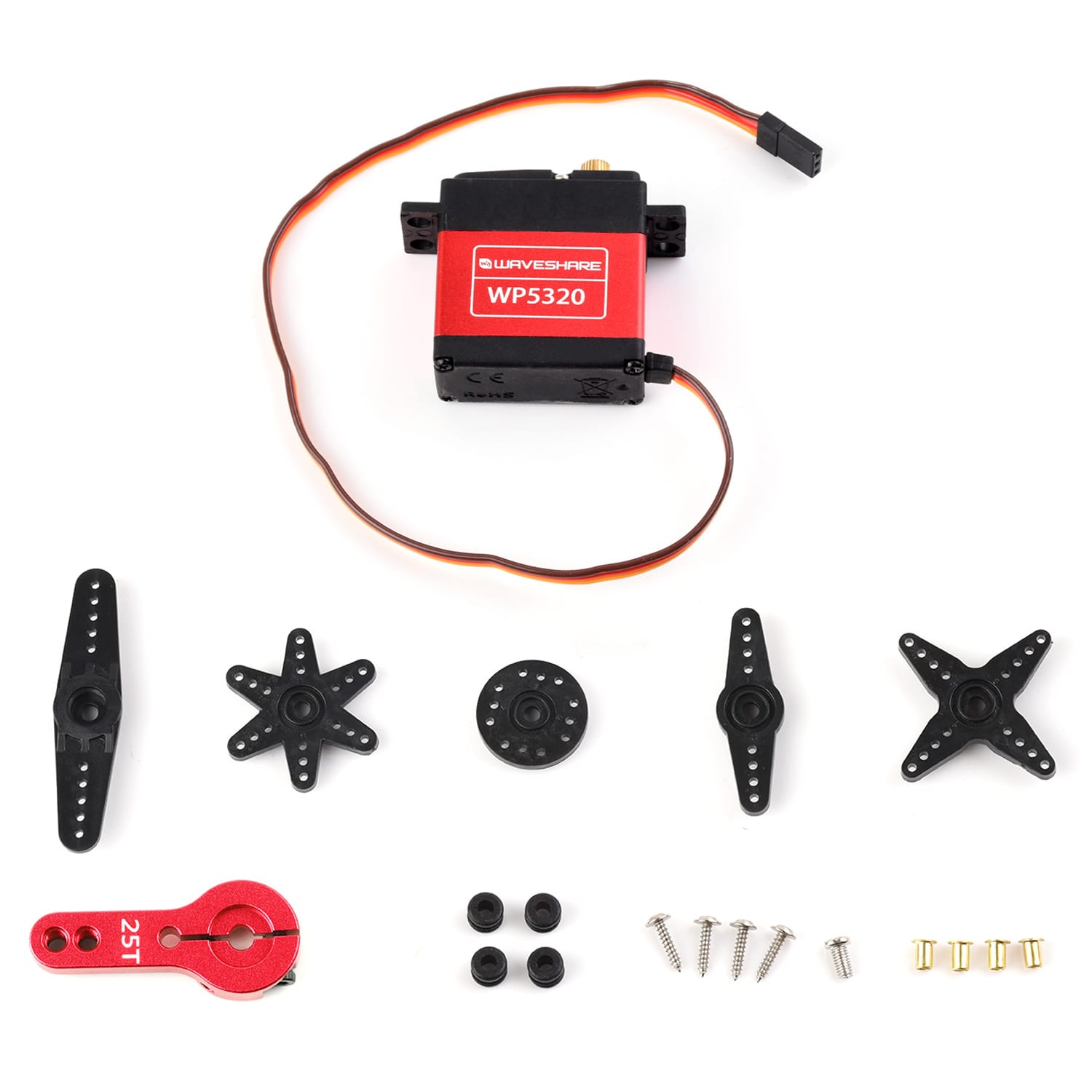

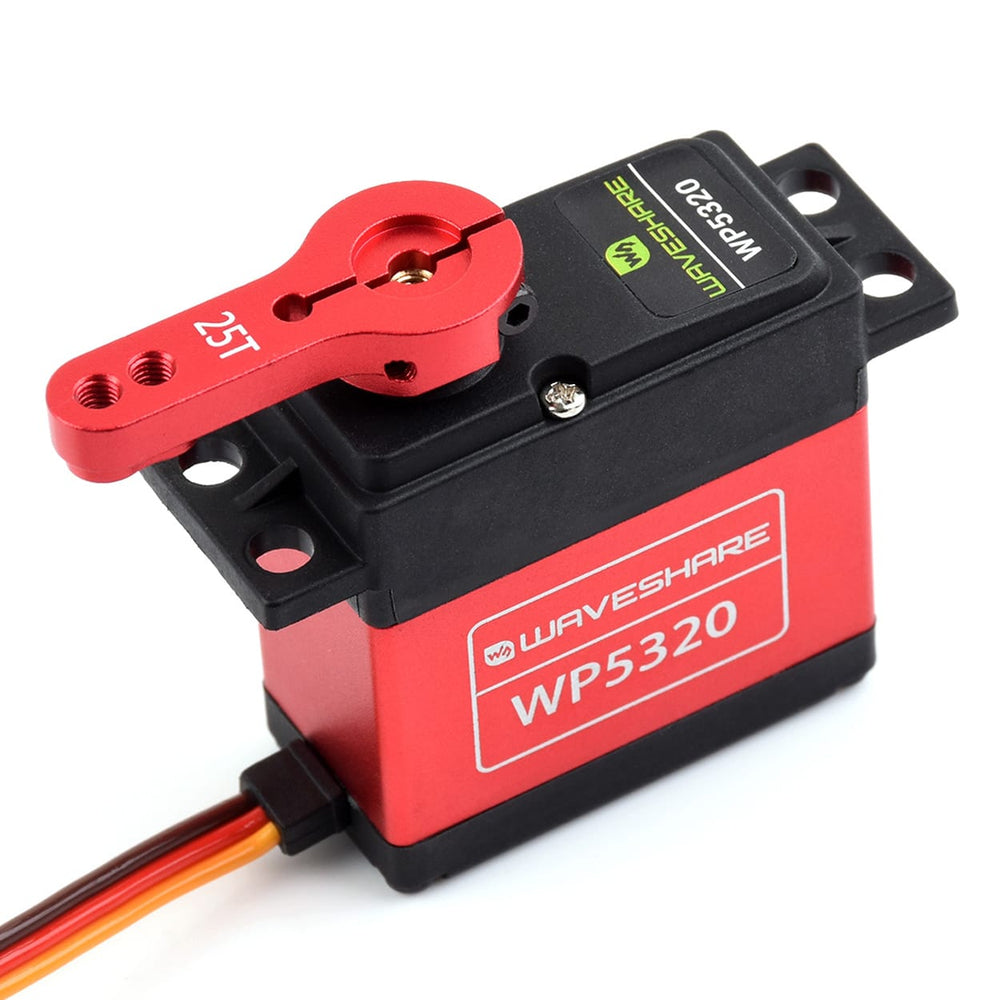

Package Contents

• 1x WP5320 20kg.cm Copper Gear High Torque 180° Digital Servo
• 6x Servo horns
• 1x Fixings pack
