2" IPS LCD Display Module (240x320)

WaveshareSKU: WAV-17344
Price:
Sale price £12.90
incl. VAT
excl. VAT
Stock:
Only 1 unit left
Quantity:

Awesome Extras

Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £33.60 incl. VAT excl. VAT
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT

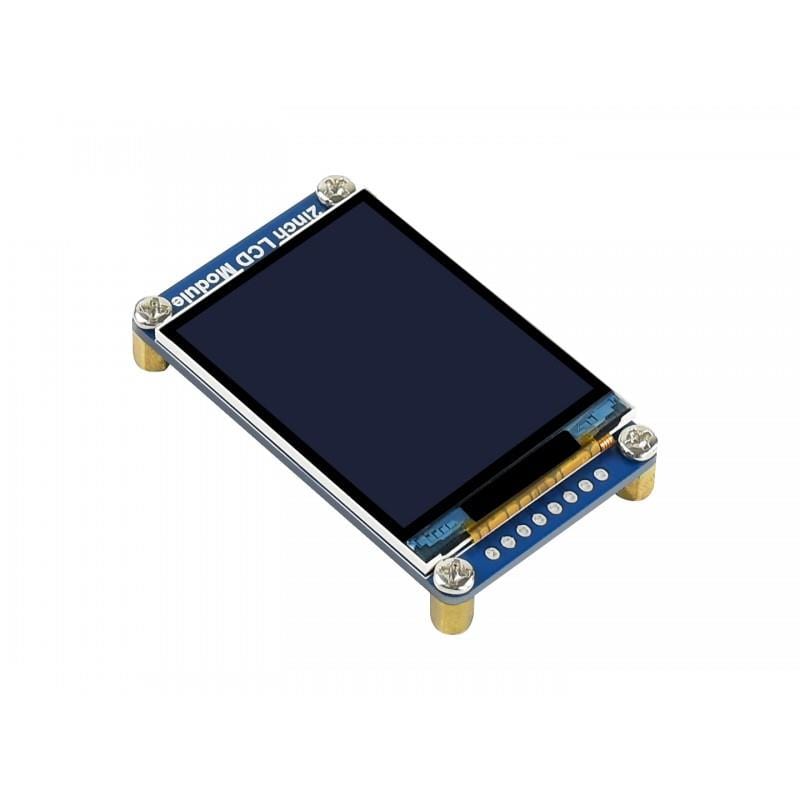

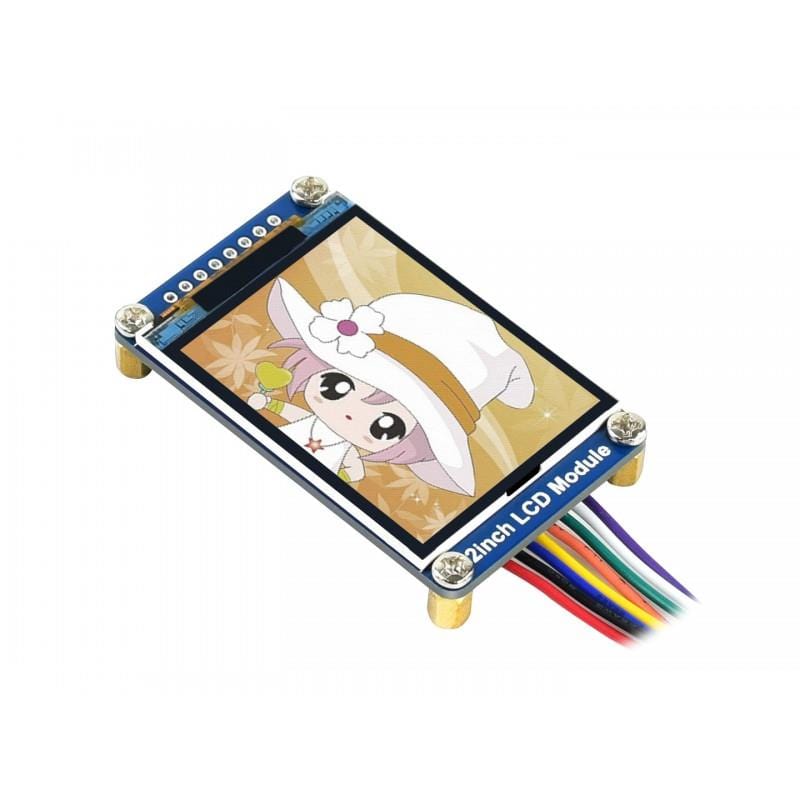

This 2" IPS LCD module from Waveshare is a great way to add a mini high-quality display to your project.

The display has a 240x320 resolution and offers 262K RGB colours via its IPS display. The module is controlled via a simple SPI thanks to the embedded ST7789 driver.

The handy mounting holes make it easy to incorporate into a custom panel or 3D printed enclosure, and the online development resources make it easy to get up and running on a Raspberry Pi or Arduino board.

Features

  • 2" LCD Display
  • 240×320 resolution
  • 262K RGB colours
  • Clear and colourful display
  • SPI interface minimizes required IO pins
  • Supports controller boards such as Raspberry Pi and Arduino
  • Comes with online development resources (examples for Raspberry Pi/Arduino)

Specifications

  • Operating voltage: 3.3V
  • Interface: SPI
  • LCD type: IPS
  • Controller: ST7789
  • Resolution: 240x320
  • Backlight: LED

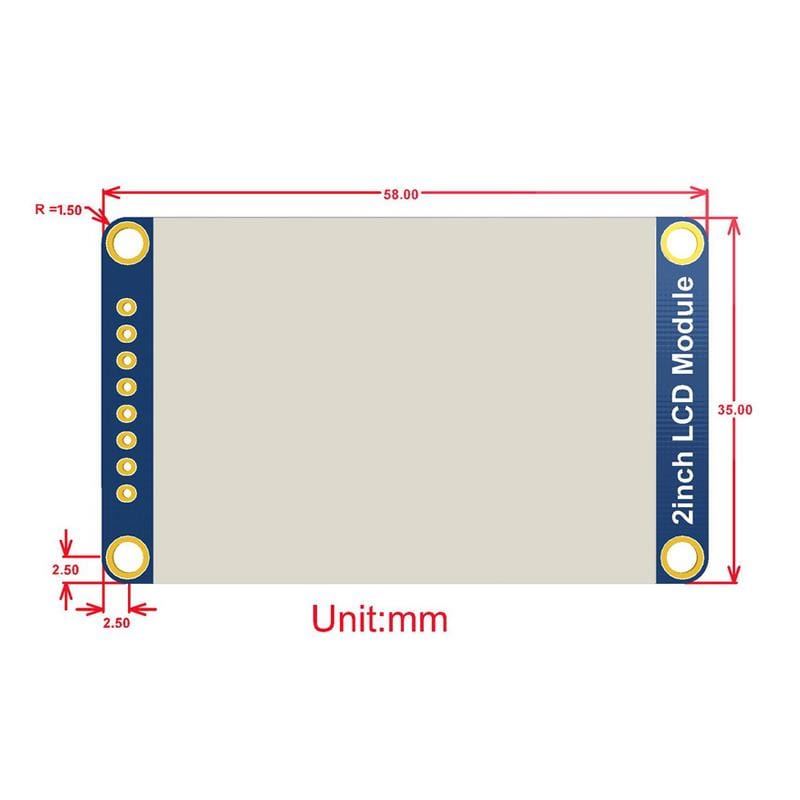

  • Dimensions: 58.00 × 35.00mm

Package Contents

  • 1x 2" LCD Module

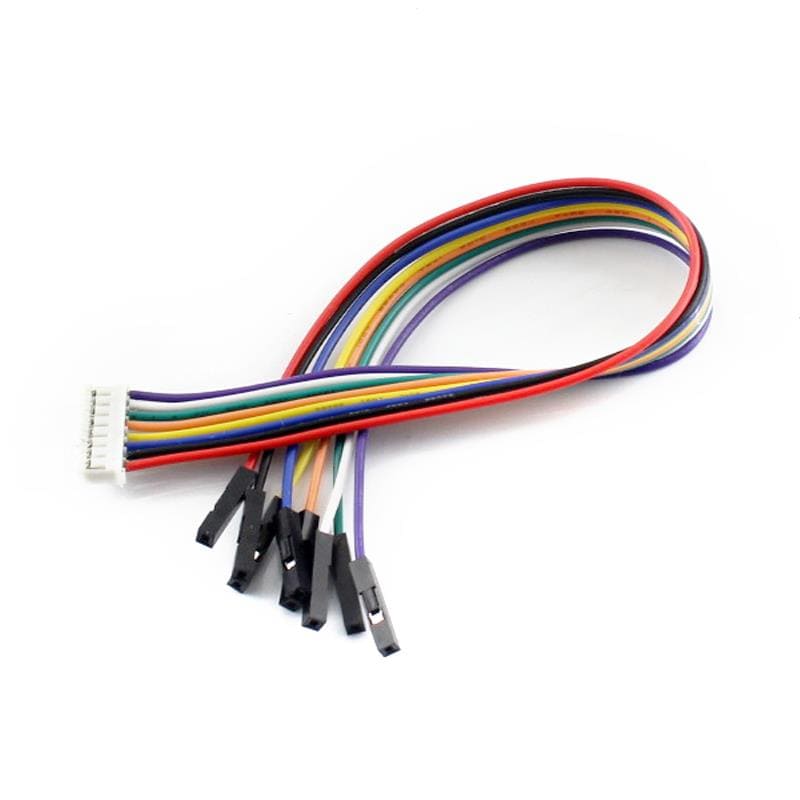

  • 1x PH2.0 8-pin 20cm cable

Resources

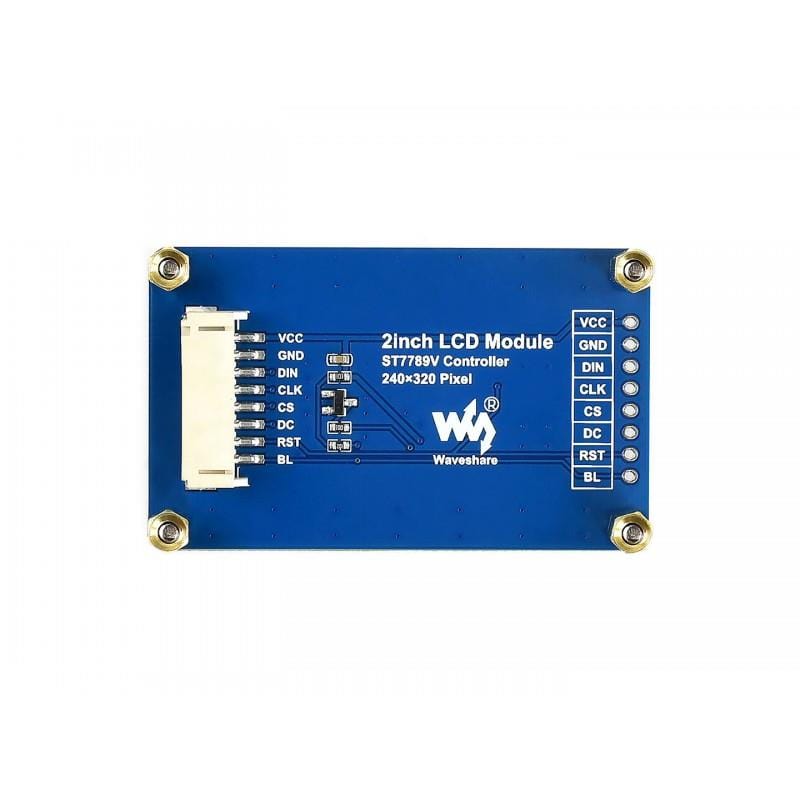

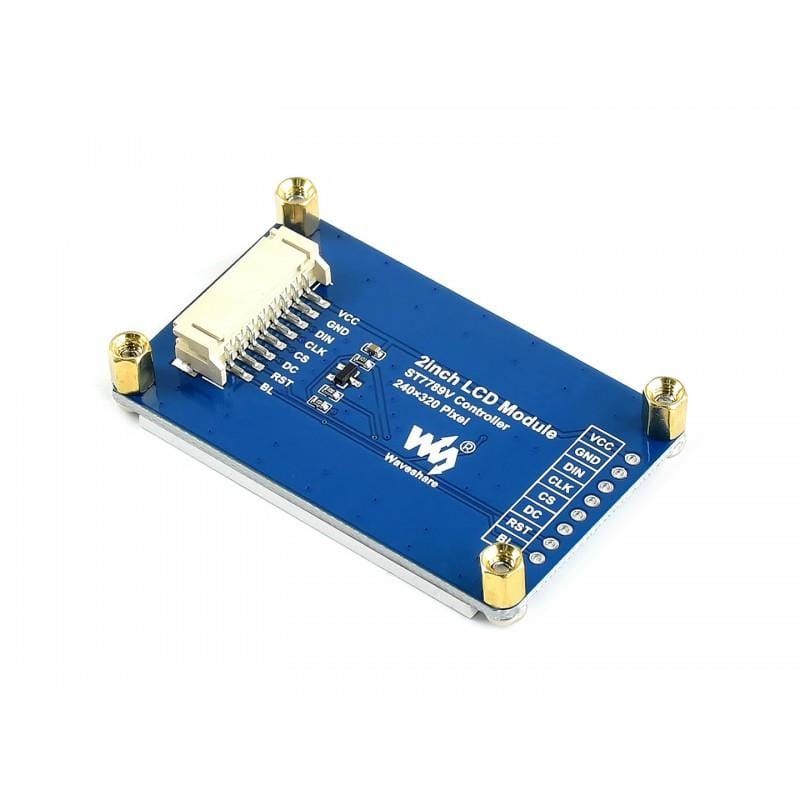

Pinout

VCC Power (3.3V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active
BL Backlight
