2-Channel Relay Shield for Arduino

Price:
Sale price £10.80
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi HutAutosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi Hut
Prototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core by The Pi Hut - The Pi Hut
Break-away 0.1" 36-pin male headers (10-pack) by The Pi Hut - The Pi HutBreak-away 0.1" 36-pin male headers (10-pack) by The Pi Hut - The Pi Hut
The Pi HutBreak-away 0.1" 36-pin male headers (10-pack)
Sale price £3.50 incl. VAT excl. VAT
Shield stacking headers for Arduino (R3 Compatible) by The Pi Hut - The Pi HutShield stacking headers for Arduino (R3 Compatible) by The Pi Hut - The Pi Hut
Arduino UNO R4 Minima by Arduino - The Pi HutArduino UNO R4 Minima by Arduino - The Pi Hut
ArduinoArduino UNO R4 Minima
Sale price £18 incl. VAT excl. VAT
Arduino UNO R4 WiFi by Arduino - The Pi HutArduino UNO R4 WiFi by Arduino - The Pi Hut
ArduinoArduino UNO R4 WiFi
Sale price £25 incl. VAT excl. VAT
Arduino Uno Rev3 by Arduino - The Pi HutArduino Uno Rev3 by Arduino - The Pi Hut
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT

Need to drive high-current or high-voltage devices with your Arduino? This premium dual 10A relay shield can handle it!

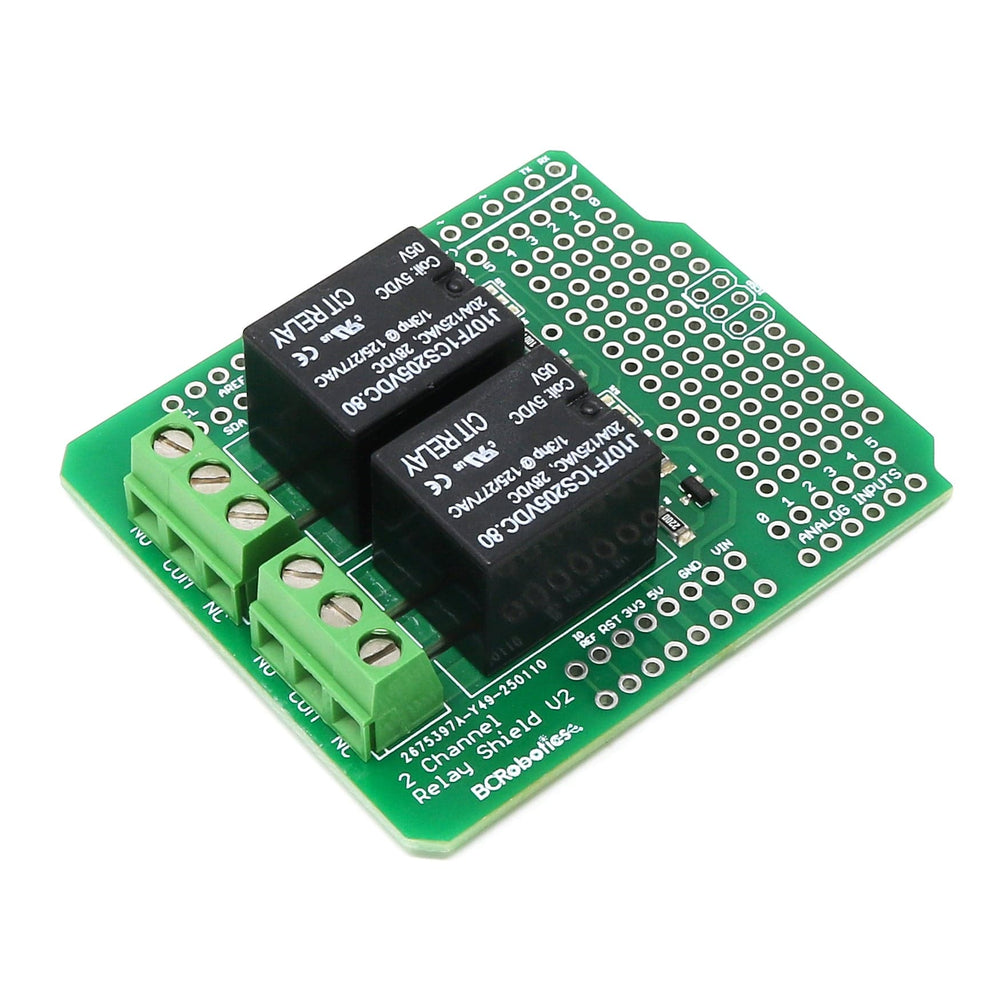

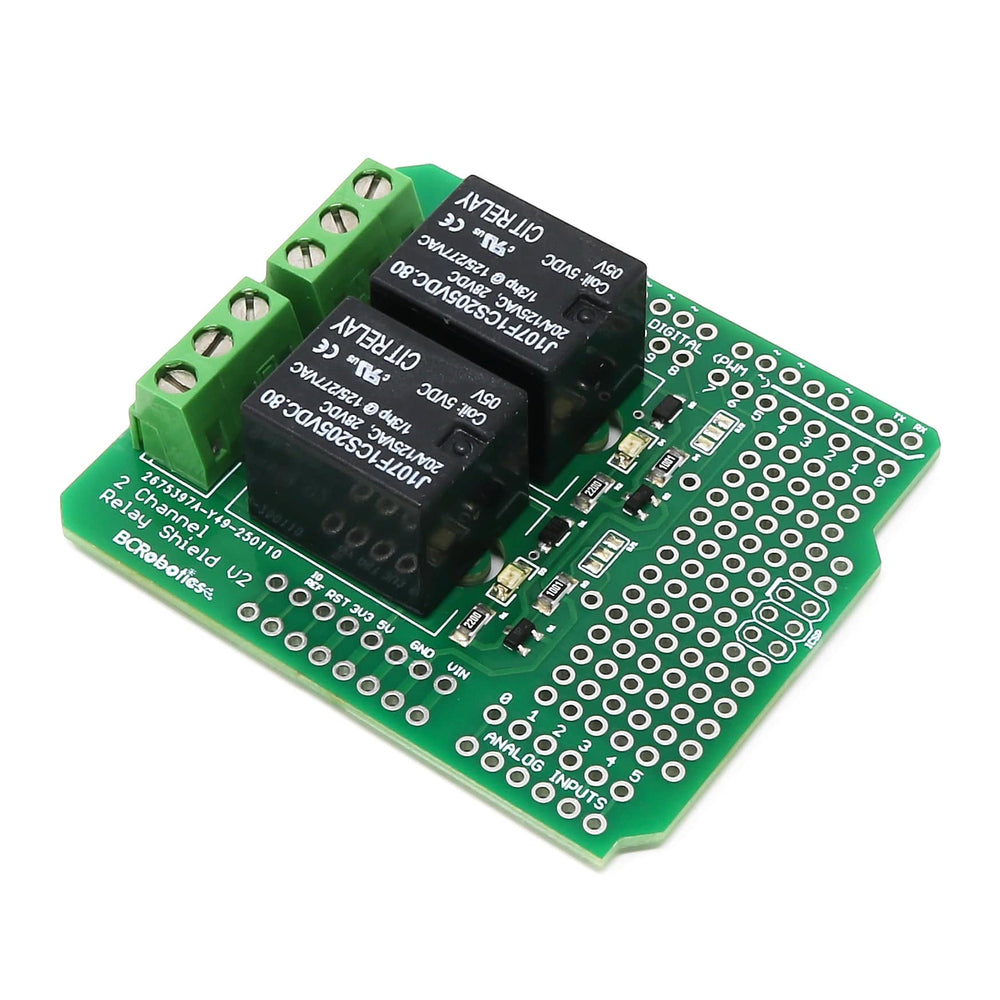

Each relay has the Input, Normally Open, and Normally Closed contacts broken out to a nice 5mm pitch screw terminal. The board uses high-quality North American-sourced parts, a locally produced circuit board, and simple logic-level inputs. Each relay circuit also includes an LED indicator that is illuminated when the relay is active.

The shield is compatible with all Arduino R3 compliant boards, but will require taller headers to clear the taller USB port of the Arduino Uno. The board ships without header pins soldered, just in case you wish to use taller headers to connect your project. By default, the shield uses Arduino digital pins 7 and 8 to switch relays, but this can be changed by way of solder jumpers.

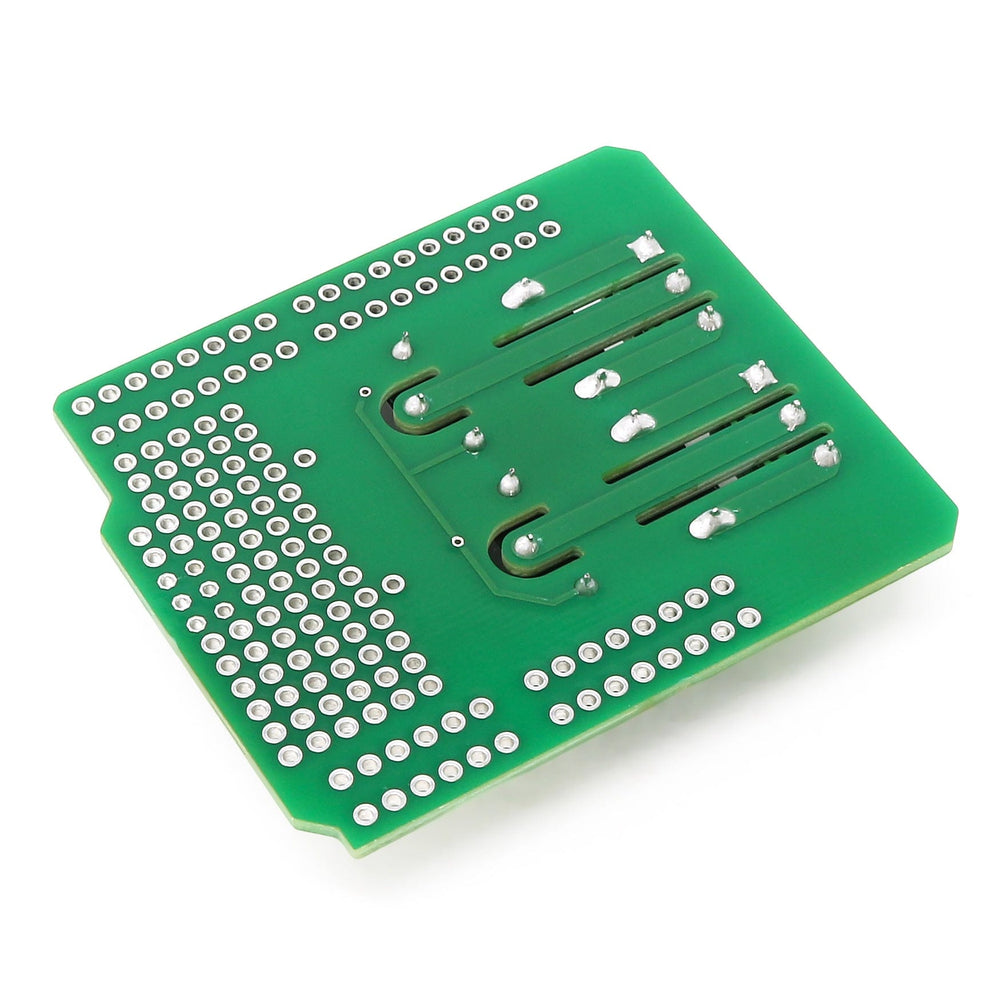

We are shipping V2 of this board. Version 2 introduces trace route isolation but is otherwise functionally identical to previous versions.

Please Note: While this board is capable of switching higher voltages, please exercise caution. If you are inexperienced or unsure about how to use this product safely please consult a professional.

Features

  • Dual 10A relay shield for Arduino
  • Supports up to 10A @ 250VAC per channel
  • Uses Arduino digital pins 7 and 8 by default (changeable via solder jumpers)
  • Compatible with all Arduino R3 footprint boards
  • 5mm pitch screw terminals for Input, Normally Open, and Normally Closed contacts
  • LED indicators

Resources

Package Contents

  • 1x 2-Channel Relay Shield for Arduino

Headers not included
