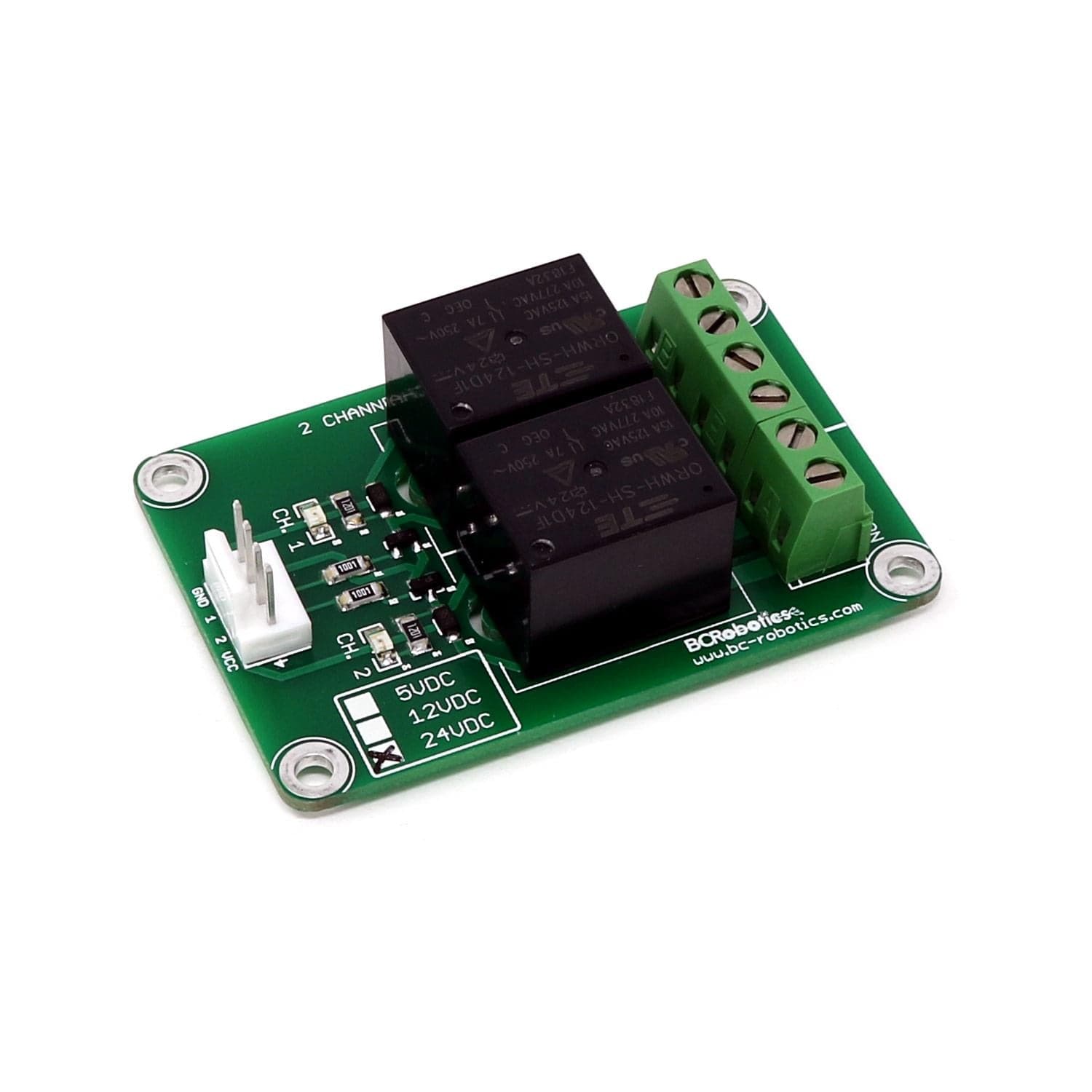

Need to drive high current or high voltage devices with a low voltage or low current signal? This premium dual 10A relay breakout board can handle it!
This version of the board uses a 24V relay and can be triggered with logic signals from 3.3V to 24VDC – ideal for automation systems and other devices that have 24VDC power available.
The board uses high-quality North American sourced parts. Simply connect 24V power, Ground, and your digital inputs to the 4 pin header and that’s it – no need for any additional components! We offer a matching 4-pin Molex KK to male jumper cable for this relay module here!

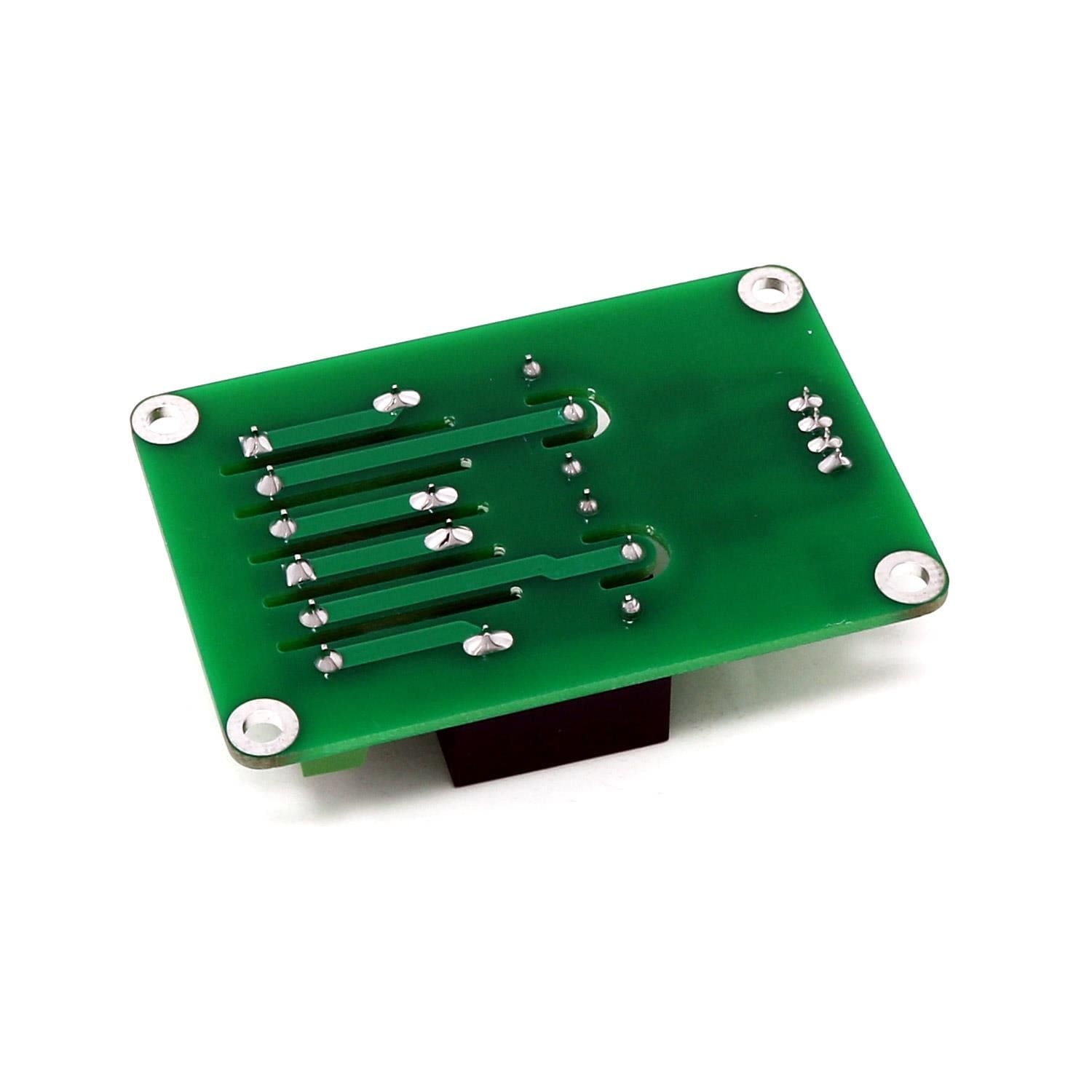

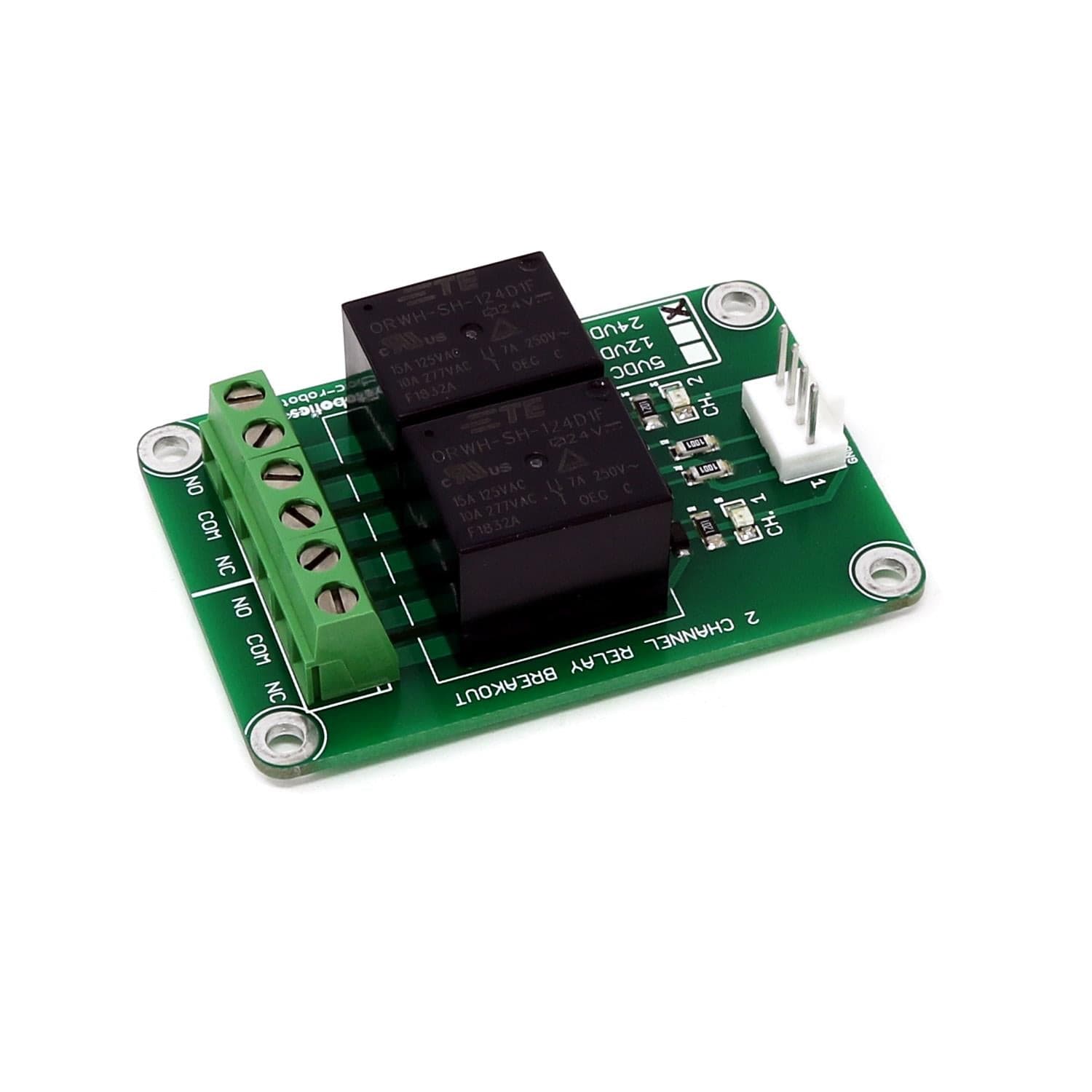

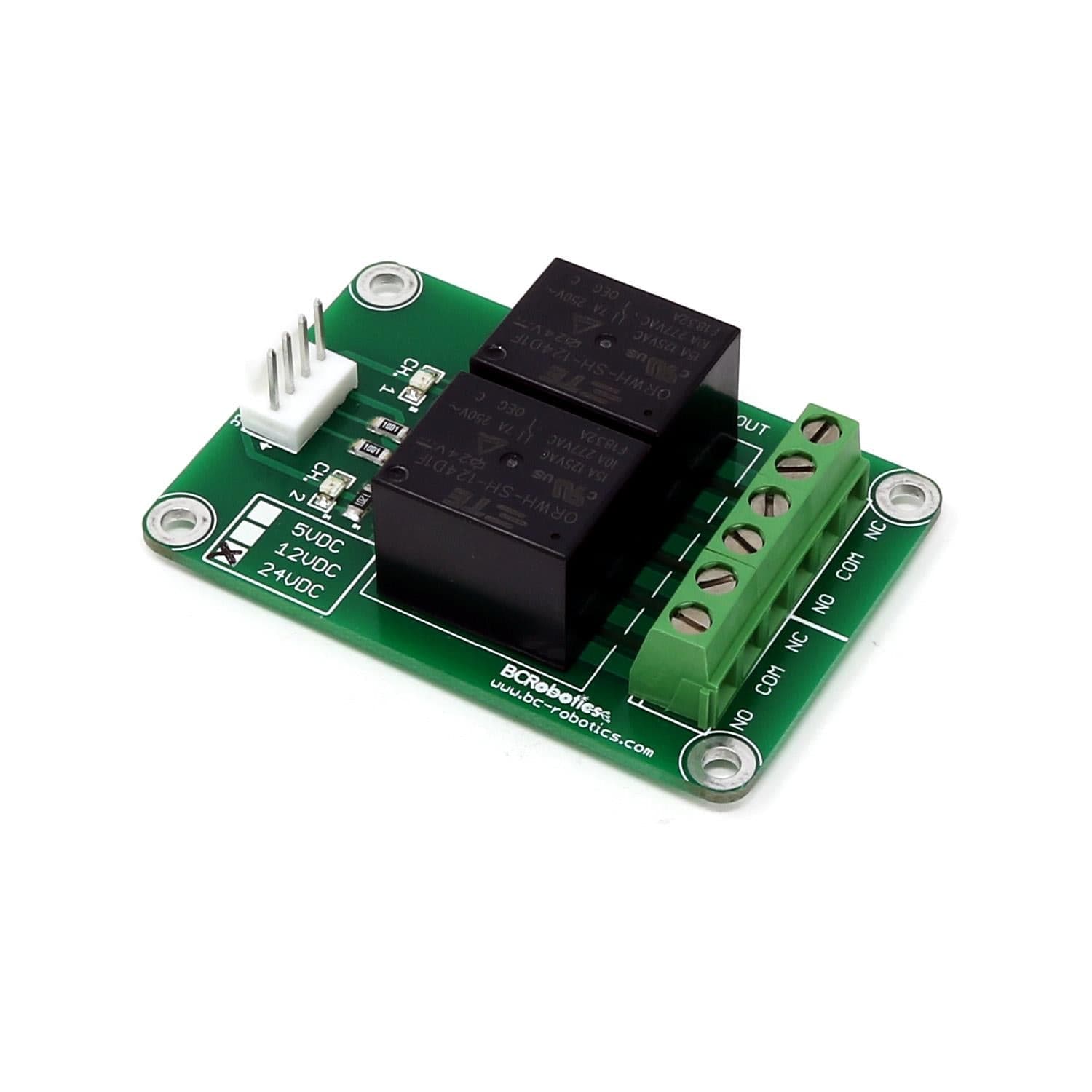

Each relay has the Input, Normally Open, and Normally Closed contact broken out to a nice 5mm pitch screw terminal and each trace is separated by isolation routing. Indicator LEDs show the status of the relay coil, when lit the coil is active.
The breakout board is sized to fit directly in a Hammond 1591LFLBK Small Enclosure. Perfect for making a clean, enclosed control box (enclosure sold separately, please check our range of Hammond enclosures for availability)
Please Note: While this board is capable of switching higher voltages, please exercise caution.
- 10A/250VAC per channel
- 3.3 – 24V Logic Level Compatible
- Dimensions: 62.1 x 42.1 x 17.5mm
- Contact Configuration: 2 x Form C
- 8A/30VDC per channel
- Coil Voltage: 24V
- LEDs to indicate activated relays
- 4 mounting holes
- Weight: 35g
- 4-pin connector style: Molex KK
- Manufactured in Canada
