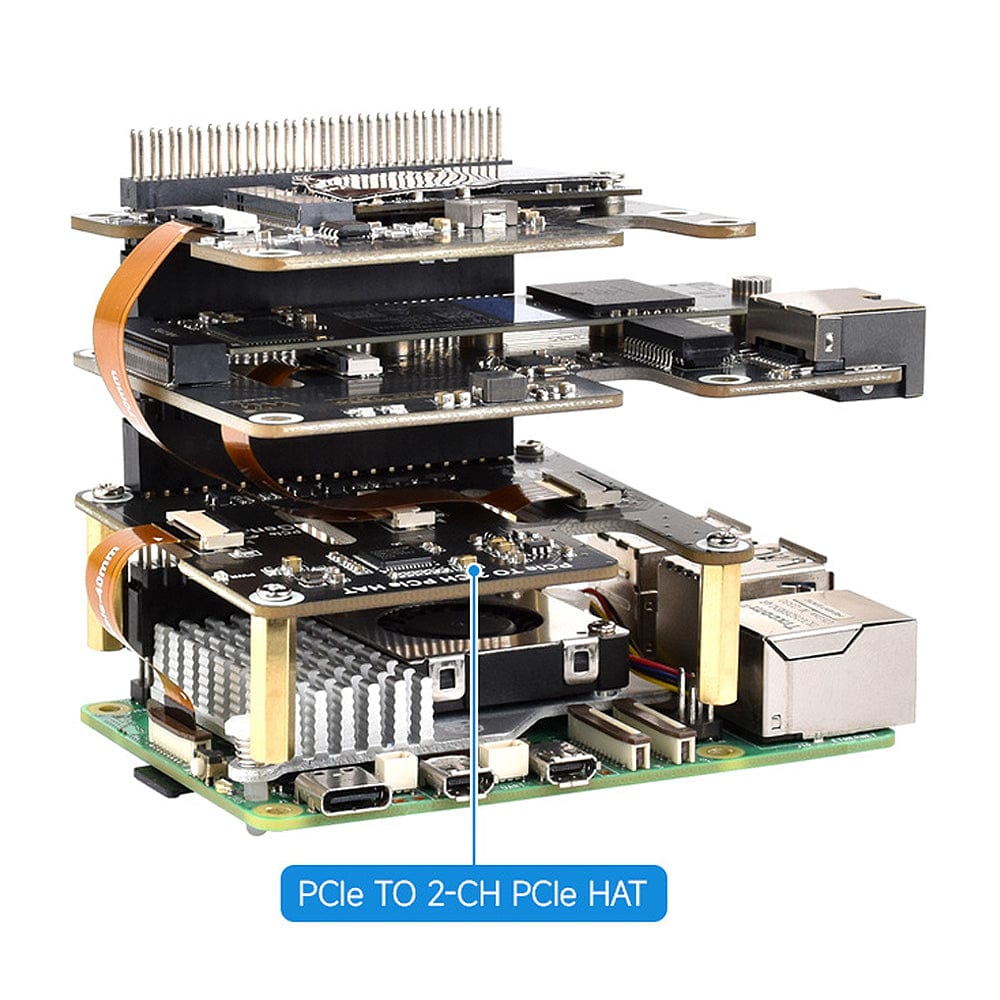

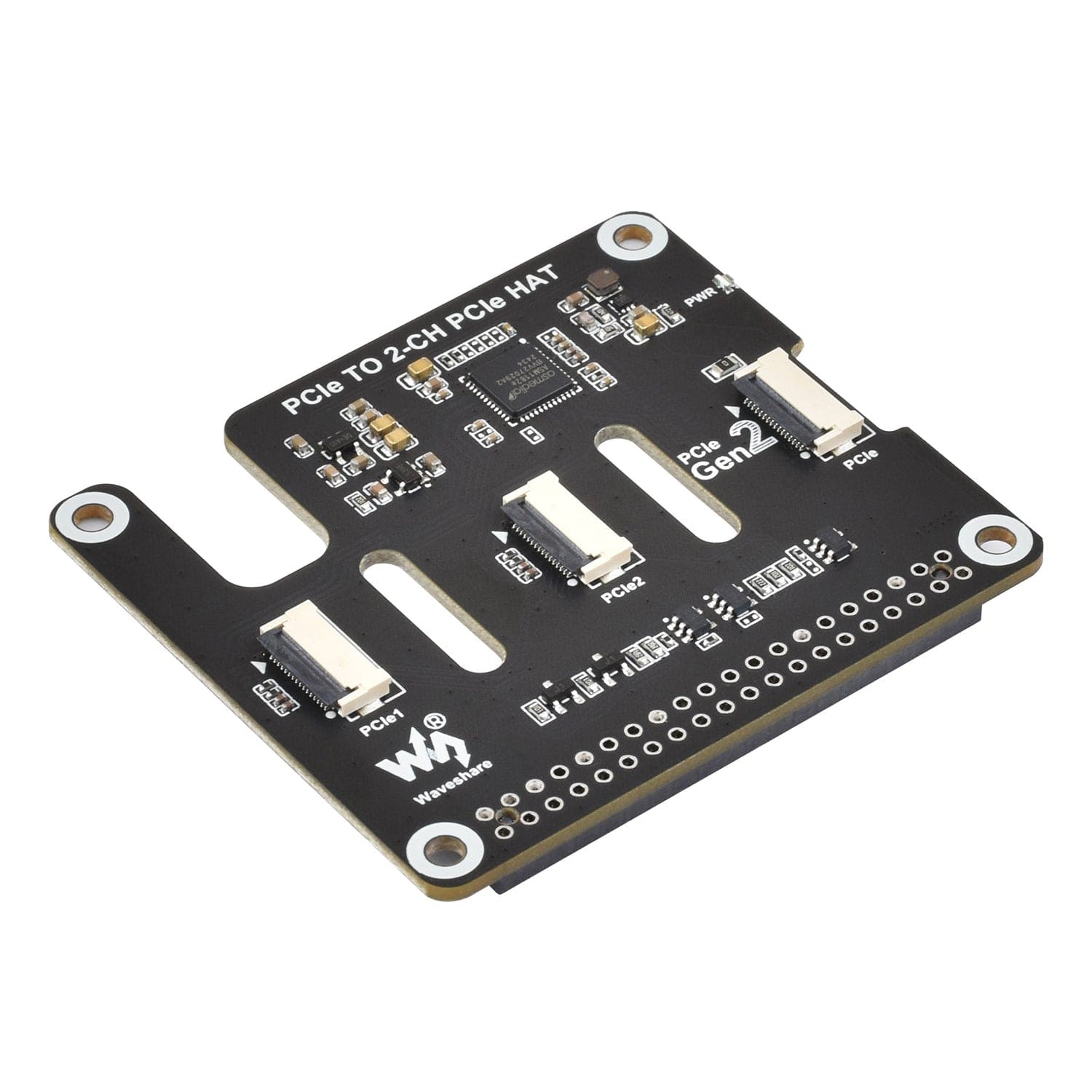

This HAT enables you to connect multiple PCIe add-ons/HATs to your Raspberry Pi 5, allowing the stacking of PCIe accessories such as NVMe SSD HATs.

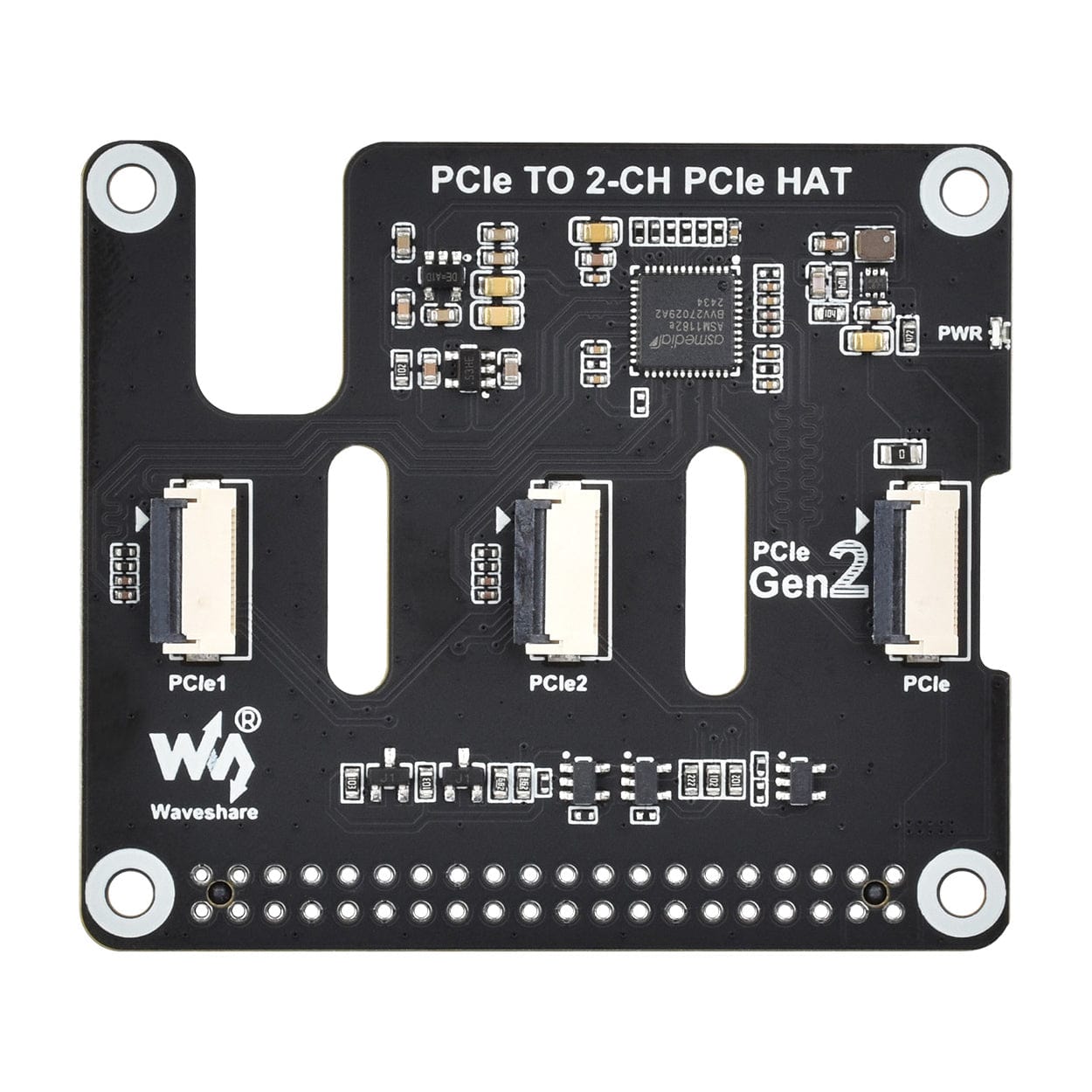

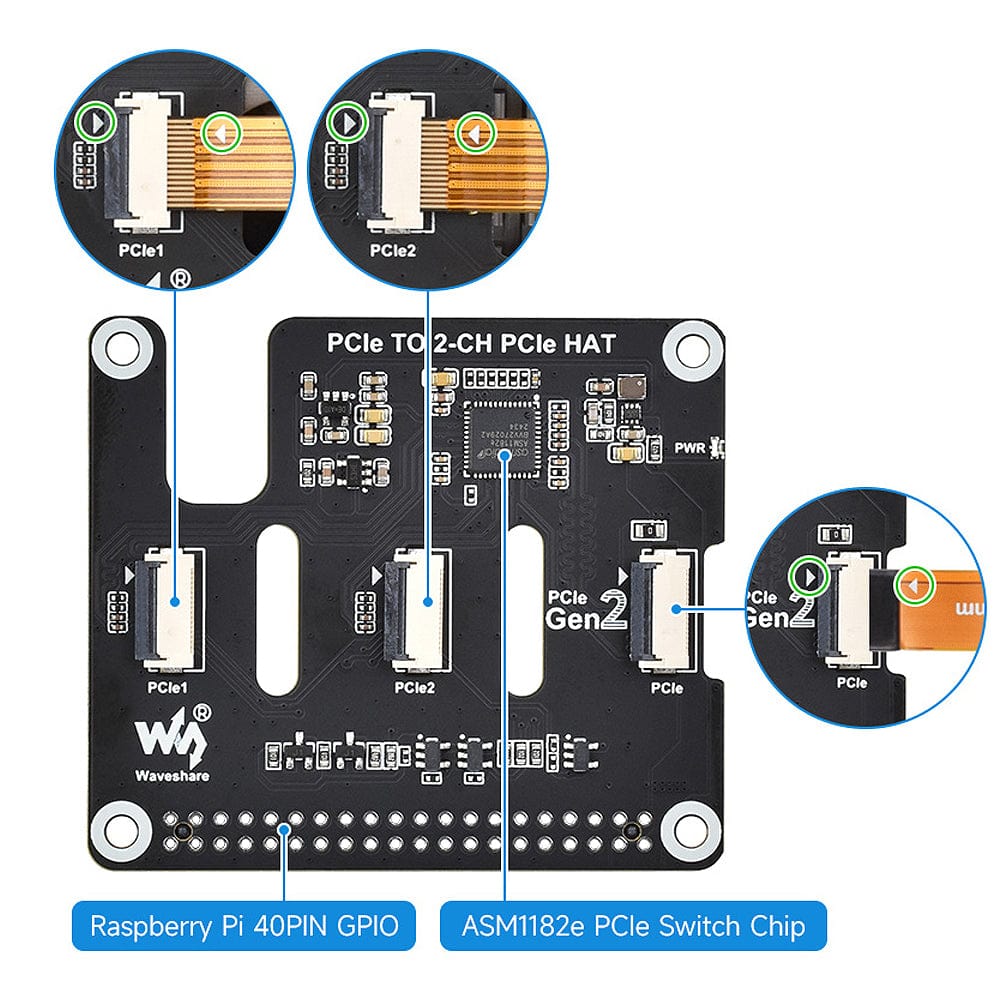

The HAT connects to your Raspberry Pi 5's PCIe interface and uses an ASmedia ASM1182e PCIe switchchip to facilitate data transfer between the two PCIe interfaces it provides, with PCIe Gen2 support. A power indicator LED is also onboard to confirm the power status.

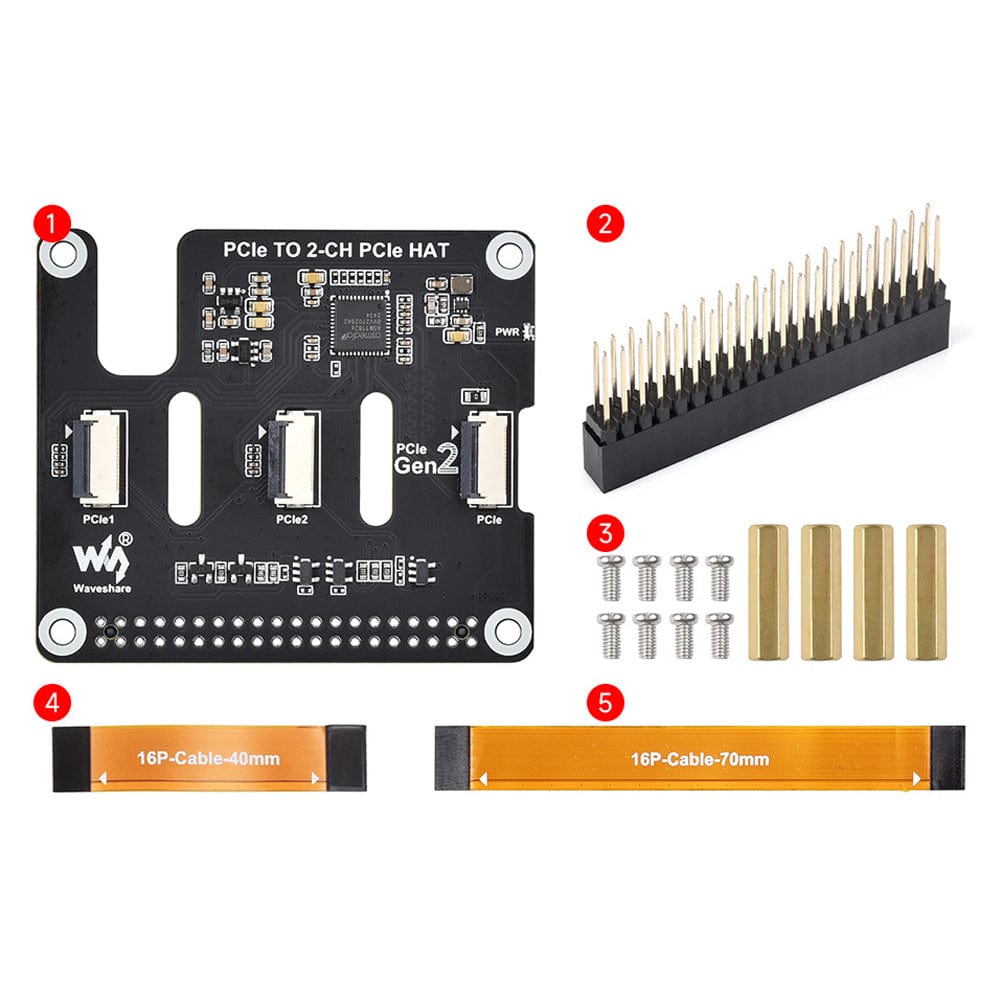

A 40mm and 70mm PCIe cable are included for connecting the board to your Raspberry Pi 5 within your specific setup/stack, with additional PCI cables available in the store for connecting HATs(if you need them - the cable that came with your add-on might be long enough depending on how you assemble your project).

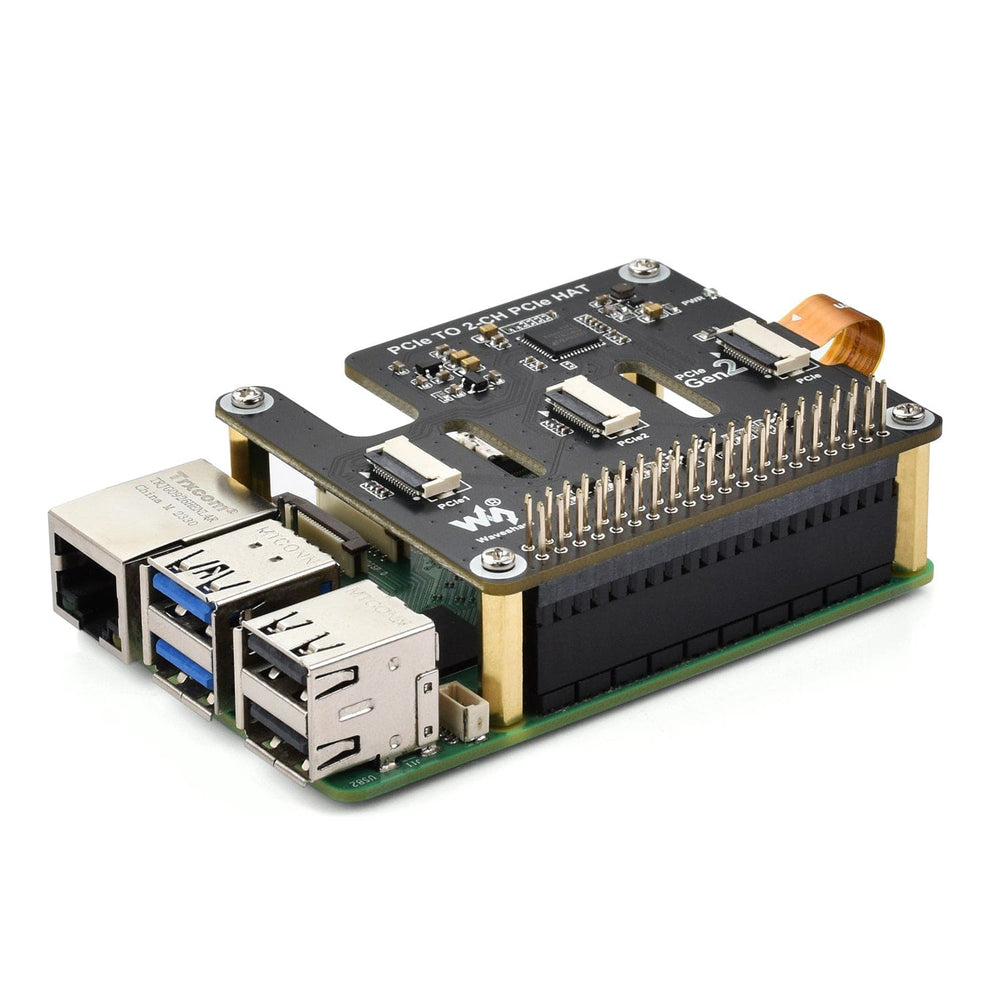

A GPIO riser header is also included, ensuring access to your GPIO pins once the HAT is connected to your board.
Raspberry Pi, SSD and other HATs not included.
Features
PCIe HAT for Raspberry Pi 5 with dual PCIe outputs
Allows stacking of multiple PCIe add-ons
Connects to the Pi 5’s PCIe interface
ASMedia ASM1182e PCIe switch chip
Supports PCIe Gen2 data transfer
Onboard power LED
Supplied with a GPIO riser header to maintain access to GPIO pins
