2.9" Touchscreen E-Paper Display HAT (296×128)

WaveshareSKU: WAV-19967
Price:
Sale price £27
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry Pi Zero 2 - The Pi HutRaspberry Pi Zero 2 - The Pi Hut
Raspberry PiRaspberry Pi Zero 2 W
Sale priceFrom £14.40 incl. VAT excl. VAT
Micro-USB Cable with On/Off Switch - The Pi HutMicro-USB Cable with On/Off Switch - The Pi Hut
The Pi HutMicro-USB Cable with On/Off Switch
Sale price £3 incl. VAT excl. VAT
Raspberry Pi Micro SD Card with RPi OS Pre-InstalledRaspberry Pi Micro SD Card with RPi OS Pre-Installed
Raspberry PiRaspberry Pi Micro SD Card with RPi OS Pre-Installed
Sale priceFrom £9.60 incl. VAT excl. VAT

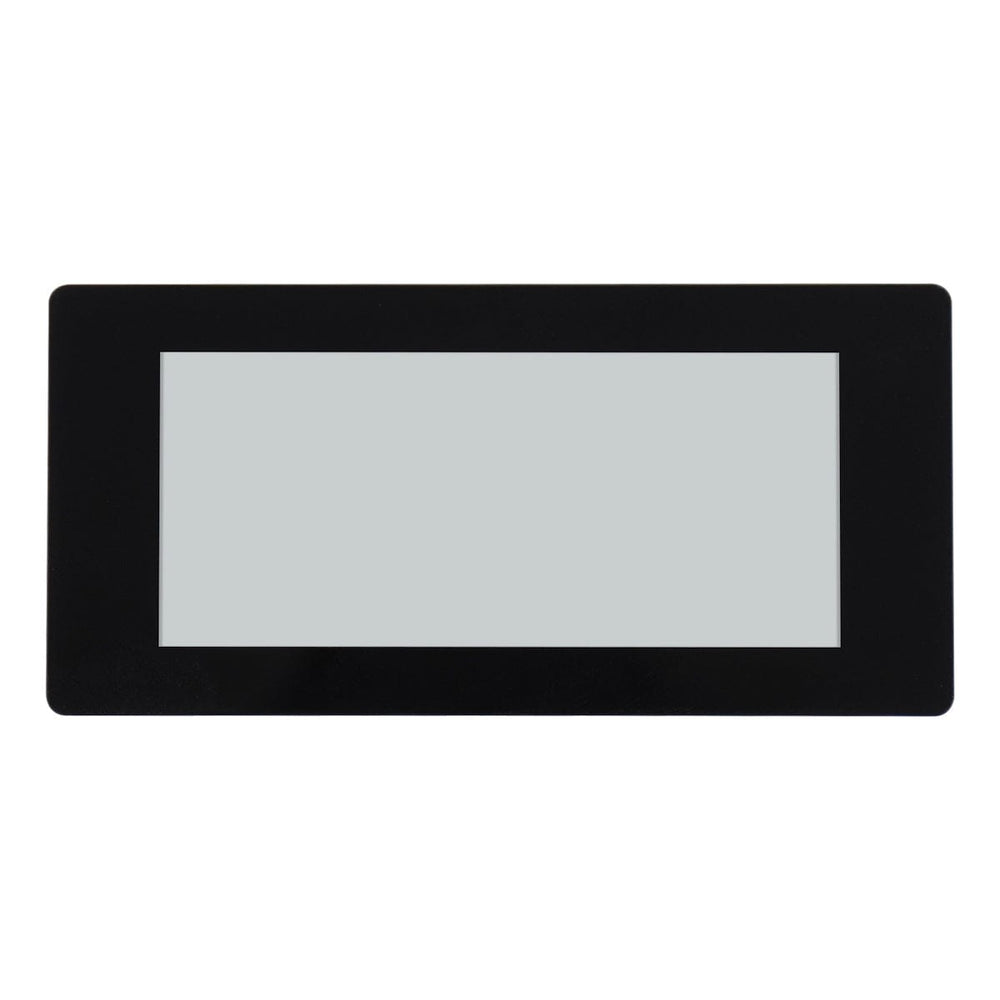

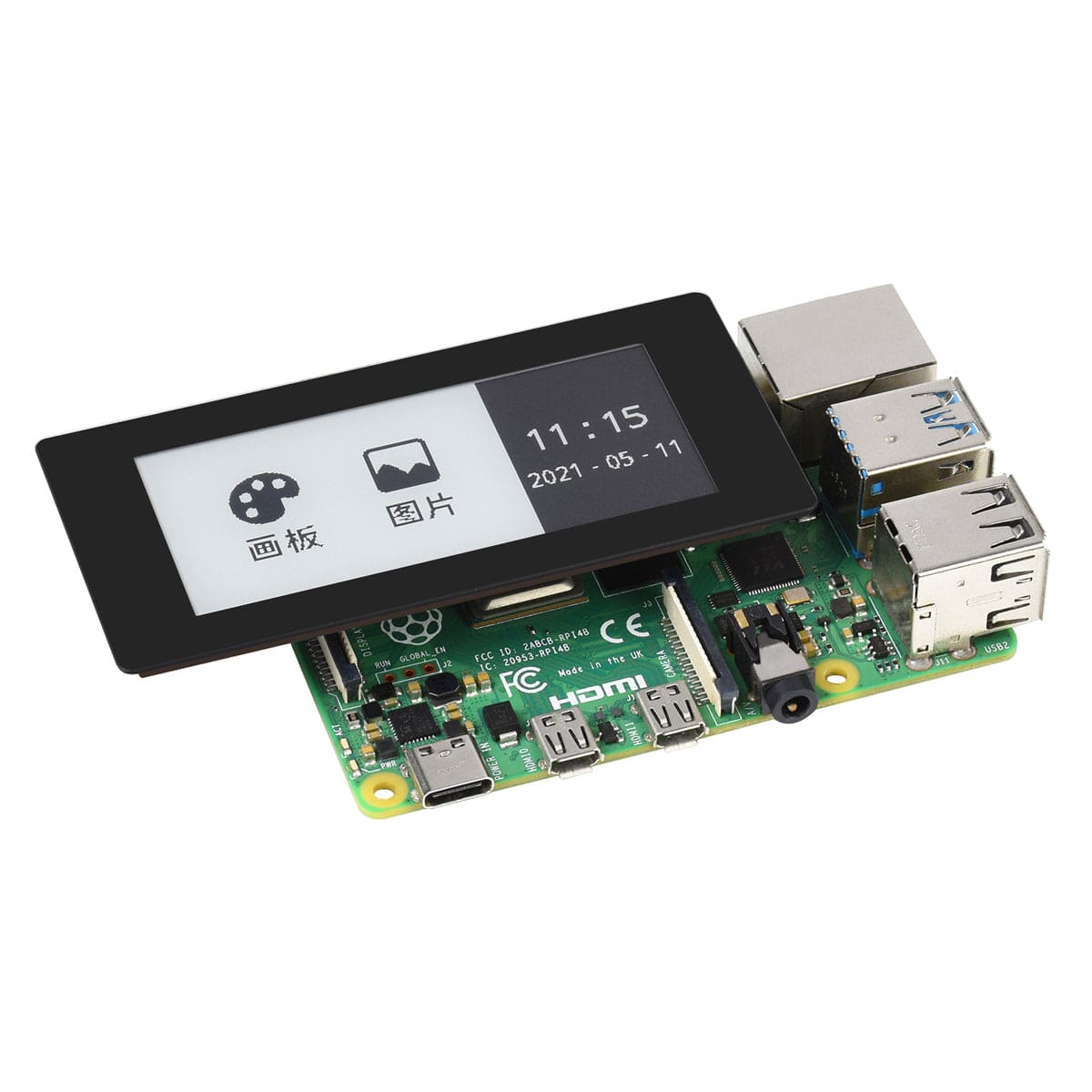

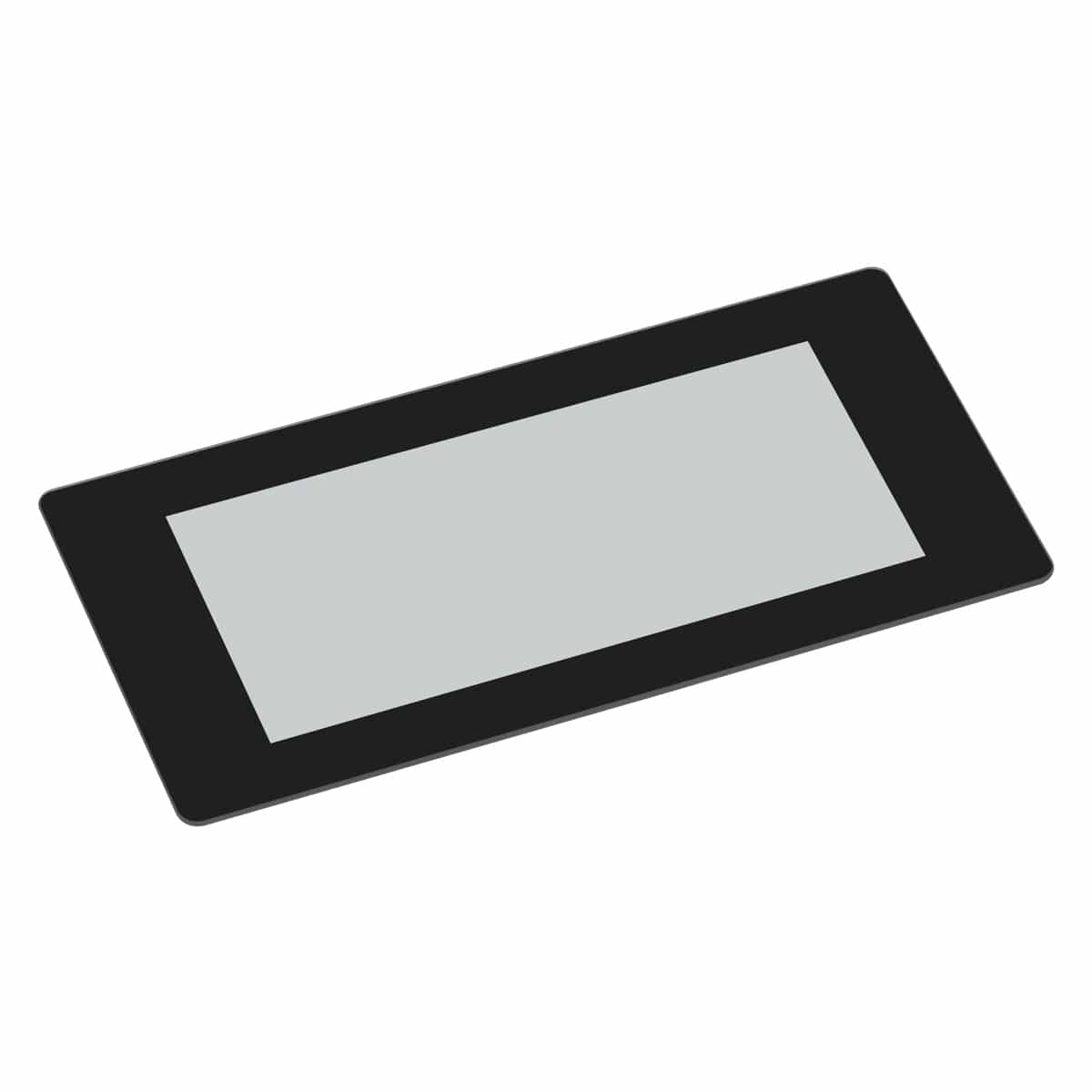

This 2.9" capacitive touch black/white ePaper display from Waveshare is great for adding a low-power, touch-responsive display to your next Raspberry Pi project, especially the Raspberry Pi Zero.

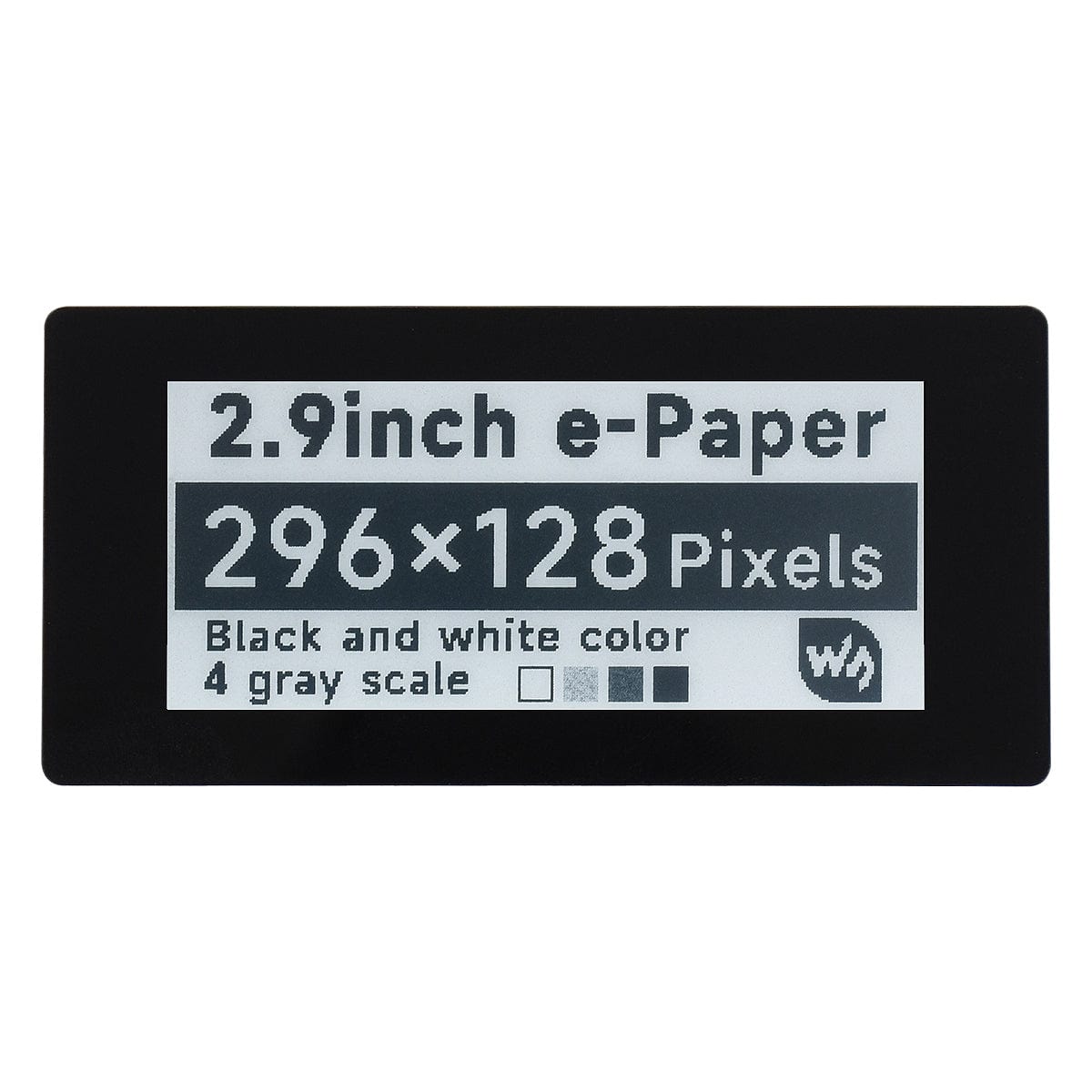

Featuring a screen resolution of 296x128 pixels, the display is capable of recognizing up to 5-points of touch and works well with Raspberry Pi OS.

The onboard header connects directly to a Raspberry Pi and utilizes the I2C bus for Touch and SPI bus for the display. Partial refresh is supported.

ePaper / eInk displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which lose their image when power is removed, eInk screens are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra-low power, designed to have a wide viewing angle, and additionally have limited reflection under sunlight. The applications are limitless!

Features

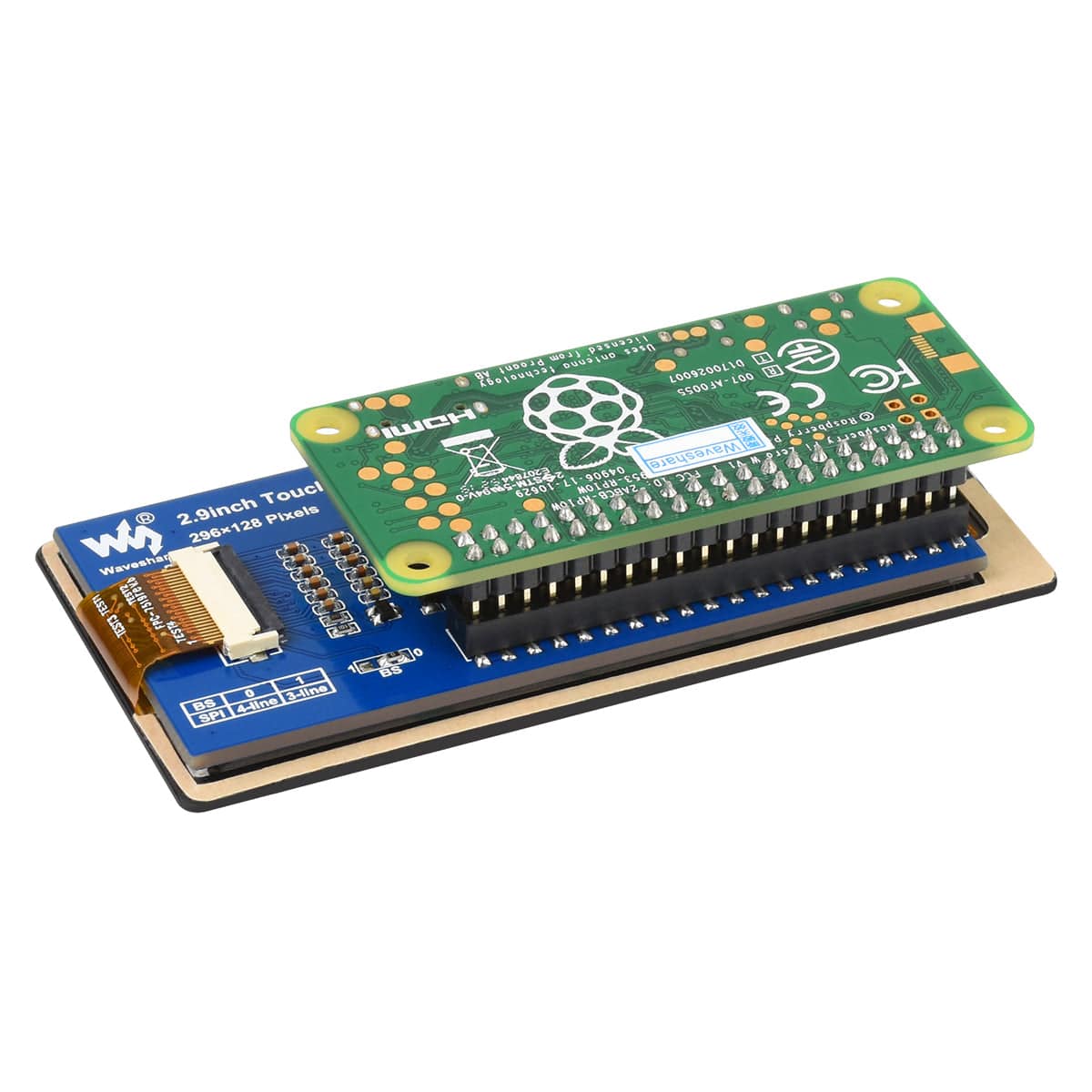

  • Compatible with the Raspberry Pi (any 40-pin model)
  • 2.9" capacitive touch ePaper module
  • 296×128 display resolution
  • 5-point touch support including user-configurable wake-up gestures
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra-low power consumption, power is only required for refreshing the display
  • Reversed control interface for connecting with controller boards like Arduino/STM32, etc.
  • Online development resources and manual and examples for Raspberry Pi

Specification

  • Operating Voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Display colour: Black, White
  • Grey Scale: 4**
  • Resolution: 296x128 pixels
  • Touch Points: 5
  • Partial Refresh Time: 0.6s**
  • Full refresh time: 3s
  • Refresh Power: 26.4mW (typical)
  • Standby Current: <0.01uA (almost none)
  • Viewing angle: >170°

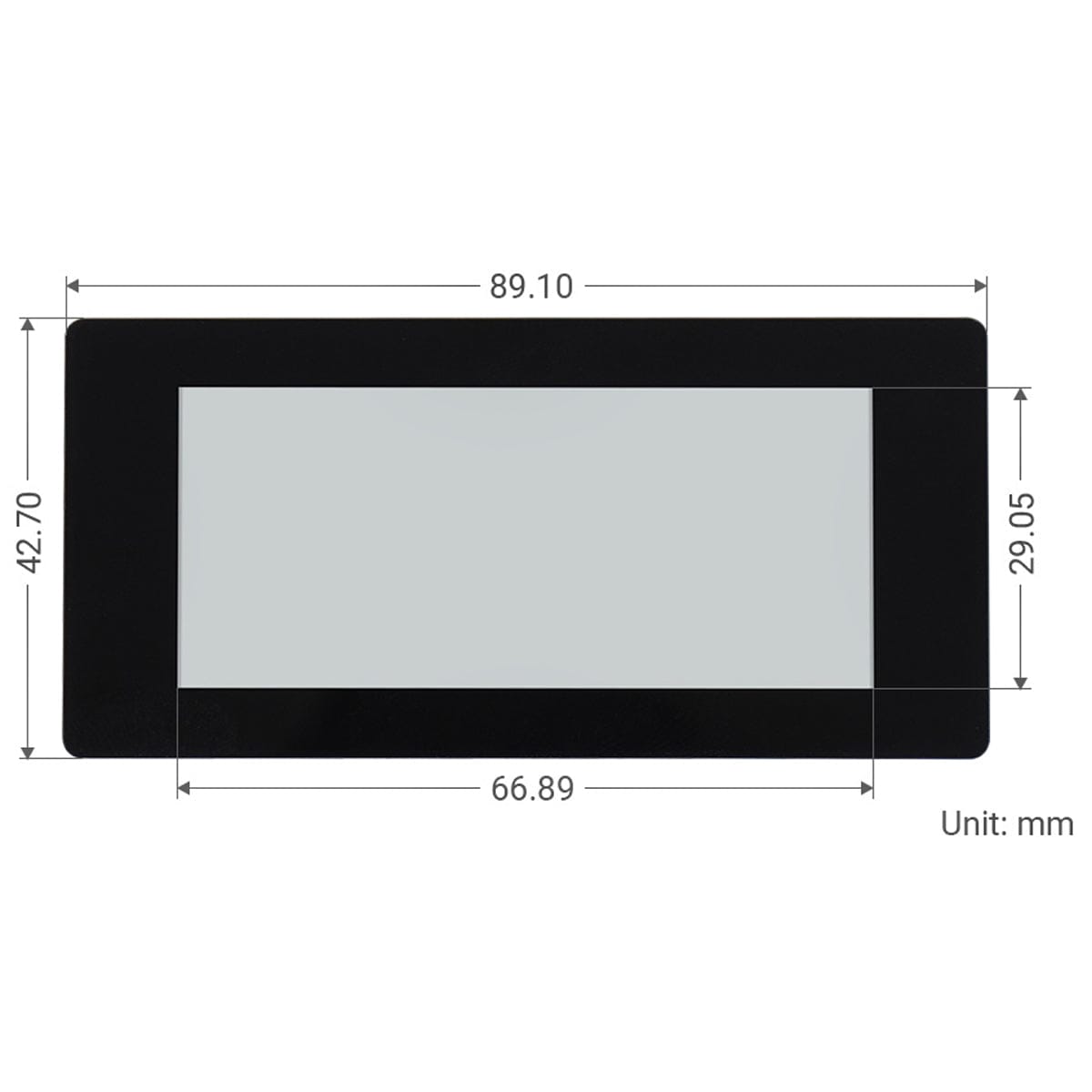

  • Display Dimensions: 66.89 × 29.05mm
  • Outline Dimensions: 89.10 × 42.7mm

** 4 gray scale only supported in the full refresh function, partial refresh is not fully supported yet.

Resources

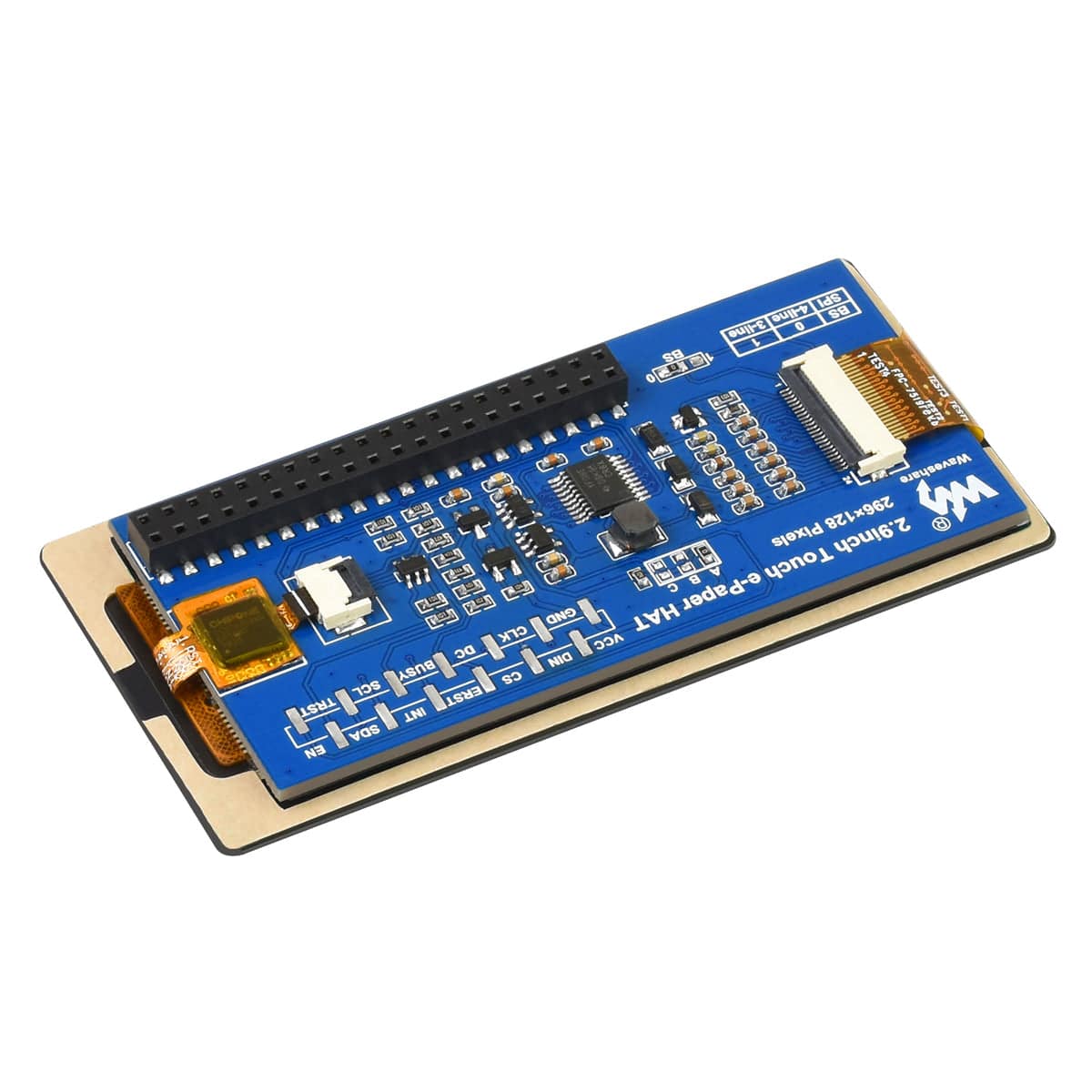

Interface

Waveshare 2.9" Display Interface

VCC 3.3V/5V
GND GND
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
ERST External reset, low active
BUSY Busy status output, high active
INT Touch controller interrupt pin
SCL Touch controller I2C clock pin
SDA Touch controller I2C data pin
TRST Touch controller reset, low active
EN Touch control power supply enable (optional), high active


Revision History

As of 29/02/2024, we are now stocking V2 which has a change to refresh time
