2.9" Red/Black/White E-Ink E-Paper Display Module for Raspberry Pi Pico (296×128)

WaveshareSKU: WAV-19607
Price:
Sale price £20.50
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi Pico W
Sale priceFrom £5.80 incl. VAT excl. VAT
Raspberry PiRaspberry Pi Pico
Sale priceFrom £3.80 incl. VAT excl. VAT
The Pi HutMale Header Set for Raspberry Pi Pico
Sale price £1 incl. VAT excl. VAT
The Pi HutUSB-A to Micro-USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT

Looking for an eInk / ePaper display for your Raspberry Pi Pico? Look no further! This great little 2.9" red/black/white eInk/ePaper display from Waveshare is perfect for adding a low-power display to your Pico project.

Also available in a Black/White version which supports partial refresh and has a shorter refresh time.

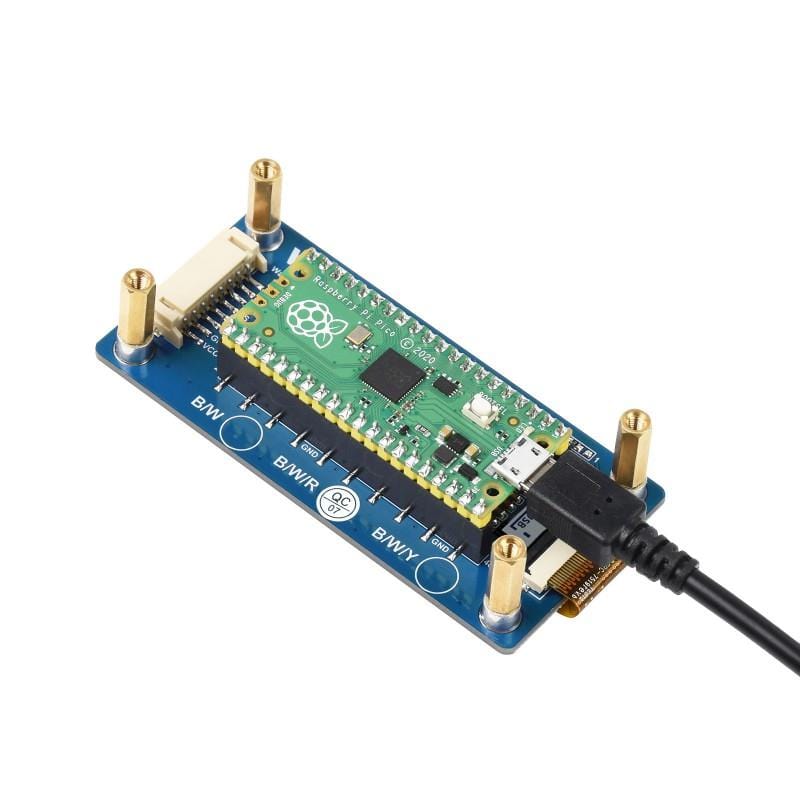

This display module has been designed specifically for the Raspberry Pi Pico - just push your Pico into the female headers and you're ready to go (Pico with male headers required).

ePaper / eInk displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which lose their image when power is removed, eInk screens are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra low power, designed to have a wide viewing angle and additionally have limited reflection under sunlight. The applications are limitless!

The E-Ink display modules from Waveshare come complete with an embedded controller PCB, communicating via SPI interface.

A Raspberry Pi Pico is not included - click here if you'd like to buy one. Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our Pre-soldered Picos).

Features

  • Designed specifically for the Raspberry Pi Pico

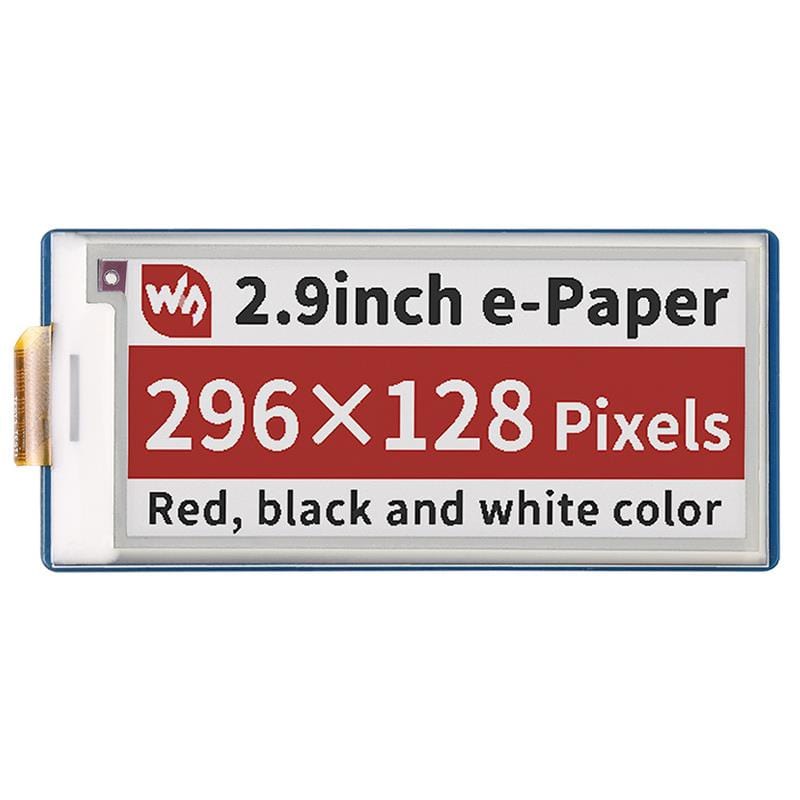

  • Red/Black/White display colours
  • No soldering required
  • 2.9" display
  • 296x128 resolution
  • 170° viewing angle

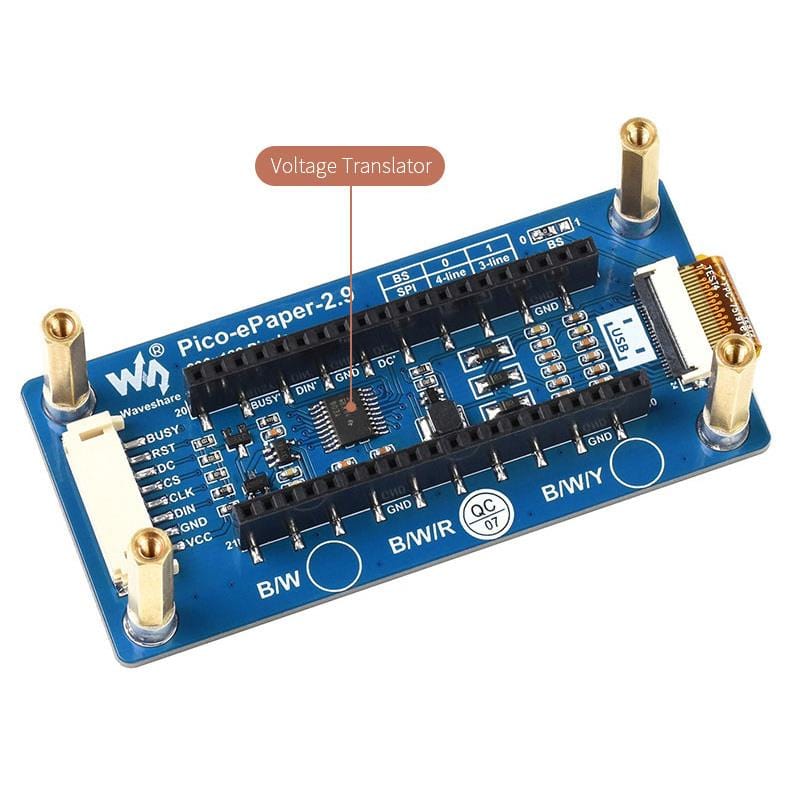

  • Onboard voltage translator - 3.3V/5V
  • No backlight - keeps displaying last content for a long time even when power down
  • Ultra-low power consumption - power is only required for refreshing
  • SPI interface - requires minimal IO pins
  • Online development resources and manual available (Raspberry Pi Pico C/C++ and MicroPython examples)

Package Contents

  • 1x 2.9" E-Ink Pico module (red/black/white)
  • 1x Standoff pack

Raspberry Pi Pico not included

Resources

Pinout

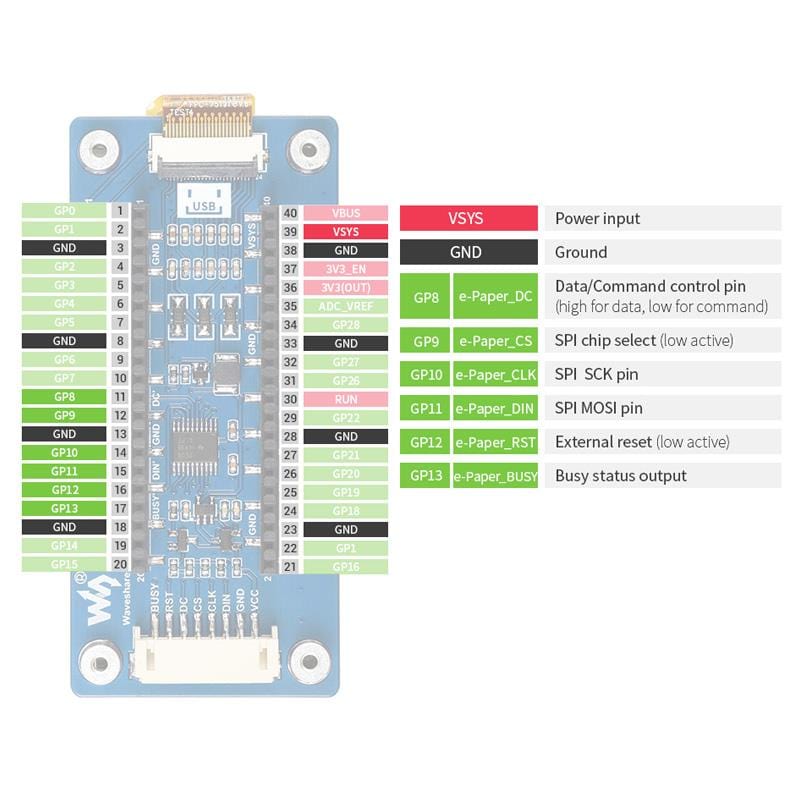

2.9" Raspberry Pi Pico display pinout

Specification

Operating Voltage 3.3V/5V
Interface 3-wire SPI, 4-wire SPI

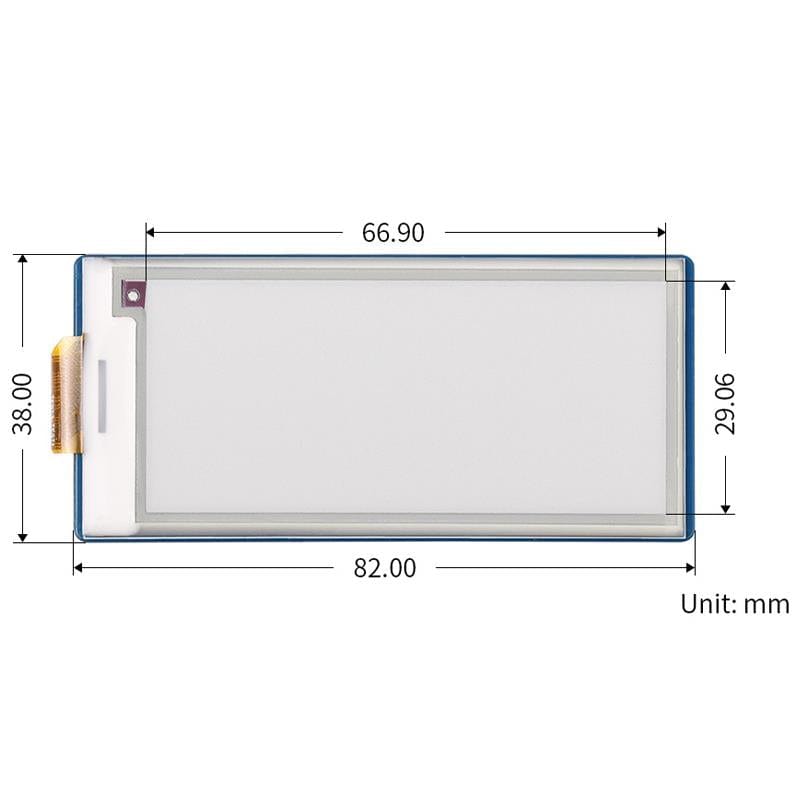

Outline Dimensions 82.00 × 38mm
Display Size 66.89 × 29.05mm
Dot Pitch 0.226 × 0.227mm
Resolution 296×128 pixels
Display Colour red, black, white
Grey Scale 2
Full Refresh Time 15s
Refresh Power 26.4mW (typ.)
Standby Current <0.01uA (almost none)
Viewing Angle >170°
