2.7" E-Ink Display HAT

WaveshareSKU: WAV-13354
Price:
Sale price £20.50
incl. VAT
excl. VAT
Stock:
Only 1 unit left
Quantity:

Awesome Extras

E-Ink Display pHAT - 2.13" (250x122) - The Pi HutE-Ink Display pHAT - 2.13" (250x122) - The Pi Hut
WaveshareE-Ink Display pHAT - 2.13" (250x122)
Sale price £14.50 incl. VAT excl. VAT
E-Ink Display Module SPI - 1.54" (200x200) - The Pi HutE-Ink Display Module SPI - 1.54" (200x200) - The Pi Hut
WaveshareE-Ink Display Module SPI - 1.54" (200x200)
Sale price £12.90 incl. VAT excl. VAT

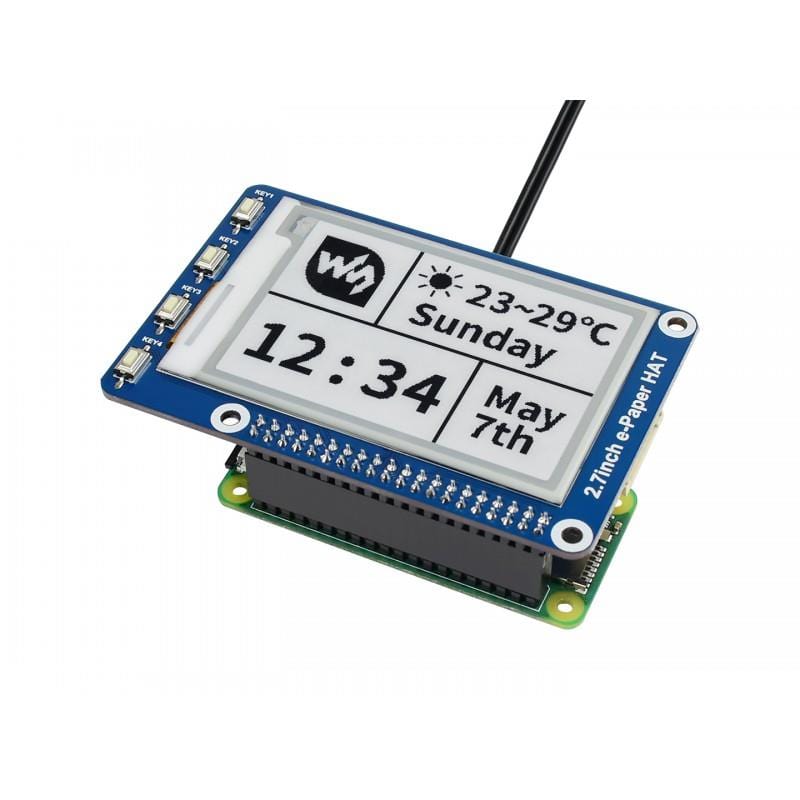

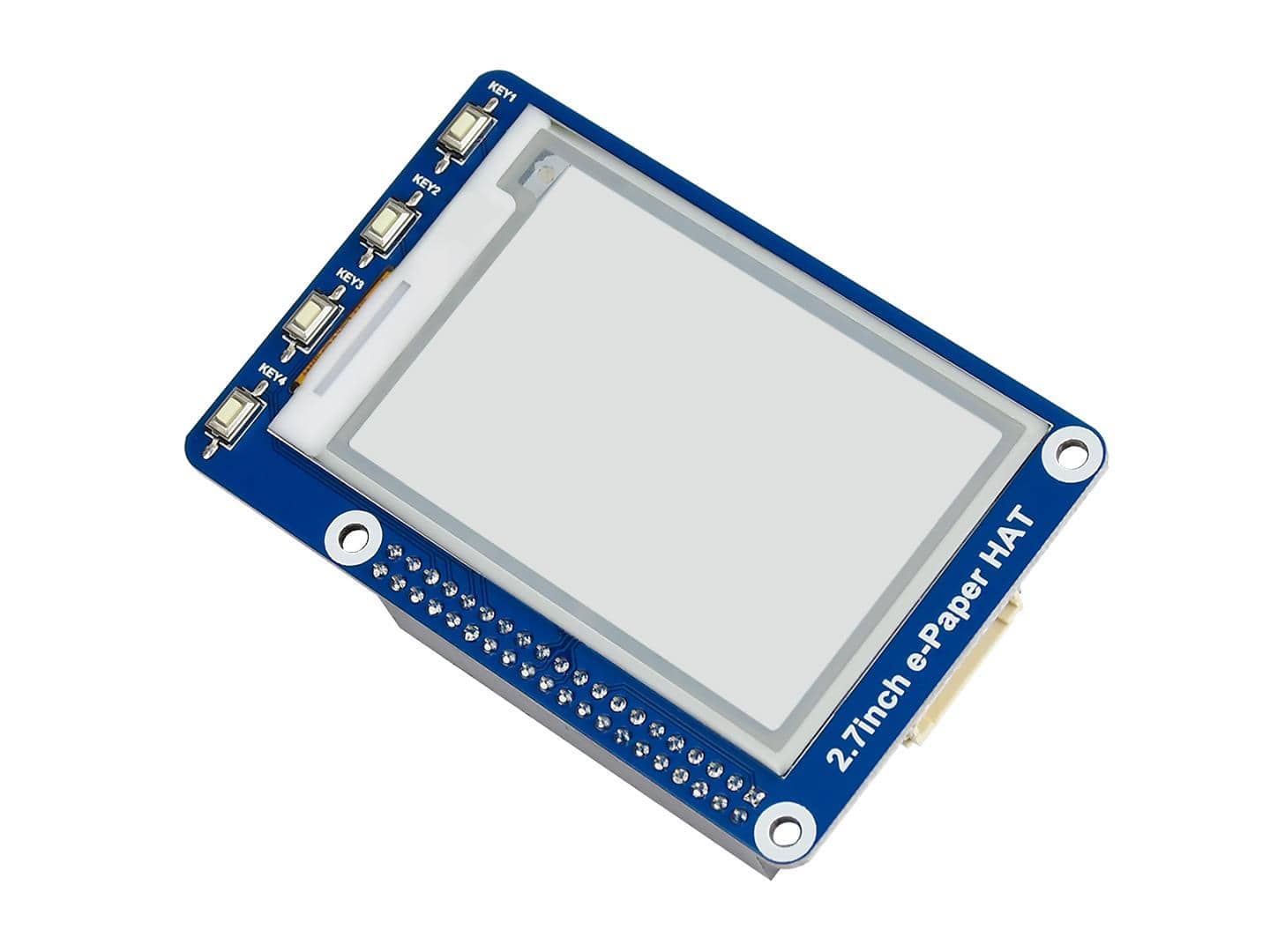

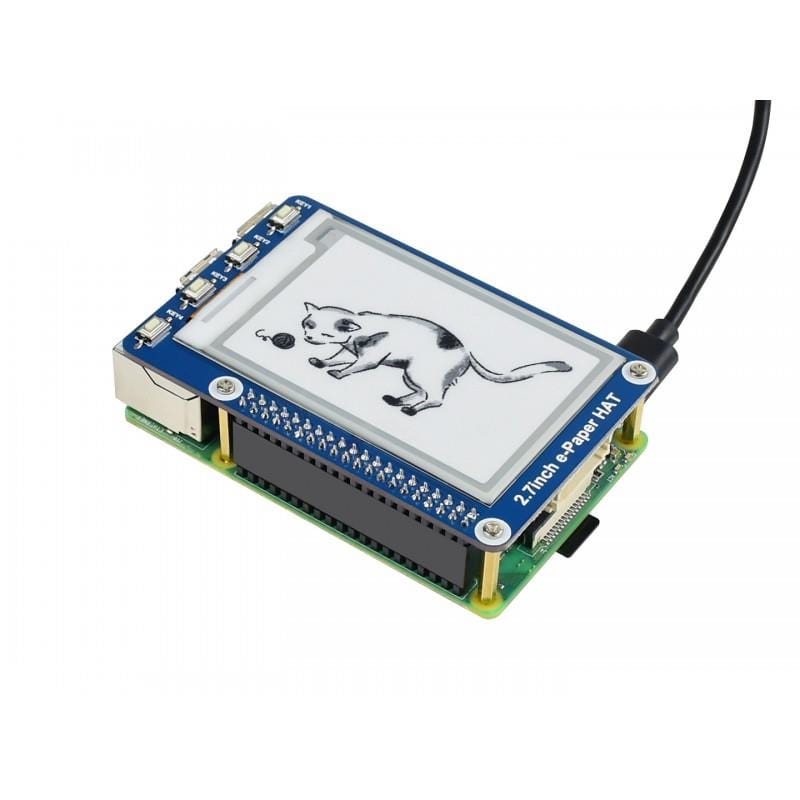

This is an E-Ink display HAT for the Raspberry Pi. The display is 2.7" with a 264x176 resolution, and includes an embedded controller communicating via SPI interface.

Due to the advantages like ultra-low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for low-power applications and projects. It's one of the recommended displays for the Pwnagotchi project!

Features

  • No backlight - keeps displaying last content for a long time even when powered down
  • Ultra-low power consumption - the majority of power is only required for refreshing the display
  • Standard Raspberry Pi 40-pin GPIO extension header
  • 4 Onboard buttons
  • SPI interface for connecting with other controller boards like Raspberry/Arduino
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual

Resources

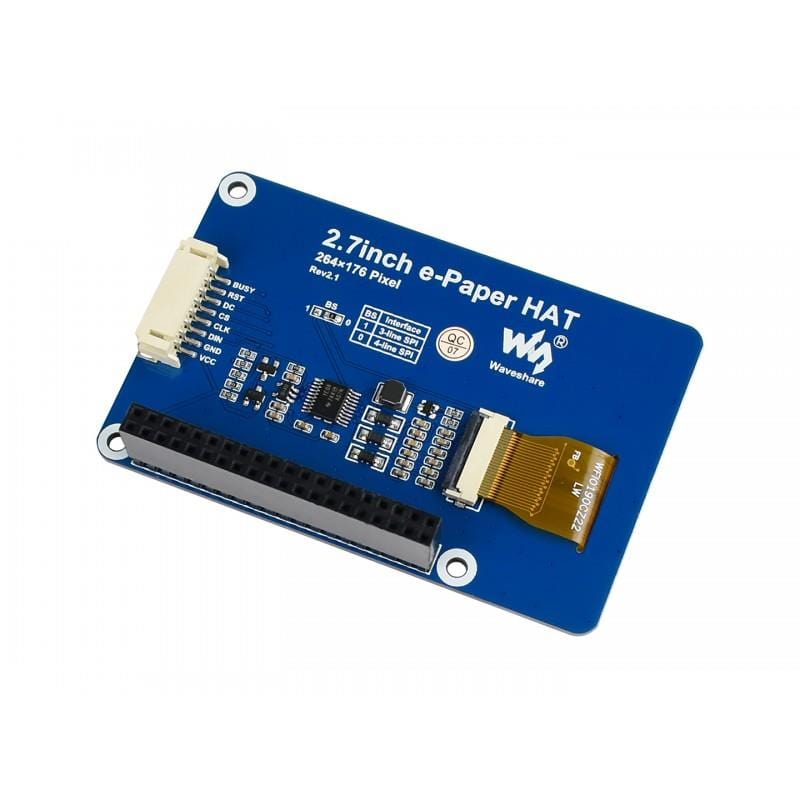

Interfaces

SYMBOL DESCRIPTION
VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, low active

Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 85mm × 56mm
  • Display size: 57.288mm × 38.192mm
  • Dot pitch: 0.217 × 0.217

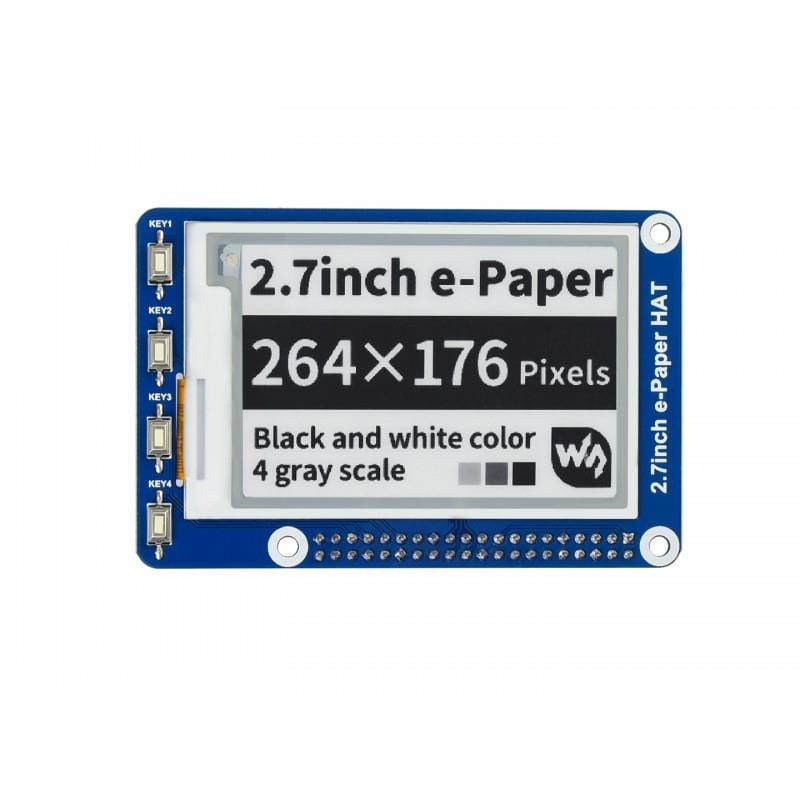

  • Resolution: 264 × 176
  • Display colour: black, white
  • Greyscale: 4
  • Full refresh time: 6s
  • Refresh power: 24mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
