This 2.4GHz antenna has a gain of 2.81dBi which provides a strong and stable signal reception and transmission, making it great for a wide range of projects, including IoT devices, home automation, and wireless sensor networks.

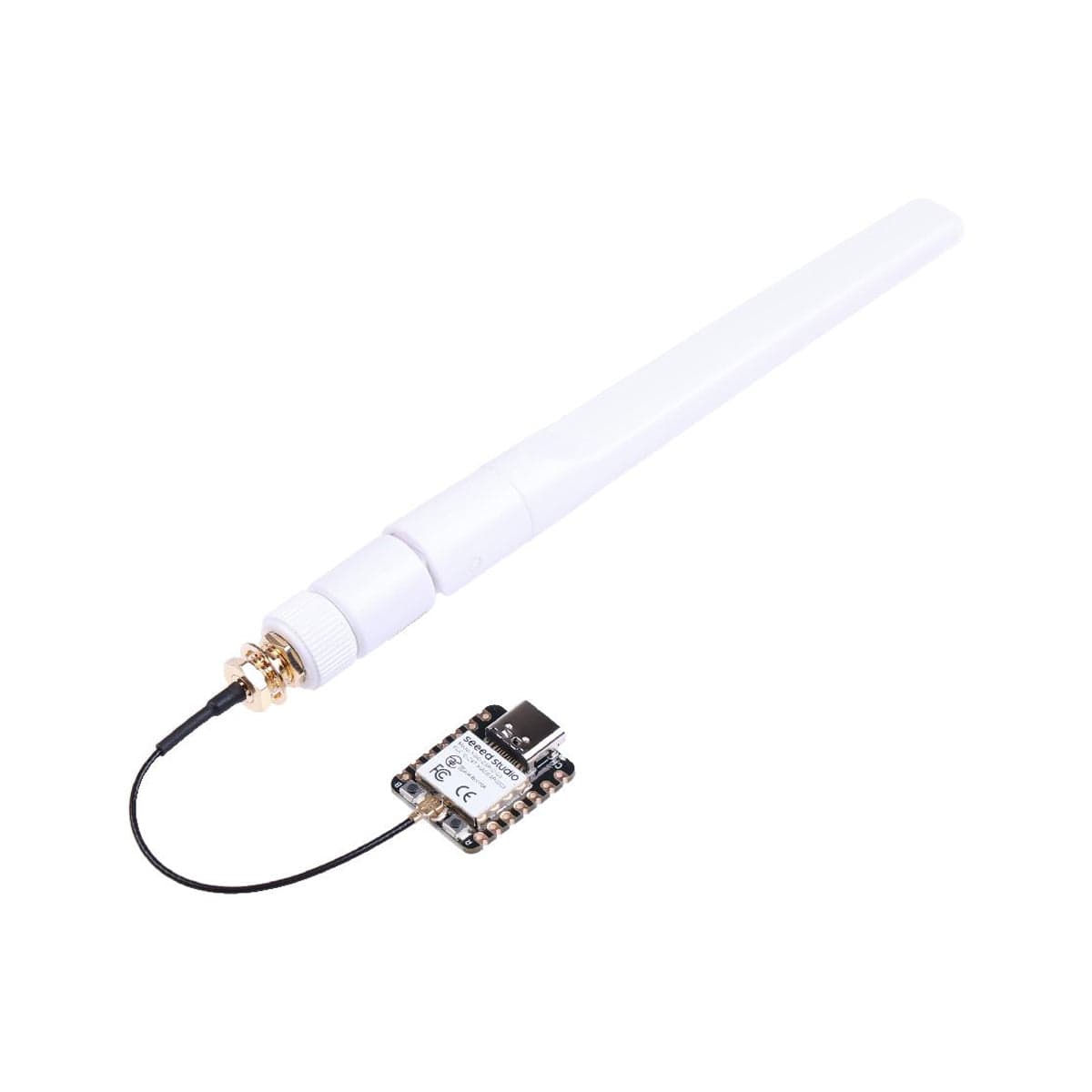

It is compact and lightweight, with a design that easily integrates with your XIAO ESP32C3 setup. Its flexible connector allows for easy installation and positioning, making sure you get the best possible signal in any environment. Whether you're looking to improve your device's range or enhance its connectivity, this 2.4GHz antenna is an excellent addition to your next project.
Frequency Bands, MHz | 2400-2500 |
VSWR (Max) | 3.0:1 |
Peak Gain, dBi (Typ) | Up to 2.81 |
Nominal Impedance | 50 Ω |
Max Power (ambient temp of 25°C) | 10 Watts |
Azimuth Beam Width (deg) | Omnidirectional |
Polarisation | Linear, Omnidirectional |
Radome PC | White |
Storage Temperature Range (°C) | -40° C to +85° C |
Operational Temperature Range (°C) | -30° C to +80° C |
Material Substance Compliance | REACH/RoHS Compliant |
