2.4GHz Flexible WiFi/BLE Antenna (U.FL)

iLabsSKU: 105342
Price:
Sale price £3.90
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

Challenger RP2040 WiFi/BLE MkII (U.FL connector) - The Pi HutChallenger RP2040 WiFi/BLE MkII (U.FL connector) - The Pi Hut
iLabsChallenger RP2040 WiFi/BLE MkII (U.FL connector)
Sale price £15 incl. VAT excl. VAT
Save 20%
Challenger NB 2040 WiFi (U.FL Connector) - The Pi HutChallenger NB 2040 WiFi (U.FL Connector) - The Pi Hut
iLabsChallenger NB 2040 WiFi (U.FL Connector)
Sale price £10 Regular price £12.50 incl. VAT excl. VAT
SparkFun Thing Plus SkeleBoard - ESP32 WROOM (U.FL) - The Pi HutSparkFun Thing Plus SkeleBoard - ESP32 WROOM (U.FL) - The Pi Hut
SparkfunSparkFun Thing Plus SkeleBoard - ESP32 WROOM (U.FL)
Sale price £26.70 incl. VAT excl. VAT
SparkFun Thing Plus - ESP32 WROOM (U.FL) - The Pi HutSparkFun Thing Plus - ESP32 WROOM (U.FL) - The Pi Hut
SparkfunSparkFun Thing Plus - ESP32 WROOM (U.FL)
Sale price £22.20 incl. VAT excl. VAT

This antenna is perfect for use together with our WiFi and/or BLE Challenger boards with a U.FL connection, or any other board/module with U.FL.

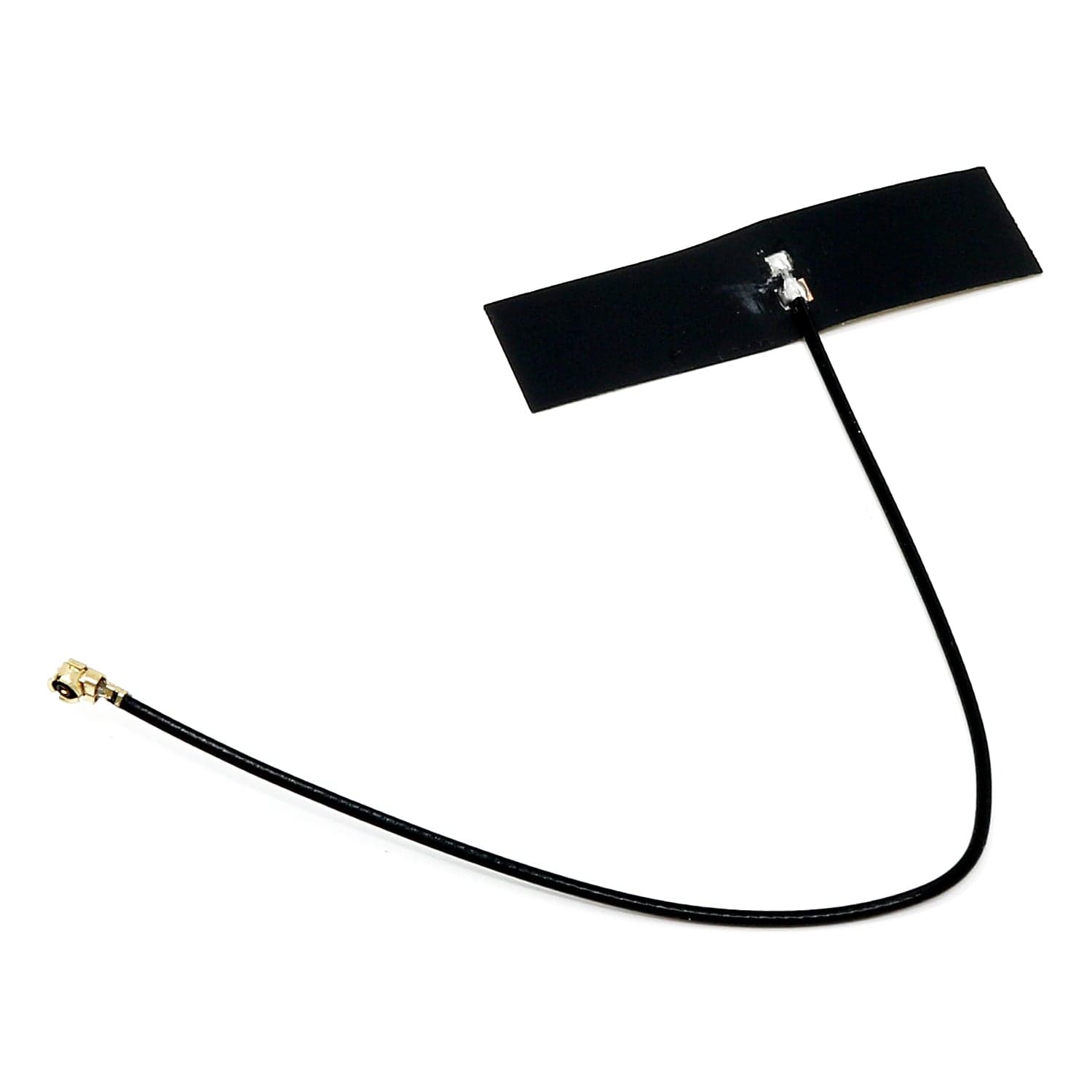

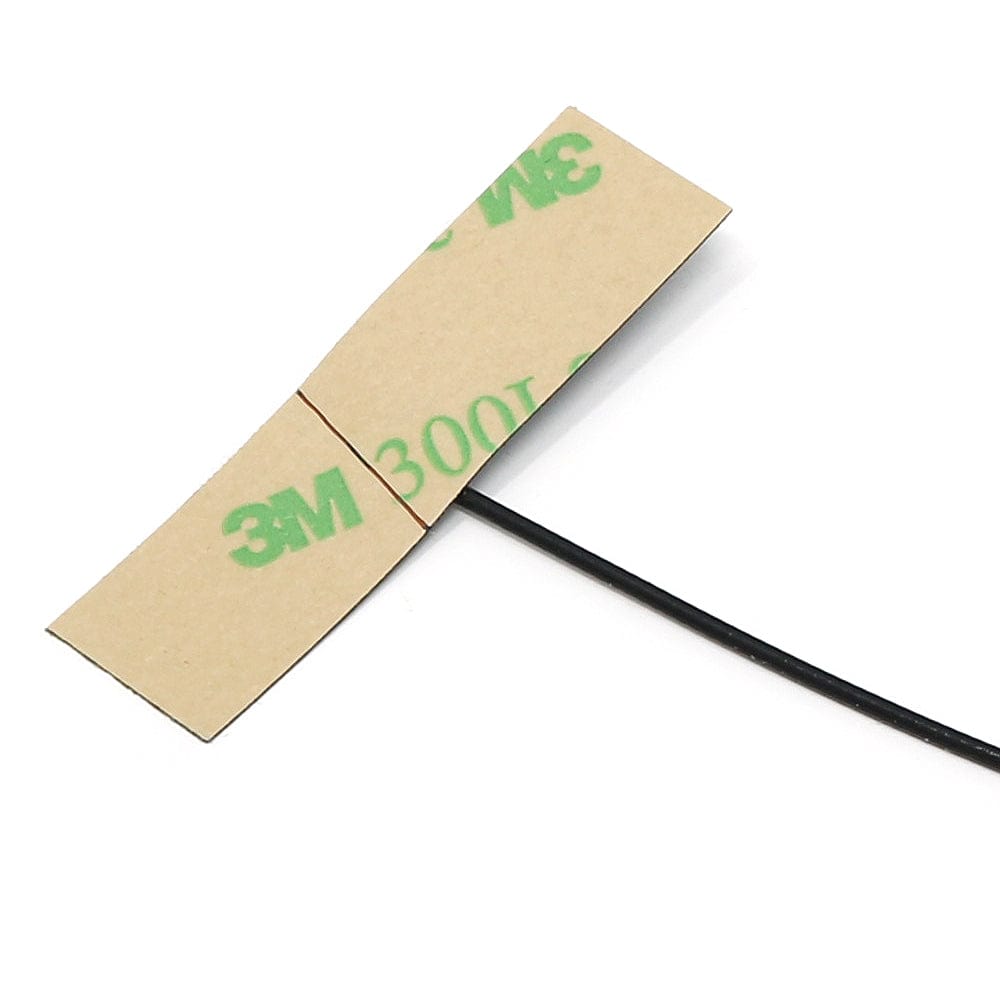

It's a 42mm by 12mm flex PCB antenna with double-sided tape on the backside making it perfect for mounting inside of an enclosure. It has been designed specifically to be attached to a plastic wall of around 1.5-2.0mm thickness. In the open air, it does not perform as well as when it has been mounted properly.

A great antenna for the Challenger RP2040 WiFi/BLE MkII U.FL board!

Performance

Return loss diagram of the antenna mounted on a 2mm thick 15cm x 10cm polycarbonate sheet:

Smith Diagram:

Specifications

Parameter Specification
Center Frequency 2450 MHz
Bandwidth >130 MHz
Antenna Gain 5dBi
Impedance 50R

Package Contents

  • 1x 2.4GHz Flexible WiFi/BLE Antenna
