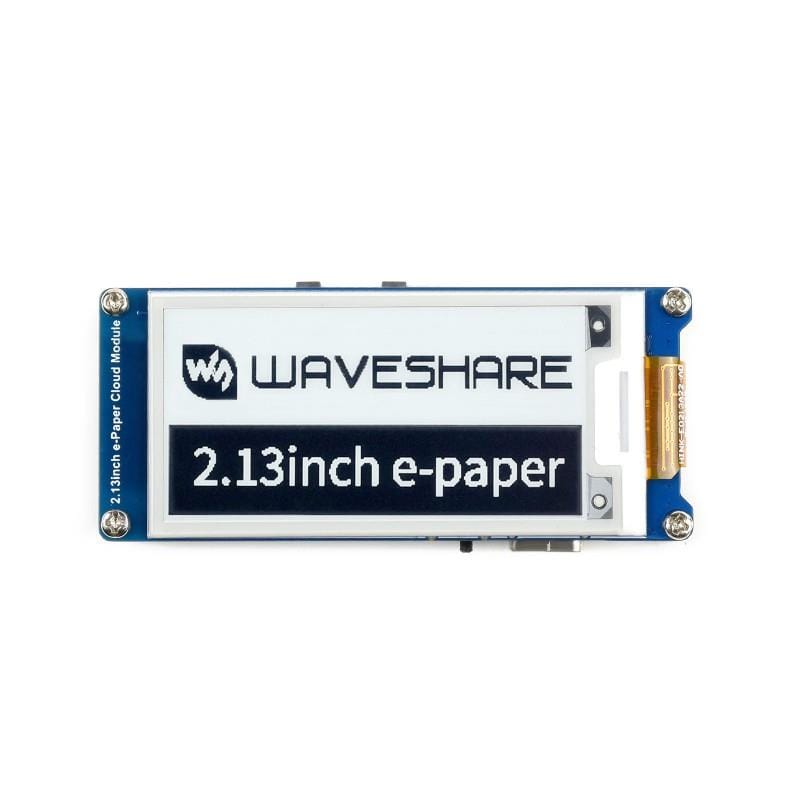

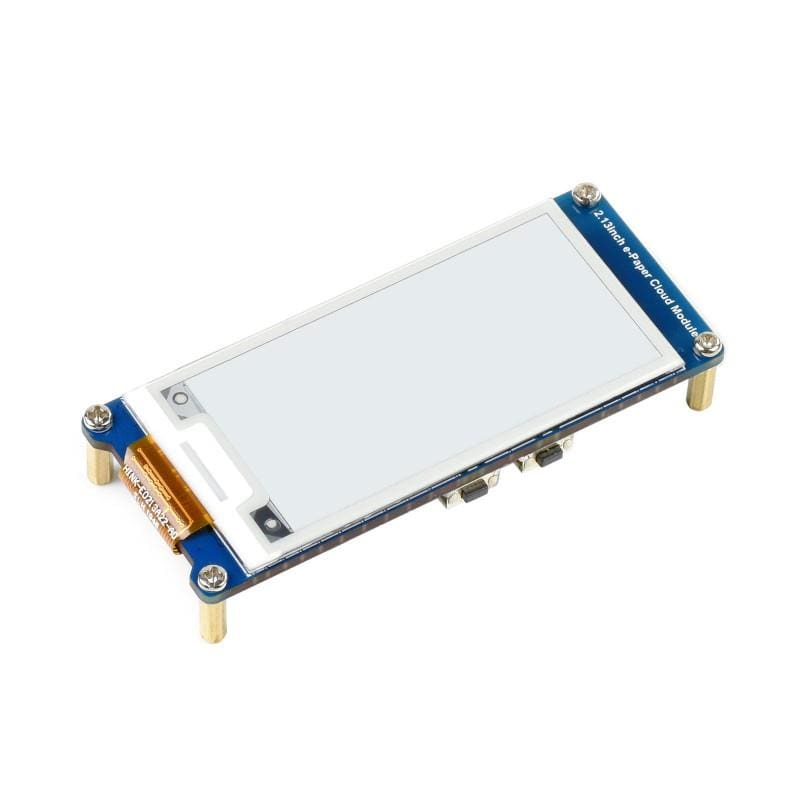

2.13" E-Paper Cloud Module (WiFi Connectivity) (250×122)

WaveshareSKU: WAV-19399
Price:
Sale price £27
incl. VAT
excl. VAT
Stock:
Only 17 units left
Quantity:

Looking for an eInk / ePaper display for your next project that does not require a Raspberry Pi or Raspberry Pi Zero host? Look no further! This amazing little stand-alone black/white two-color 2.13" eInk/ePaper display from Waveshare is perfect for adding an ultra-low-power display that can be updated via a remote webpage or an app on your Android device.

ePaper / eInk displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which loose their image when power is removed, eInk screens are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra low power, designed to have a wide viewing angle, and additionally have limited reflection under sunlight. The applications are limitless!

This 2.13" E-Ink display module from Waveshare comes complete with an embedded controller PCB, communicating via SPI interface, and supports partial refresh.

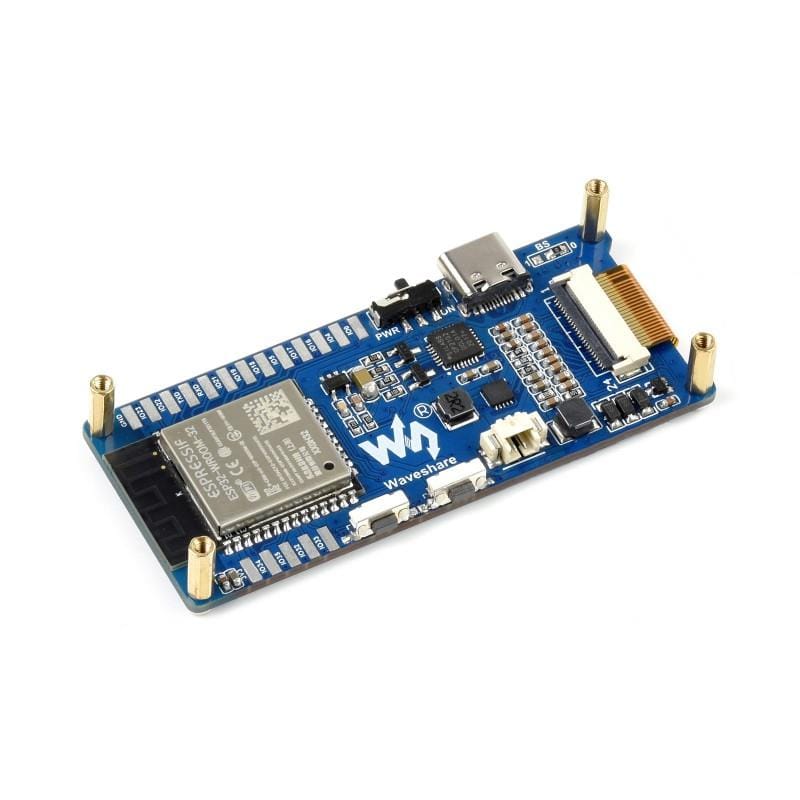

This module includes a 2.13" (212x104) eInk display with an embedded ESP32 and utilizes an Android App for refreshing the image on the display.

Features

  • No backlight - keeps displaying last content for a long time even when power down
  • Ultra-low power consumption, power is only required for refreshing
  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino, etc
  • Incorporates an ESP32, supports Arduino developing
  • Built-in voltage detection circuit for preventing the battery from over-discharging

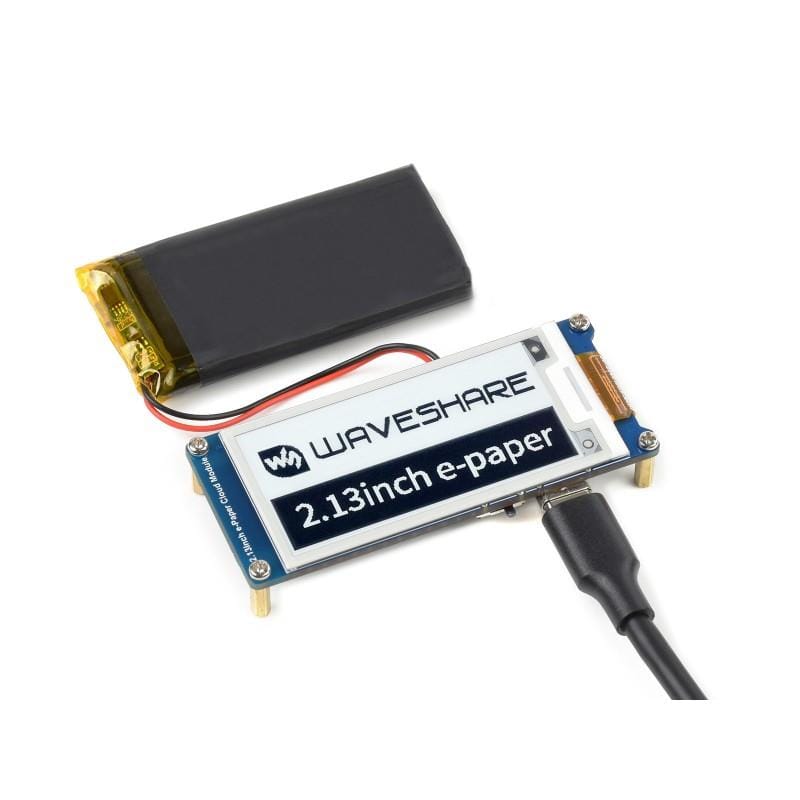

  • Features a battery connector and recharge circuit which allows for off-line usage
  • Provides Android APP for refreshing the module via Bluetooth EDR, easy to use
  • Provides HTML host computer code for refreshing the module via a remote webpage, making this display easy to be integrated into a variety of IoT applications
  • Supports popular image formats: BMP, JPEG, GIF, PNG, etc.

Specification

  • Communication: WiFi 2.4GHz, Bluetooth4.2
  • Battery: 2000mAh
  • Display color: Black, white
  • Power supply: battery
  • Full refresh time: 2s
  • Viewing angle: >170°
  • Resolution: 250x122 pixels
  • Display size:48.55 × 23.70mm
  • Outline Dimensions: 71.0 × 30.2mm
  • Dot pitch: 0.194 × 0.194mm

Resources

Interface

ePaper Pin ESP32 Pin
VCC VCC
GND GND
KEY 12
SCK 13
DIN 14
CS 15
BUSY 25
RST 26
DC 27
ADC 36

PS: The pins described above were connected by default, you need to operate them.

Dimensions
