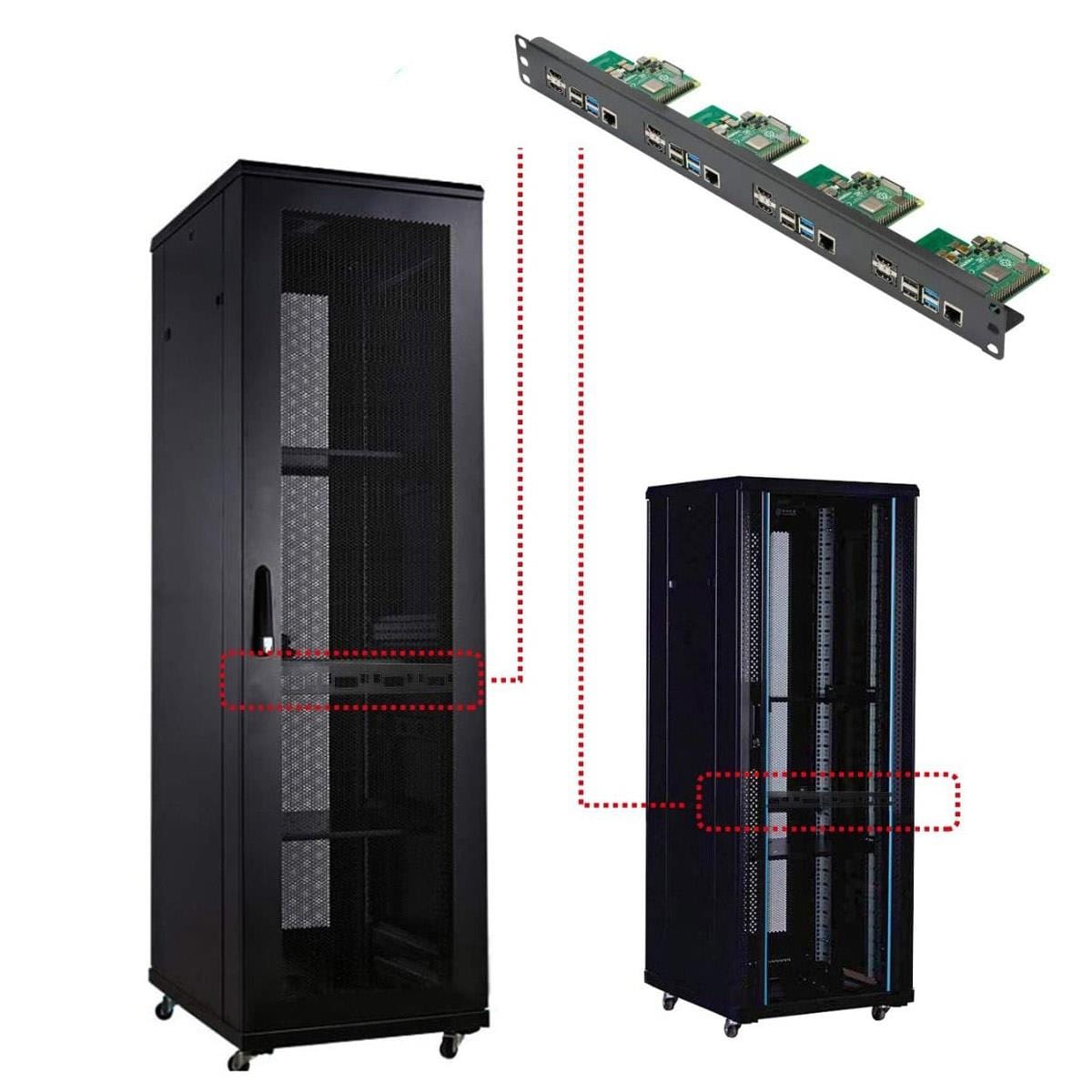

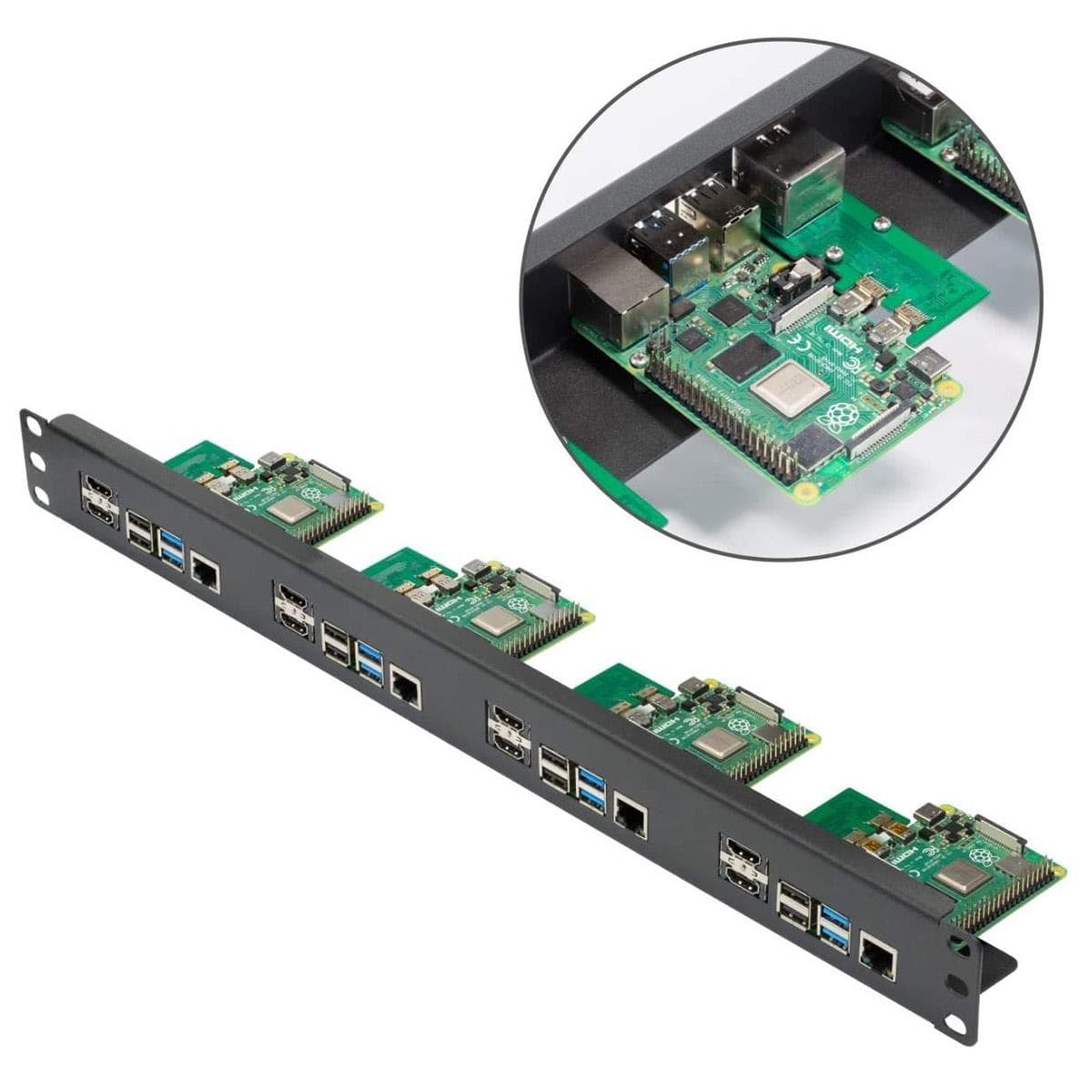

Mount up to four Raspberry Pi 4 boards in your server cabinet with this 19" 1U rack mount from Uctronics.

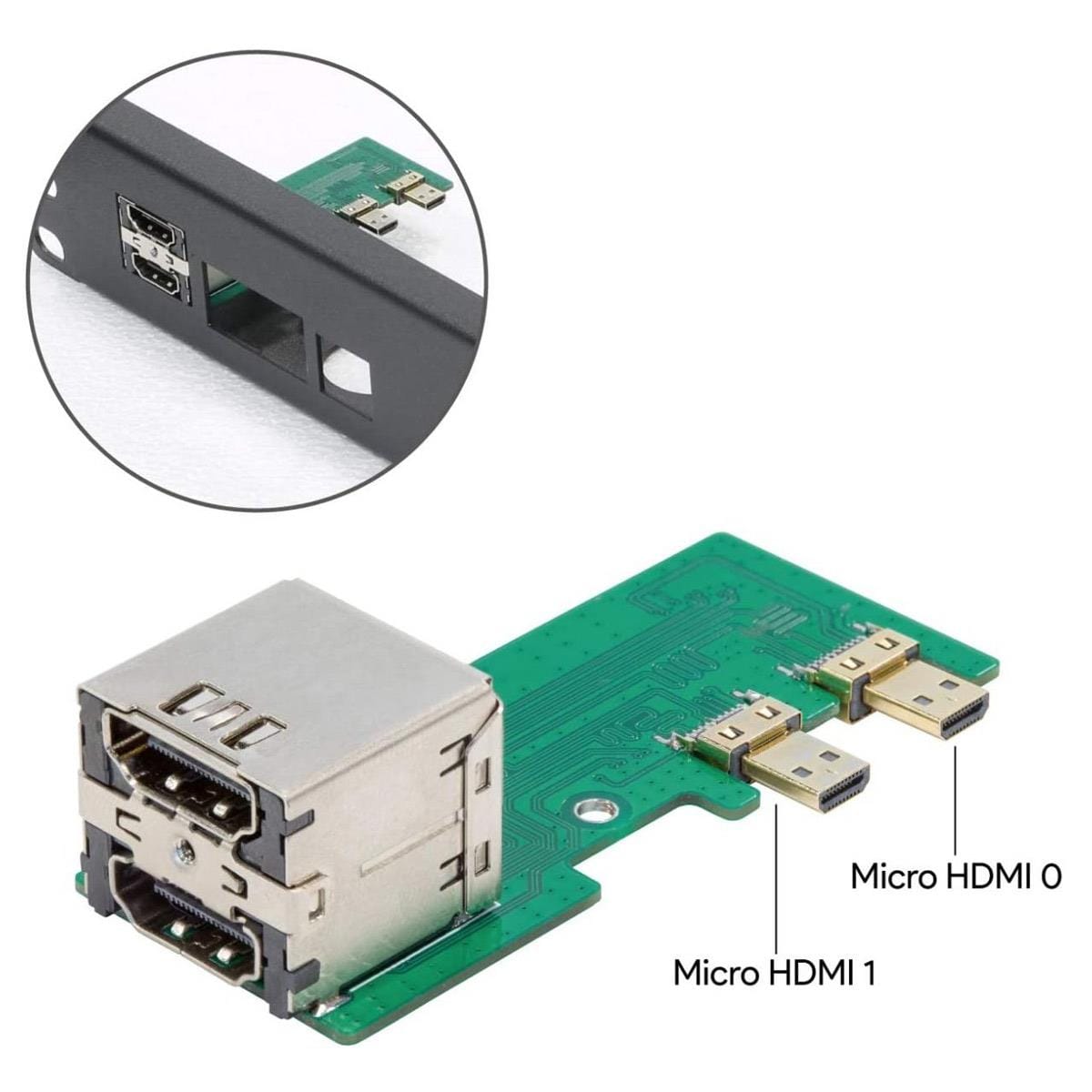

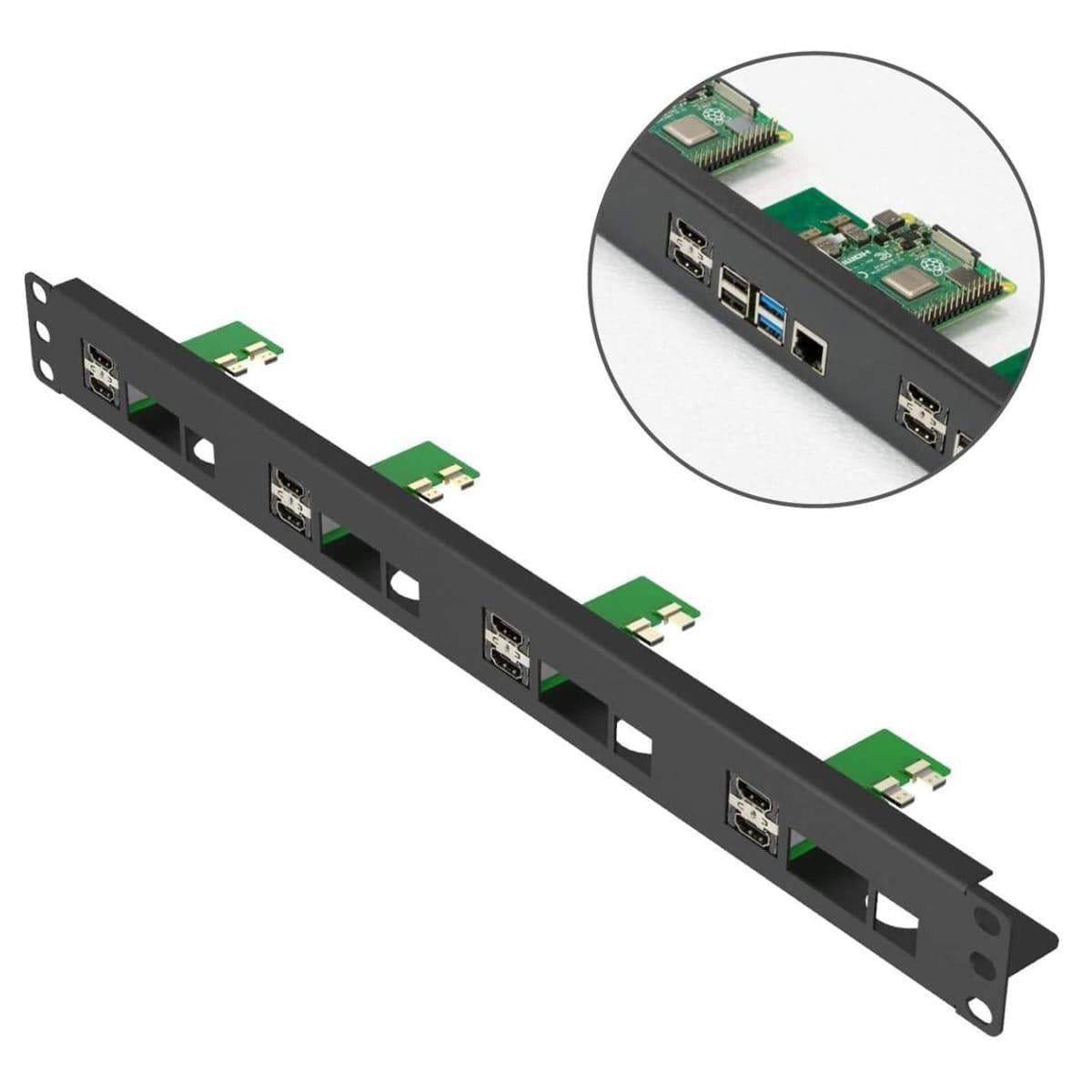

This rack mount solution includes four custom HDMI adapter boards, converting the Raspberry Pi 4 micro-HDMI connections to full-size HDMI, and also brings these out to the front of the rack for convenience.
The rack is standard 1U size (19"x1.75" / 482.6x44.5mm) made of 1.2mm carbon steel with a matte black powder boat finish. All corners are smooth/rounded with no sharp edges.
Features
Designed for Raspberry Pi 4
Standard 1U Size: 19"×1.75"(482.6×44.5mm) - fully compatible with 19” server racks

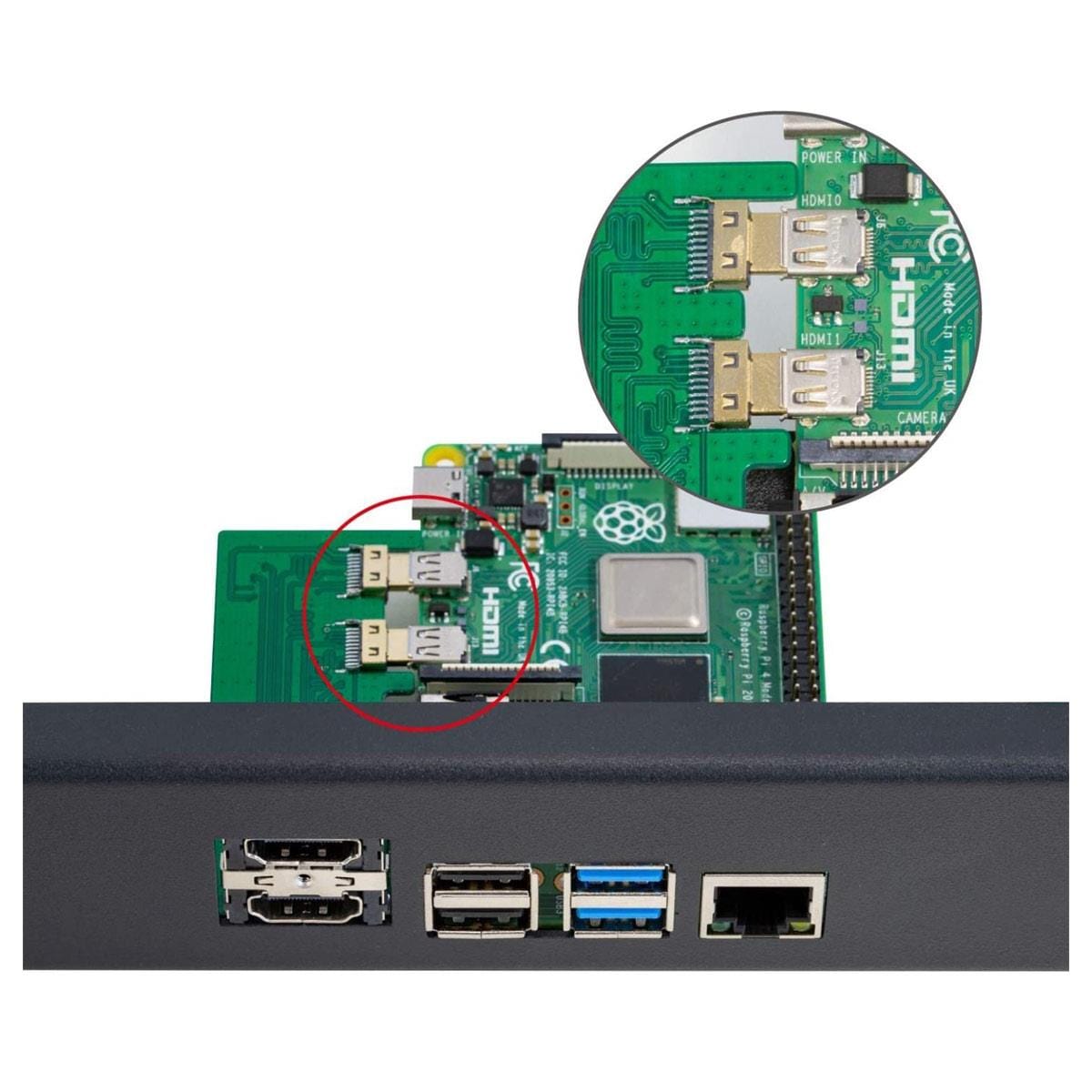

Streamlined Full-size HDMI - Included adapter boards convert the micro-HDMI to full-HDMI internally, eliminating the need for adapters, and relocated HDMI ports keep all IO ports on one side
Easy to Install: Fix the Raspberry Pi boards and Micro HDMI adapters with the included screws; the rack can be vertically mounted on the mounting rail
Quality Build - Sturdy 1.2mm carbon steel, matte black powder coat finish, plate corners are rounded off smooth

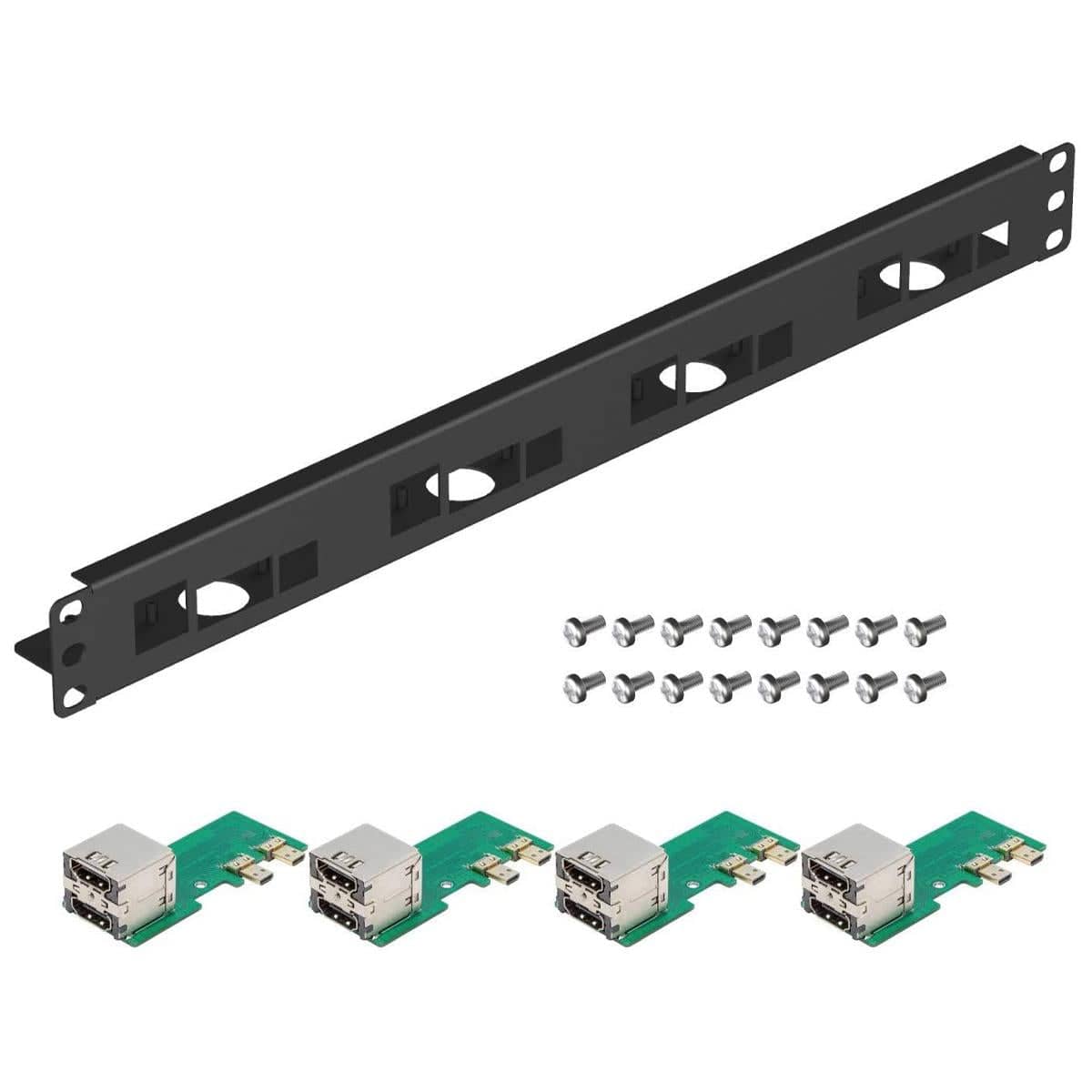

Package Contents
1x 19" Rack for Raspberry Pi
4x Micro HDMI Adapter Boards
16x M2.5 Screws for mounting Raspberry Pi and Adapter Boards
Server Cabinet mounting screws not included. Raspberry Pi not included.
