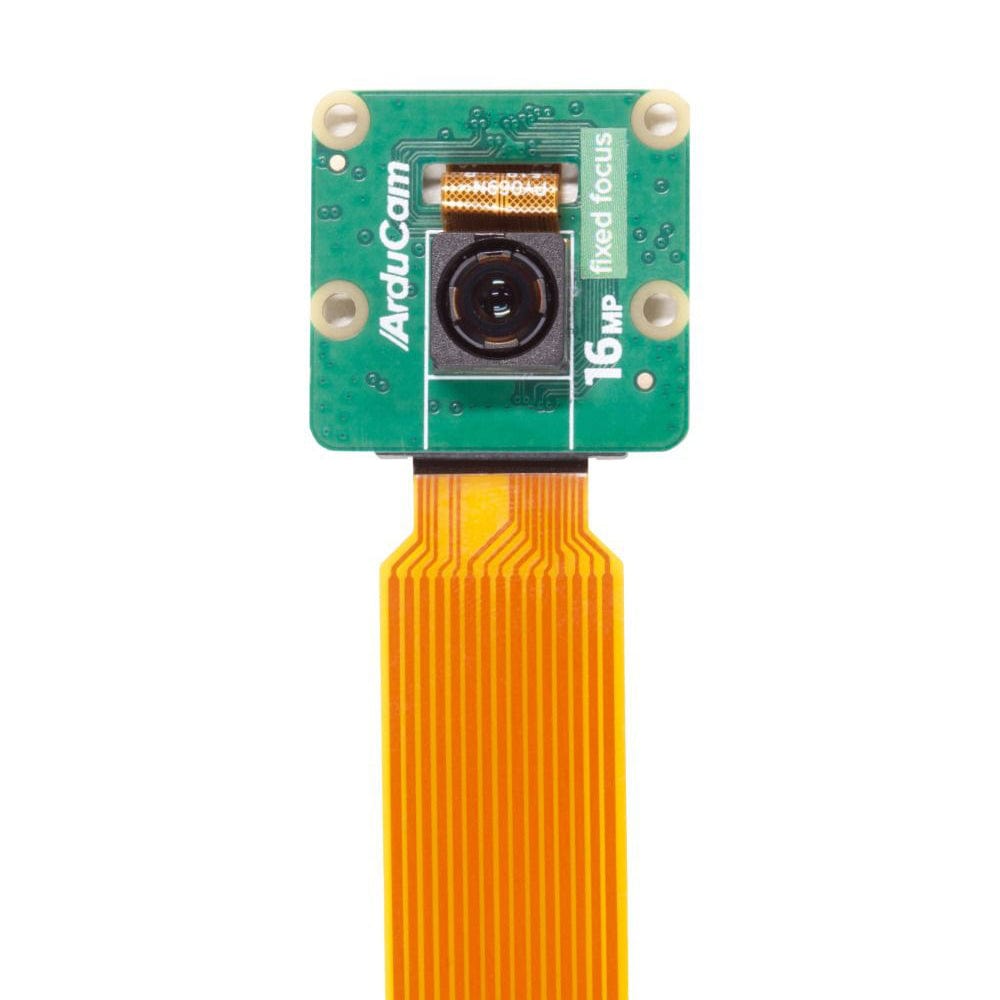

16MP NoIR IMX519 Fixed Focus Camera Module for Raspberry Pi

The Arducam 16MP IMX519 (NOIR) high-resolution camera module for Raspberry Pi offers a high-quality night photography option for those looking to upgrade from other NoIR modules.

With a resolution of 16 megapixels, a stock lens, a V2-like form factor and boatloads of improvements, the camera provides a better choice for all sorts of projects and applications.

To use this camera with a Raspberry Pi 5, you will need to buy this adapter cable!

To use this camera with a Raspberry Pi Zero, you will need to buy this adapter cable!

NoIR Cameras have No InfraRed filter on the lens which makes them perfect for shooting Infrared photography and taking pictures in low light (twilight) environments. NoIR cameras require the target to be flooded with IR light to be able to see at night (otherwise you'll get a mostly black picture!). Day photography isn't ideal with NoIR cameras either - so be sure to pick the ideal camera for your project's needs.

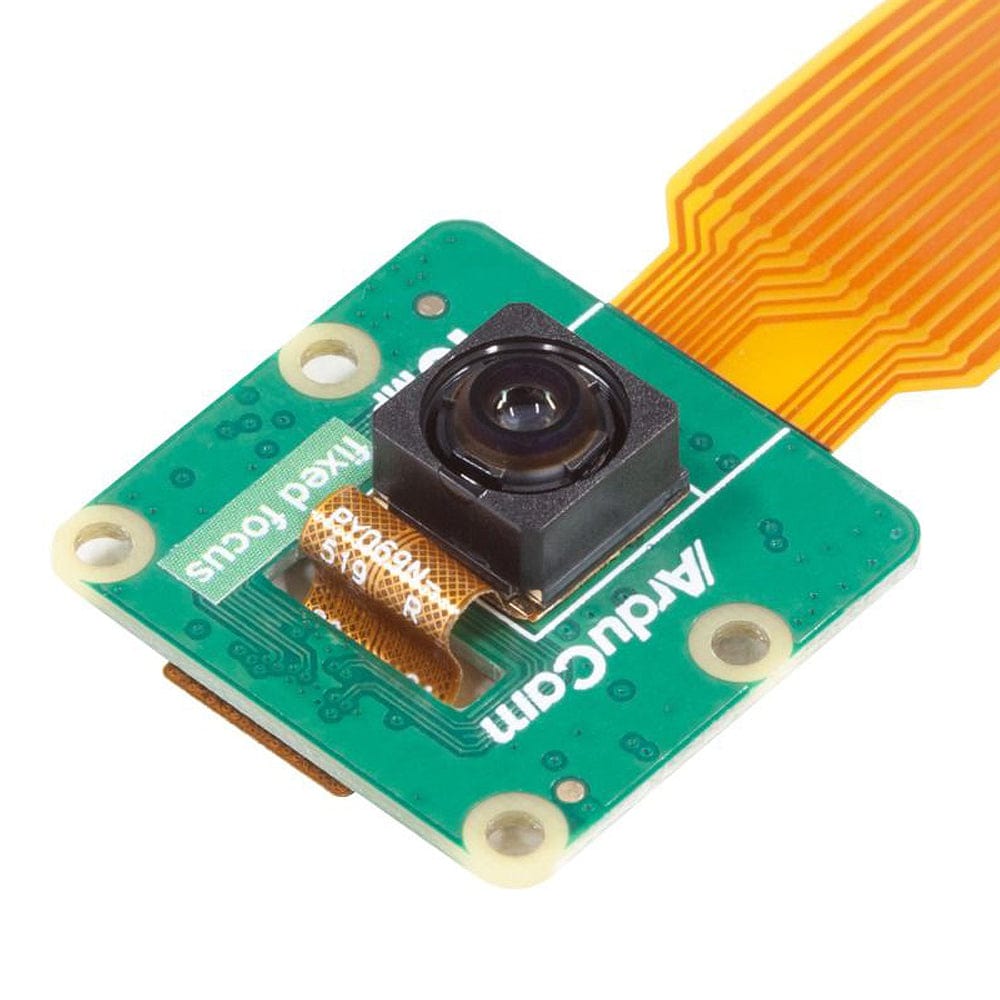

The package contains a camera board with a Sony IMX519 sensor, a stock lens and an FPC cable. Please note: the box/sticker may state "autofocus" however this was a packaging error at the factory. These are fixed-focus NoIR modules.

A compatible case is available, which will allow you to mount the camera using screws or a tripod, whilst also providing protection!

Before you start

Please make sure you are running the latest version of Raspberry Pi OS.

For Bullseye users running on a Pi 0 ~ 3, please also:

• Open a terminal
• Run sudo raspi-config
• Navigate to Advanced Options
• Enable Glamor graphic acceleration

Features

• 16MP for all Raspberry Pi boards: The new Raspberry Pi camera features a 16MP Sony IMX519 sensor with a pixel resolution of 4656 x 3496, twice as high as the V2 camera and 40% higher than the HQ camera

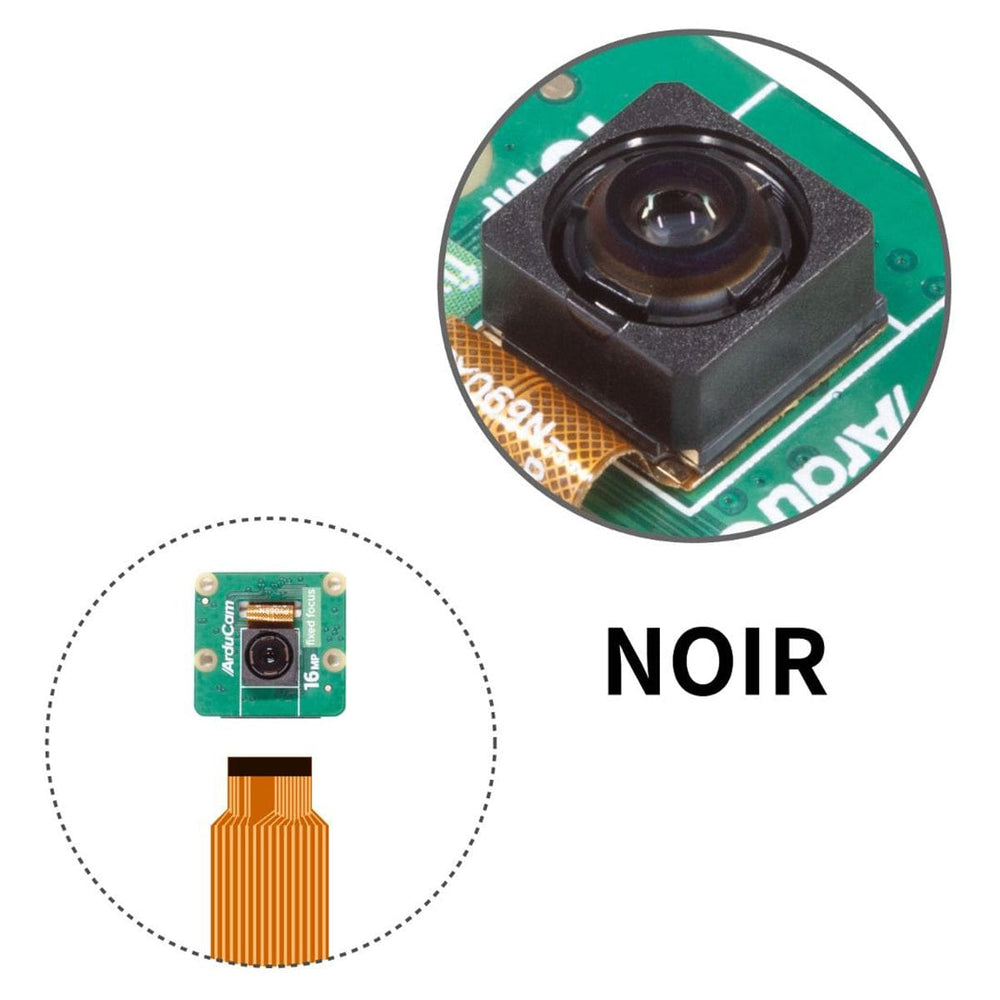

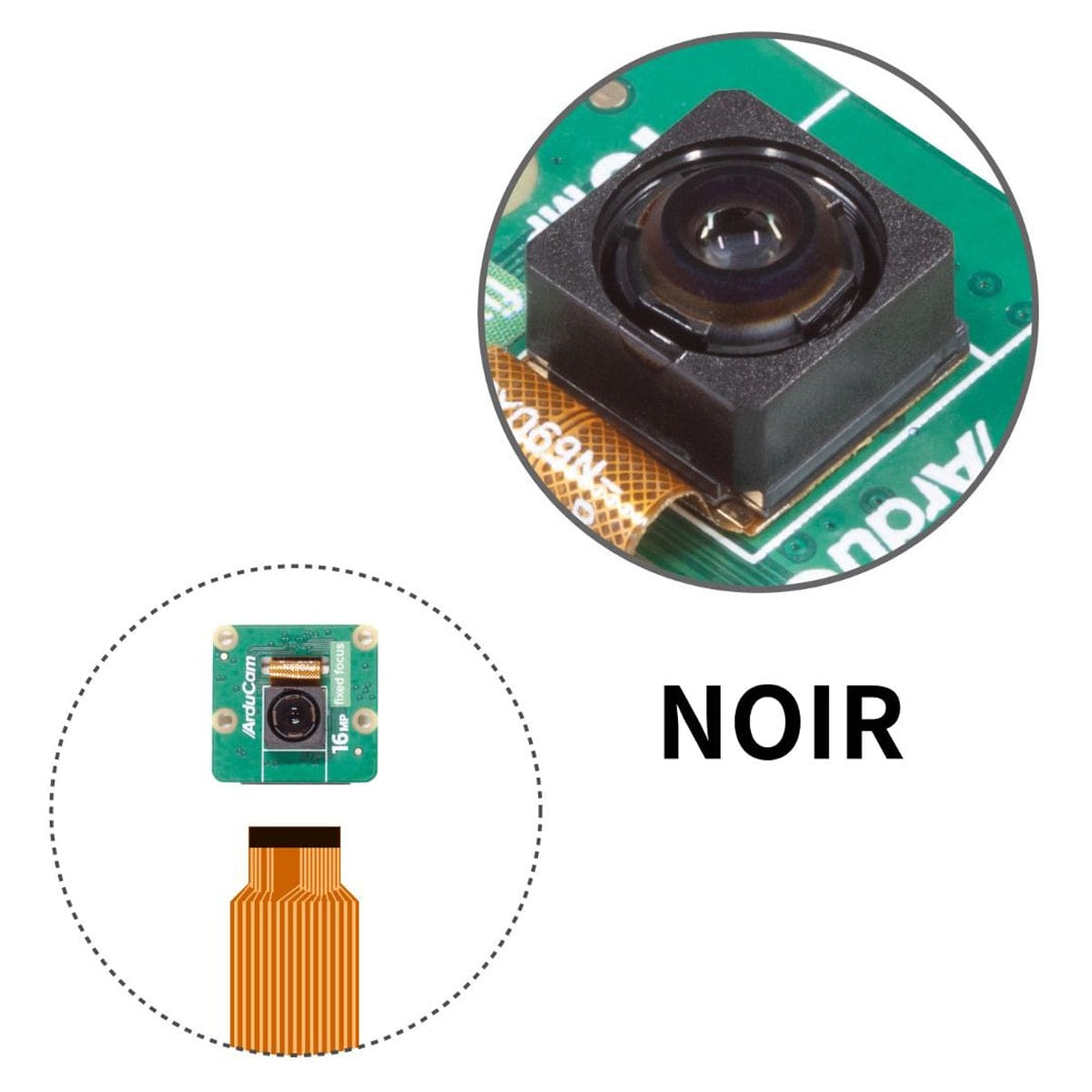

• NoIR: The InfraRed filter has been removed, to allow you to take photos in the dark (with IR lighting)

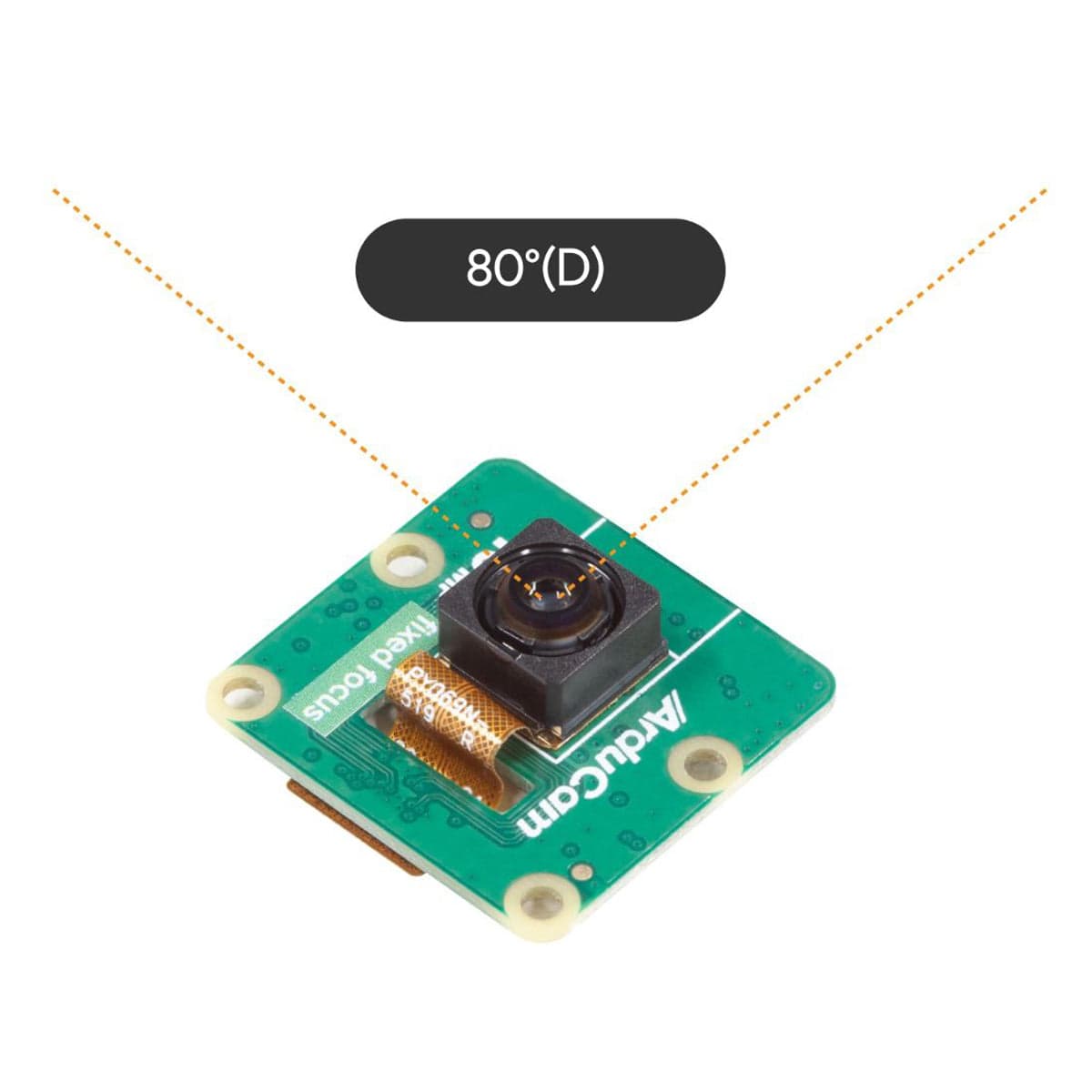

• Crisper Images/Videos: The 16-megapixel camera can capture 1080p Full HD video at up to 30 frames per second and 720p HD video at up to 60 frames per second, and also provides an effective 80-degree field of view
• V1/V2 Size: The camera module has the same size as the RPii camera V2, the package comes with plastic housing, also suitable for V1 and V2 boards.

Compatibility

This camera module is compatible with all Raspberry Pi boards with a full-size camera connector (CSI connector).

• To use this camera with a Raspberry Pi 5 (which has a smaller CSI connector), you will need to use a Raspberry Pi 5 camera adapter cable

• To use this camera with a Raspberry Pi Zero (which has a smaller CSI connector), you will need to use an adapter cable

Specifications

• Sensor: Sony IMX519 stacked, back-illuminated sensor 16 megapixels,  1.22 µm × 1.22 µm pixel size, 7.103 mm diagonal (Type 1/2.534)
• Output: RAW10/8, COMP8
• Lens: f/1.75; EFL: 4.28; FoV: 80°
• IR cut Filter: NoIR - without IR Filter, IR sensitive
• Video Modes: 1080p@30fps, 720p@60fps
• Linux integration: V4L2 driver available
• Ribbon Cable Length: 150mm

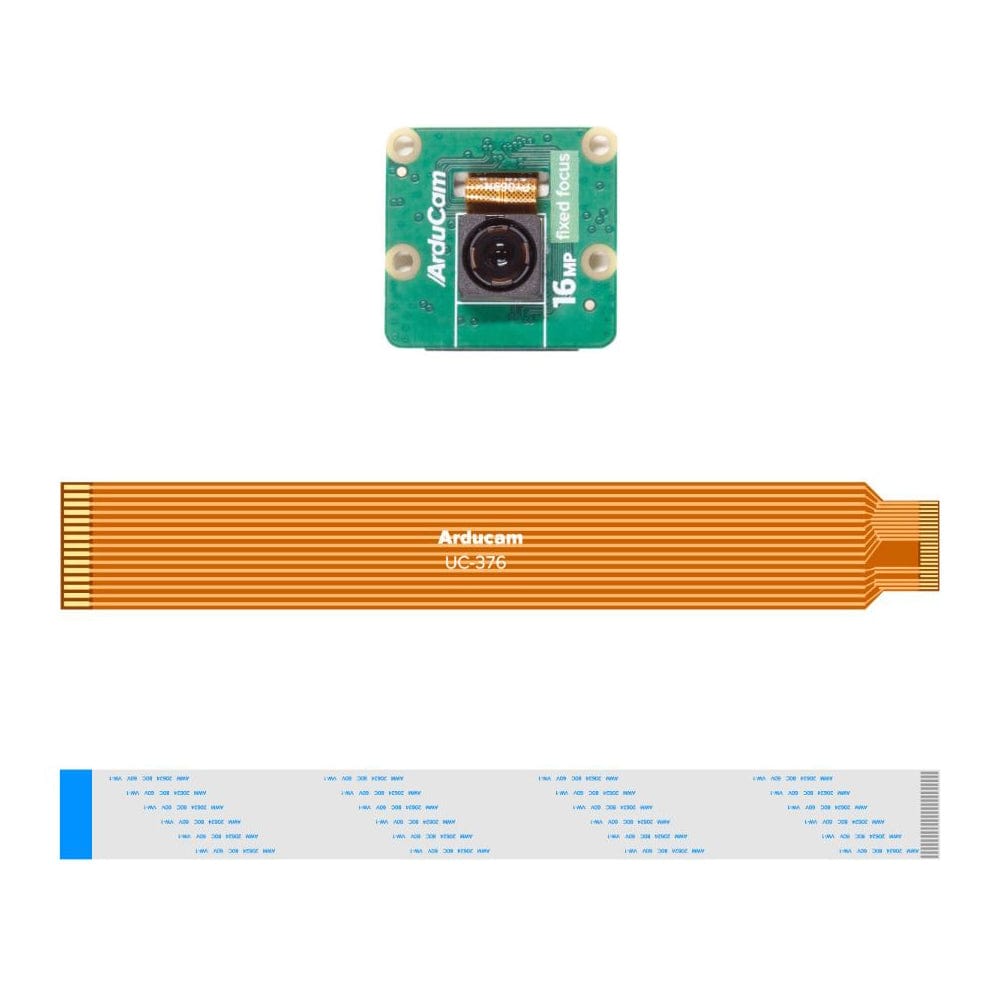

Package Contents

• 1x 16MP NoIR IMX5189 fixed focus camera module
• 1x FPC cable

Resources

• Product Manual
