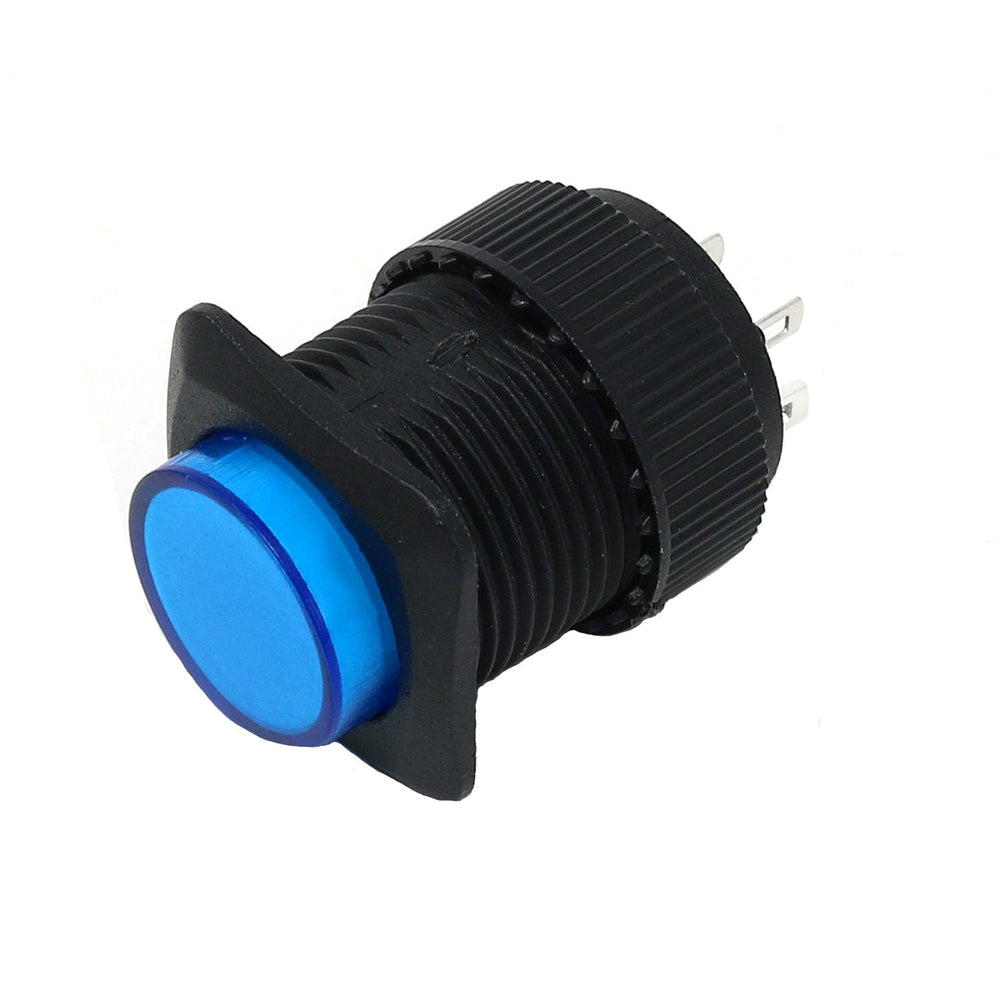

16mm Illuminated Pushbutton - Blue Latching On/Off Switch

(8 Reviews)
Sale price £1.70
incl. VAT
excl. VAT
In stock

A switch is a switch, and an LED is an LED, but this LED illuminated button is a lovely combination of both!

It's a medium-sized button, large enough to press easily but not too big that it gets in the way of your project panel. It has a built-in LED that can be controlled separately from the switch action - either to indicate or just to look good.

Note: Cables not included

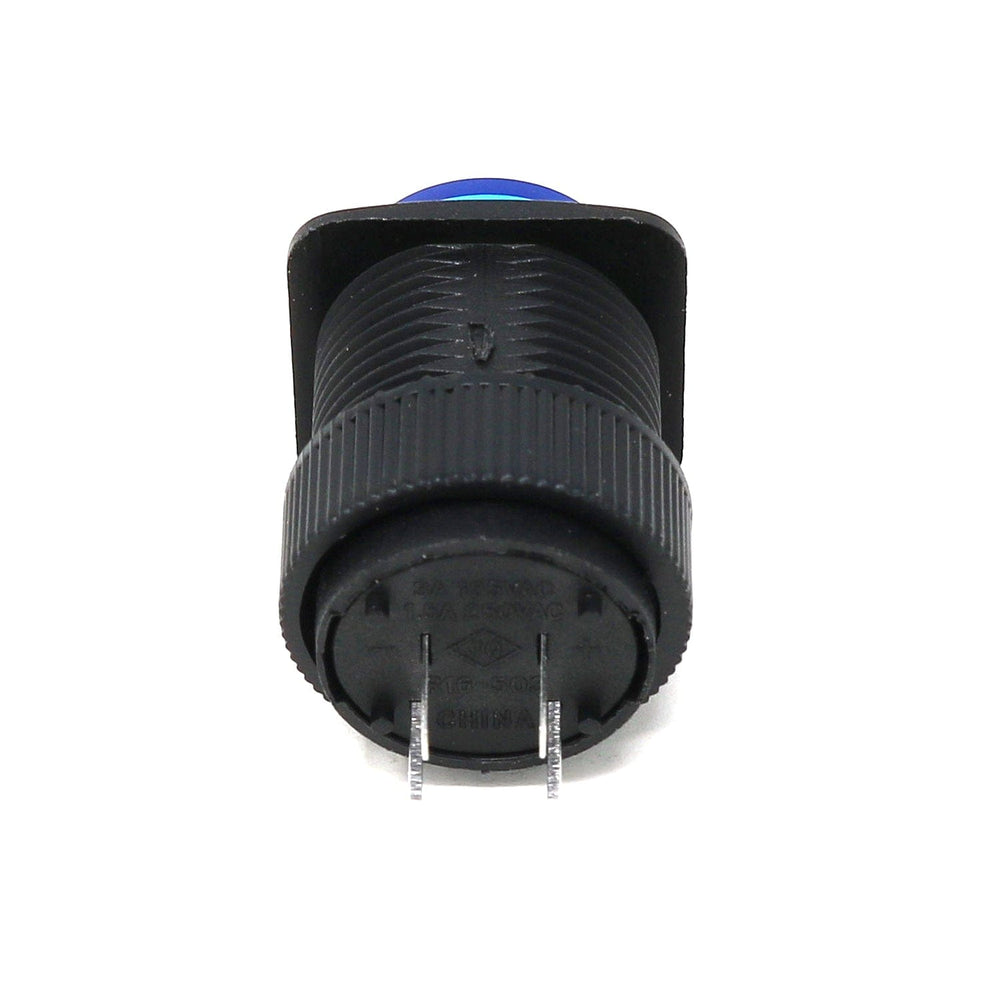

The body is black plastic with an LED built inside. There are two contacts for the button and two contacts for the LED, one marked + and one -. The forward voltage of the LED is about 3V so connect a 220 to 1000 ohm resistor in series just as you would with any other LED to your 3V or higher power supply.

This particular button has a blue body and LED and is latching on/off. The two switch contacts are either connected or disconnected. When you push the button they will switch from one to the other, like an on-off switch. The LED is separated from the button, so you can make it light up when on, light up when off, always lit, etc.

Technical details

  • Switch Rating: 1.5A 250VAC
  • Max Dimensions: 18.06mm x 18mm x 29.4mm
  • Shaft Dimensions: 14.89mm x 15.56mm x 18.7mm
  • Button Height: 5mm
  • Button Height Depressed: 3.5mm
  • Weight: 4.6g
