16MB PSRAM Chip for Teensy 4.1

The SparkFun 16MB PSRAM Chip for Teensy 4.1 adds 128Mbit (16MB) of high-speed pseudo-static RAM using SPI and QPI interfaces, providing expanded memory capacity for advanced Teensy 4.1 applications and data-intensive projects.

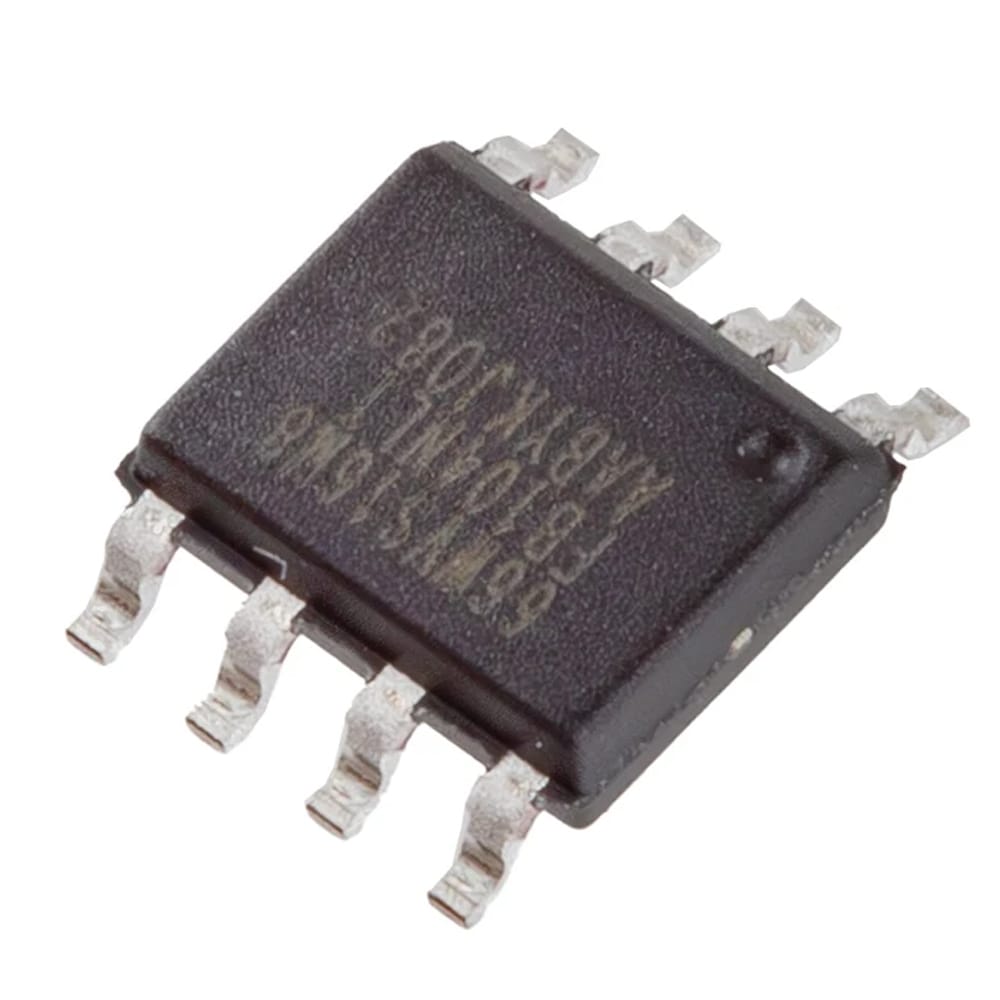

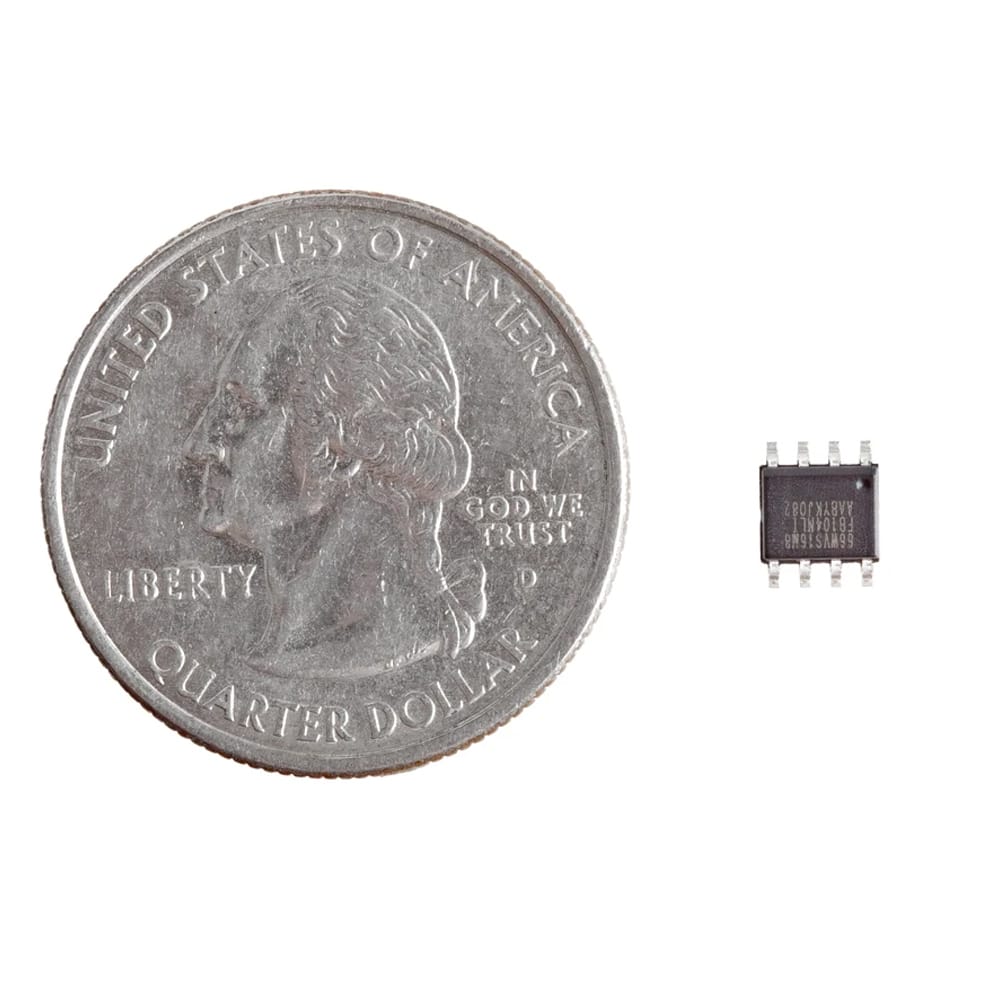

The SparkFun 16MB PSRAM Chip for Teensy 4.1 (IS66WVS16M8FBLL-104NLI) is an integrated memory device containing 128 Mbits of Pseudo Static Random Access Memory (PSRAM) using a self-refresh DRAM array organized as 16 Megabytes words by 8 bits.

This device is a dual die stack of two 64Mb die.

The device supports SPI (Serial Peripheral Interface) & QPI (Quad Peripheral Interface) protocols, Very Low Signal Count (6 signal pins: CLK, CE#, and 4 SIOs), Hidden Refresh Operation, and Industrial temperature and Automotive A2-grade temperature.

In-Band Reset is supported instead of a dedicated RESET# pin, and the minimum transferred data size is 8 bits.

Features and Specifications

• Memory Size: 128 Mbit
• Memory Type: PSRAM
• Organization: 16 M x 8
• Access Time: 7ns
• Maximum Clock Frequency: 104MHz
• Interface Type: SPI
• Supply Voltage - Max: 3.6V
• Supply Voltage - Min: 2.7V
• Supply Current - Max: 300uA
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: +85°C
• Mounting: SMD/SMT

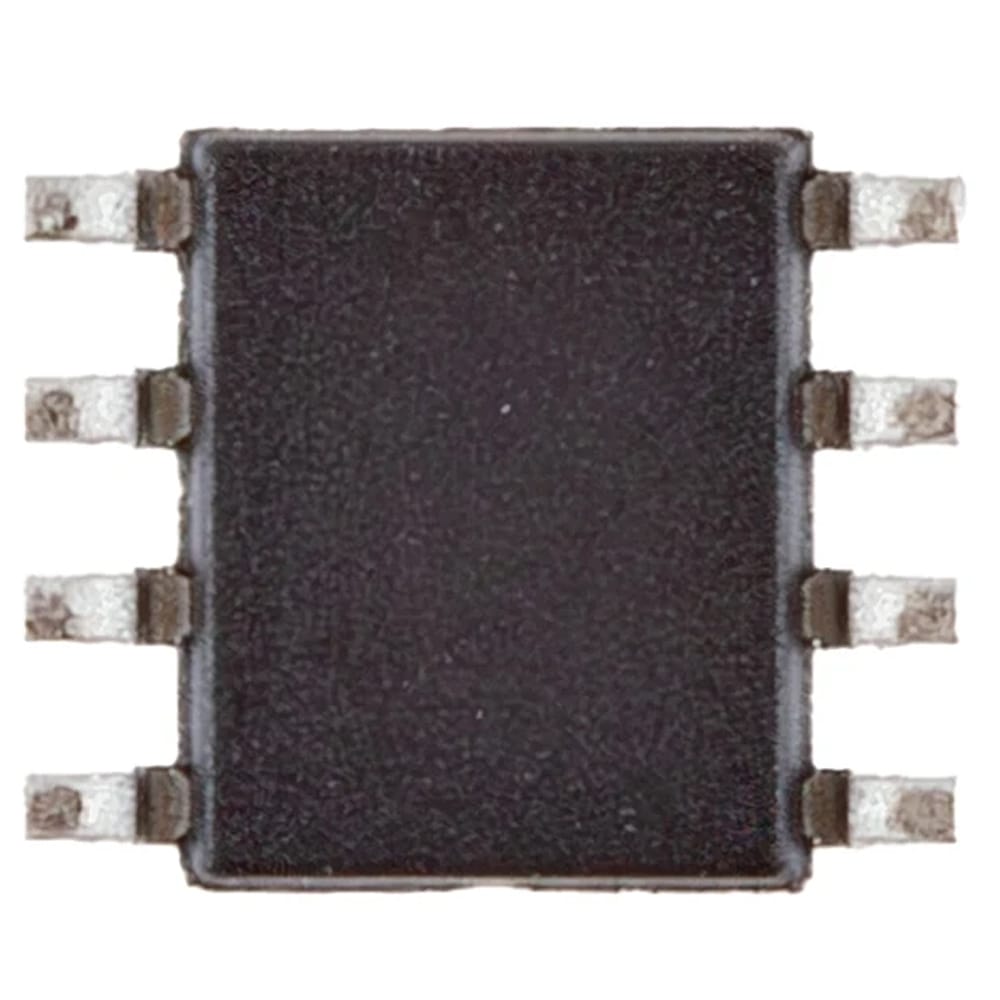

• Package: SOIC-8
• Moisture Sensitive: Yes

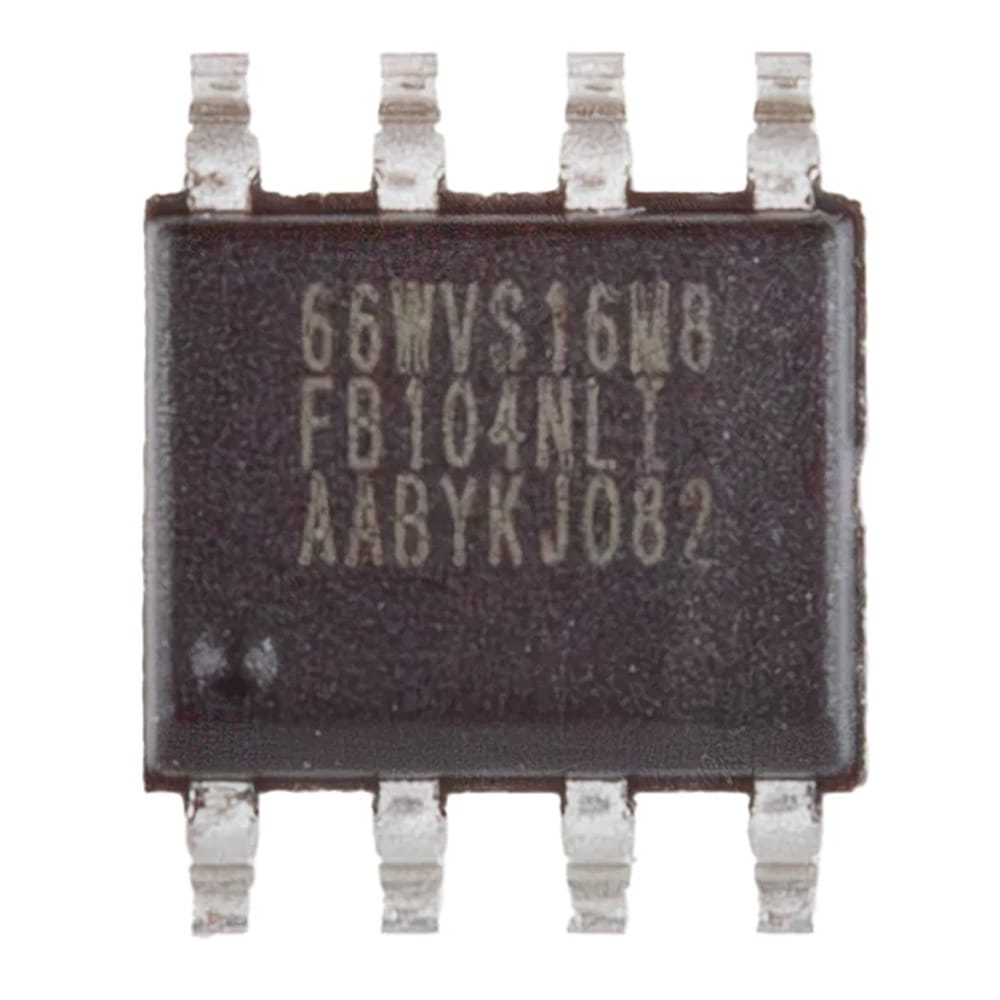

• MFG #: IS66WVS16M8FBLL-104NLI

Resources

• Product datasheet

Package Contents

• 1x 16MB PSRAM Chip for Teensy 4.1
