15V 4.3A 65W Power Supply

PowerPaxSKU: MMP-0596
Price:
Sale price £23.90
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

(20 Reviews)
The Pi HutIn-line power switch for 2.1mm barrel jack
Sale price £2.20 incl. VAT excl. VAT
(3 Reviews)
ModMyPi"Kettle" Type Power Cable 2m - IEC C13 (UK)
Sale price £3 incl. VAT excl. VAT
(5 Reviews)
The Pi HutPanel Mount 2.1mm DC barrel jack
Sale price £2.60 incl. VAT excl. VAT

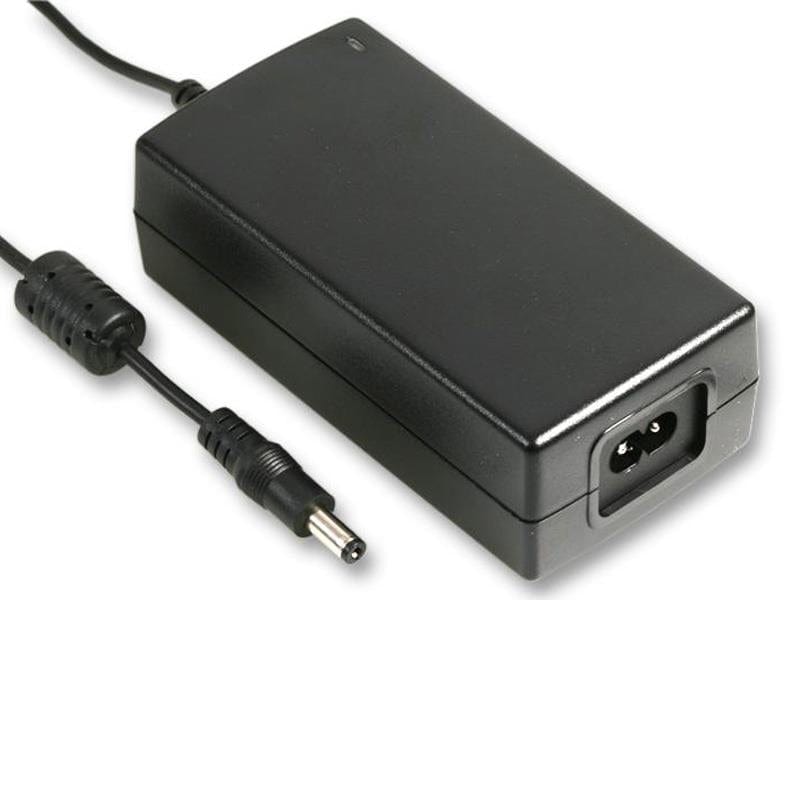

This 65W PowerPax power supply offers 15V 4.3A for your project via a standard 2.1mm barrel jack connection.

The power supply does not come with a plug but has an IEC C8 (figure 8) connection for adding your own plug cable assembly - we stock UK, EU and US IEC cables in the store.

Datasheet available here

Features

  • 15V power supply
  • 4.3A output current
  • 2.1 x 5.5 x 12mm output connector (+ve centre)
  • Universal / Full range AC input
  • IEC C8 2-pin input
  • Fully enclosed plastic case
  • Small & Compact design
  • Cost-effective and high reliability
  • Protection: Over Voltage, Short circuit & Over Current
  • Comprehensive safety approvals for world use
  • MTBF >50,000 hours
  • 150mV ripple and noise

Specification

  • Current Min: 0.01A
  • Input current: 1.4A max 65W
  • Load Regulation: +/-5 % Typical
  • Case Size: 115 x 53 x 38mm
  • DC Cord: 1.5 Metres
  • Output Connector Polarity: +Ve Centre
  • Rated Input Voltage: 100-240Vac (90-264vac max)
  • Rated Frequency: 50-60Hz (47/63Hz max)
  • Efficiency: DoE CEC VI / rP stage 2
  • Operang Temperature: 0 to 40 degrees C
  • Storage Temperature: -20 to 80 degrees C
  • Operang Humidity: 10% to 90%
  • Ripple & Noise: 1—2% Vp-p Max of O/P V at Full load
