13A 6V-30V DC Motor Driver

This DC Motor Driver allows bi-directional control of a single brushed DC motor. Supporting motor voltages from 6V to 30VDC, it can handle up to 13A continuous current and 30A peak for up to 10 seconds, making it ideal for various motor control tasks. Its small size allows for easy integration into your projects without taking up much space.

The driver board is compatible with the Arduino or any microcontroller that can output logic signal at 3.3V or 5V, and that includes the famous Raspberry Pi too! It is also Grove-compatible, providing easy connections for your next Grove project. With built-in protections against overcurrent and overheating, it works well even when things get a bit tricky.

Features

• Bi-directional control for 1 brushed DC motor
• Support motor voltage from 6V to 30VDC
• Maximum current up to 13A continuous and 30A peak (10 seconds)
• Grove compatible
• 3.3V and 5V logic level input.
• Solid state components provide faster response time and eliminate the wear and tear of mechanical relay
• Fully NMOS H-Bridge for better efficiency and no heat sink is required
• Regenerative Braking
• Speed control PWM frequency up to 20KHz (Actual output frequency is same as input frequency)
• Supports both locked-antiphase and sign-magnitude PWM operation, *NOT RC (Radio Control) PWM
• SMD compatible
• RoHS, FCC and CE compliance
• Dimensions: 61mm x 33mm

What's on Board

Specifications

Resources

• User's Manual
• Arduino Library with Example (Github)
• Controlling MD10C with Arduino, just follow the connection and code, MD10C and MD13S are compatible
• MD13S Footprint Eagle library
• Fritzing file
• RoHS Certificate
• FCC Certificate
• CE Certificate
• MD13S CAD file

Pinout

Package Contents

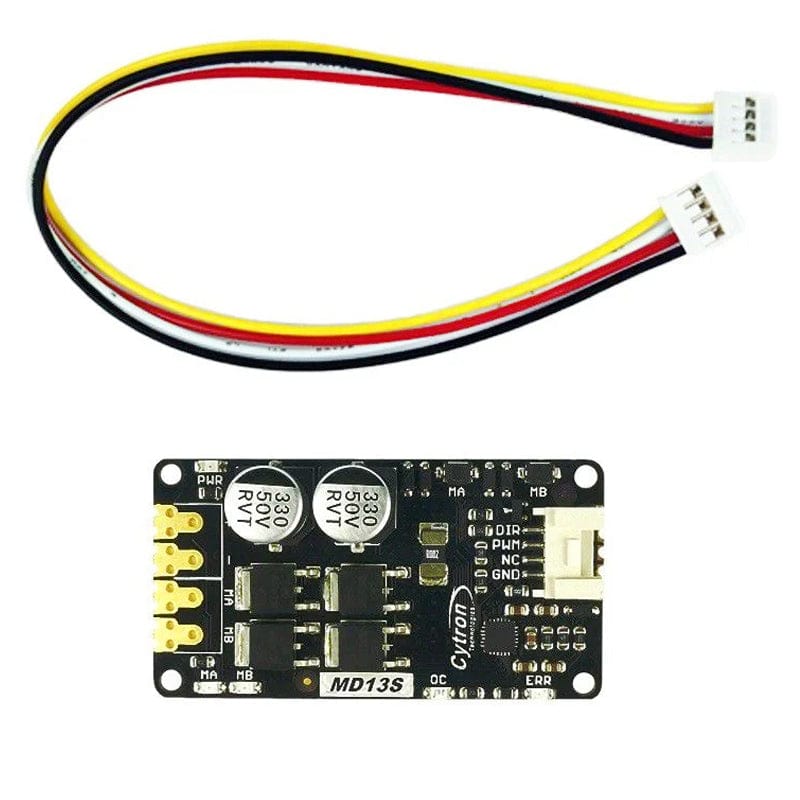

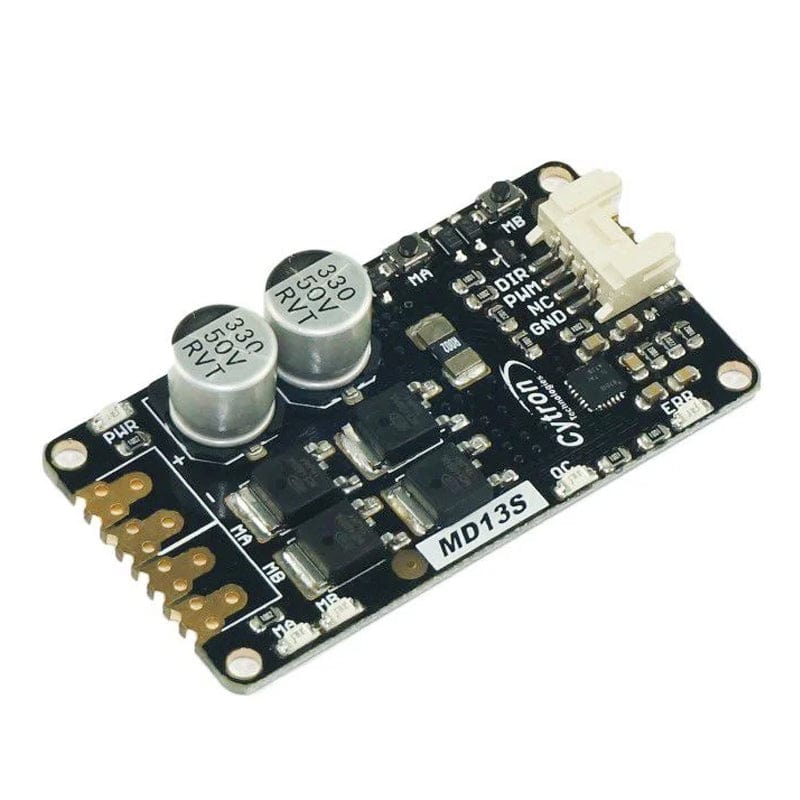

• 1 x MD13S Motor Driver Board
• 1 x Grove connector (Grove to Grove)
