This 10.85" e-Paper Display (G) shows red, yellow, black, and white at 1360×480 resolution. Includes a Raspberry Pi HAT with 3.3V/5V support and SPI interface for other dev boards. Power-efficient with no backlight - refresh only when needed!

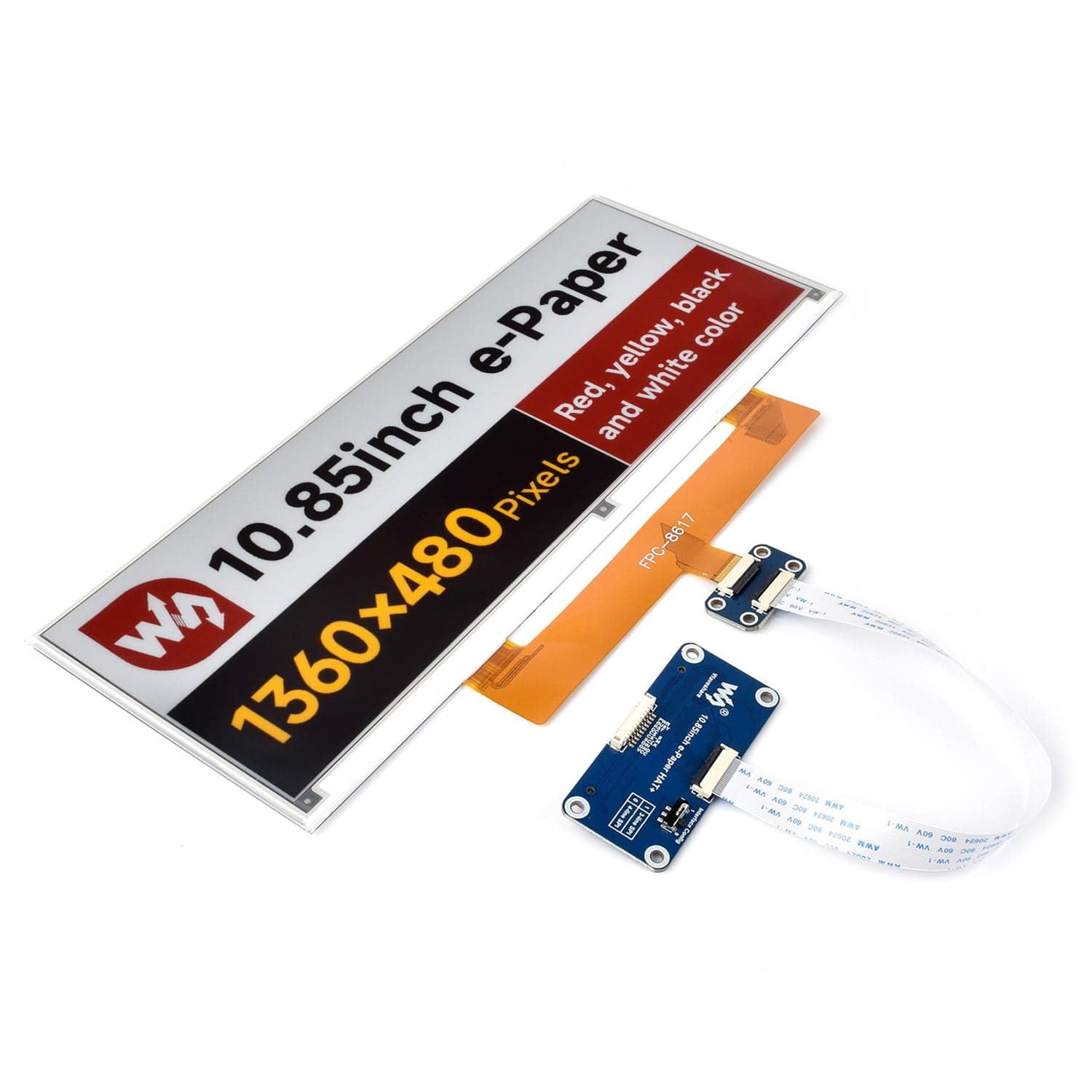

This 10.85" e-Paper display (G) offers a 1360x480 resolution and supports four colours: red, yellow, black and white. It comes with a HAT to connect to Raspberry Pi, however can also connect via SPI to a wide range of other platforms, including Arduino and ESP32, with the included cable.

Like all e-Paper displays, it uses microcapsule electrophoretic technology to reflect ambient light - similar to traditional ink on paper - meaning it can be viewed clearly under natural or artificial light without a backlight. The display consumes power only when refreshing and retains its image without power, making it ideal for static or low-refresh applications.

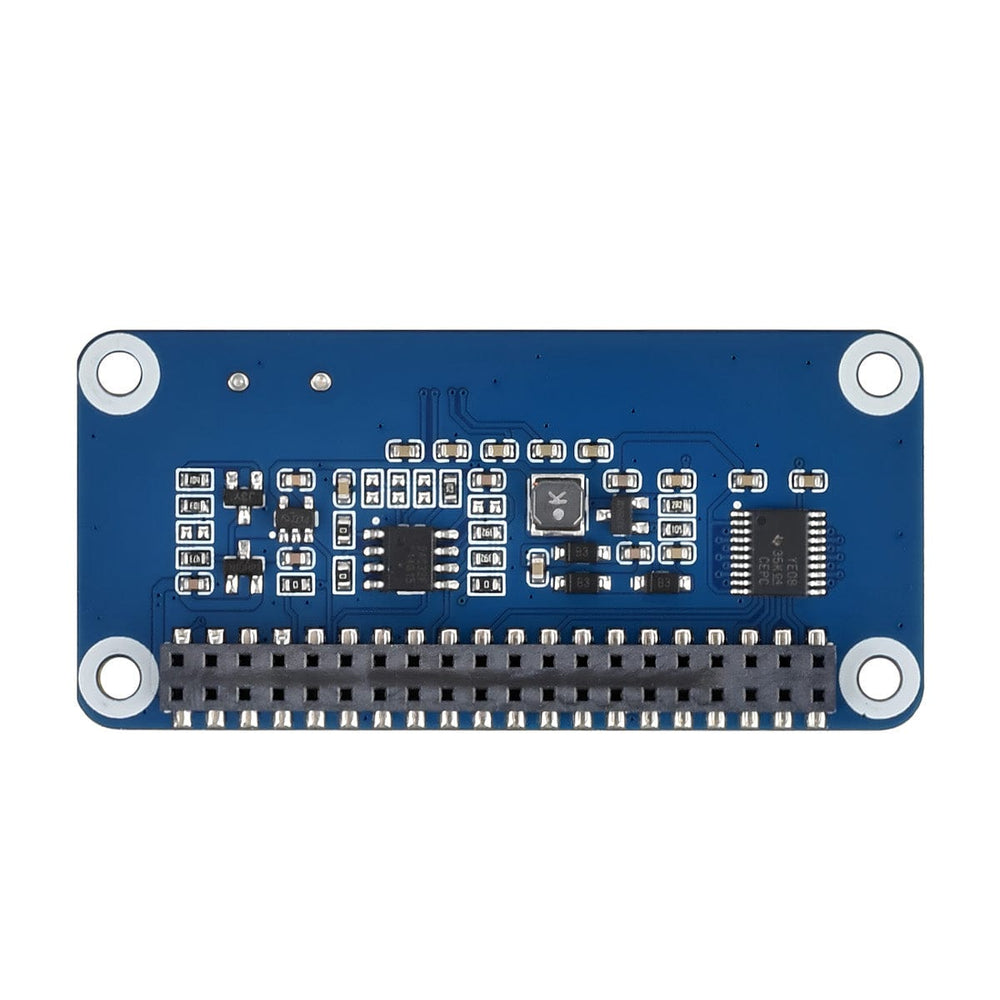

This variant includes the Waveshare e-Paper Driver HAT, which provides a Raspberry Pi-compatible SPI interface, HAT+ standard GPIO header, and onboard voltage translation for use with both 3.3V and 5V MCUs. Note that the full refresh time is approximately 21 seconds, and partial refresh is not supported.

Online resources are available, including the HAT circuit diagram and example code for supported platforms.

Raspberry Pi not included.

Features

  • 10.85" e-Paper display with 1360×480 resolution
  • Full refresh only, approx. 21s; partial refresh not supported
  • Displays red, yellow, black and white
  • No backlight – retains image without power
  • Ultra low power consumption – power only needed for refresh
  • Uses SPI interface for controller connection
  • Supports Raspberry Pi, Arduino, ESP32 and more

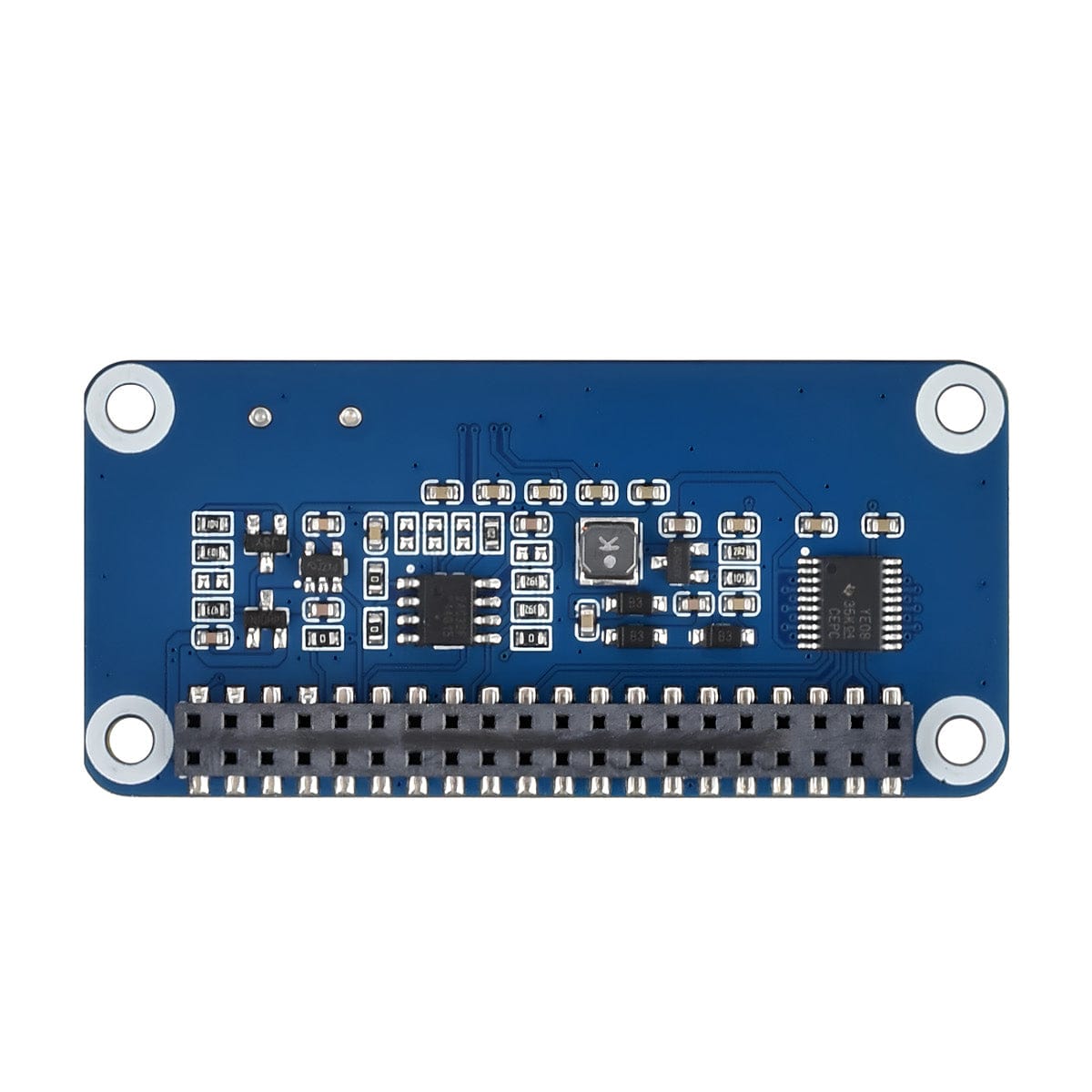

  • Includes Waveshare e-Paper Driver HAT with onboard SPI control interface
  • 40-pin GPIO header for Raspberry Pi compatibility

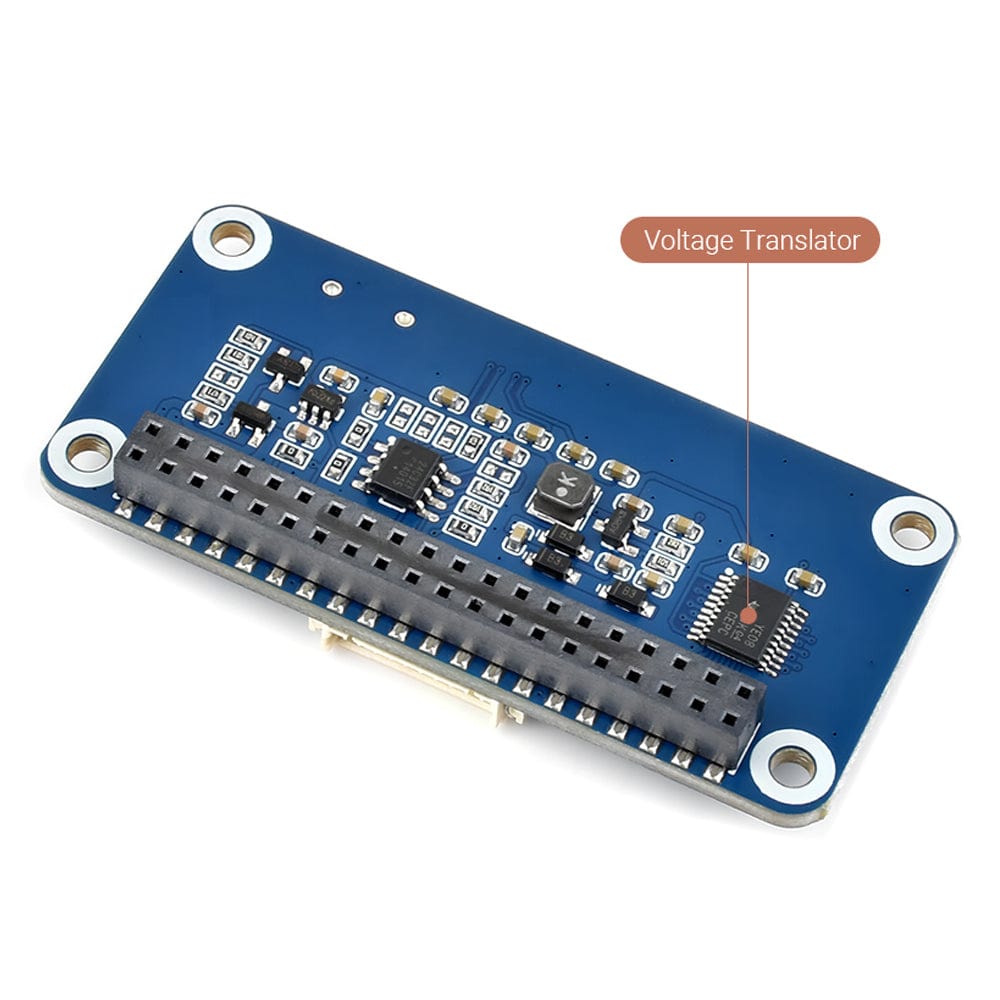

  • Onboard voltage translator – supports 3.3V and 5V MCUs
  • Wide viewing angle, readable in sunlight or lamplight
  • Online resources and code examples

Specifications

Operating voltage Raw display: 3.3V
With driver board: 3.3V/5V
Display colour Red/Yellow/Black/White
Interface 3-wire SPI, 4-wire SPI
Grey scale 2

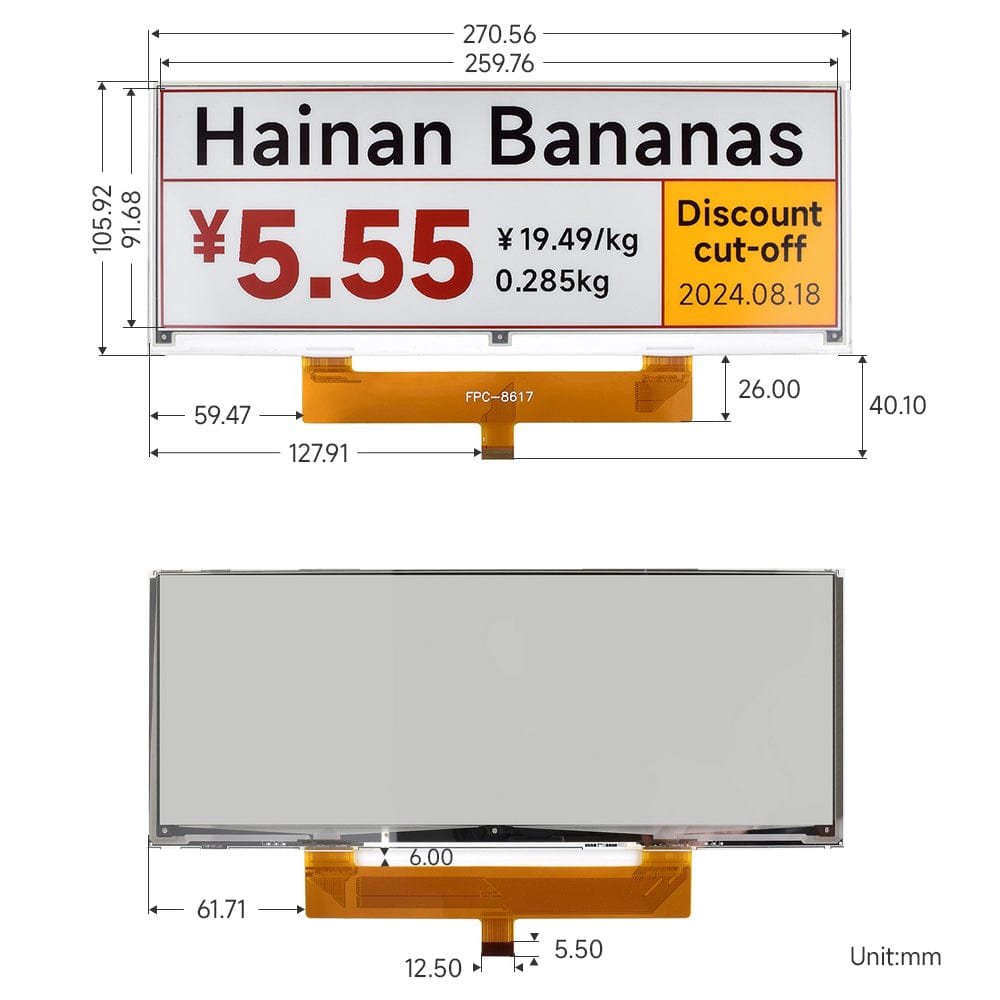

Outline dimensions Raw display: 270.56 × 105.92 × 1.20 (mm)

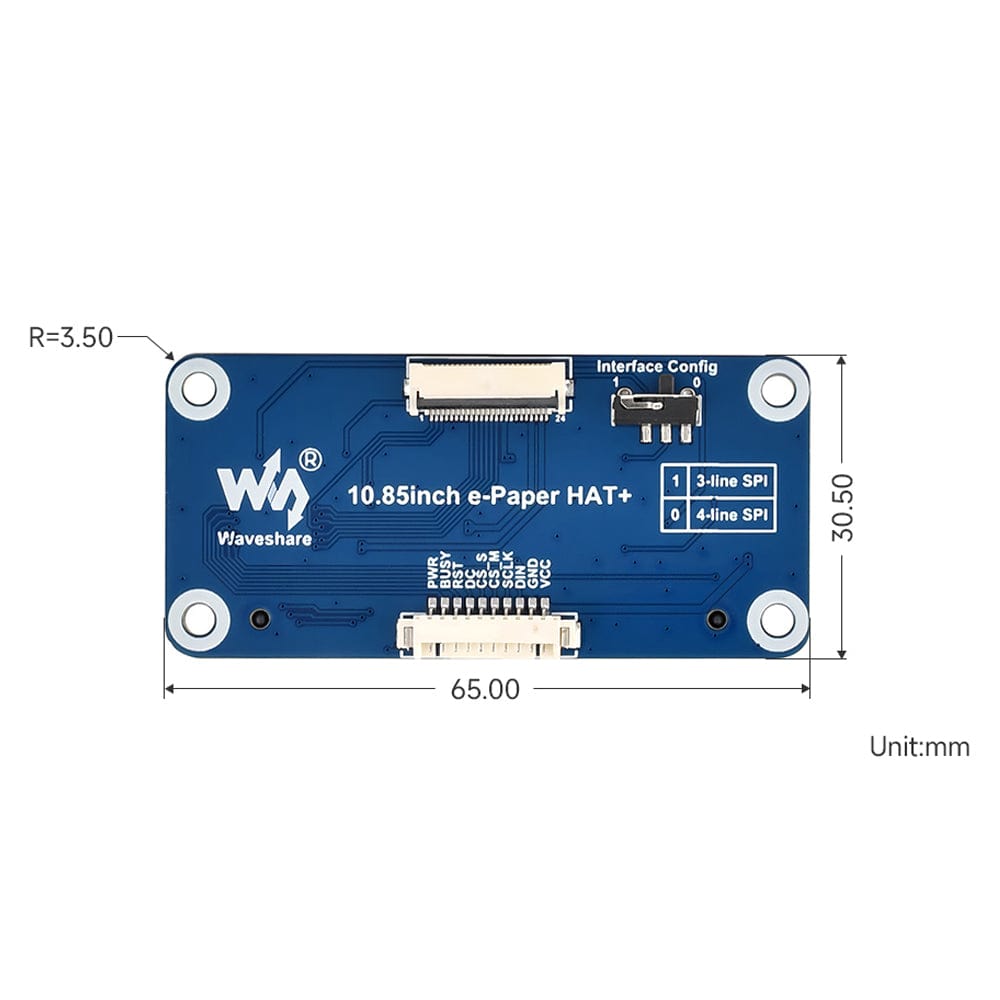

With driver board: 65.00 × 30.50 (mm)
Full refresh time 21s
Display size 259.76 × 91.68 (mm)
Refresh power <70mW
Dot pitch 0.191 × 0.191 (mm)
Standby current <0.01uA (almost none)
Resolution 1360 × 480 pixels
Viewing angle >170°

Resources

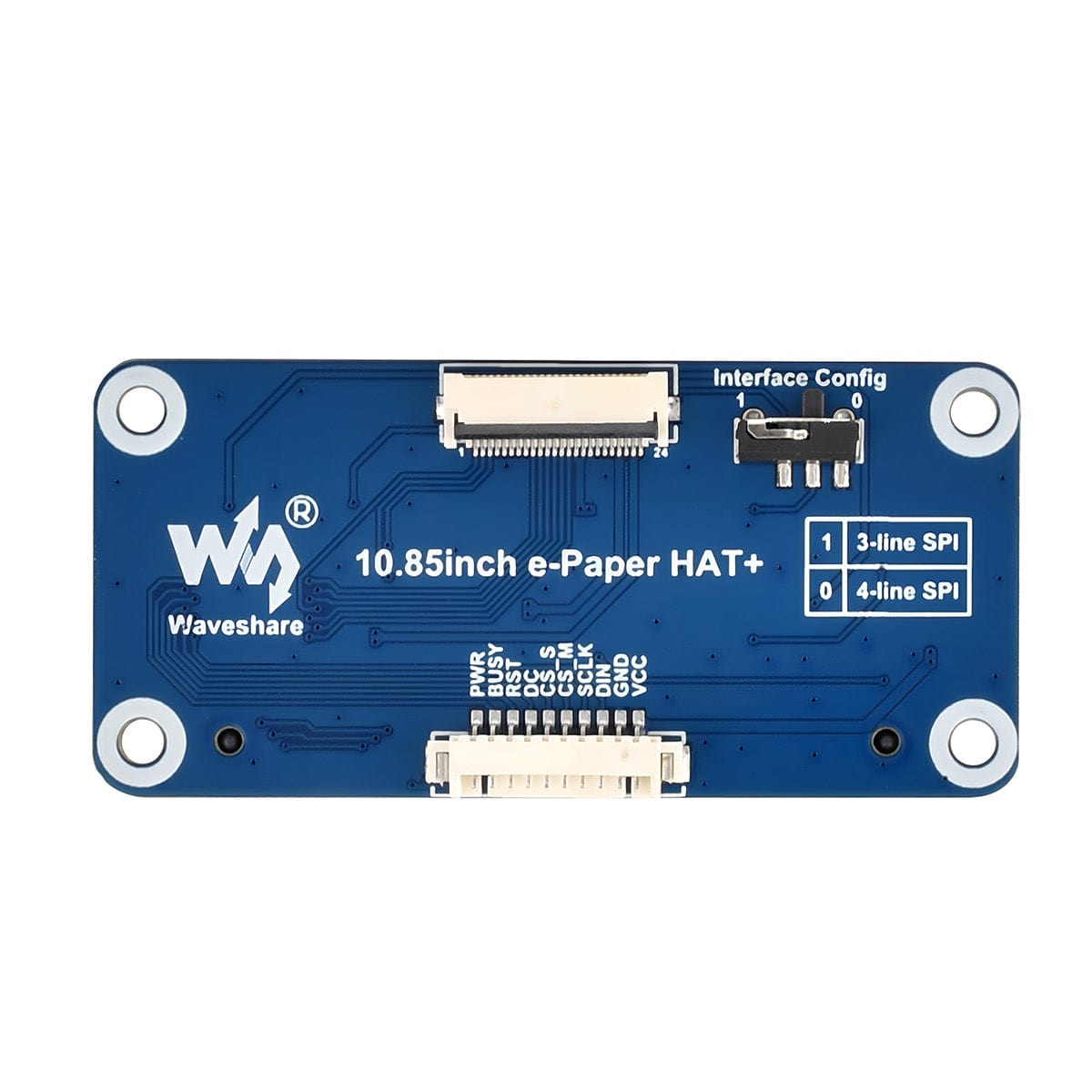

HAT Pinout

  • VCC – 3.3V / 5V
  • GND – Ground
  • DIN – SPI MOSI pin
  • SCLK – SPI SCK pin
  • CS_M – e-Paper M area chip selection (active low)
  • CS_S – e-Paper S area chip selection (active low)
  • DC – Data / Command selection (high for data, low for command)
  • RST – External reset (active low)
  • BUSY – Busy status output
  • PWR – Power control pin

Package Contents

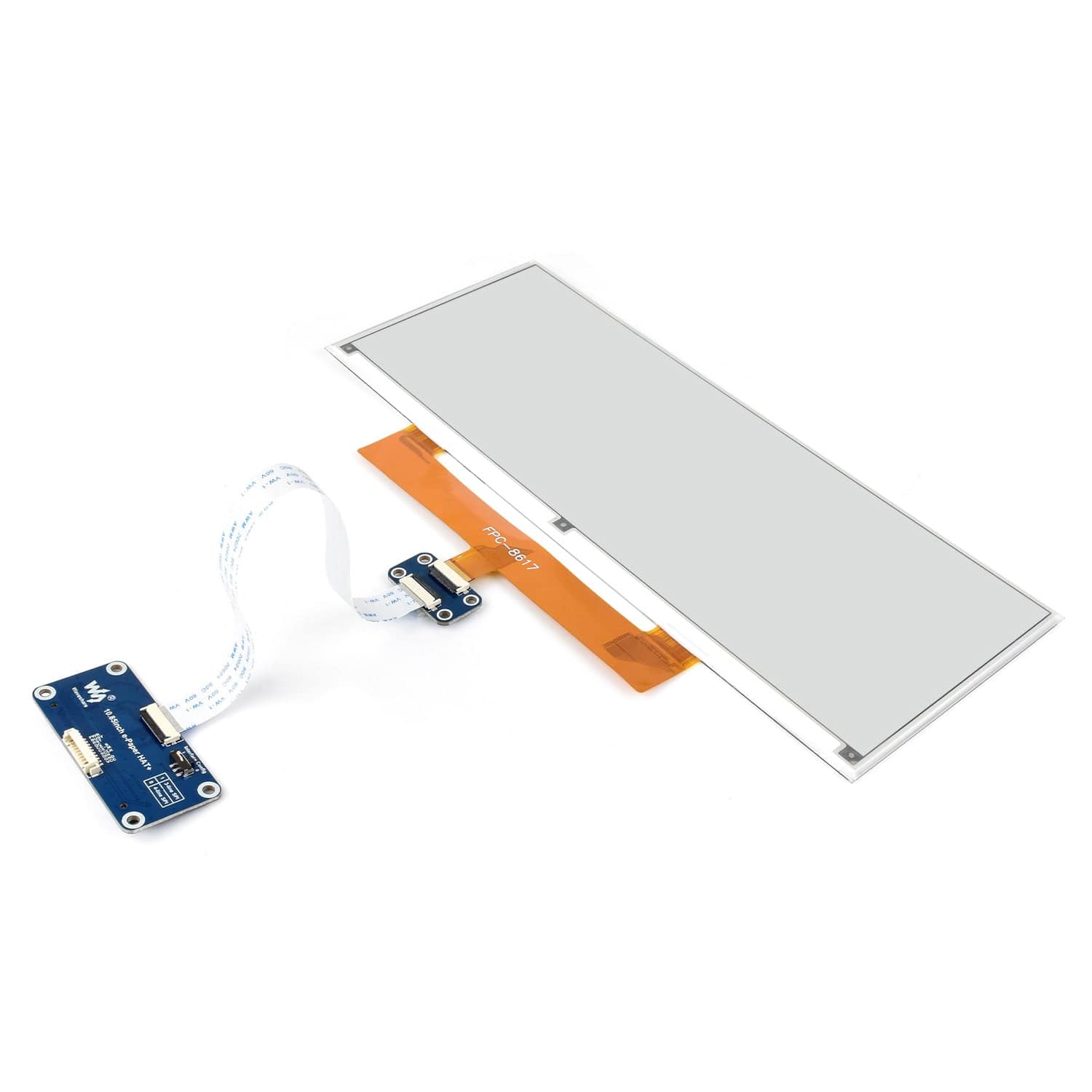

  • 1x 10.85" e-Paper display (G)
  • 1x e-Paper Driver HAT for Raspberry Pi

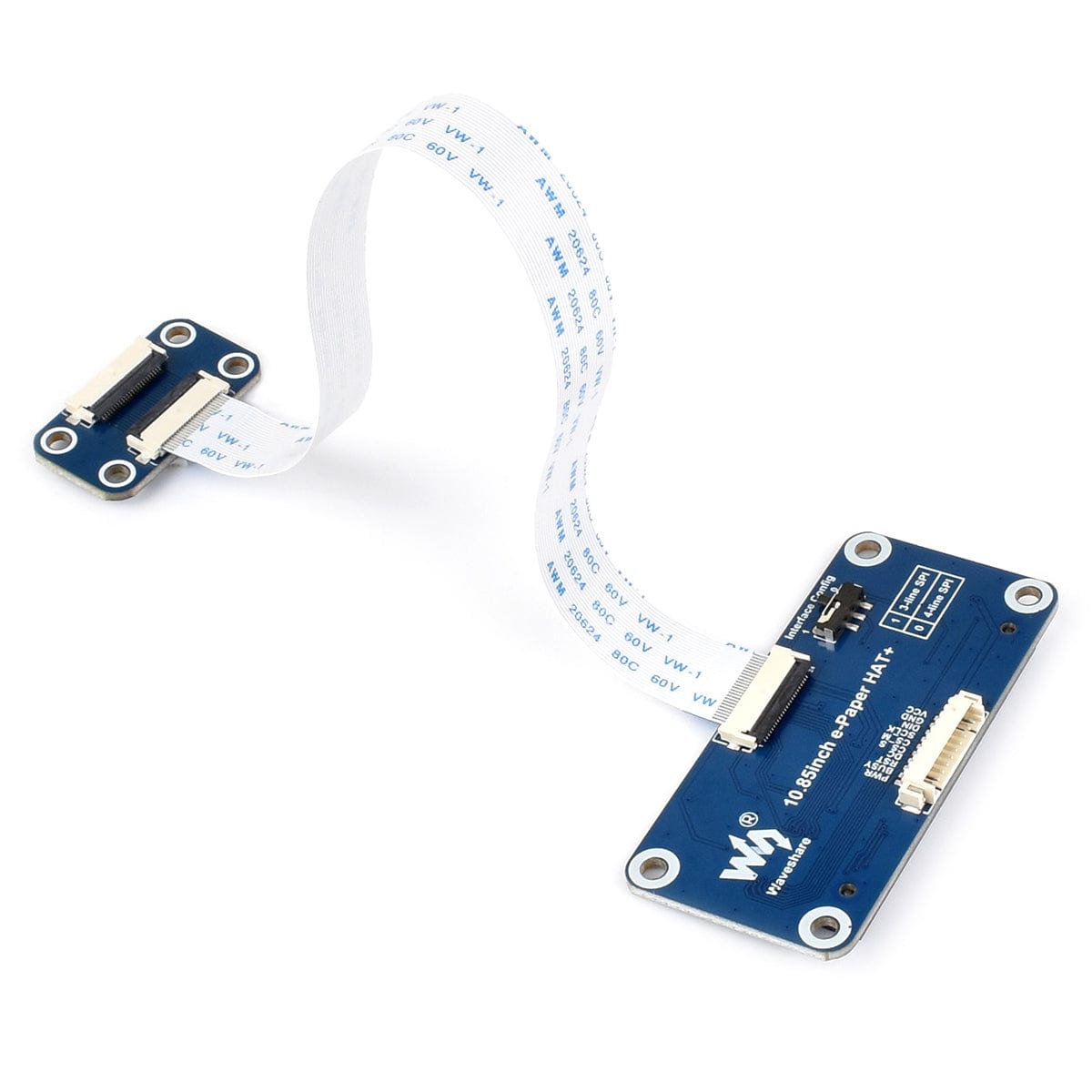

  • 1x MX1.25 10-pin cable x1
  • 1x Screws pack x1

Raspberry Pi not included.
