Offering a more comfortable viewing size than some of our mini displays, this 10.1" IPS touchscreen display connects to your Raspberry Pi (4/3/3A+) via the DSI ribbon cable connection and includes Raspberry Pi mounting points - meaning your GPIO header remains completely free for your HATs and components.

To use this DSI display with a Raspberry Pi 5, you will need to buy this adapter cable!

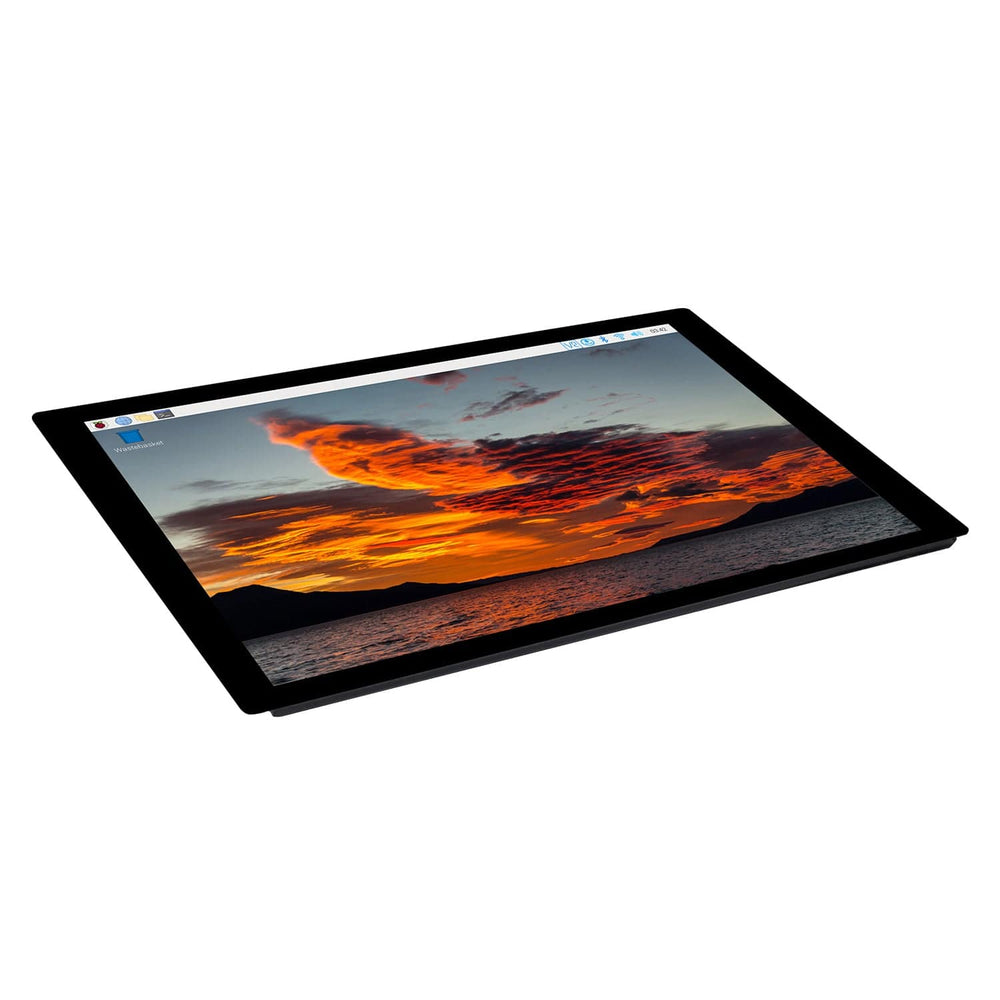

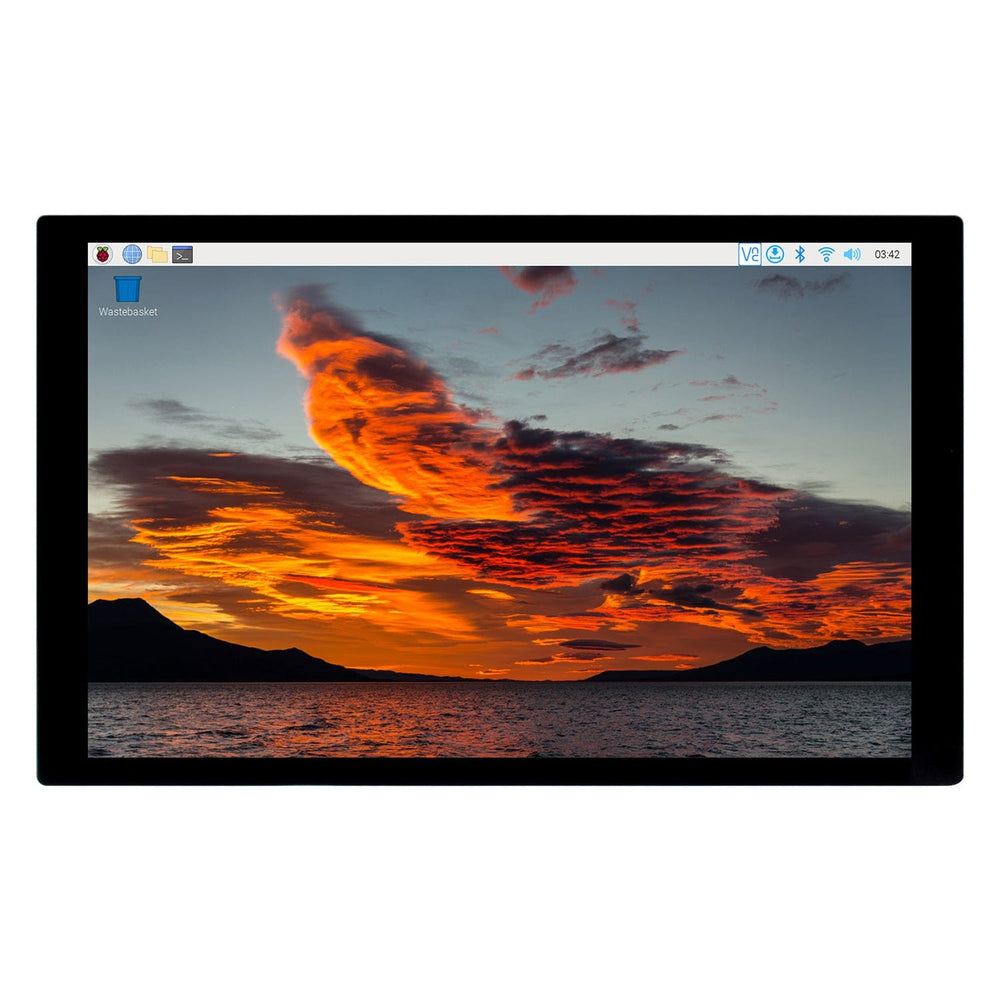

The 10.1" IPS panel offers clear 178° viewing angles with a 1280x800 HD resolution and toughened glass. The touch interface offers up to 10-point touch (OS dependent) to allow you to interact with your projects and day-to-day activities without the need for peripherals.

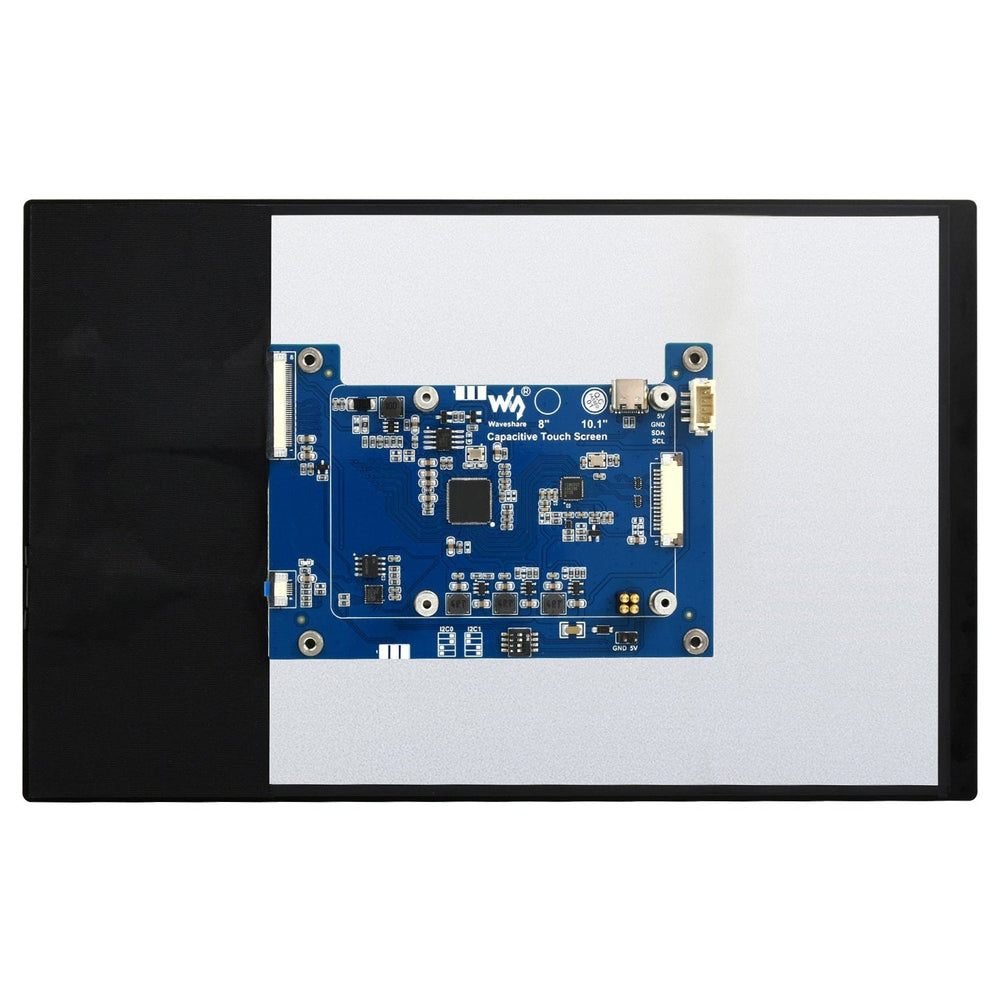

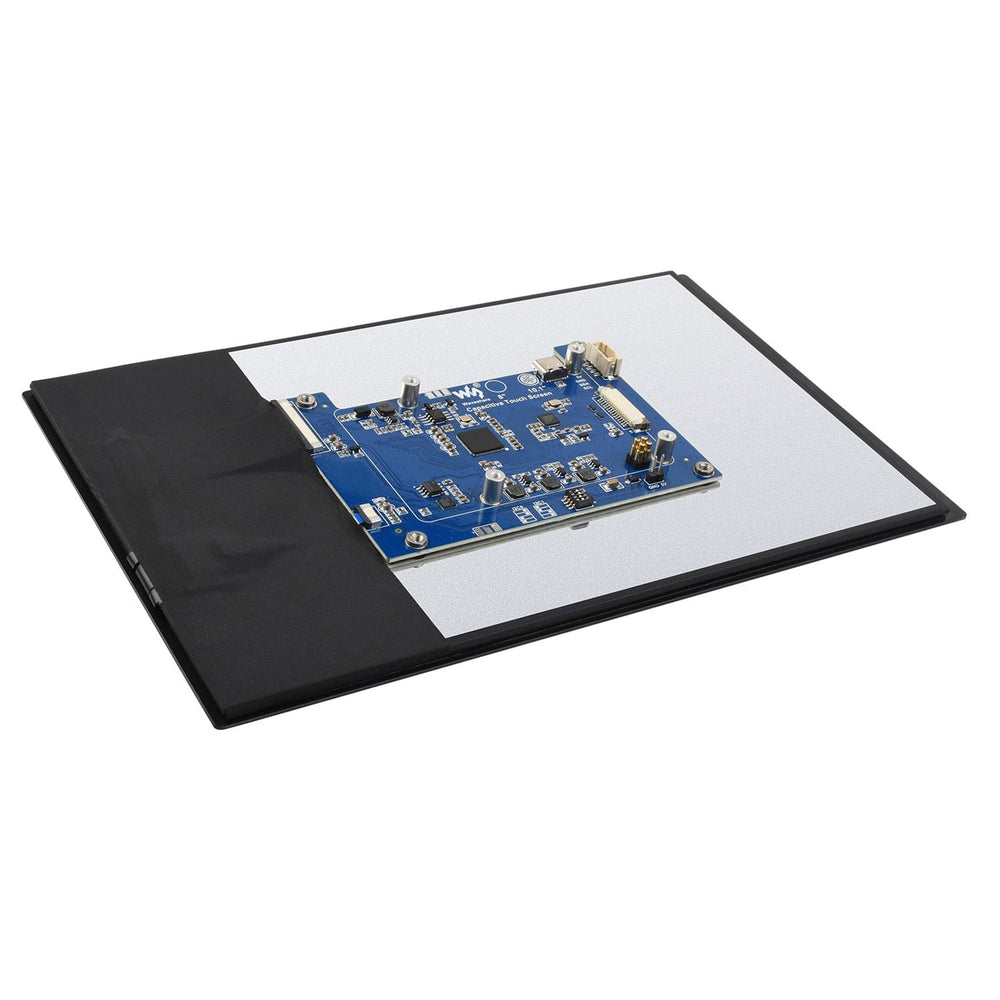

Pogo pins are used on the display's PCB board to provide power and the touch data connection, meaning you don't need an additional power supply to fuel the display. If you want to mount your Raspberry Pi away from the display, just use the DSI cable and power the Raspberry Pi and Display separately (the display will require at least 5V 1A via the USB-C port).

There's also a 5V/GND pin header on the display to run a 5V fan or a low-power 5V device.

10.1 IPS DSI Capacitive Touch Display Connection Example

Features

  • 10.1" IPS capacitive touchscreen
  • Hardware resolution of 1280 x 800
  • Optical bonding technique, clearer imaging
  • Supports 10-point capacitive touch control
  • Tempered glass touch panel with 6H hardness
  • USB-C port for separate powering (when Raspberry Pi isn;t mounted directly on the display)
  • Can be directly connected to the LCD by the DSI interface of the Raspberry Pi - refresh rate is up to 60Hz
  • Raspberry Pi OS system driver provided
  • Supports Raspberry Pi 4B/3B+/3A+
  • Supports backlight adjusted by software
  • 5V/GND pin header

Design Features

Resources

Package Contents

  • 1x 10.1" DSI LCD (C)
  • 2x FPC DSI 1.0 pitch 15-pin ribbon cable 50mm (opposite sides)
  • 1x Standoffs and screws pack

Raspberry Pi and power supply not included
